Toyota RAV4
2000-08 → 2005-11 · chassis ACA2# · catalogue 662420 · Europe
Discontinued model
Data version 2006-06

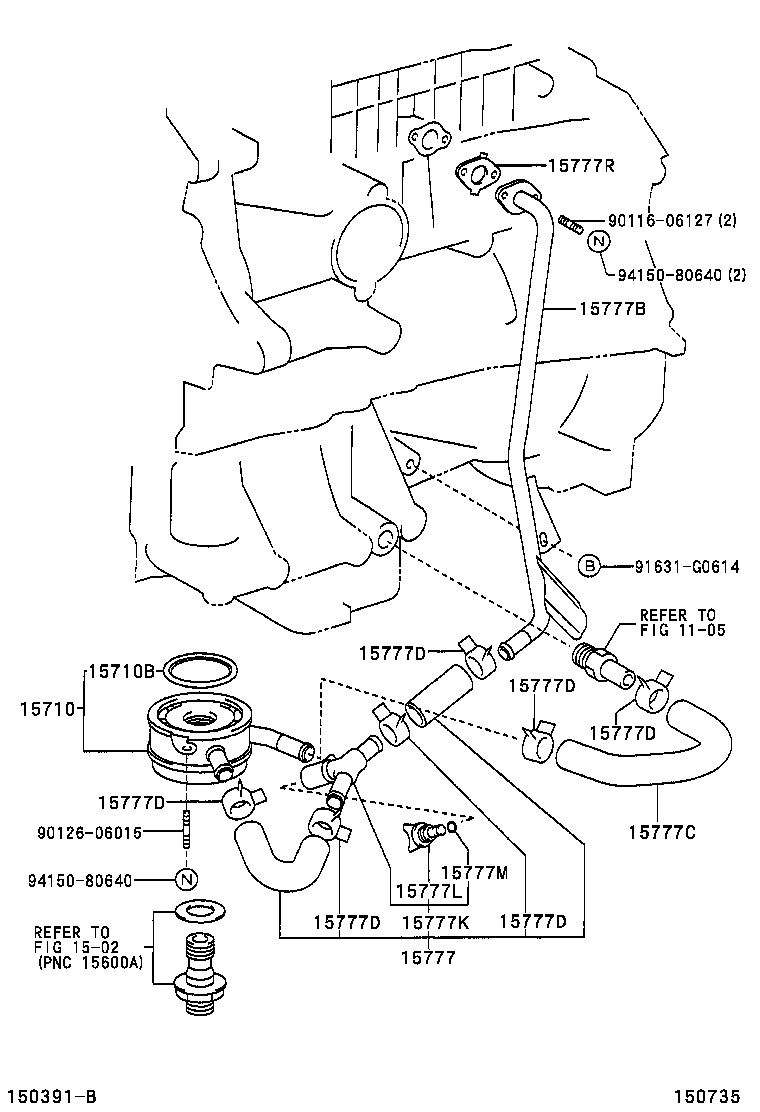

Engine Oil Cooler
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15710 | Cooler Assy, Oil |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15777 | Hose, Oil Cooler |
| 15777B | Pipe, Oil Cooler |
| 15777C | Hose, Oil Cooler |
| 15777D | Clamp OR Clip, Hose(FOR OIL COOLER HOSE) |
| 15777K | Cock Assy, Drain(FOR OIL COOLER HOSE) |
| 15777L | Plug,Air(FOR OIL COOLER DRAIN COCK) |
| 15777M | Ring, O(FOR OIL COOLER DRAIN COCK) |
| 15777R | Gasket(FOR OIL COOLER PIPE UNION BOLT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
