Manifold

13 part groups · 2 illustrations

Illustrations

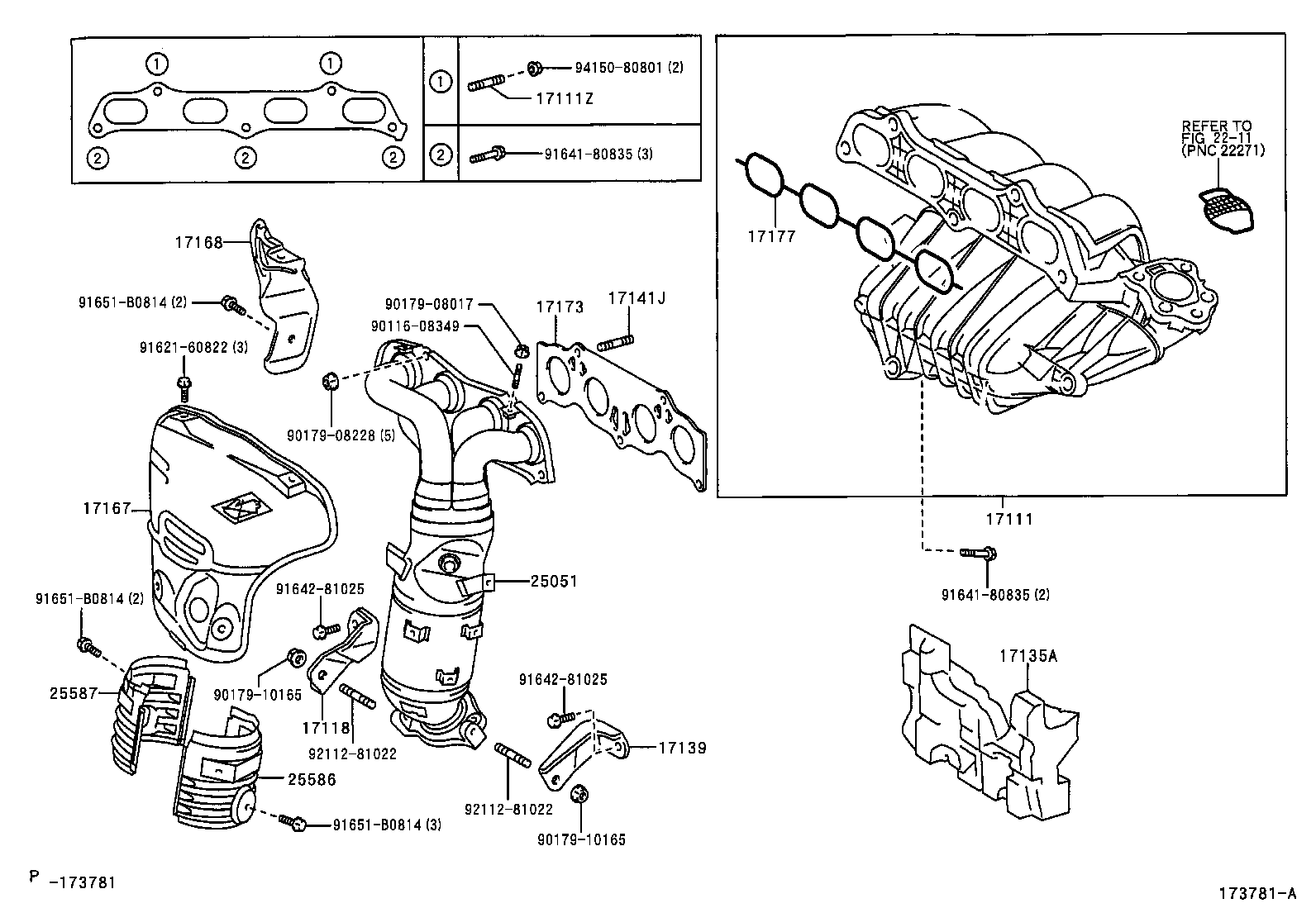

Figure 172694C 172694C 2000-08 → 2003-07 Figure 173781A 173781A 2003-07 → —

Part groups

PNCDescription
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17135A Insulator, Intake Manifold, NO.1
17139 Stay, Manifold, NO.2
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
25051 Converter Sub-assy, Exhaust Manifold
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
