Toyota RAV4

2000-08 → 2005-11 · chassis ACA2# · catalogue 662420 · Europe

Discontinued model Data version 2006-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

7 part groups · 2 illustrations

Illustrations

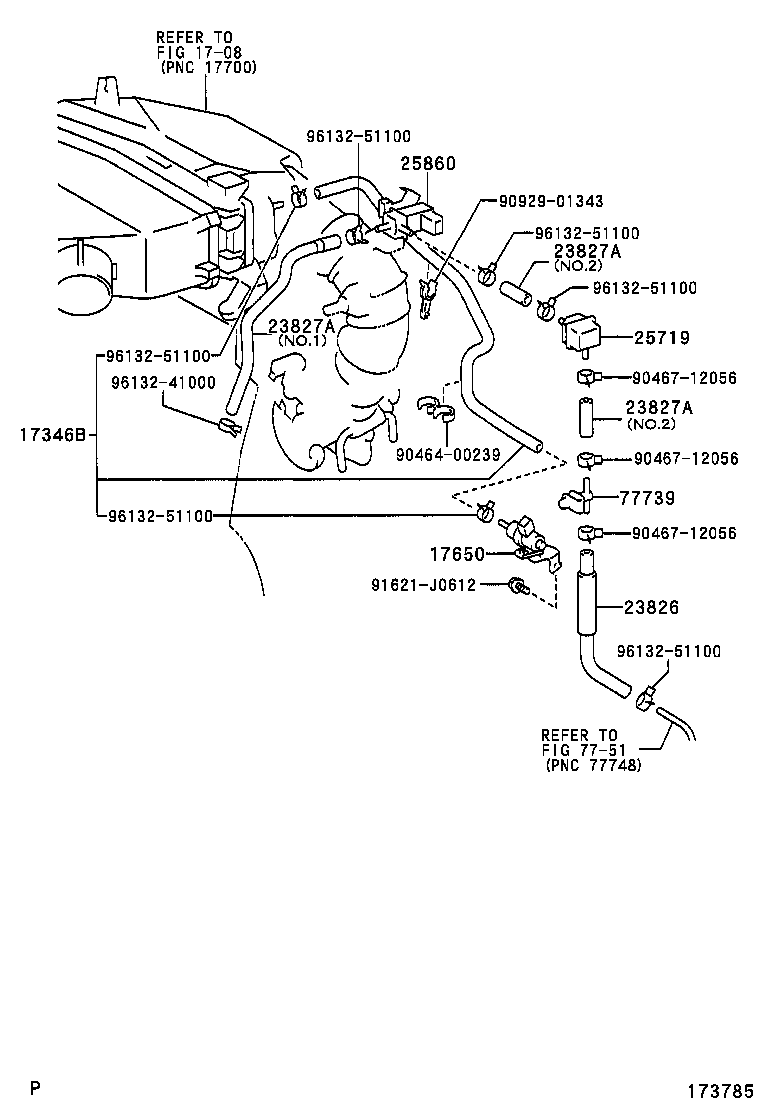

Figure 172672C 172672C 2000-08 → 2003-07 Figure 173785 173785 2003-07 → —

Part groups

PNCDescription
17346B Hose, Air, NO.6
17650 Valve Assy, Vacuum Switching
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
25719 Tank, Vacuum Surge
25860 Valve Assy, Vacuum Switching, NO.1
77739 Valve, Evap Service Port
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
