Toyota RAV4
2000-08 → 2005-11 · chassis ACA2# · catalogue 662420 · Europe
Discontinued model
Data version 2006-06

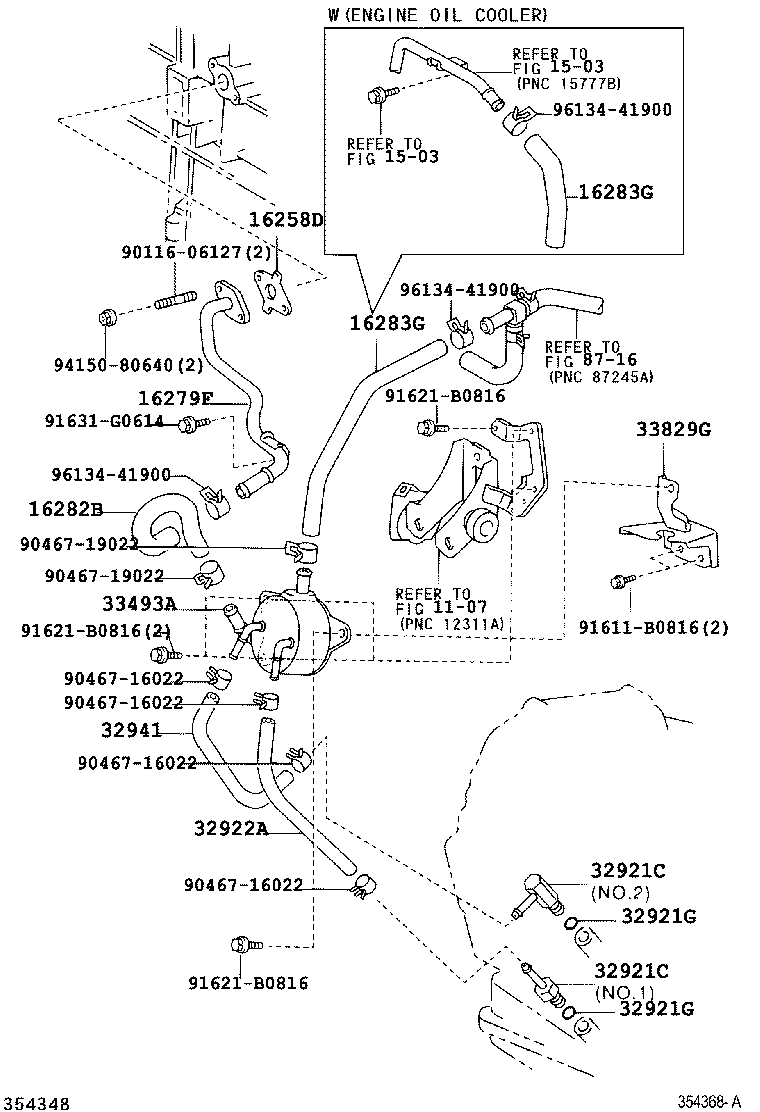

Oil Cooler & Tube (ATM)
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16258D | Gasket(FOR WATER BY-PASS PIPE) |
| 16279F | Pipe, Water By-pass, NO.3 |
| 16282B | Hose, Water By-pass, NO.5 |
| 16283G | Hose, Water By-pass, NO.6 |
| 32921 | Tube, Oil Cooler Inlet, NO.1 |
| 32921C | Union(FOR OIL COOLER TUBE) |
| 32921D | Hose(FOR OIL COOLER INLET) |
| 32921G | Ring, O(FOR OIL COOLER TUBE UNION) |
| 32921J | Clip(FOR OIL COOLER HOSE) |
| 32922 | Tube, Oil Cooler Outlet, NO.1 |
| 32922A | Hose(FOR OIL COOLER OUTLET) |
| 32923A | Clamp, Automatic Transmission Oil Cooler Tube |
| 32926 | Cushion, Oil Cooler Tube(ATM) |
| 32941 | Hose, Oil Cooler Inlet, NO.1 |
| 33493A | Cooler, Transmission Oil(ATF WARMER) |
| 33829G | Support, Transmission Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
