Toyota RAV4
2000-08 → 2005-11 · chassis ACA2# · catalogue 662420 · Europe
Discontinued model
Data version 2006-06
Instrument Panel & Glove Compartment

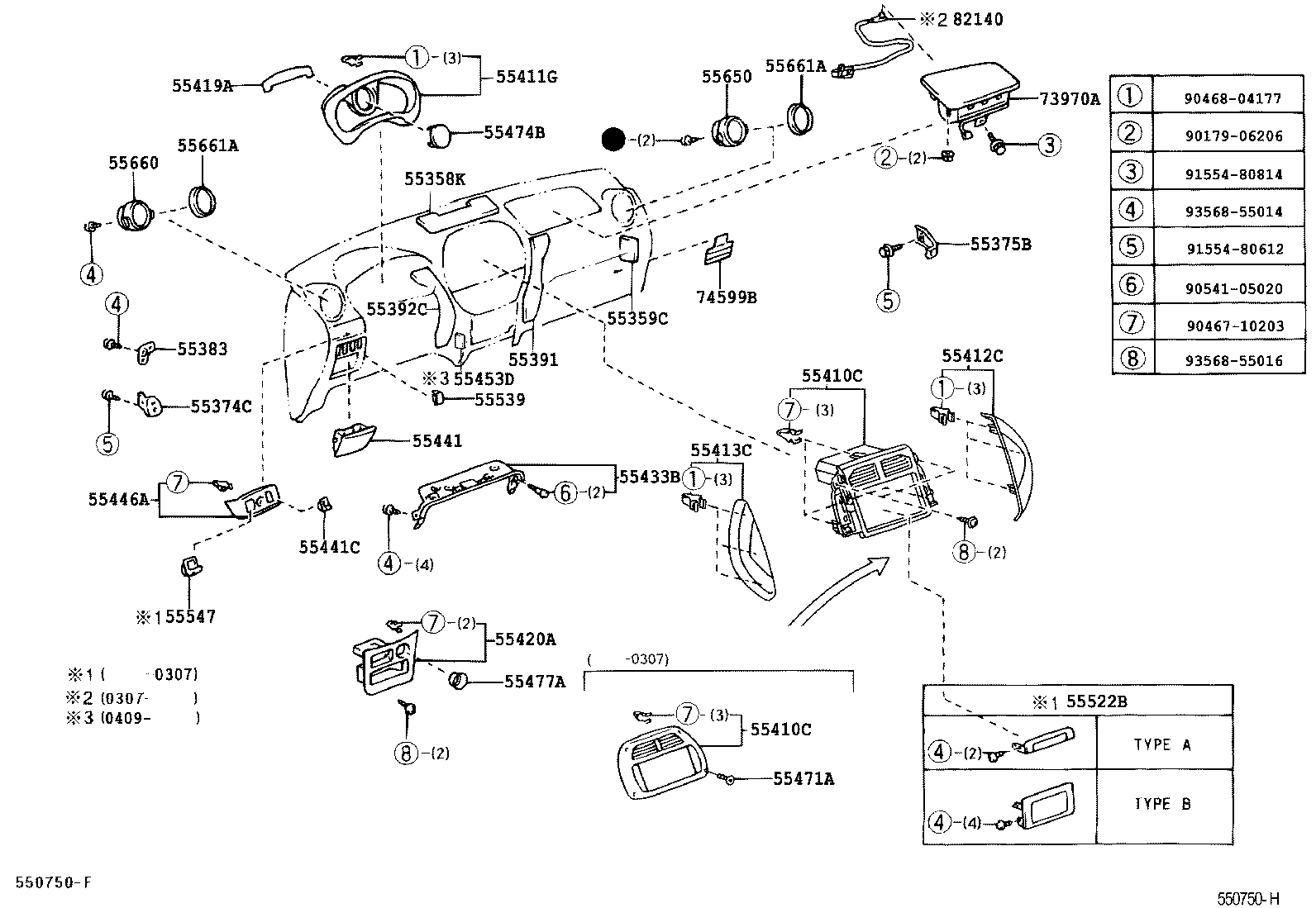

57 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55317A | Panel, Instrument Side, RH |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55358K | Cushion, Instrument Panel, NO.4 |
| 55359C | Coshion, Instrument Panel, NO.5 |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55375B | Bracket, Instrument Panel Lower Mounting, NO.2 |
| 55377A | Bracket, Instrument Panel Mounting, NO.2 |
| 55383 | Bracket, Finish Panel Mounting, NO.3 |
| 55391 | Cushion, Instrument Panel, Lower NO.1 |
| 55392C | Cushion, Instrument Panel, Lower NO.2 |
| 55394E | Cushion, Instrument Panel, Lower NO.4 |
| 55406C | Insert Sub-assy, Instrument Panel, Lower LH |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412C | Panel, Instrument Cluster Finish, Center NO.1 |
| 55413C | Panel, Instrument Cluster Finish, Center NO.2 |
| 55419A | Cushion, Instrument Cluster Finish Panel |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55441 | Box, Instrument Panel |
| 55441C | Box, Instrument Panel Coin |
| 55444A | Spring, Instrument Panel Box |
| 55446A | Base, Switch Hole, NO.1 |
| 55453D | Pad, Instrument Panel Safety, NO.1 |
| 55471A | Ornament, Instrument Cluster Finish Panel |
| 55474B | Garnish, Instrument Cluster Finish Panel |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55510 | Door Assy, Glove Compartment |
| 55522B | Cover, Radio Tuner Opening |
| 55539 | Cover, Spare Switch Hole |
| 55547 | Cover, Remote Control Mirror Hole |
| 55558 | Reinforcement, Glove Compartment Door |
| 55565 | Handle, Glove Compartment Door Lock |
| 55569 | Cover, Glove Compartment Door Lock |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55606C | Clip(FOR INSTRUMENT PANEL UNDER COVER) |
| 55611 | Tray, Instrument Panel Under |
| 55613 | Pad, Instrument Panel Under Tray Silencer, NO.2 |
| 55614A | Pad, Instrument Panel Under Tray Silencer, NO.3 |
| 55642 | Cover, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55661A | Bezel, Instrument Panel Register |
| 55950 | Nozzle Assy, Defroster |
| 55971A | Duct, Side Defroster Nozzle, NO.1 |
| 55972 | Duct, Side Defroster Nozzle, NO.2 |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 74599B | Label, Driver & Passenger Airbag Information |
| 82140 | Wire Assy, Instrument Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
