Toyota RAV4
2000-08 → 2005-11 · chassis ACA2# · catalogue 662420 · Europe
Discontinued model
Data version 2006-06

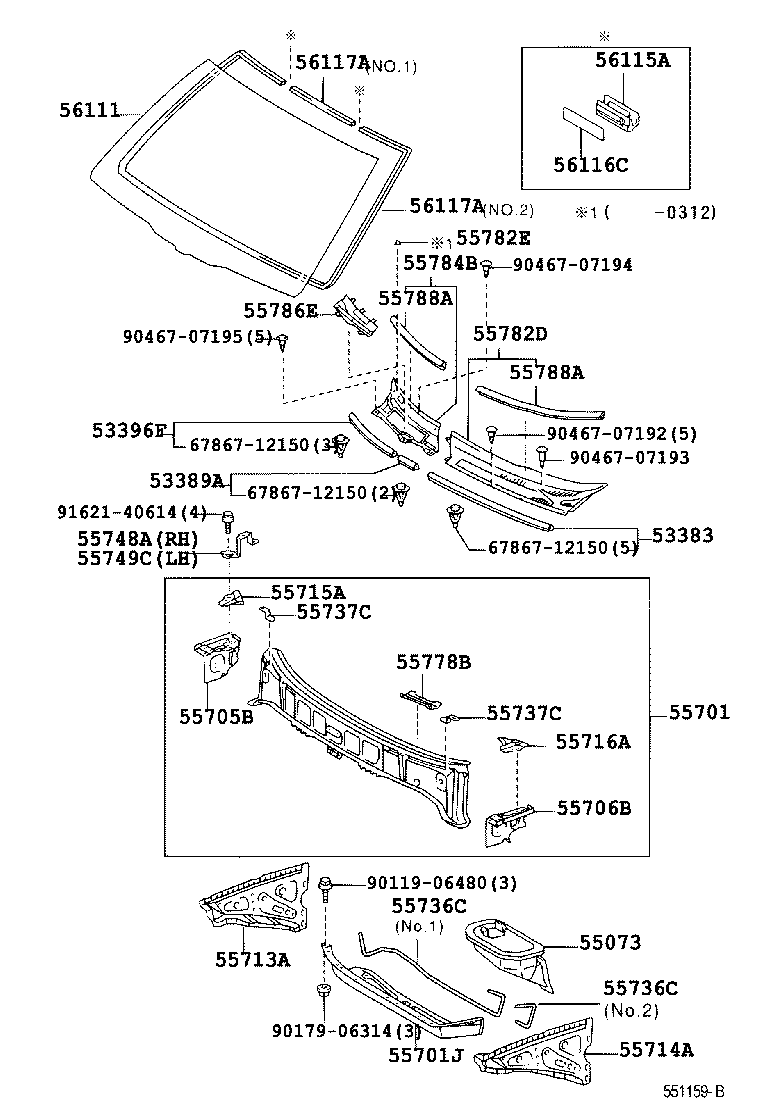

Cowl Panel & Windshield Glass
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53383 | Seal, Hood TO Cowl Top |
| 53389A | Seal, Hood TO Cowl Top, NO.2 |
| 53396F | Seal, Hood TO Front End Panel, NO.2. |
| 55073 | Nozzle Sub-assy, Cowl Panel Water Extract |
| 55701 | Panel Sub-assy, Cowl |
| 55701J | Panel Sub-assy, Cowl Top, Outer |
| 55705B | Panel Sub-assy, Cowl Top Side, RH |
| 55706B | Panel Sub-assy, Cowl Top Side, LH |
| 55713A | Panel, Cowl Top Side, RH |
| 55714A | Panel, Cowl Top Side, LH |
| 55715A | Brace, Cowl Top TO Apron, RH |
| 55716A | Brace, Cowl Top TO Apron, LH |
| 55736C | Seal, Water Guard Plate |
| 55737C | Bracket, Cowl Top Outer Panel, NO.3 |
| 55748A | Brace, Cowl Top Inner TO Pillar |
| 55749C | Brace, Cowl Top Inner TO Pillar, LH |
| 55778B | Bracket, Identification Number Plate |
| 55782D | Louver, Cowl Top Ventilator, LH |
| 55782E | Protector, Cowl Top Ventilator Louver |
| 55784B | Louver, Cowl Top Ventilator, Center NO.2 |
| 55786E | Plate, Cowl Top Ventilator Louver |
| 55788A | Protector, Cowl Top Ventilator Louver |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117A | Dam, Window Glass Adhesive |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
