Toyota RAV4
2000-08 → 2005-11 · chassis ACA2# · catalogue 662420 · Europe
Discontinued model
Data version 2006-06

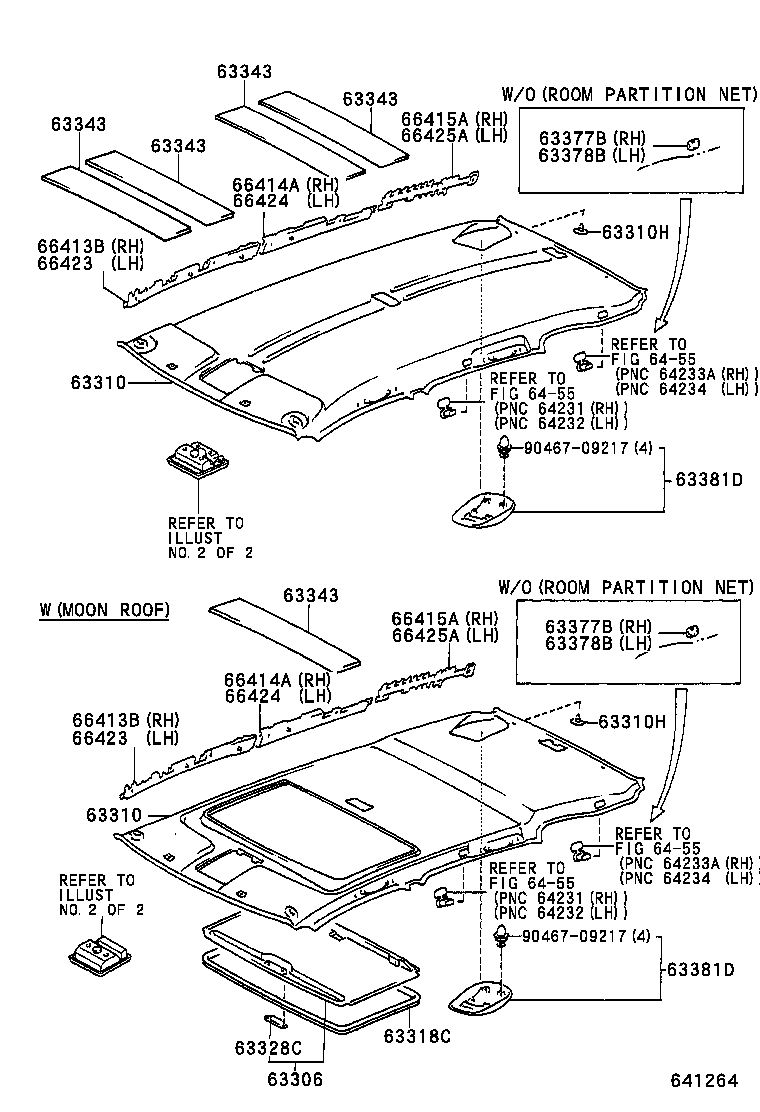

Roof Headlining & Silencer Pad
20 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63328C | Knob, Sunshade Trim |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63375D | Moulding, Roof Headlining |
| 63377B | Moulding, Roof Headlining, Rear RH |
| 63378B | Moulding, Roof Headlining, Rear LH |
| 63381D | Garnish, Roof Headlining Trim, RH |
| 63650A | Box Assy, Roof Console |
| 63650B | Bulb, Roof Console Box |
| 63652C | Cover, Roof Console Box |
| 66413B | Spacer, Side Rail, Front RH |
| 66414A | Spacer, Side Rail, Rear RH |
| 66415A | Spacer, Side Rail, Rear NO.2 RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66424 | Spacer, Side Rail, Rear LH |
| 66425A | Spacer, Side Rail, Rear NO.2 LH |
| 81231D | Lens, Courtesy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
