Toyota RAV4

2000-08 → 2005-11 · chassis ACA2# · catalogue 662420 · Europe

Discontinued model Data version 2006-06

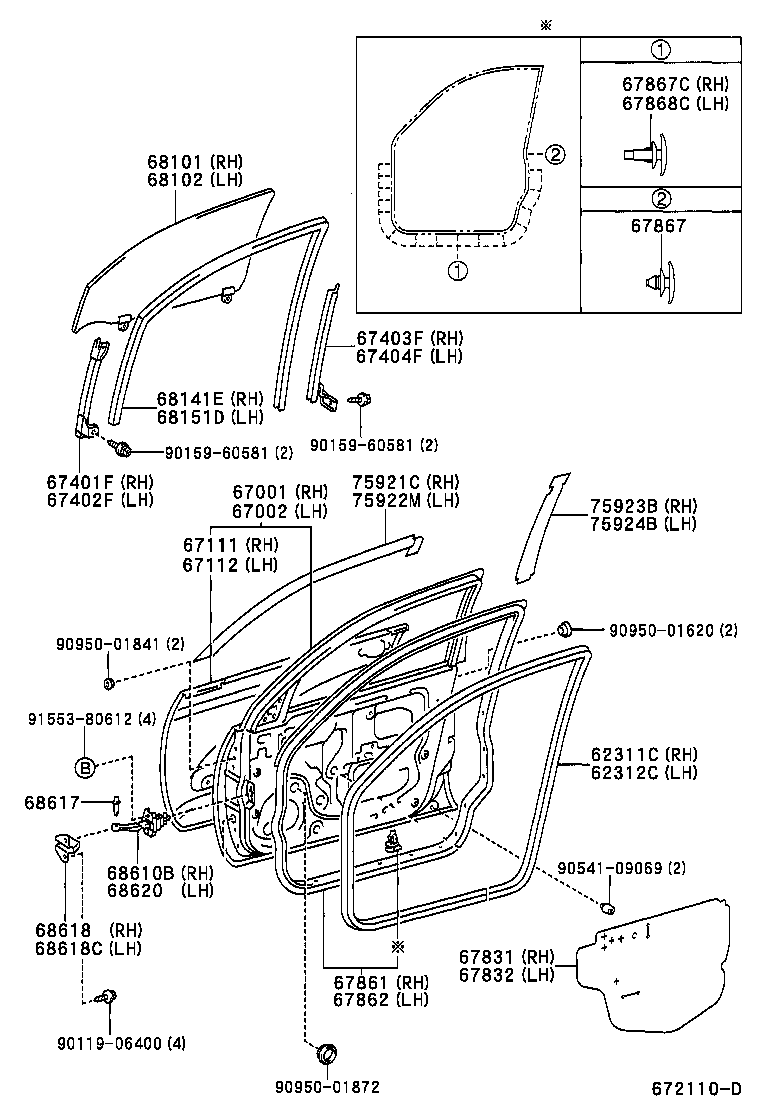

Front Door Panel & Glass

38 part groups · 5 illustrations

PNC	Description
62311C	Weatherstrip, Front Door Opening Trim, RH
62312C	Weatherstrip, Front Door Opening Trim, LH
67001	Panel Sub-assy, Front Door, RH
67002	Panel Sub-assy, Front Door, LH
67111	Panel, Front Door, Outer RH
67112	Panel, Front Door, Outer LH
67401F	Frame Sub-assy, Front Door, Front Lower RH
67402F	Frame Sub-assy, Front Door, Front Lower LH
67403F	Frame Sub-assy, Front Door, Rear Lower RH
67404F	Frame Sub-assy, Front Door, Rear Lower LH
67491A	Garnish, Front Door Lower Frame Bracket, RH
67492A	Garnish, Front Door Lower Frame Bracket, LH
67499	Retainer, Front Door Lower Frame Bracket Garnish
67601	Board Sub-assy, Front Door Trim, RH
67601B	Clip(FOR FRONT DOOR TRIM BOARD)
67601L	Clip(FOR FRONT DOOR TRIM BOARD)
67602	Board Sub-assy, Front Door Trim, LH
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67861	Weatherstrip, Front Door, RH
67862	Weatherstrip, Front Door, LH
67867	Clip, Door Weatherstrip
67867C	Retainer, Front Door Weatherstrip, RH
67868C	Retainer, Front Door Weatherstrip, LH
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141E	Run, Front Door Glass, RH
68151D	Run, Front Door Glass, LH
68170	Weatherstrip Assy, Front Door Glass, Inner
68610B	Check Assy, Front Door, RH
68617	Pin, Front Door Check
68618	Bracket, Front Door Check Arm, RH
68618C	Bracket, Front Door Check Arm, LH
68620	Check Assy, Front Door, LH
75921C	Tape, Black Out, NO.1 RH
75922M	Tape, Black Out, NO.1 LH
75923B	Tape, Black Out, NO.2 RH
75924B	Tape, Black Out, NO.2 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
