Toyota RAV4
2000-08 → 2005-11 · chassis ACA2# · catalogue 662420 · Europe
Discontinued model
Data version 2006-06
Fuel Tank & Tube

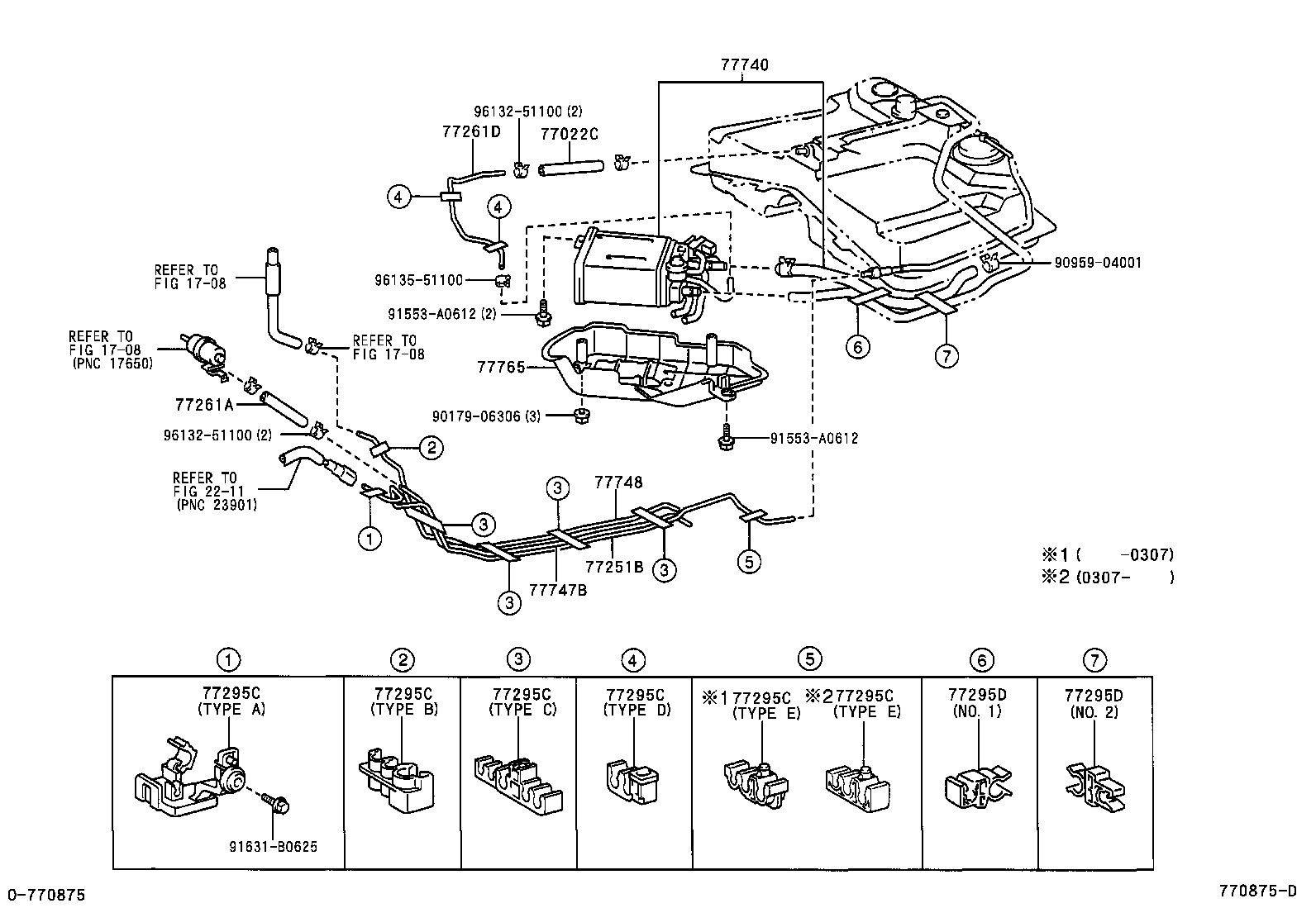

59 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 77013 | Tube Sub-assy, Fuel Tank Breather, NO.2 |
| 77022C | Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77175 | Support, Fuel Suction, NO.2 |
| 77177 | Gasket, Check Valve |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77196 | Clamp, Evaporation Vent Tube, NO.1 |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77209 | Connector Sub-assy, Fuel Tube |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77218A | Support, Fuel Tank Filler Pipe, NO.3 |
| 77225A | Tube, Fuel Tank Breather, NO.5 |
| 77226A | Tube, Fuel Tank Breather, NO.6 |
| 77229B | Tube, Fuel Tank Evaporation Vent, NO.3 |
| 77229C | Clamp, Breather Tube |
| 77241W | Clip, Tube Joint |
| 77251B | Tube, Fuel Main |
| 77261A | Hose, Fuel, NO.1 (FOR FUEL EMISSION TUBE) |
| 77261D | Tube, Fuel Tank TO Canister |
| 77269A | Hose, Fuel Tank Breather |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77295C | Grommet, Fuel Tube |
| 77295D | Grommet, Fuel Tube |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77390D | Valve Assy, Fuel Tank Over Fill Check |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77393 | Protector, Check Valve |
| 77409 | Hose Sub-assy, Fuel, NO.3 |
| 77444 | Hose, Fuel Tank Vent |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77606F | Case Sub-assy, Fuel Tank Cover Vent |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77642A | Protector, Fuel Tank, NO.2 |
| 77643A | Protector, Fuel Tank, NO.3 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77651B | Cushion, Fuel Tank |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77654A | Cushion, Fuel Tank, NO.4 |
| 77681A | Seat, Fuel Tank Band |
| 77740 | Canister Assy, Charcoal |
| 77747B | Tube, Charcoal Canister, NO.1 |
| 77748 | Pipe, Charcoal Canister, NO.2 |
| 77765 | Protector, Charcoal Canister |
| 77785 | Harness, Fuel Pump |
