Toyota RAV4

2000-08 → 2005-11 · chassis ACA2# · catalogue 662420 · Europe

Discontinued model Data version 2006-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

13 part groups · 3 illustrations

Illustrations

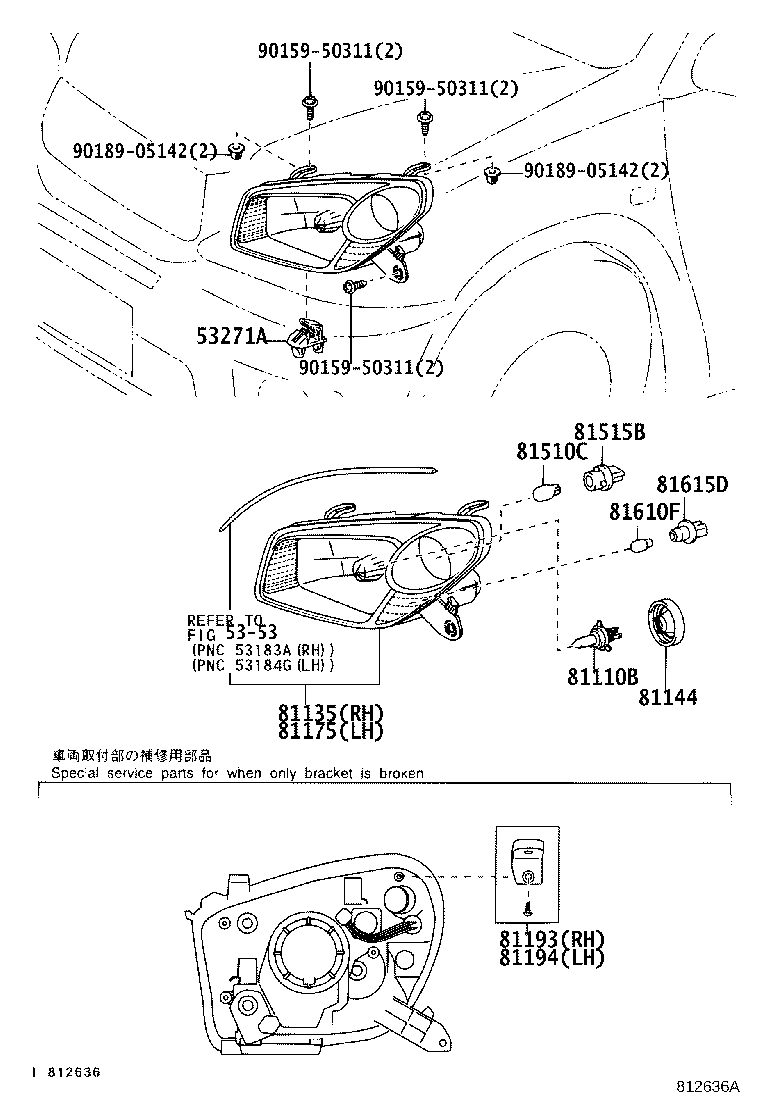

Figure 811481D 811481D 2000-08 → 2003-07 Figure 812185 812185 2000-08 → 2003-07 Figure 812636A 812636A 2003-07 → —

Part groups

PNCDescription
53271A Bracket, Headlamp Mounting
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
