Toyota RAV4
2000-08 → 2005-11 · chassis ACA2# · catalogue 662420 · Europe
Discontinued model
Data version 2006-06

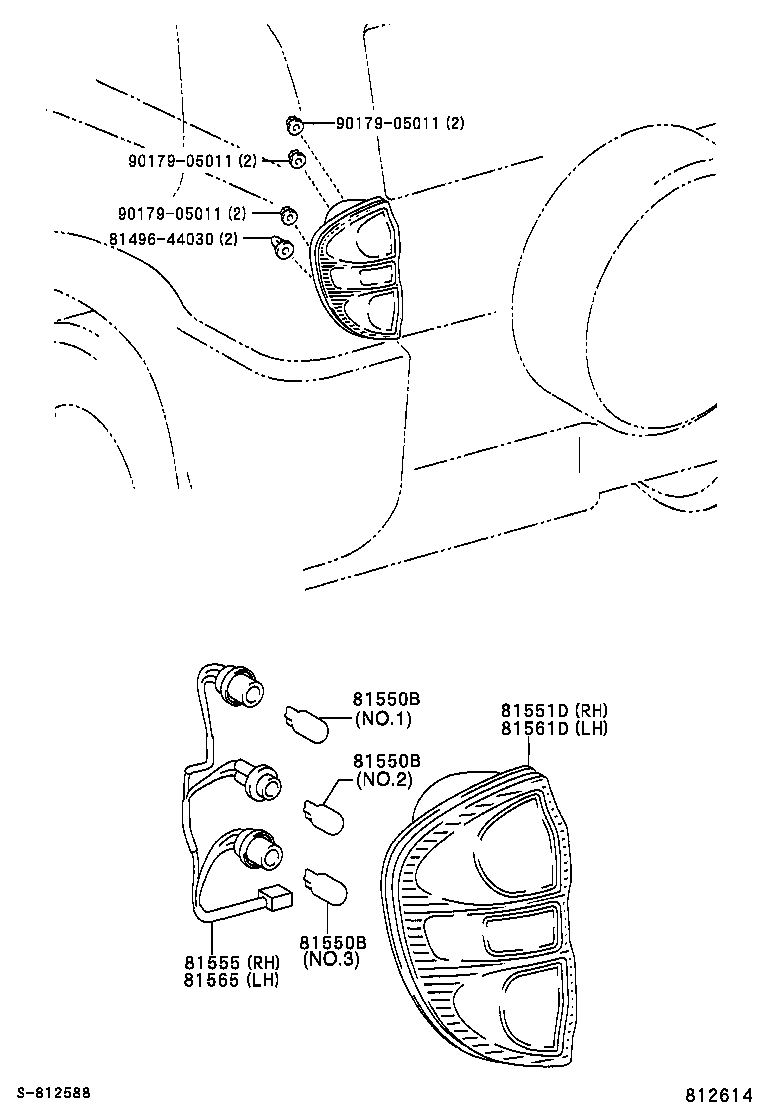

Rear Combination Lamp
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
