Toyota RAV4
2000-08 → 2005-11 · chassis ACA2# · catalogue 662420 · Europe
Discontinued model
Data version 2006-06
Wiring & Clamp
32 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82001C | Cable, Bond, NO.2 |

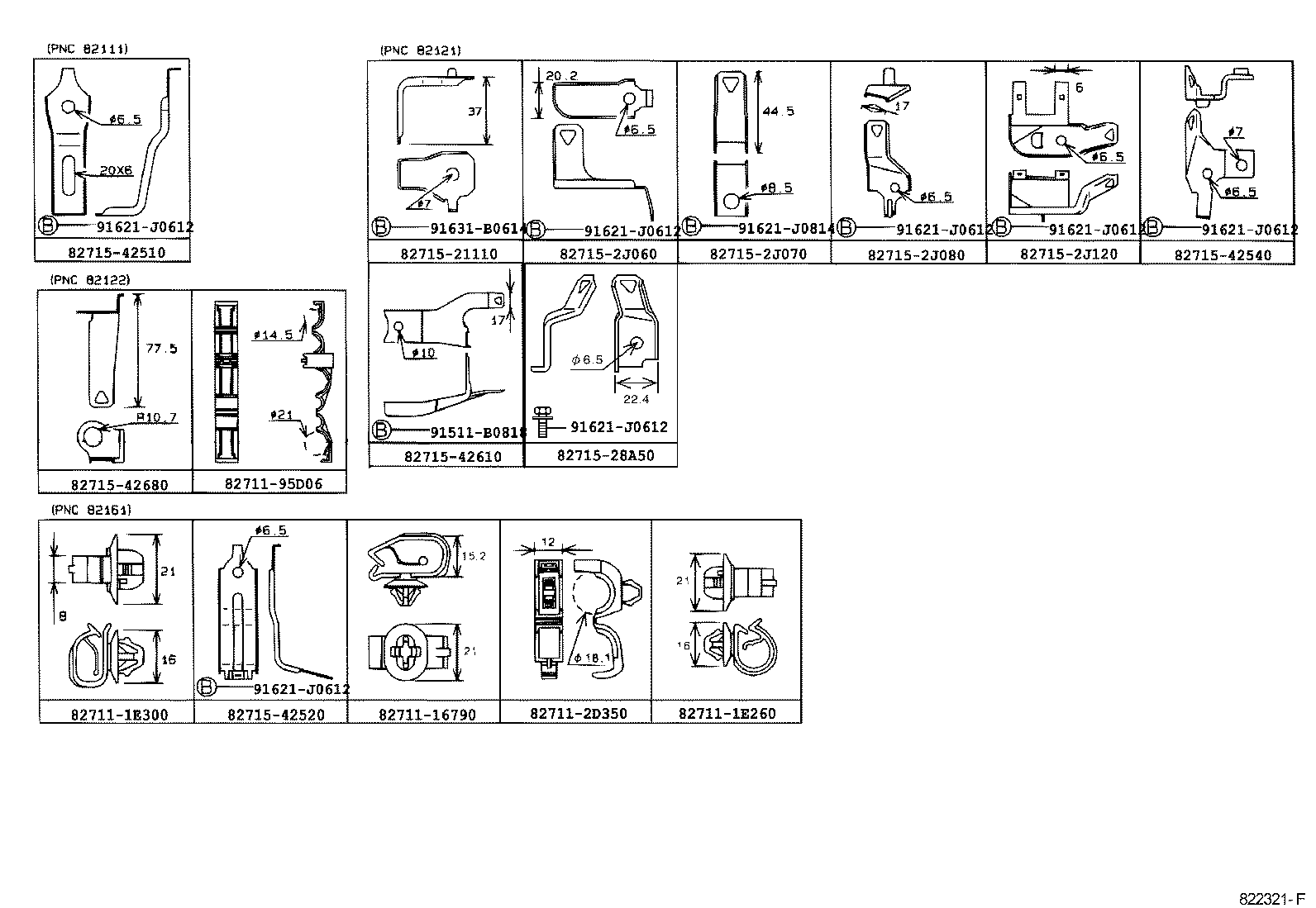

| 82111 | Wire, Engine Room Main |
| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |
| 82124A | Wire, Engine, NO.5 |

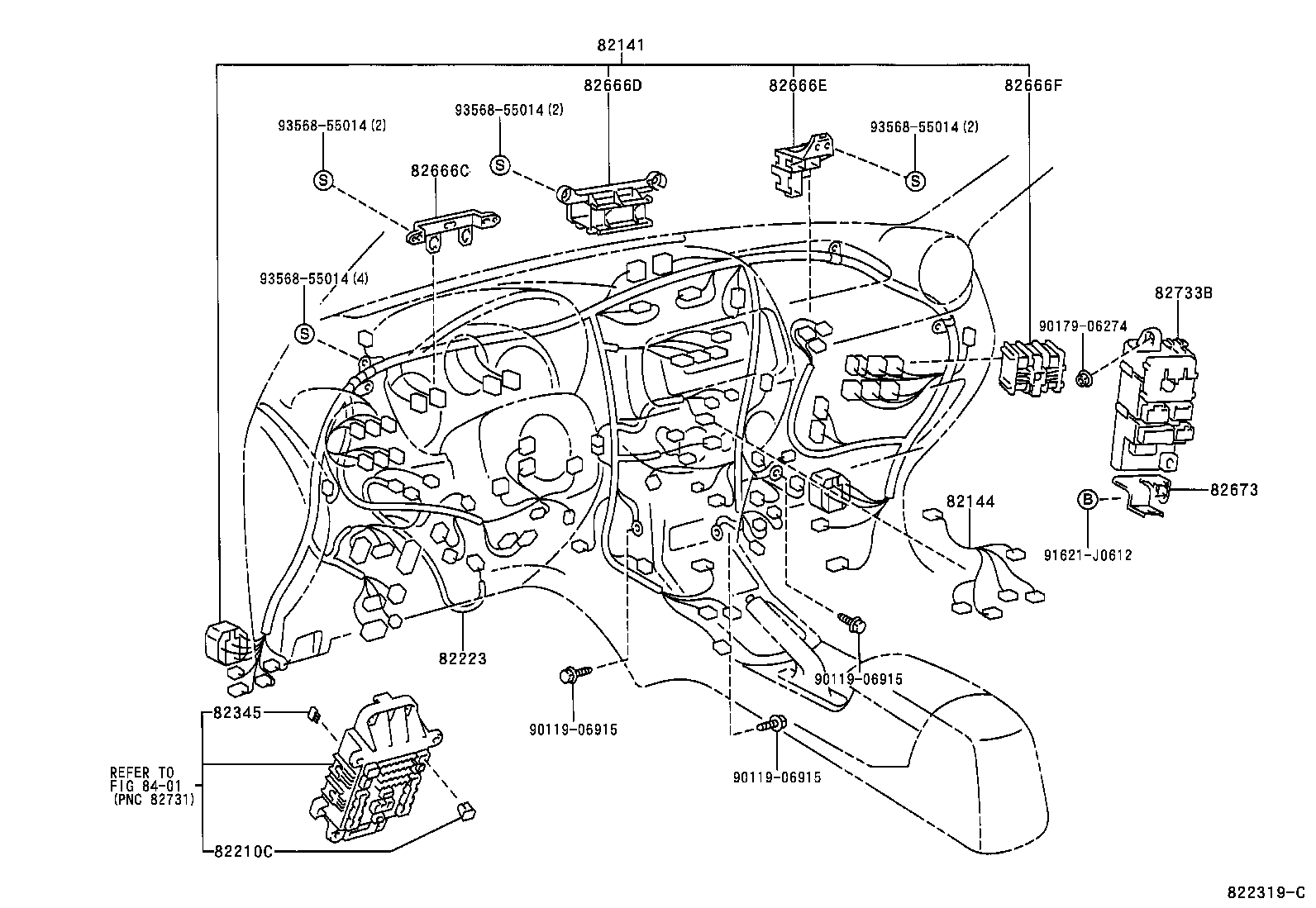

| 82141 | Wire, Instrument Panel |
| 82144 | Wire, Instrument Panel, NO.4 |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

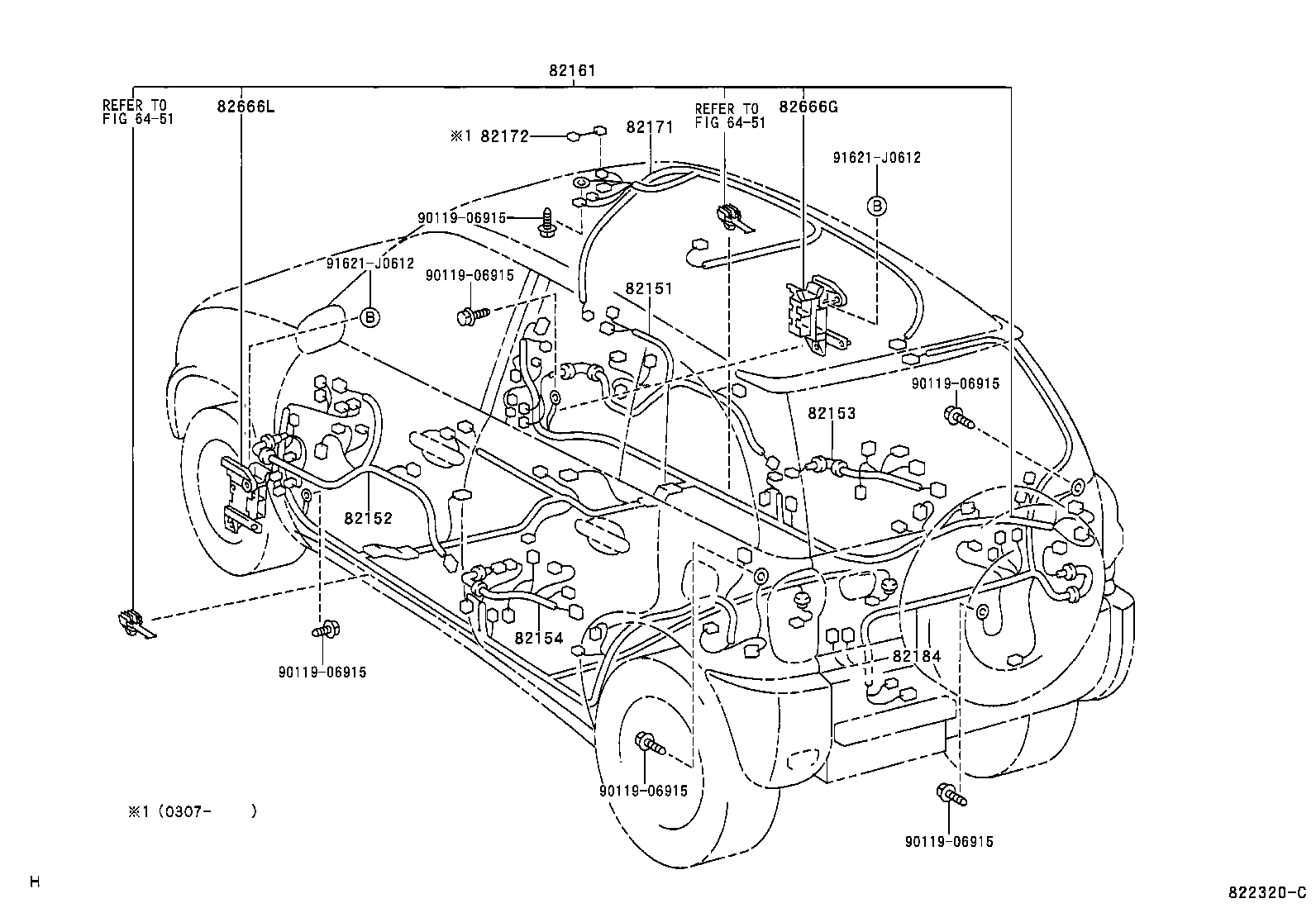

| 82161 | Wire, Floor |
| 82171 | Wire, Roof, NO.1 |
| 82172 | Wire, Roof, NO.2 |
| 82184 | Wire, Back Door, NO.1 |
| 82210C | Fusible Link |
| 82223 | Wire, Switch |
| 82345 | Diode |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82673 | Bracket, Junction Block |
| 82733B | Block, Passenger Side Junction |
| 82823S | Cap, Starter Terminal |
| 82823T | Cap, Alternator Terminal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
