Toyota RAV4
2000-08 → 2005-11 · chassis ACA2# · catalogue 662420 · Europe
Discontinued model
Data version 2006-06

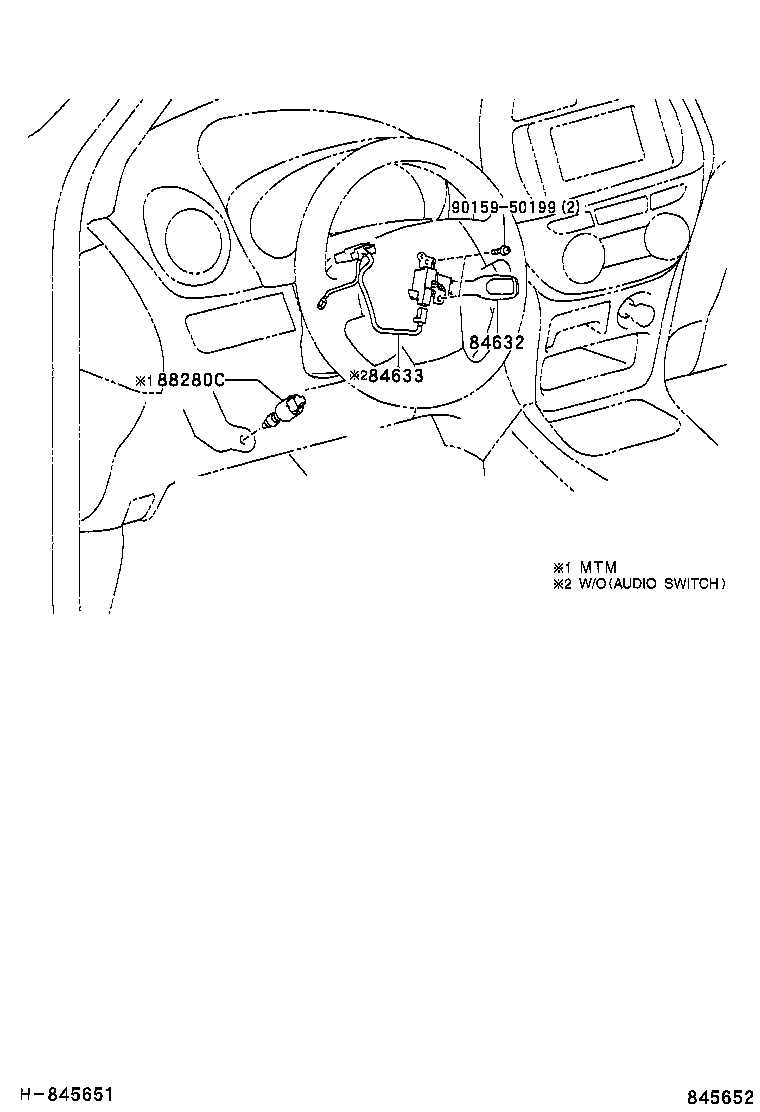

Cruise Control (AUTO DRIVE)
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84630 | Switch Assy, Cruise Control Main |
| 84632 | Switch, Cruise Control Main |
| 84633 | Wire, Cruise Control Switch |
| 88200D | Actuator Assy, Cruise Control |
| 88212A | Cover, Cruise Control Actuator |
| 88240 | Computer Assy, Cruise Control |
| 88280C | Switch Assy, Clutch |
| 88291 | Bracket, Cruise Control(AUTO DRIVE), NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
