Toyota RAV4
2000-08 → 2005-11 · chassis ACA2# · catalogue 662420 · Europe
Discontinued model
Data version 2006-06

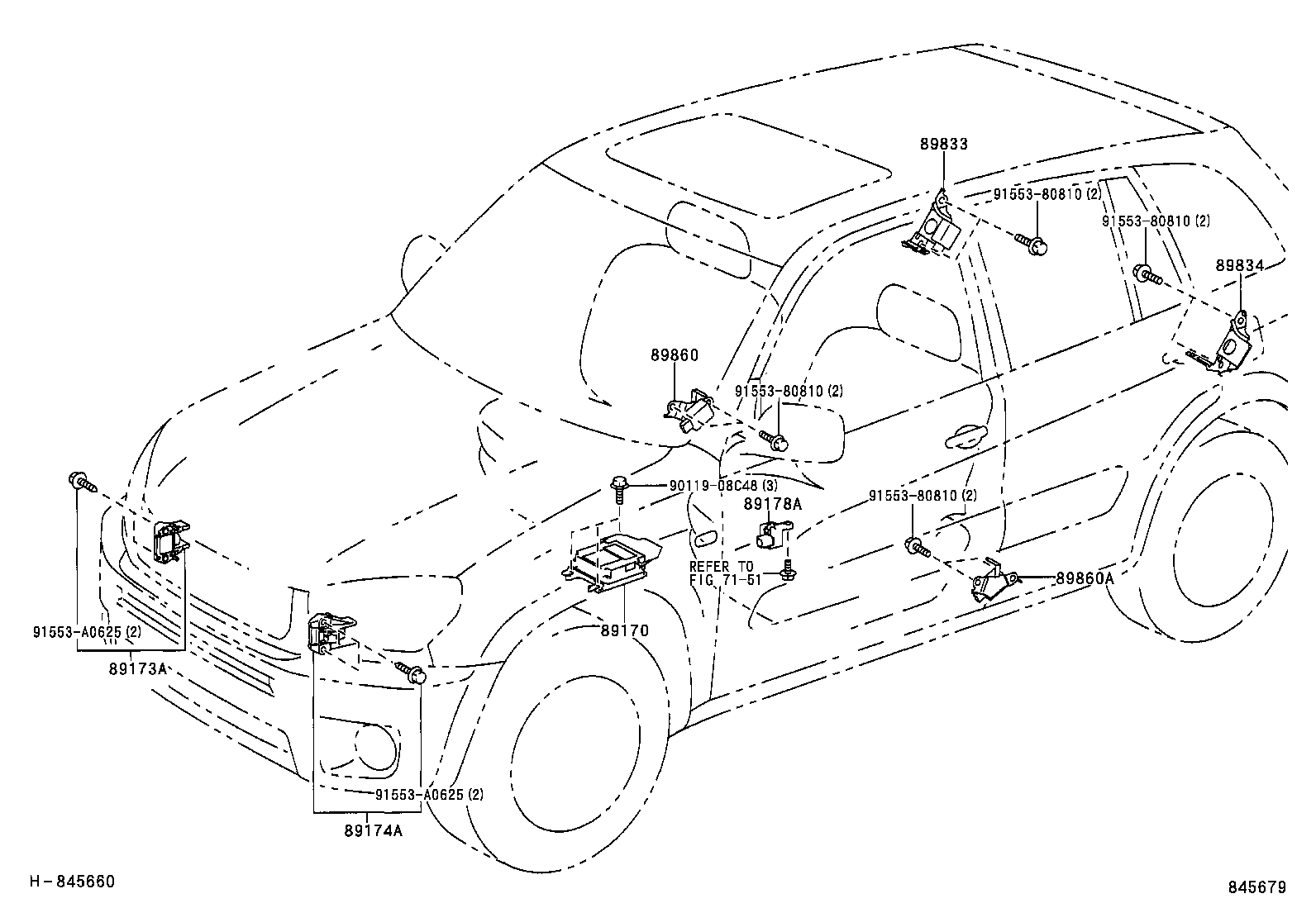

Air Bag
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89170 | Sensor Assy, Airbag |
| 89173A | Sensor, Airbag, Front RH |
| 89174A | Sensor, Airbag, Front LH |
| 89178A | Sensor, Seat Position Airbag |
| 89833 | Sensor, Airbag, Rear RH |
| 89834 | Sensor, Airbag, Rear LH |
| 89860 | Sensor Assy, Side Airbag, RH |
| 89860A | Sensor Assy, Side Airbag, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
