Toyota RAV4
2000-08 → 2005-11 · chassis ACA2# · catalogue 662420 · Europe
Discontinued model
Data version 2006-06

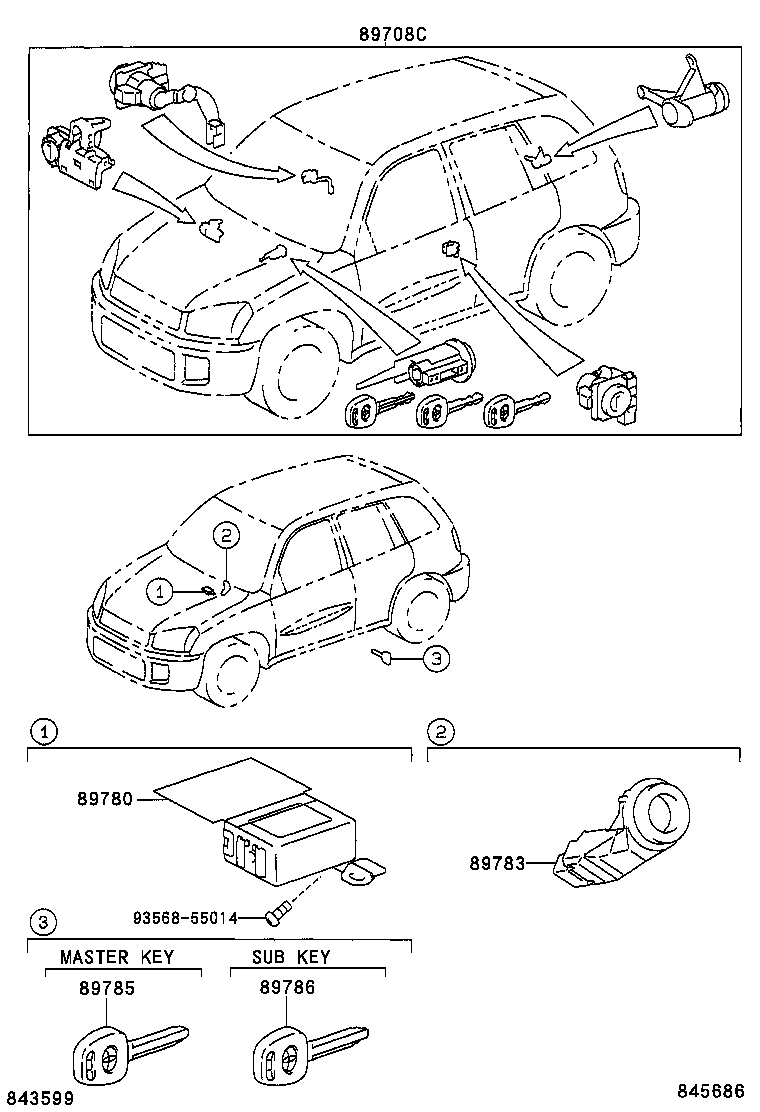

Anti-theft Device
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89703 | Cylinder & Key Set, Ignition W/Transponder |
| 89708C | Cylinder Set, Lock W/Transponder Key Transmitter |
| 89780 | Computer Assy, Transponder Key |
| 89783 | Amplifier, Transponder Key |
| 89785 | Transmitter, Transponder Key Master |
| 89786 | Transmitter, Transponder Key Sub |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
