Toyota RAV4
2000-08 → 2005-11 · chassis ACA2# · catalogue 662420 · Europe
Discontinued model
Data version 2006-06
Heating & Air Conditioning - Control & Air Duct
26 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55519 | Plate, Heater Control Name |
| 55538F | Cover, Cooler Switch Hole |

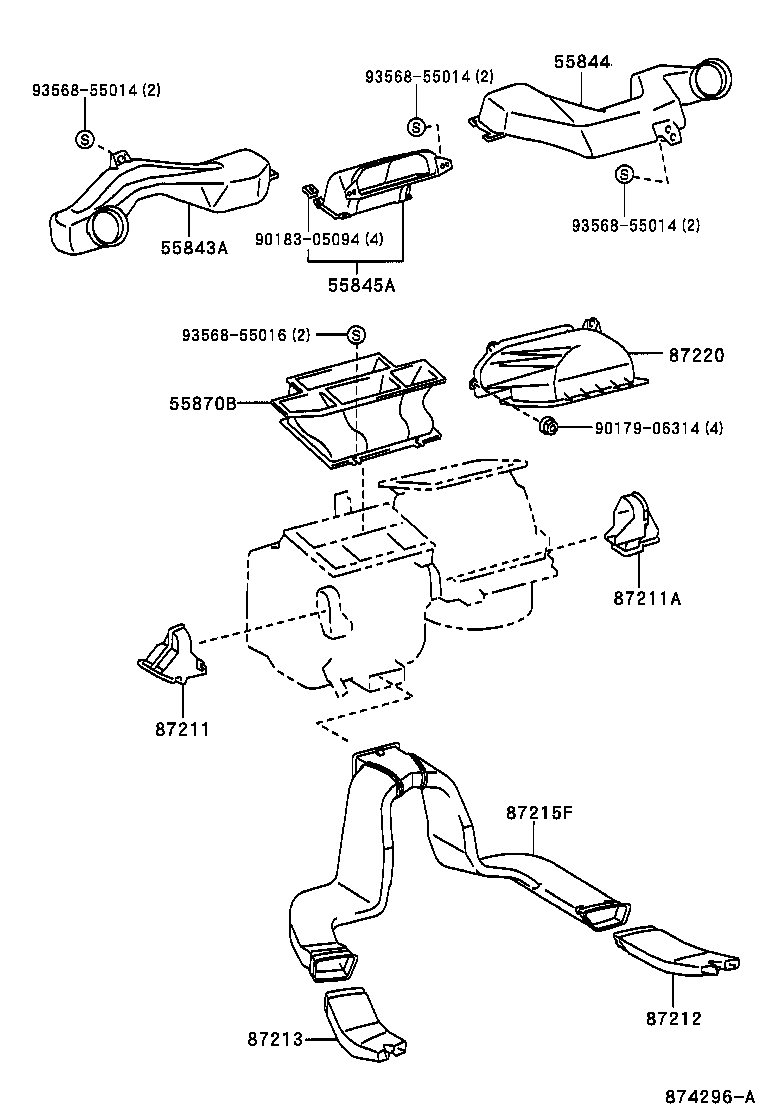

| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55870B | Duct Assy, Heater TO Register |
| 55897A | Knob, Air Damper Control Lever |
| 55900B | Bulb, Air Conditioner Control |
| 55905A | Knob, Heater Control |
| 55905B | Knob, Heater Control, NO.2 |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55907R | Cable Sub-assy, Temperature Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 55937 | Knob, Heater Control Lever |
| 81942A | Sheet, Heater Control Name, NO.1 |
| 83911E | Ornament, Clock |
| 84014E | Board Sub-assy, Printed Wire Integration |
| 84331A | Knob, Hazard Warning Signal Switch |
| 84661A | Knob, Cooler Control Switch |
| 84791A | Knob, Defogger Time Switch |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87215F | Duct, Air, Rear NO.3 |
| 87220 | Duct Assy, Air |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
