Toyota RAV4
2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe
Supported model
Data version 2019-09

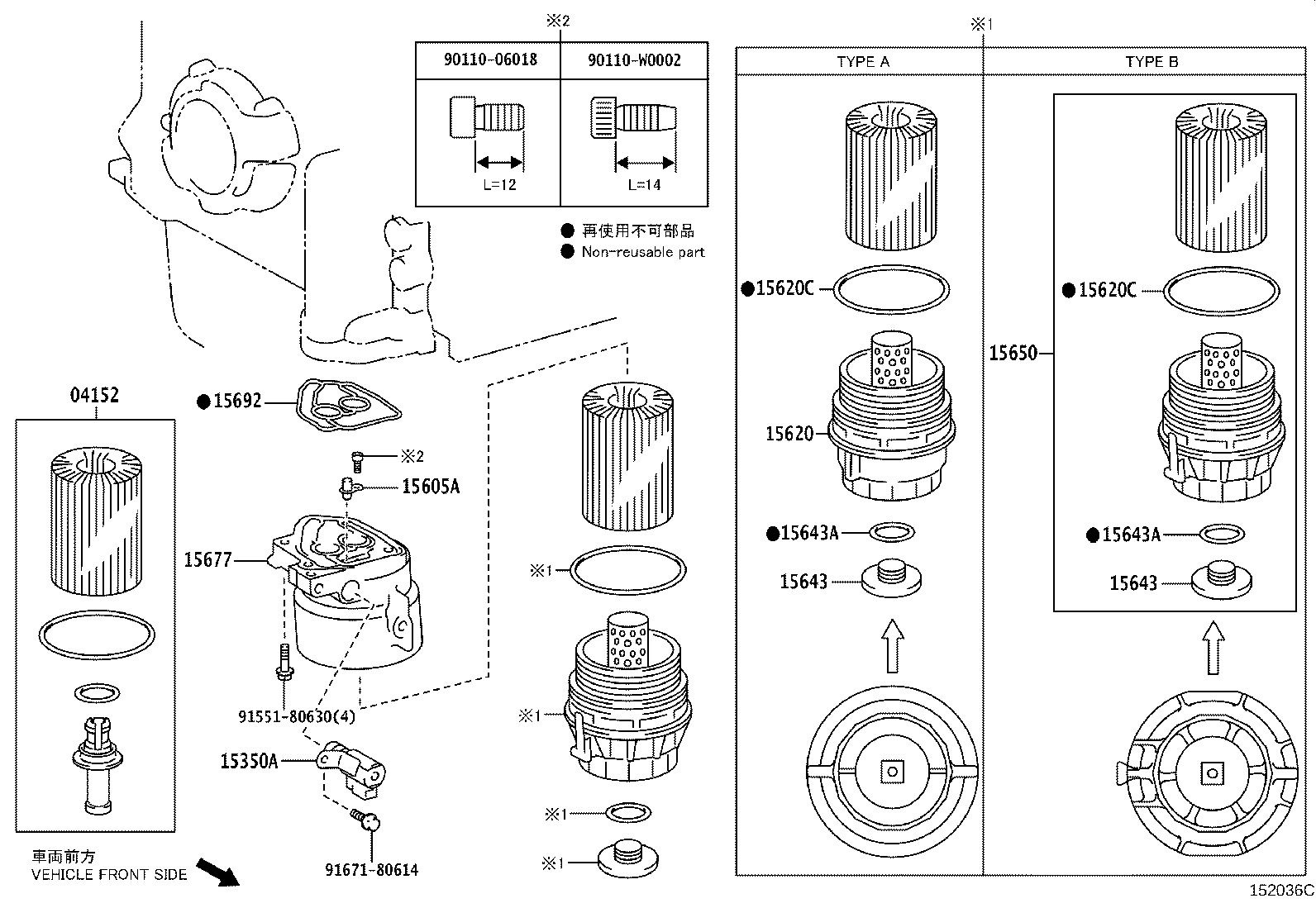

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04152 — Element Kit, Oil Filter | ||||
| 04152-0R010 note |
Element Kit, Oil Filter
2013-04 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 04152-0R010 note |
Element Kit, Oil Filter
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 04152-37010 note |
Element Kit, Oil Filter
2012-12 → 2015-10
ended
|
3ZRFAE ZSA44 | — | |
| 04152-38010 note |
Element Kit, Oil Filter
2012-12 → 2015-10
ended
|
1ADFTV,2AD# ALA4# | — | |
| 04152-38010 note |
Element Kit, Oil Filter
2015-06 → 2015-10
ended
|
2ADFTV ALA49 DCR | — | |
| 04152-38010 note |
Element Kit, Oil Filter
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 04152-38010 note |
Element Kit, Oil Filter
2013-04 → 2015-10
ended
|
2ADFTV ALA49 DCRE | — | |
| 04152-38010 note |
Element Kit, Oil Filter
2013-04 → 2015-10
ended
|
2ADFHV ALA49 | — | |
| 04152-38010 note |
Element Kit, Oil Filter
2013-04 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 04152-0V010 note |
Element Kit, Oil Filter
2015-10 → 2019-09
ended
|
2ARFXE AVA4#;2ARFE ASA44 RUP | — | |
| 04152-31090 note |
Element Kit, Oil Filter
2015-10 → 2019-09
ended
|
2ARFXE AVA4#;2ARFE ASA44 RUP | — | |
| 04152-31090 note |
Element Kit, Oil Filter
2015-10 → 2019-09
ended
|
2AR# ASA44,AVA4# | — | |
| 04152-37010 note |
Element Kit, Oil Filter
2015-10 → 2016-12
ended
|
3ZR# ZSA4# JPP | — | |
| 04152-38010 |
Element Kit, Oil Filter
2015-10 → 2019-09
ended
|
2AD# ALA49 | — | |
| 15350A — Valve Assy, Oil Pressure Switching | ||||
| 15350-33012 note |
Valve Assy, Oil Pressure Switching
2012-12 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 15350-33012 note |
Valve Assy, Oil Pressure Switching
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 15350-33012 note |
Valve Assy, Oil Pressure Switching
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 15350-33012 note |
Valve Assy, Oil Pressure Switching
2013-04 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 15350-33012 note |
Valve Assy, Oil Pressure Switching
2012-12 → 2015-10
ended
|
1ADFTV ALA40,41 | — | |
| 15605A — Valve Sub-assy, Oil Check | ||||
| 15605-30040 note |
Valve Sub-assy, Oil Check
2012-12 → 2015-10
ended
|
1ADFTV ALA40,41 | — | |
| 15605-30040 note |
Valve Sub-assy, Oil Check
2012-12 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 15605-30040 note |
Valve Sub-assy, Oil Check
2013-04 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 15605-30040 note |
Valve Sub-assy, Oil Check
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 15605-30040 note |
Valve Sub-assy, Oil Check
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 15620 — Cap Assy, Oil Filter | ||||
| 15620-0R011 note |
Cap Assy, Oil Filter
2013-04 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 15620-0R011 note |
Cap Assy, Oil Filter
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 15620-37010 note |
Cap Assy, Oil Filter
2012-12 → 2015-10
ended
|
3ZRFAE ZSA44 | — | |
| 15620-36020 note |
Cap Assy, Oil Filter
2015-10 → 2018-10
ended
|
2ARFXE AVA42 EUR;2ARFE ASA44 +5 | — | |
| 15620-36020 note |
Cap Assy, Oil Filter
2015-10 → —
|
2ARFE ASA44 RUP;2ARFXE AVA42 +1 | — | |
| 15620-36020 note |
Cap Assy, Oil Filter
2015-10 → —
|
2ARFE ASA44 RUP;2ARFXE AVA42 +5 | — | |
| 15620-36020 note |
Cap Assy, Oil Filter
2015-10 → 2018-10
ended
|
2ARFXE AVA44;2ARFXE AVA42 EUR | — | |
| 15620-37010 note |
Cap Assy, Oil Filter
2015-10 → 2016-12
ended
|
3ZR# ZSA4# JPP | — | |
| 15620C — Gasket(FOR OIL FILTER CAP) | ||||
| 90301-69011 note |
Gasket(FOR OIL FILTER CAP)
2012-12 → 2015-10
ended
|
3ZRFAE ZSA44 | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2012-12 → 2015-10
ended
|
1ADFTV,2AD# ALA4# | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2013-04 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2013-04 → 2015-10
ended
|
2ADFHV ALA49 | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2013-04 → 2015-10
ended
|
2ADFTV ALA49 DCRE | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2015-06 → 2015-10
ended
|
2ADFTV ALA49 DCR | — | |
| 90301-69011 note |
Gasket(FOR OIL FILTER CAP)
2015-10 → 2016-12
ended
|
3ZR# ZSA4# JPP | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2015-10 → —
|
2ARFE ASA44 RUP;2ARFXE AVA42 +5 | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2015-10 → —
|
2ARFE ASA44 RUP;2ARFXE AVA42 +1 | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2015-10 → —
|
2AD# ALA49 RUP;2ADFTV ALA49 +1 | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2015-10 → 2018-10
ended
|
2ARFXE AVA42 EUR;2ARFE ASA44 +5 | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2015-10 → 2018-10
ended
|
2ARFXE AVA44;2ARFXE AVA42 EUR | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2015-10 → 2018-10
ended
|
2ADFHV ALA49 JPP;2ADFTV ALA49 +2 | — | |
| 15643 — Plug, Oil Filter Drain | ||||
| 15643-0R010 note |
Plug, Oil Filter Drain
2013-04 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 15643-0R010 note |
Plug, Oil Filter Drain
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 15643-31050 note |
Plug, Oil Filter Drain
2012-12 → 2015-10
ended
|
2AD# ALA49 | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2012-12 → 2015-10
ended
|
1ADFTV ALA40,41 | — | |
| 15643-31050 note |
Plug, Oil Filter Drain
2013-04 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 15643-31050 note |
Plug, Oil Filter Drain
2013-04 → 2015-10
ended
|
2ADFHV ALA49 | — | |
| 15643-31050 note |
Plug, Oil Filter Drain
2013-04 → 2015-10
ended
|
2ADFTV ALA49 DCRE | — | |
| 15643-31050 note |
Plug, Oil Filter Drain
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 15643-31050 note |
Plug, Oil Filter Drain
2015-06 → 2015-10
ended
|
2ADFTV ALA49 DCR | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2015-10 → 2018-10
ended
|
2ADFHV ALA49 JPP;2ADFTV ALA49 +2 | — | |
| 15643-31050 note |
Plug, Oil Filter Drain
2015-10 → —
|
2ARFE ASA44 RUP;2ARFXE AVA42 +1 | — | |
| 15643-31050 note |
Plug, Oil Filter Drain
2015-10 → —
|
2ARFE ASA44 RUP;2ARFXE AVA42 +5 | — | |
| 15643-31050 note |
Plug, Oil Filter Drain
2015-10 → 2018-10
ended
|
2ARFXE AVA42 EUR;2ARFE ASA44 +5 | — | |
| 15643-31050 |
Plug, Oil Filter Drain
2015-10 → —
|
2AD# ALA49 RUP;2ADFTV ALA49 +1 | — | |
| 15643-31050 note |
Plug, Oil Filter Drain
2015-10 → 2018-10
ended
|
2ARFXE AVA44;2ARFXE AVA42 EUR | — | |
| 15643A — Ring, O(FOR OIL FILTER DRAIN PLUG) | ||||
| 96723-35028 note |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2012-12 → 2015-10
ended
|
1ADFTV,2AD# ALA4# | — | |
| 96723-35028 note |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2013-04 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 96723-35028 note |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2013-04 → 2015-10
ended
|
2ADFHV ALA49 | — | |
| 96723-35028 note |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2013-04 → 2015-10
ended
|
2ADFTV ALA49 DCRE | — | |
| 96723-35028 note |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 96723-35028 note |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2015-06 → 2015-10
ended
|
2ADFTV ALA49 DCR | — | |
| 96723-35028 note |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2015-10 → —
|
2ARFE ASA44 RUP;2ARFXE AVA42 +1 | — | |
| 96723-35028 note |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2015-10 → —
|
2ARFE ASA44 RUP;2ARFXE AVA42 +5 | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2015-10 → —
|
2AD# ALA49 RUP;2ADFTV ALA49 +1 | — | |
| 96723-35028 note |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2015-10 → 2018-10
ended
|
2ARFXE AVA42 EUR;2ARFE ASA44 +5 | — | |
| 96723-35028 note |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2015-10 → 2018-10
ended
|
2ARFXE AVA44;2ARFXE AVA42 EUR | — | |
| 96723-35028 |
Ring, O(FOR OIL FILTER DRAIN PLUG)
2015-10 → 2018-10
ended
|
2ADFHV ALA49 JPP;2ADFTV ALA49 +2 | — | |
| 15650 — Cap Assy, Oil Filter W/Elememt | ||||
| 15650-0R020 note |
Cap Assy, Oil Filter W/Elememt
2013-04 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 15650-0R020 note |
Cap Assy, Oil Filter W/Elememt
2013-04 → 2015-10
ended
|
2ADFHV ALA49 | — | |
| 15650-0R020 note |
Cap Assy, Oil Filter W/Elememt
2013-04 → 2015-10
ended
|
2ADFTV ALA49 DCRE | — | |
| 15650-0R020 note |
Cap Assy, Oil Filter W/Elememt
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 15650-0R020 note |
Cap Assy, Oil Filter W/Elememt
2015-06 → 2015-10
ended
|
2ADFTV ALA49 DCR | — | |
| 15650-38020 note |
Cap Assy, Oil Filter W/Elememt
2012-12 → 2015-10
ended
|
1ADFTV,2AD# ALA4# | — | |
| 15650-38020 note |
Cap Assy, Oil Filter W/Elememt
2012-12 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 15650-38020 note |
Cap Assy, Oil Filter W/Elememt
2012-12 → 2015-10
ended
|
2ADFHV ALA49 | — | |
| 15650-38020 note |
Cap Assy, Oil Filter W/Elememt
2012-12 → 2015-10
ended
|
2ADFTV ALA49 DCRE | — | |
| 15650-38020 note |
Cap Assy, Oil Filter W/Elememt
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 15650-0R020 |
Cap Assy, Oil Filter W/Elememt
2015-10 → —
|
2AD# ALA49 RUP;2ADFTV ALA49 +1 | — | |
| 15650-0R020 |
Cap Assy, Oil Filter W/Elememt
2015-10 → 2018-10
ended
|
2ADFHV ALA49 JPP;2ADFTV ALA49 +2 | — | |
| 15677 — Bracket, Oil Filter | ||||
| 15677-0R012 note |
Bracket, Oil Filter
2012-12 → 2015-10
ended
|
2AD# ALA49 | — | |
| 15677-0R012 note |
Bracket, Oil Filter
2012-12 → 2015-10
ended
|
2ADFHV ALA49 | — | |
| 15677-0R012 note |
Bracket, Oil Filter
2012-12 → 2015-10
ended
|
2ADFTV ALA49 DCRE | — | |
| 15677-0R012 note |
Bracket, Oil Filter
2013-04 → 2015-10
ended
|
2ADFHV ALA49 | — | |
| 15677-0R012 note |
Bracket, Oil Filter
2013-04 → 2015-10
ended
|
2ADFTV ALA49 DCRE | — | |
| 15677-0R012 note |
Bracket, Oil Filter
2015-06 → 2015-10
ended
|
2ADFTV ALA49 DCR | — | |
| 15677-0R020 note |
Bracket, Oil Filter
2012-12 → 2015-10
ended
|
1ADFTV ALA40,41 | — | |
| 15677-0R020 note |
Bracket, Oil Filter
2012-12 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 15677-0R020 note |
Bracket, Oil Filter
2013-04 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 15677-0R020 note |
Bracket, Oil Filter
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 15677-0R020 note |
Bracket, Oil Filter
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 15677-0R012 |
Bracket, Oil Filter
2015-10 → —
|
2AD# ALA49 RUP;2ADFTV ALA49 +1 | — | |
| 15677-0R012 |
Bracket, Oil Filter
2015-10 → 2018-10
ended
|
2ADFHV ALA49 JPP;2ADFTV ALA49 +2 | — | |
| 15692 — Gasket, Oil Filter Bracket | ||||
| 15692-26010 note |
Gasket, Oil Filter Bracket
2012-12 → 2015-10
ended
|
2AD# ALA49 | — | |
| 15692-26010 note |
Gasket, Oil Filter Bracket
2012-12 → 2015-10
ended
|
2ADFHV ALA49 | — | |
| 15692-26010 note |
Gasket, Oil Filter Bracket
2012-12 → 2015-10
ended
|
2ADFTV ALA49 DCRE | — | |
| 15692-26010 note |
Gasket, Oil Filter Bracket
2013-04 → 2015-10
ended
|
2ADFHV ALA49 | — | |
| 15692-26010 note |
Gasket, Oil Filter Bracket
2013-04 → 2015-10
ended
|
2ADFTV ALA49 DCRE | — | |
| 15692-26010 note |
Gasket, Oil Filter Bracket
2015-06 → 2015-10
ended
|
2ADFTV ALA49 DCR | — | |
| 15692-26030 note |
Gasket, Oil Filter Bracket
2012-12 → 2015-10
ended
|
1ADFTV ALA40,41 | — | |
| 15692-26030 note |
Gasket, Oil Filter Bracket
2012-12 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 15692-26030 note |
Gasket, Oil Filter Bracket
2013-04 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 15692-26030 note |
Gasket, Oil Filter Bracket
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 15692-26030 note |
Gasket, Oil Filter Bracket
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 15692-26010 |
Gasket, Oil Filter Bracket
2015-10 → 2018-10
ended
|
2ADFHV ALA49 JPP;2ADFTV ALA49 +2 | — | |
| 15692-26010 |
Gasket, Oil Filter Bracket
2015-10 → —
|
2AD# ALA49 RUP;2ADFTV ALA49 +1 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
