Toyota RAV4
2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe
Supported model
Data version 2019-09

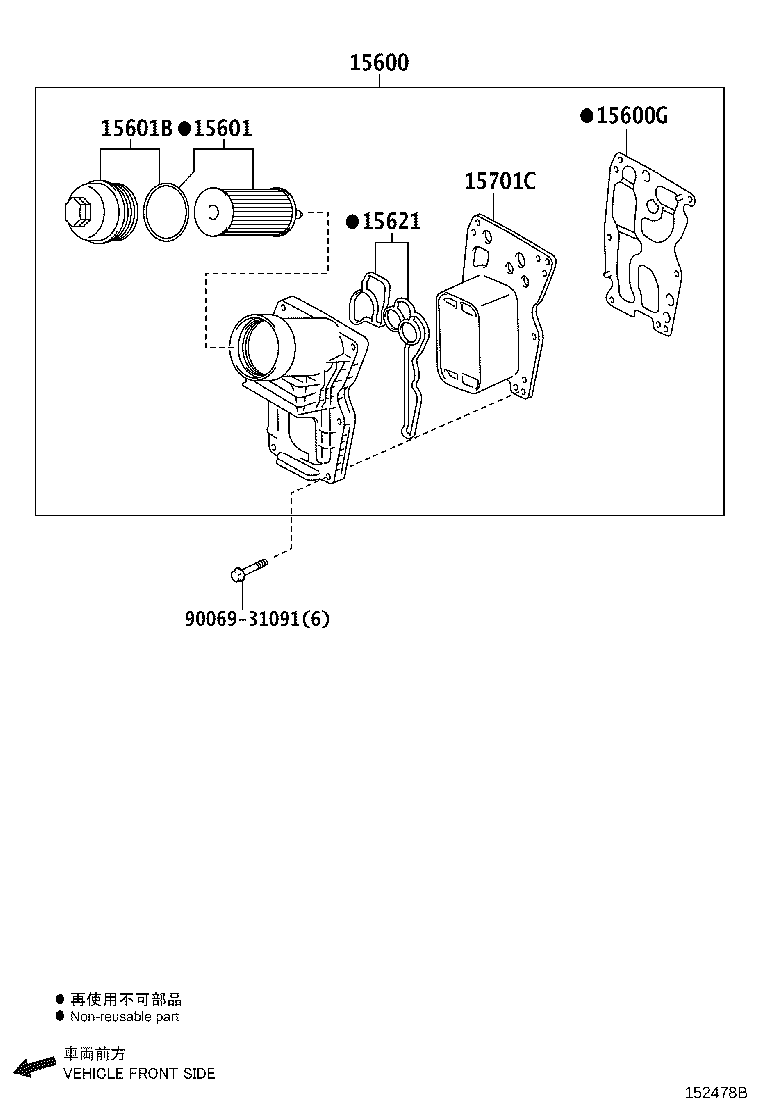

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15600 — Filter Assy, Oil | ||||
| 15670-WA010 |
Filter Assy, Oil
2015-10 → 2018-05
ended
|
2WW WWA42 | — | |
| 15600G — Gasket(FOR OIL FILTER COVER) | ||||
| 90069-43009 |
Gasket(FOR OIL FILTER COVER)
2015-10 → 2018-05
ended
|
2WW WWA42 | — | |
| 15601 — Filter Sub-assy, Oil | ||||
| 04152-WA010 |
Filter Sub-assy, Oil
2015-10 → 2018-05
ended
|
2WW WWA42 | — | |
| 90915-10003 note |
Filter Sub-assy, Oil
2016-09 → —
|
3ZR# ZSA4# | — | |
| 15601B — Cover, Oil Filter | ||||
| 15620-WA010 |
Cover, Oil Filter
2015-10 → 2018-05
ended
|
2WW WWA42 | — | |
| 15621 — Gasket, Oil Filter Body | ||||
| 90069-43012 |
Gasket, Oil Filter Body
2015-10 → 2018-05
ended
|
2WW WWA42 | — | |
| 15701C — Cover Sub-assy, Oil Cooler | ||||
| 15710-WA010 |
Cover Sub-assy, Oil Cooler
2015-10 → 2018-05
ended
|
2WW WWA42 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
