Toyota RAV4
2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe
Supported model
Data version 2019-09

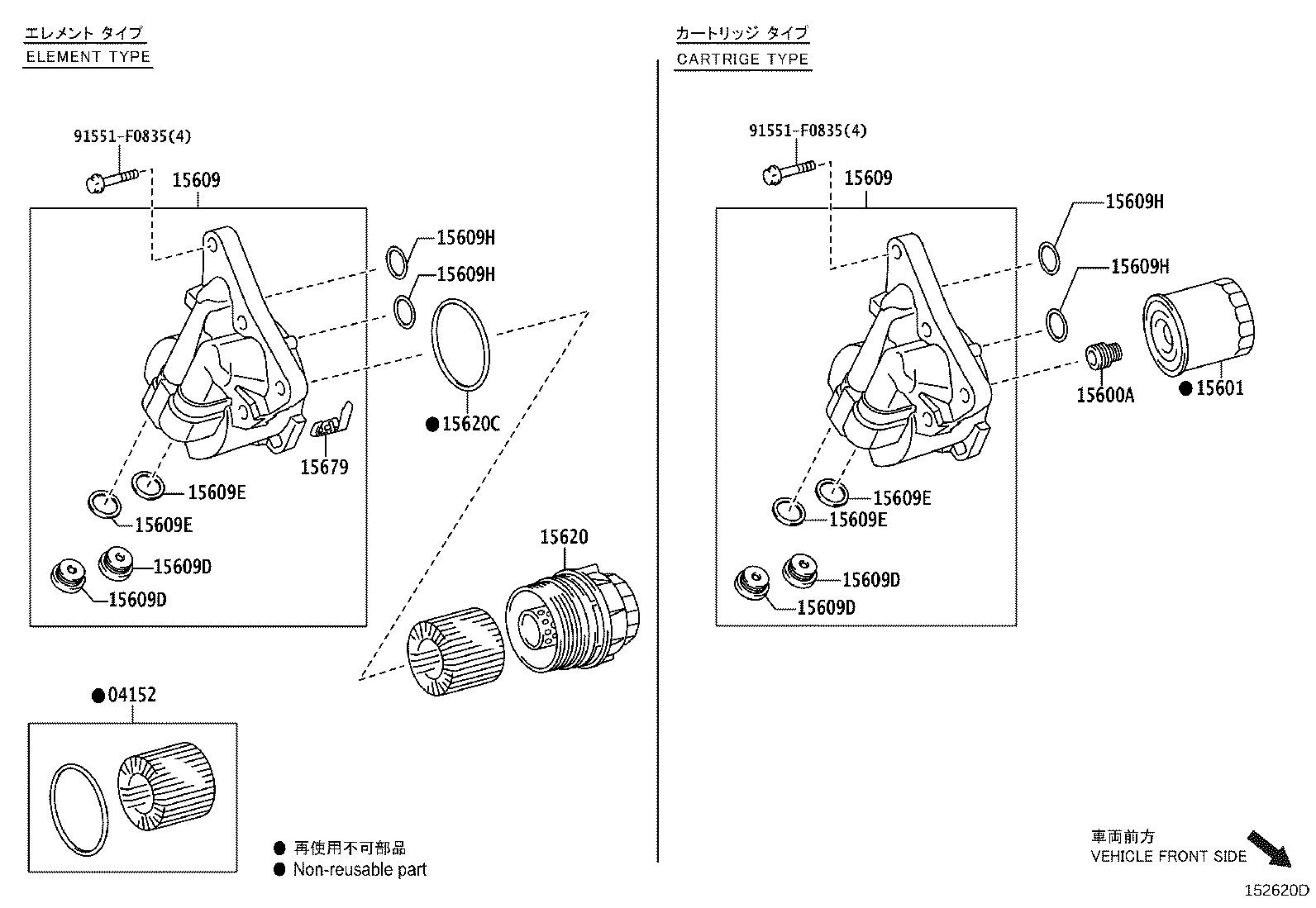

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04152 — Element Kit, Oil Filter | ||||
| 04152-0R010 note |
Element Kit, Oil Filter
2013-04 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 04152-0R010 note |
Element Kit, Oil Filter
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 04152-37010 note |
Element Kit, Oil Filter
2012-12 → 2015-10
ended
|
3ZRFAE ZSA44 | — | |
| 04152-38010 note |
Element Kit, Oil Filter
2012-12 → 2015-10
ended
|
1ADFTV,2AD# ALA4# | — | |
| 04152-38010 note |
Element Kit, Oil Filter
2015-06 → 2015-10
ended
|
2ADFTV ALA49 DCR | — | |
| 04152-38010 note |
Element Kit, Oil Filter
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 04152-38010 note |
Element Kit, Oil Filter
2013-04 → 2015-10
ended
|
2ADFHV ALA49 | — | |
| 04152-38010 note |
Element Kit, Oil Filter
2013-04 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 04152-38010 note |
Element Kit, Oil Filter
2013-04 → 2015-10
ended
|
2ADFTV ALA49 DCRE | — | |
| 04152-0V010 note |
Element Kit, Oil Filter
2015-10 → 2019-09
ended
|
2ARFXE AVA4#;2ARFE ASA44 RUP | — | |
| 04152-31090 note |
Element Kit, Oil Filter
2015-10 → 2019-09
ended
|
2ARFXE AVA4#;2ARFE ASA44 RUP | — | |
| 04152-31090 note |
Element Kit, Oil Filter
2015-10 → 2019-09
ended
|
2AR# ASA44,AVA4# | — | |
| 04152-37010 note |
Element Kit, Oil Filter
2015-10 → 2016-12
ended
|
3ZR# ZSA4# JPP | — | |
| 04152-38010 |
Element Kit, Oil Filter
2015-10 → 2019-09
ended
|
2AD# ALA49 | — | |
| 15600A — Union(FOR OIL FILTER) | ||||
| 90904-04006 note |
Union(FOR OIL FILTER)
2016-09 → —
|
3ZR# ZSA4# | — | |
| 15601 — Filter Sub-assy, Oil | ||||
| 04152-WA010 |
Filter Sub-assy, Oil
2015-10 → 2018-05
ended
|
2WW WWA42 | — | |
| 90915-10003 note |
Filter Sub-assy, Oil
2016-09 → —
|
3ZR# ZSA4# | — | |
| 15609 — Bracket Sub-assy, Oil Filter | ||||
| 15609-37040 note |
Bracket Sub-assy, Oil Filter
2012-12 → 2013-10
ended
|
3ZRFAE ZSA44 | — | |
| 15609-37041 note |
Bracket Sub-assy, Oil Filter
2013-10 → 2015-10
ended
|
3ZRFAE ZSA44 | — | |
| 15609-37010 note |
Bracket Sub-assy, Oil Filter
2016-09 → 2017-08
ended
|
3ZR# ZSA4# | — | |
| 15609-37041 note |
Bracket Sub-assy, Oil Filter
2015-10 → 2016-12
ended
|
3ZR# ZSA4# JPP | — | |
| 15609-37060 note |
Bracket Sub-assy, Oil Filter
2017-09 → —
|
3ZR# ZSA4# | — | |
| 15609D — Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 note |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2012-12 → 2015-10
ended
|
3ZRFAE ZSA44 | — | |
| 90341-20002 note |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2015-10 → 2016-12
ended
|
3ZR# ZSA4# JPP | — | |
| 90341-20002 note |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2016-09 → —
|
3ZR# ZSA4# | — | |
| 15609E — Gasket, W/Head Straight Screw Plug | ||||
| 90430-20004 note |
Gasket, W/Head Straight Screw Plug
2012-12 → 2015-10
ended
|
3ZRFAE ZSA44 | — | |
| 90430-20004 note |
Gasket, W/Head Straight Screw Plug
2015-10 → 2016-12
ended
|
3ZR# ZSA4# JPP | — | |
| 90430-20018 note |
Gasket, W/Head Straight Screw Plug
2016-09 → —
|
3ZR# ZSA4# | — | |
| 15609H — Ring, O(FOR OIL FILTER BRACKET) | ||||
| 96723-24020 note |
Ring, O(FOR OIL FILTER BRACKET)
2012-12 → 2015-10
ended
|
3ZRFAE ZSA44 | — | |
| 96723-24020 note |
Ring, O(FOR OIL FILTER BRACKET)
2016-09 → —
|
3ZR# ZSA4# | — | |
| 96723-24020 note |
Ring, O(FOR OIL FILTER BRACKET)
2015-10 → 2016-12
ended
|
3ZR# ZSA4# JPP | — | |
| 15620 — Cap Assy, Oil Filter | ||||
| 15620-0R011 note |
Cap Assy, Oil Filter
2013-04 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 15620-0R011 note |
Cap Assy, Oil Filter
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 15620-37010 note |
Cap Assy, Oil Filter
2012-12 → 2015-10
ended
|
3ZRFAE ZSA44 | — | |
| 15620-36020 note |
Cap Assy, Oil Filter
2015-10 → 2018-10
ended
|
2ARFXE AVA44;2ARFXE AVA42 EUR | — | |
| 15620-36020 note |
Cap Assy, Oil Filter
2015-10 → 2018-10
ended
|
2ARFXE AVA42 EUR;2ARFE ASA44 +5 | — | |
| 15620-36020 note |
Cap Assy, Oil Filter
2015-10 → —
|
2ARFE ASA44 RUP;2ARFXE AVA42 +5 | — | |
| 15620-36020 note |
Cap Assy, Oil Filter
2015-10 → —
|
2ARFE ASA44 RUP;2ARFXE AVA42 +1 | — | |
| 15620-37010 note |
Cap Assy, Oil Filter
2015-10 → 2016-12
ended
|
3ZR# ZSA4# JPP | — | |
| 15620C — Gasket(FOR OIL FILTER CAP) | ||||
| 90301-69011 note |
Gasket(FOR OIL FILTER CAP)
2012-12 → 2015-10
ended
|
3ZRFAE ZSA44 | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2015-06 → 2015-10
ended
|
2ADFTV ALA49 DCR | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2013-11 → 2015-10
ended
|
1ADFTV ALA41 | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2013-04 → 2015-10
ended
|
2ADFTV ALA49 DCRE | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2013-04 → 2015-10
ended
|
1ADFTV ALA40 | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2012-12 → 2015-10
ended
|
1ADFTV,2AD# ALA4# | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2013-04 → 2015-10
ended
|
2ADFHV ALA49 | — | |
| 90301-69011 note |
Gasket(FOR OIL FILTER CAP)
2015-10 → 2016-12
ended
|
3ZR# ZSA4# JPP | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2015-10 → —
|
2ARFE ASA44 RUP;2ARFXE AVA42 +5 | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2015-10 → —
|
2ARFE ASA44 RUP;2ARFXE AVA42 +1 | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2015-10 → —
|
2AD# ALA49 RUP;2ADFTV ALA49 +1 | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2015-10 → 2018-10
ended
|
2ARFXE AVA42 EUR;2ARFE ASA44 +5 | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2015-10 → 2018-10
ended
|
2ARFXE AVA44;2ARFXE AVA42 EUR | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2015-10 → 2018-10
ended
|
2ADFHV ALA49 JPP;2ADFTV ALA49 +2 | — | |
| 15679 — Clip, Oil Filter Bracket | ||||
| 15679-37010 note |
Clip, Oil Filter Bracket
2012-12 → 2014-08
ended
|
3ZRFAE ZSA44 | — | |
| 15679-37011 note |
Clip, Oil Filter Bracket
2014-09 → 2015-10
ended
|
3ZRFAE ZSA44 | — | |
| 15679-37011 note |
Clip, Oil Filter Bracket
2015-10 → 2016-12
ended
|
3ZR# ZSA4# JPP | — | |
| 15679-37011 note |
Clip, Oil Filter Bracket
2015-10 → 2018-10
ended
|
2ARFXE AVA44;2ARFXE AVA42 EUR | — | |
| 15679-37011 note |
Clip, Oil Filter Bracket
2015-10 → 2018-10
ended
|
2ARFXE AVA42 EUR;2ARFE ASA44 +5 | — | |
| 15679-37011 note |
Clip, Oil Filter Bracket
2015-10 → —
|
2ARFE ASA44 RUP;2ARFXE AVA42 +5 | — | |
| 15679-37011 note |
Clip, Oil Filter Bracket
2015-10 → —
|
2ARFE ASA44 RUP;2ARFXE AVA42 +1 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
