Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

15 part groups · 6 illustrations

Illustrations

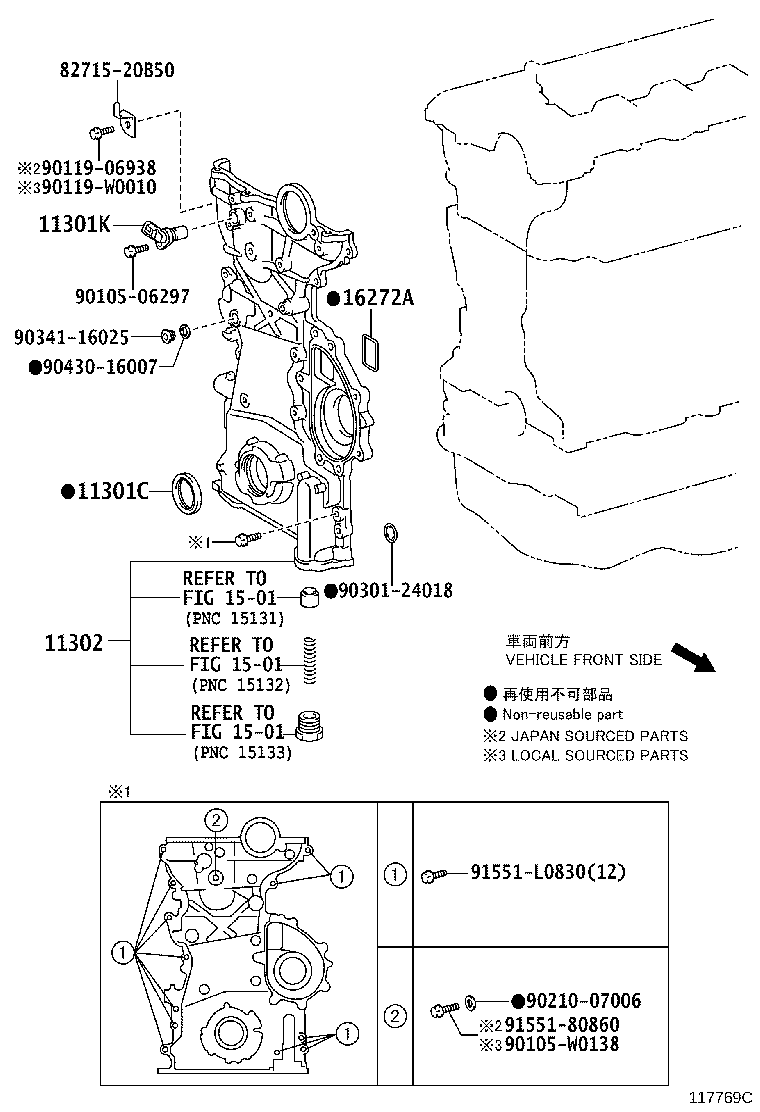

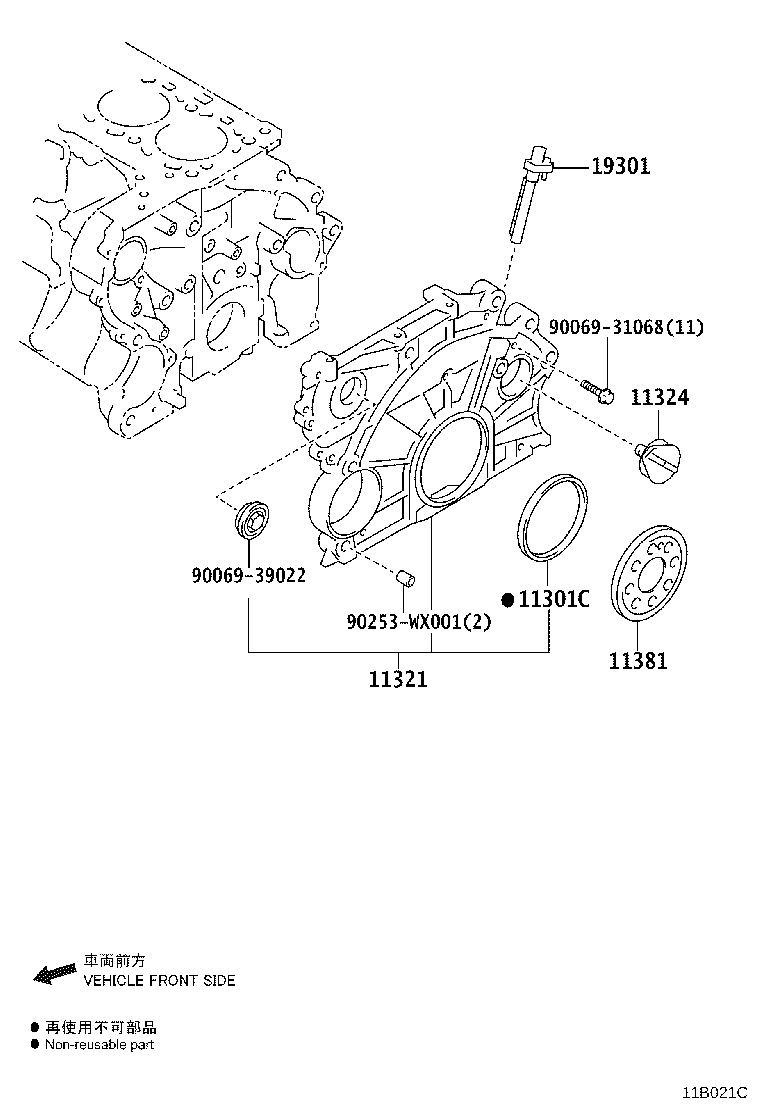

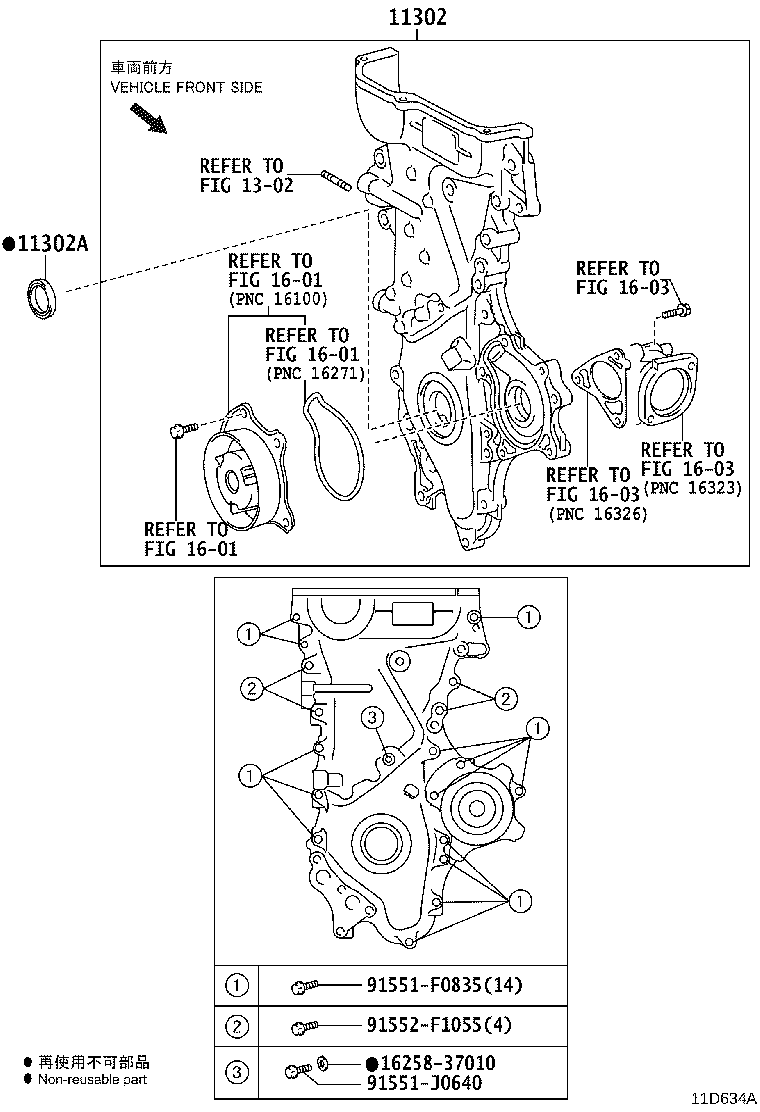

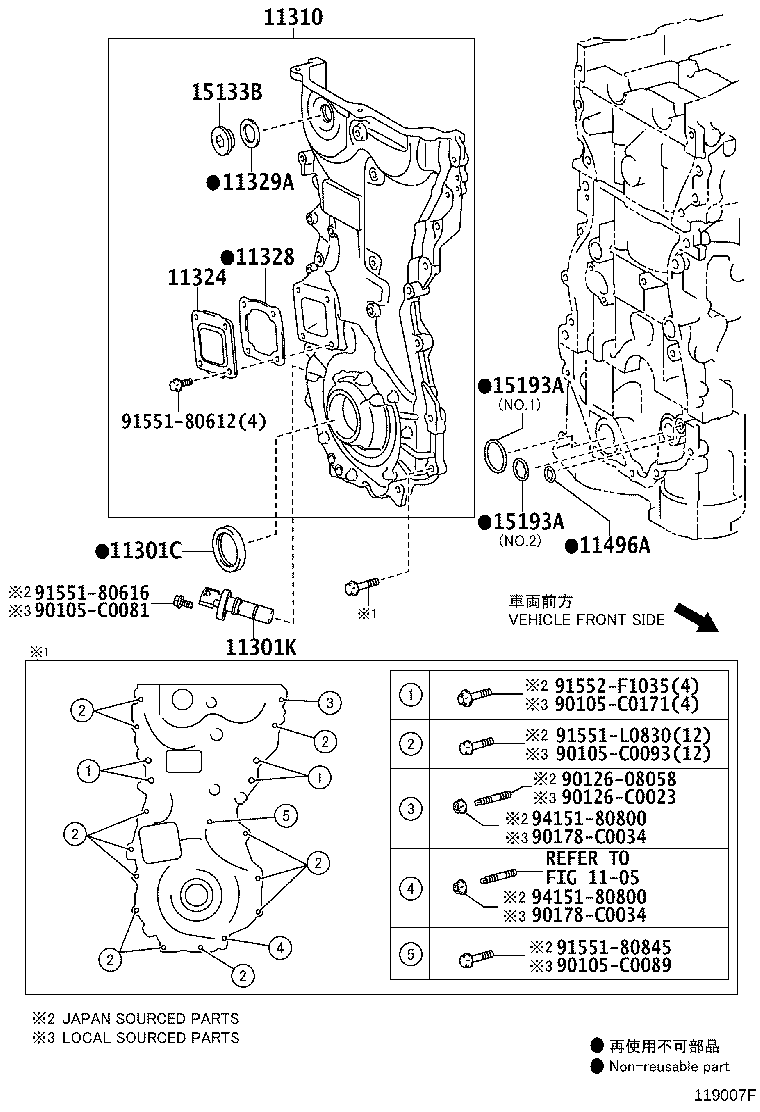

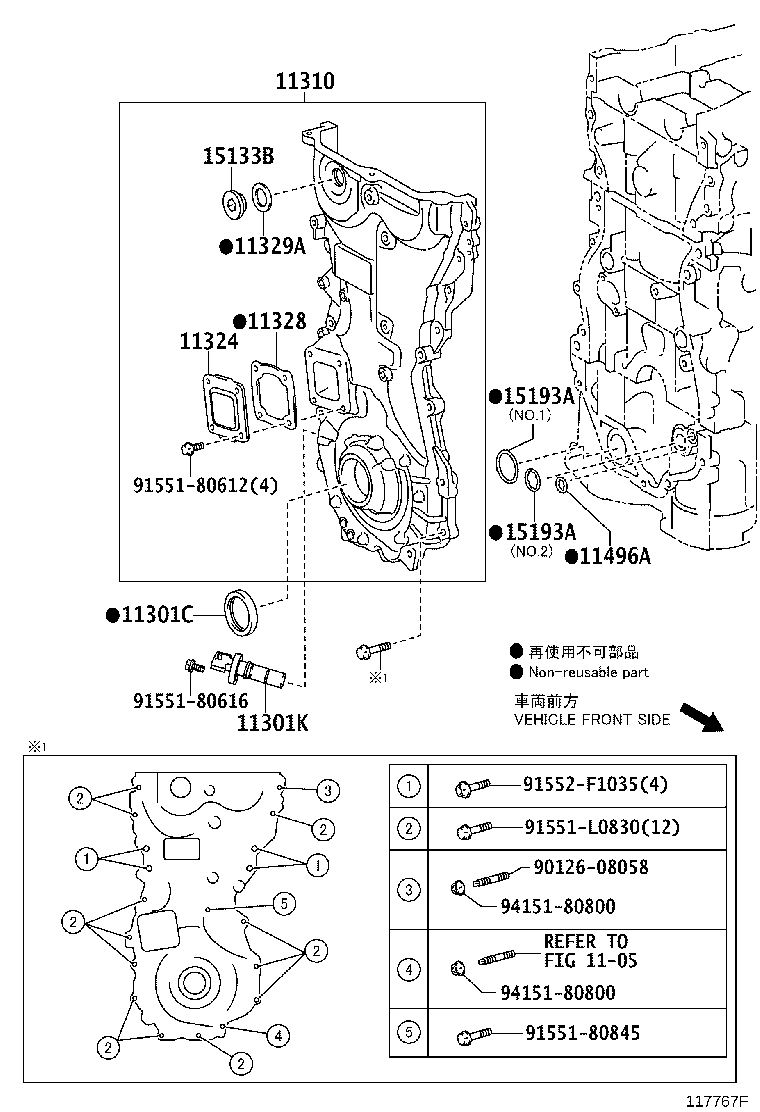

Figure 117768C 117768C 2012-12 → — Figure 117769C 117769C 2012-12 → — Figure 117767F 117767F 2015-10 → — Figure 119007F 119007F 2015-10 → — Figure 11B021C 11B021C 2015-10 → 2018-05 Figure 11D634A 11D634A 2012-12 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11310 Cover Assy, Timing Chain
11321 Case, Timing Gear
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11329A Gasket, Timing Belt OR Chain Cover, NO.2
11381 Retainer, Engine Rear Oil Seal
11496A Gasket, Oil Hole Cover
15133B Plug, Oil Pump Relief Valve
15193A Gasket, Oil Pump
16272A Gasket, Water Pump NO.2
19301 Sensor Assy, Crank Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
