Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

14 part groups · 13 illustrations

Illustrations

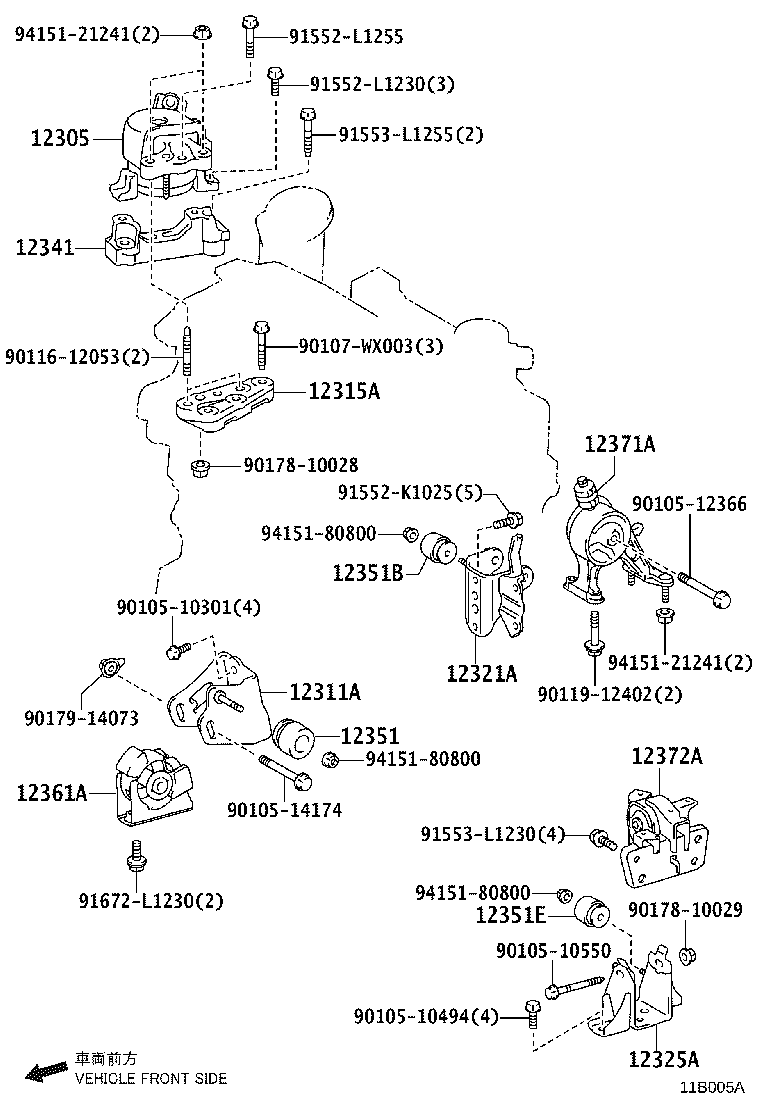

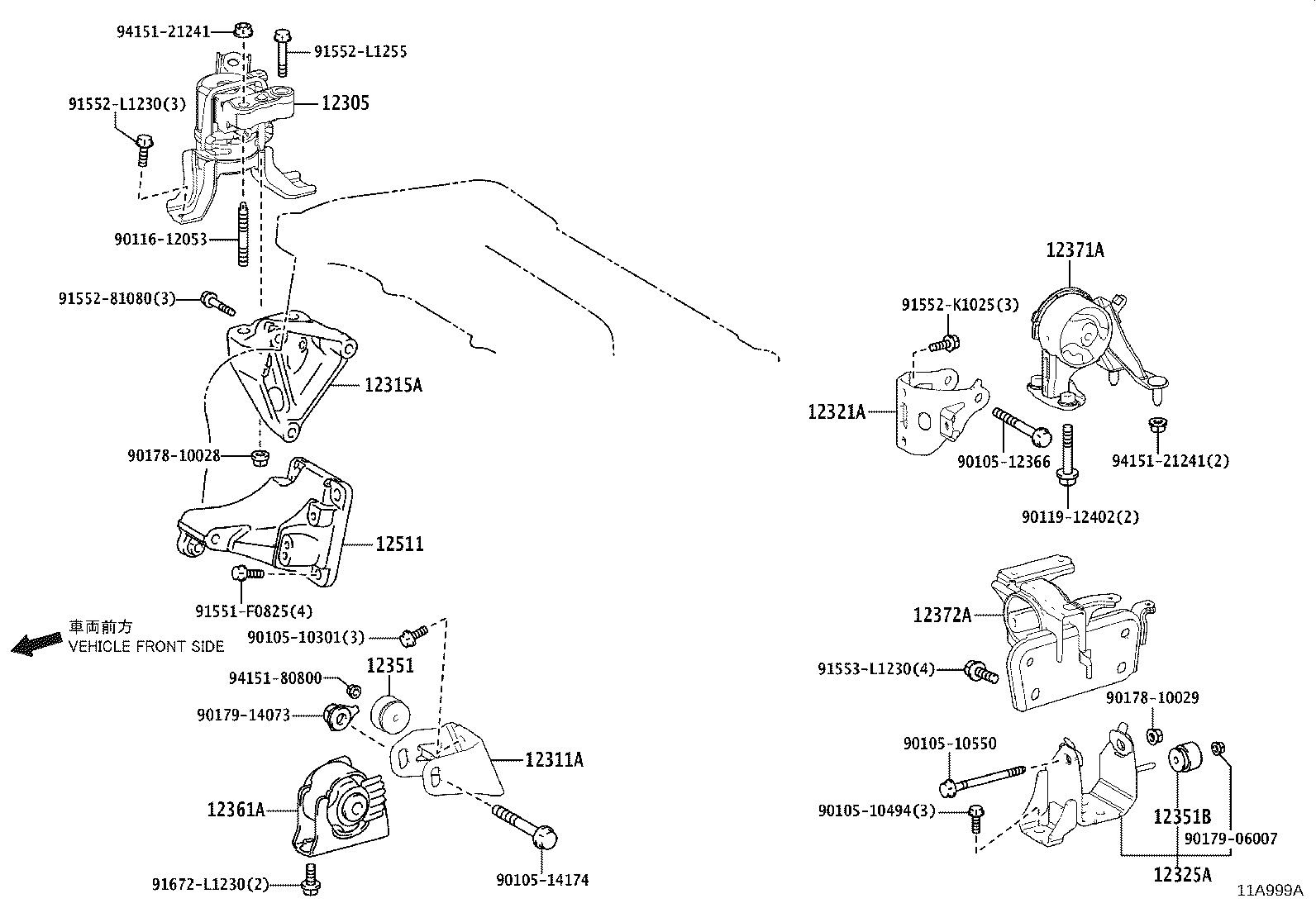

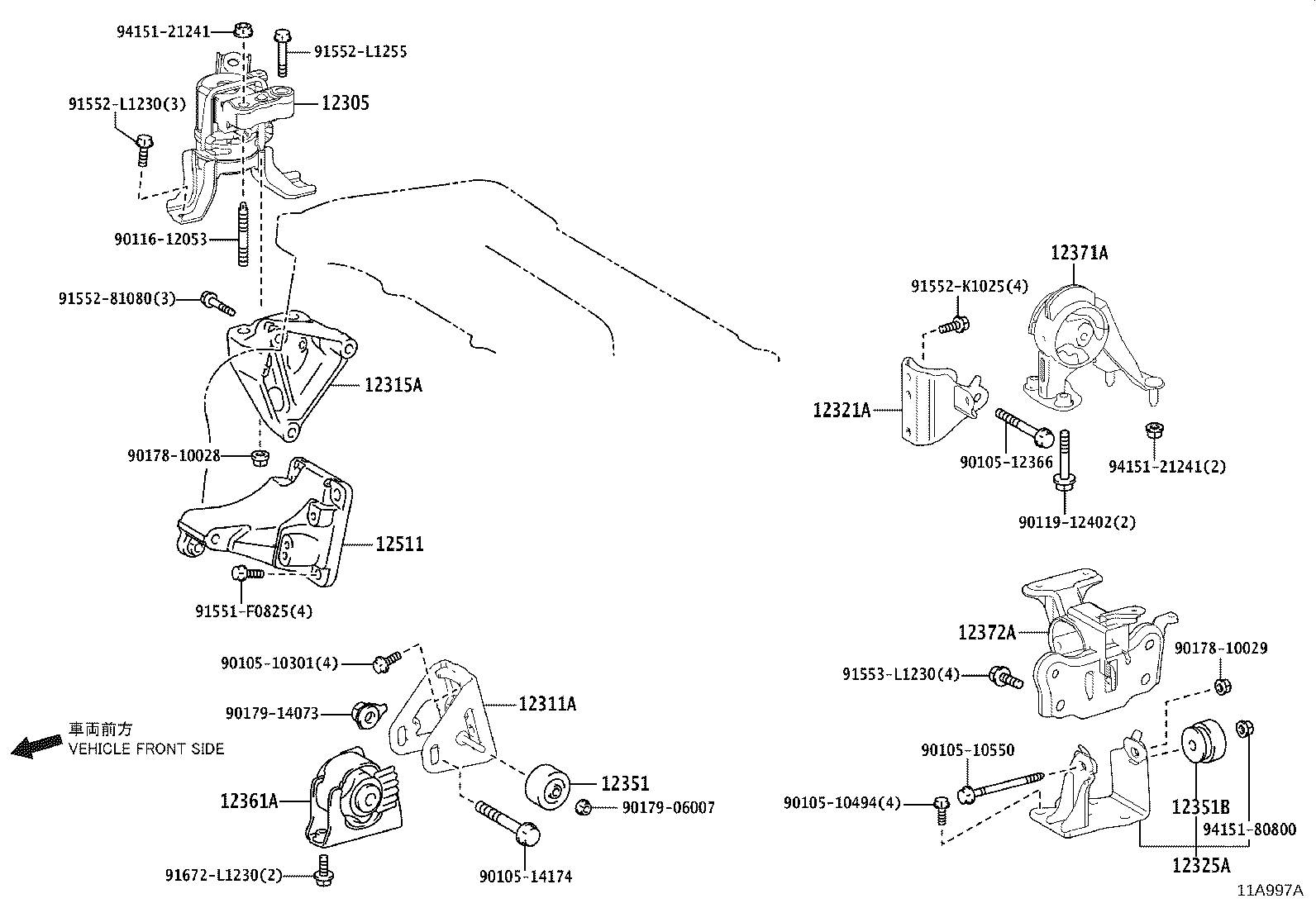

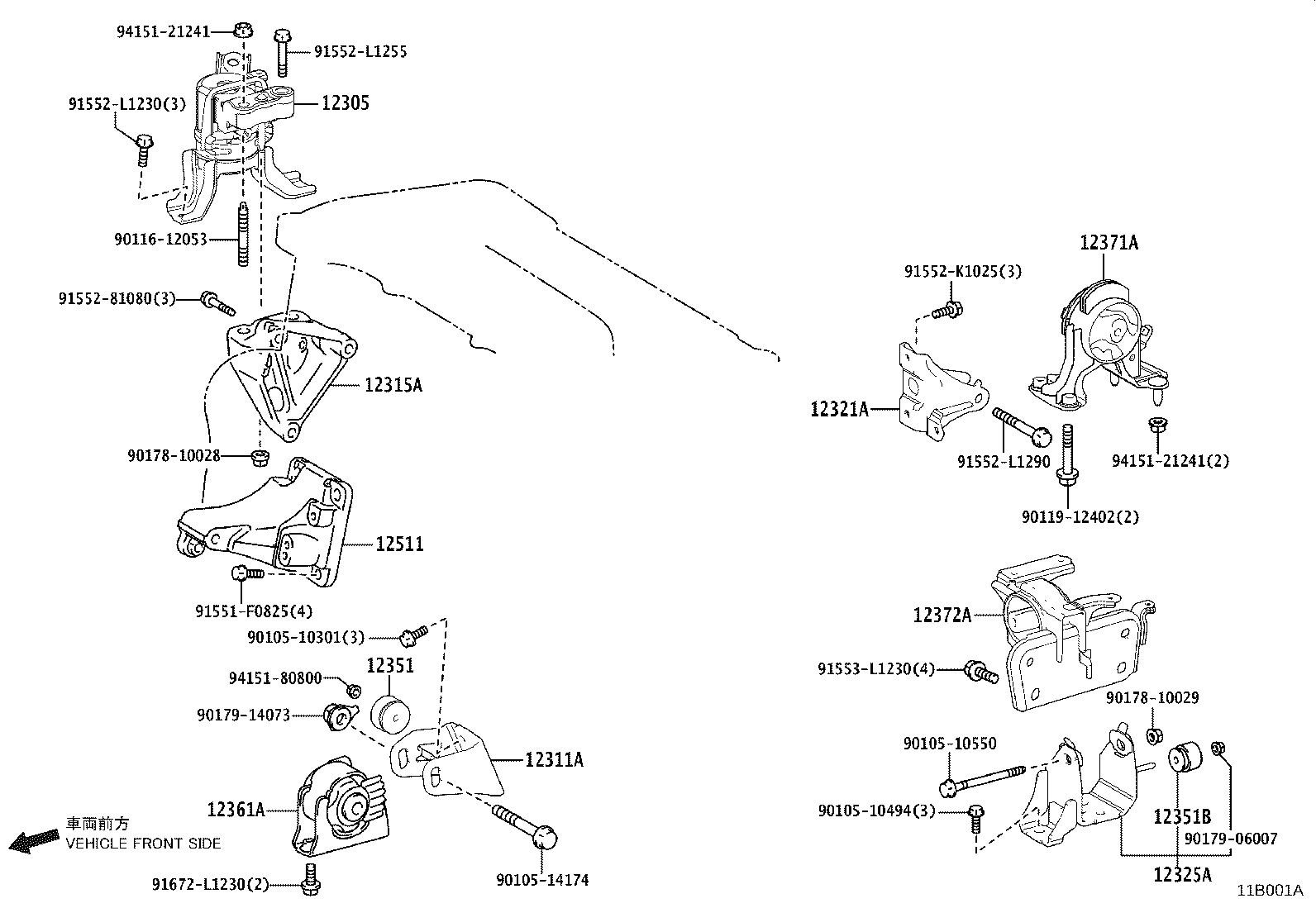

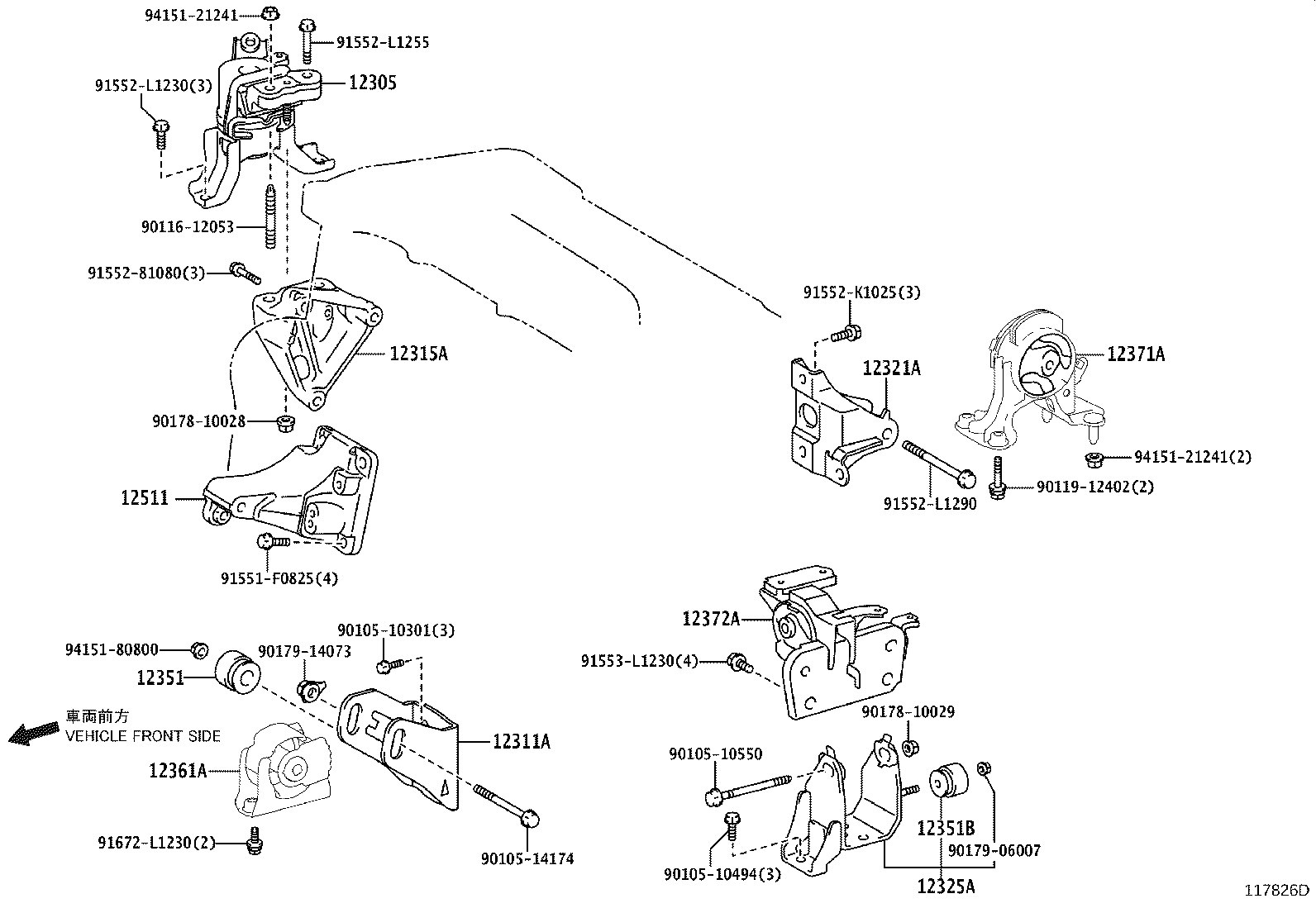

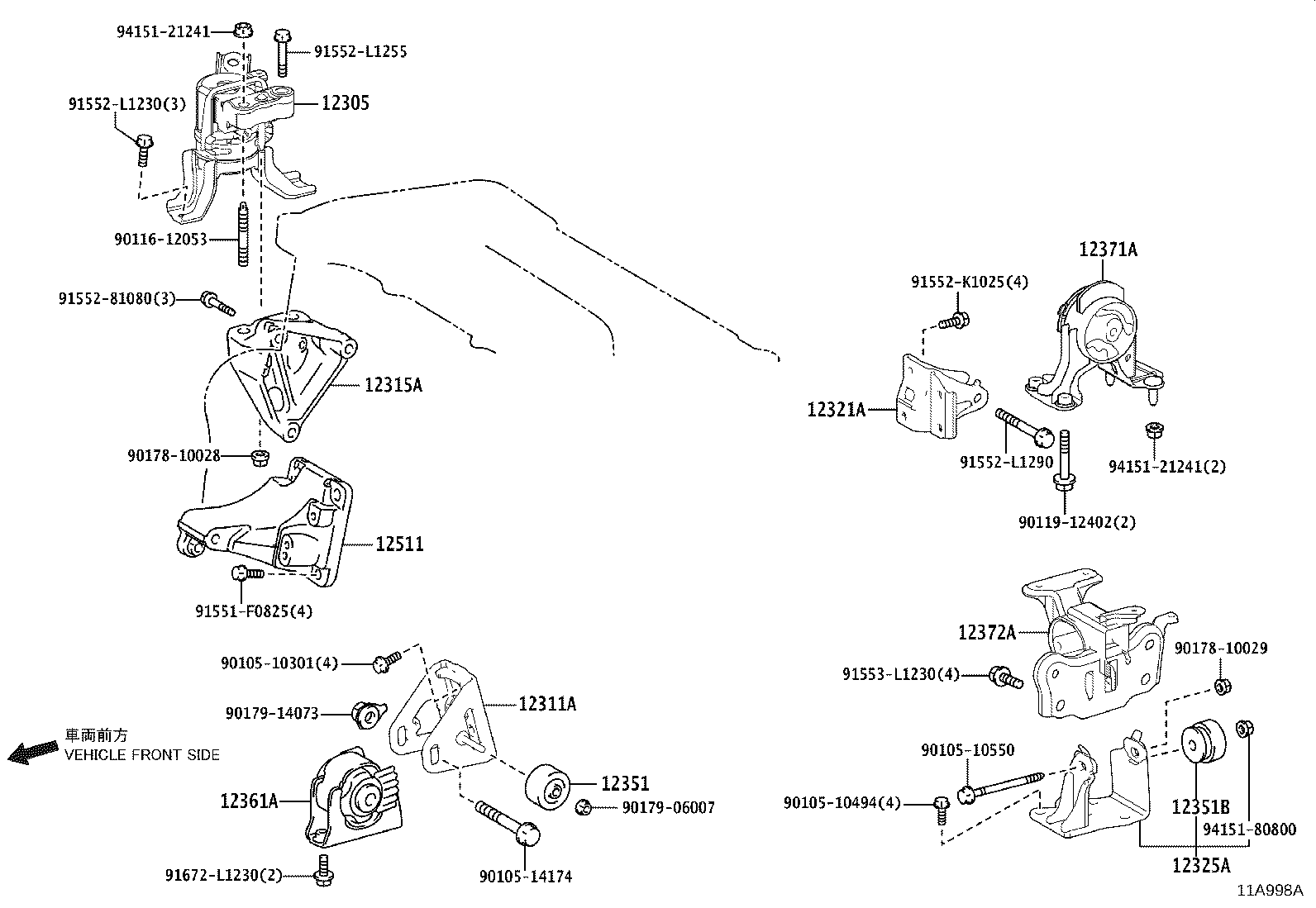

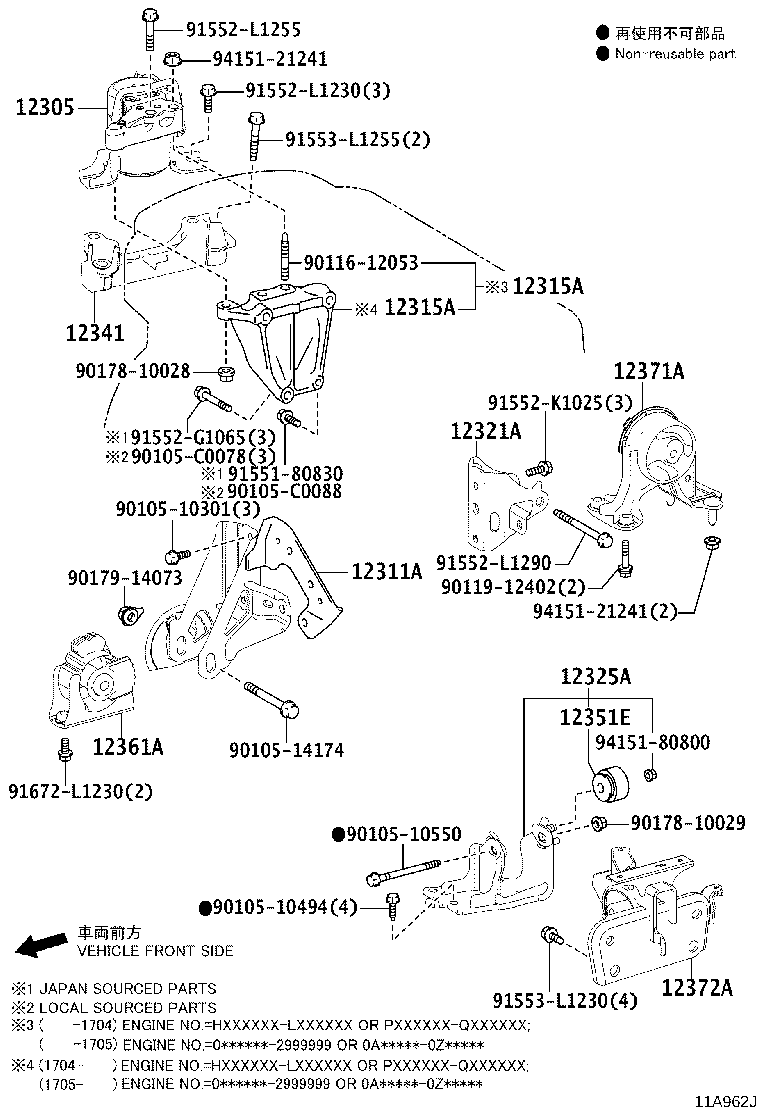

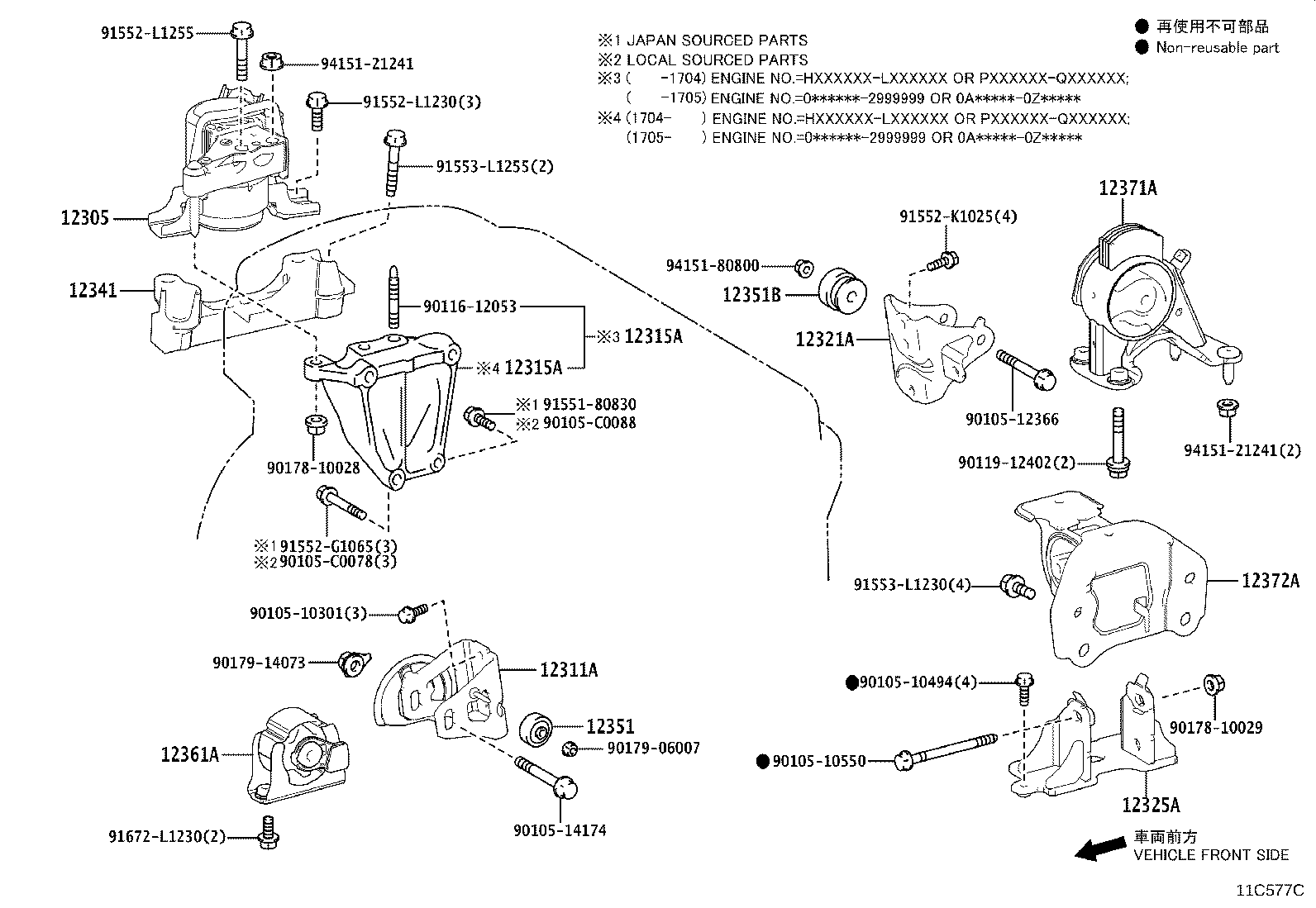

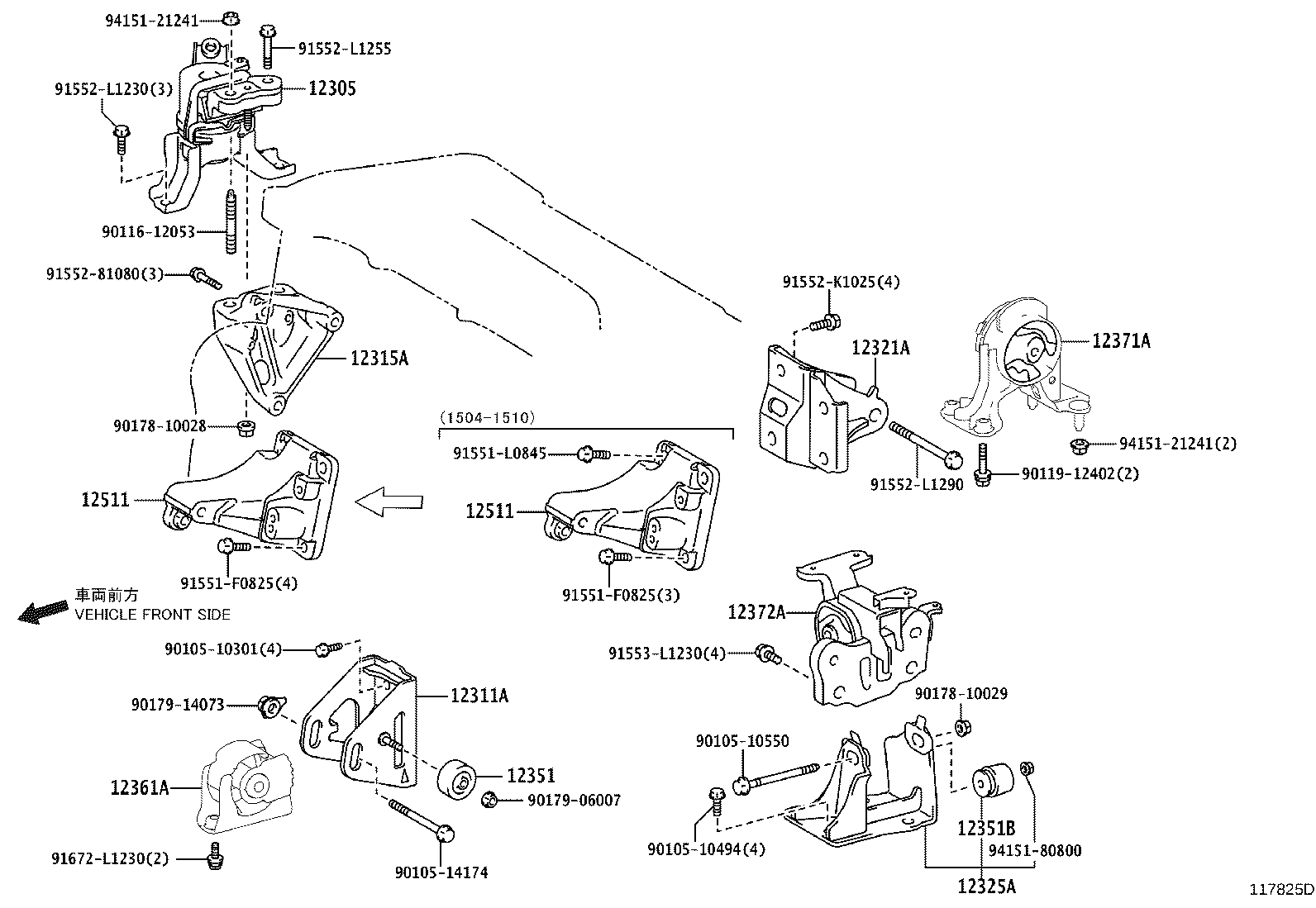

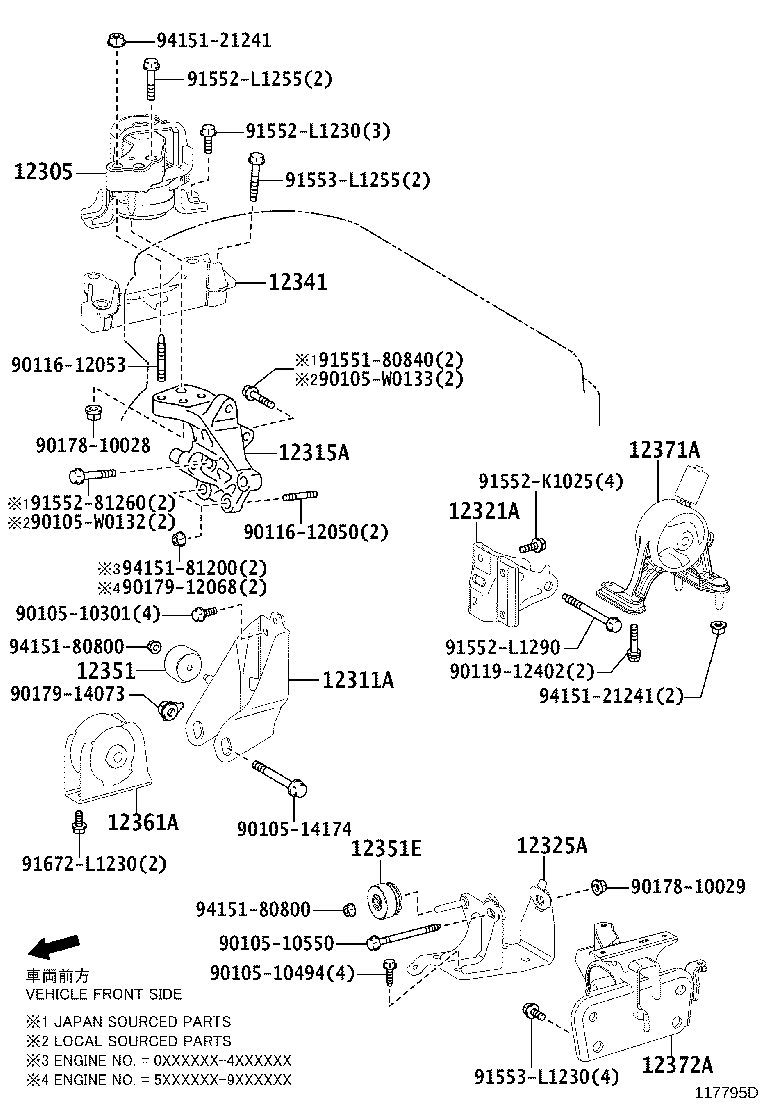

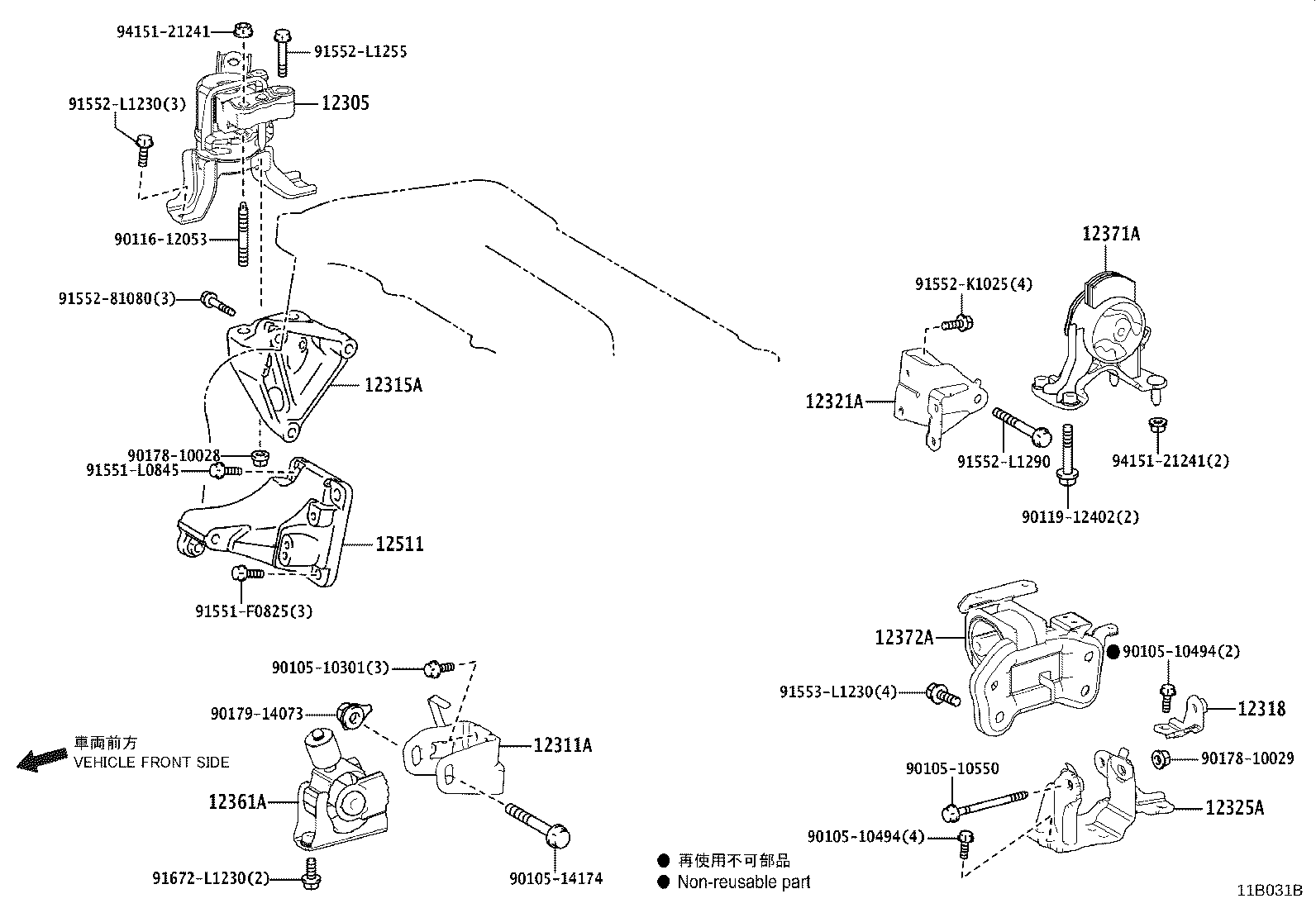

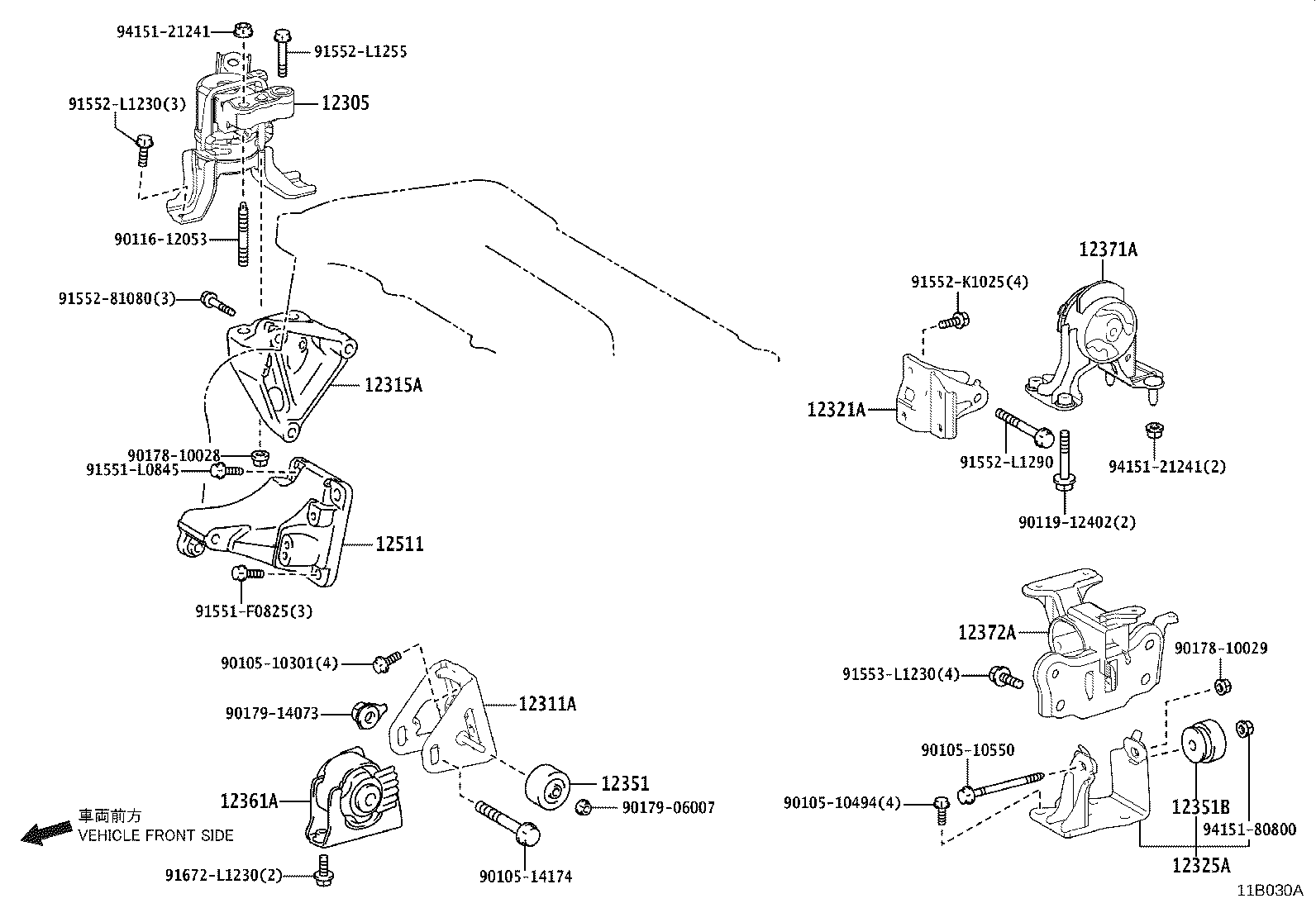

Figure 117794F 117794F 2012-12 → — Figure 117795D 117795D 2012-12 → — Figure 11A962J 11A962J 2015-10 → — Figure 11C577C 11C577C 2015-10 → — Figure 11B005A 11B005A 2015-10 → 2018-05 Figure 117825D 117825D 2012-12 → 2015-10 Figure 117826D 117826D 2012-12 → 2015-04 Figure 11A997A 11A997A 2015-10 → — Figure 11A998A 11A998A 2015-10 → — Figure 11A999A 11A999A 2015-10 → — Figure 11B001A 11B001A 2015-10 → — Figure 11B030A 11B030A 2015-10 → — Figure 11B031B 11B031B 2015-04 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12318 Stay, Engine Mounting, LH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12341 Spacer, Engine Mounting
12351 Damper, Engine Mounting
12351B Damper, Engine Mounting
12351E Damper, Engine Mounting
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
