Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

11 part groups · 5 illustrations

Illustrations

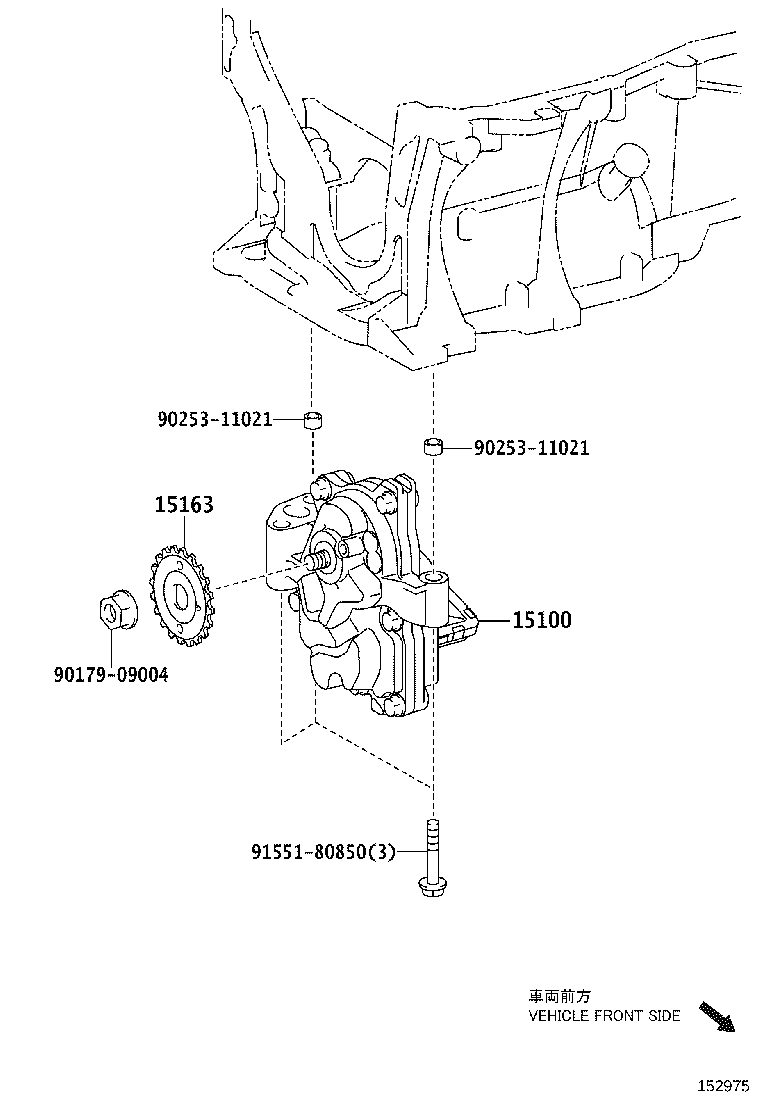

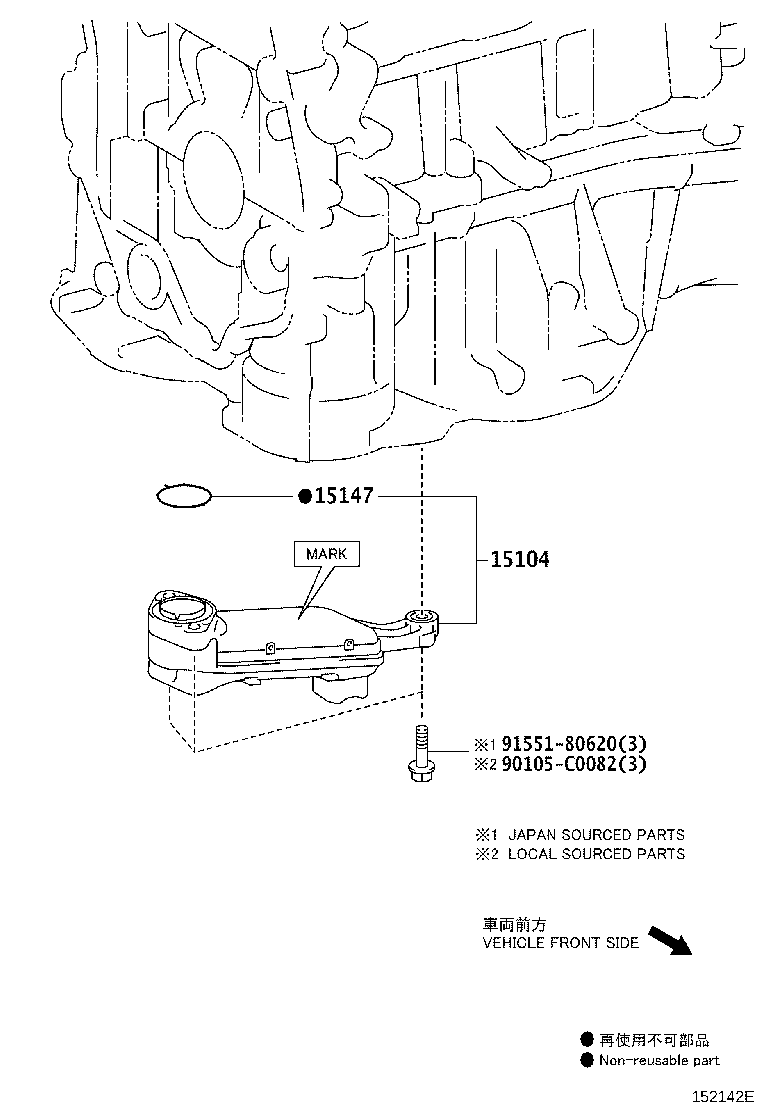

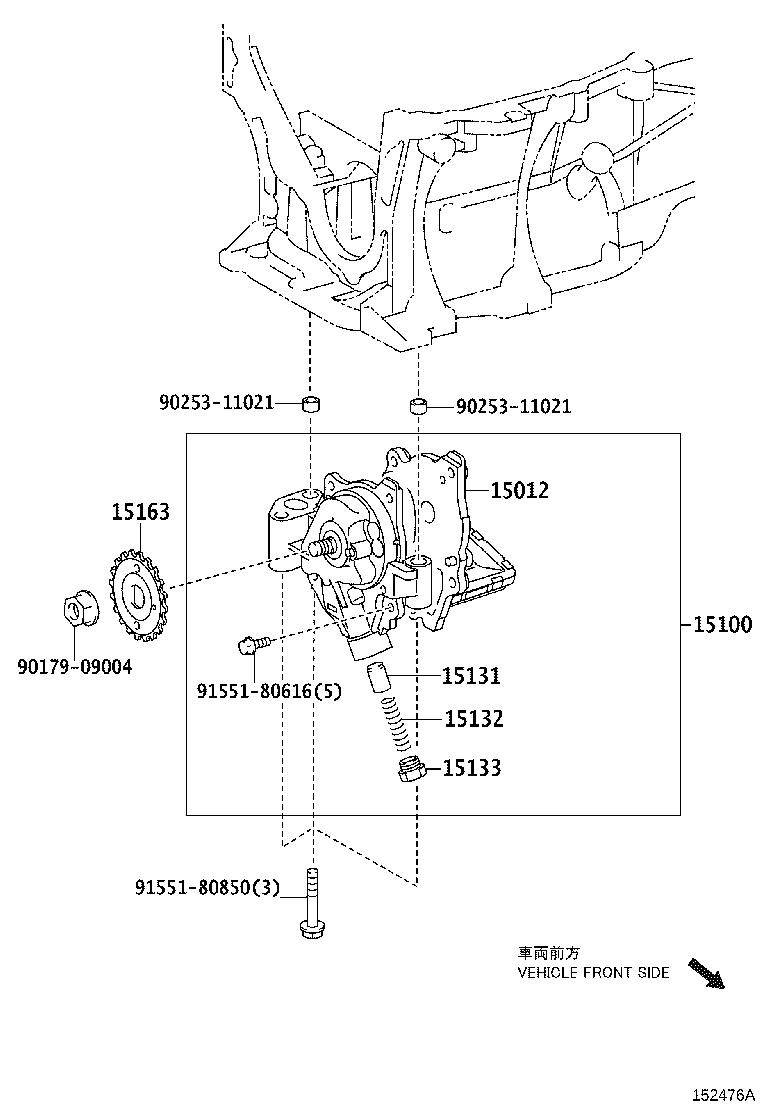

Figure 152021C 152021C 2012-12 → — Figure 152142E 152142E 2015-10 → — Figure 152477A 152477A 2015-10 → 2018-05 Figure 152975 152975 2012-12 → 2015-10 Figure 152476A 152476A 2015-10 → —

Part groups

PNCDescription
13507A Chain Sub-assy, Oil Pump Drive
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15115 Cover, Oil Pump
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15163 Gear, Oil Pump Drive Shaft
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
