Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

8 part groups · 4 illustrations

Illustrations

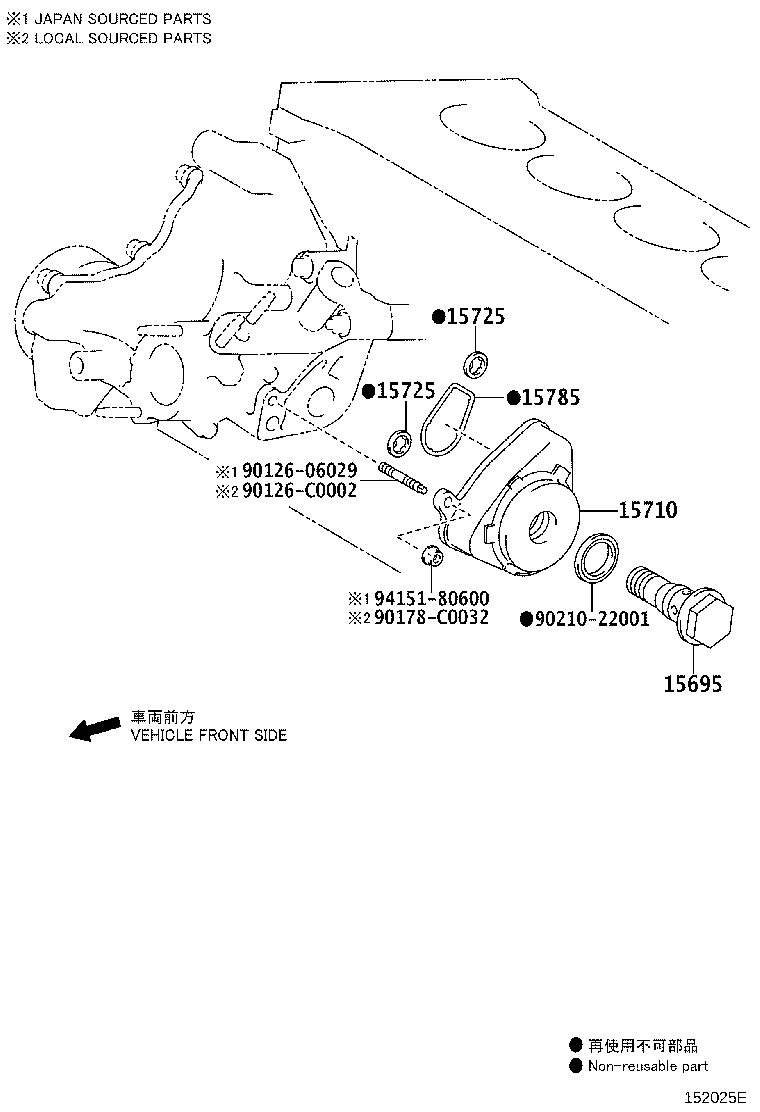

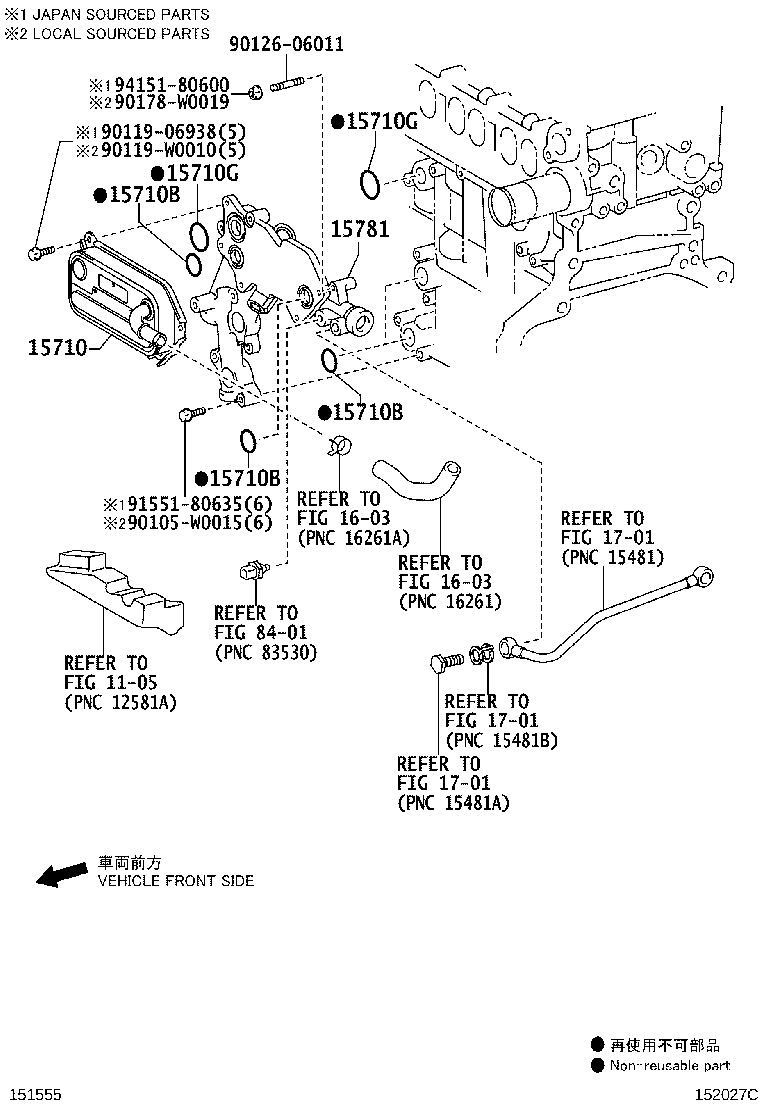

Figure 152026C 152026C 2012-12 → 2015-10 Figure 152027C 152027C 2012-12 → — Figure 152025E 152025E 2015-10 → — Figure 152025E 152025E 2017-08 → —

Part groups

PNCDescription
15695 Bolt, Oil Cooler Union
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710G Ring, O, NO.2
15725 Gasket, Oil Cooler Cover
15781 Bracket, Oil Cooler, NO.1
15785 Gasket, Oil Cooler
15786A Gasket, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
