Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

9 part groups · 6 illustrations

Illustrations

Figure 165208C

165208C 2012-12 → —

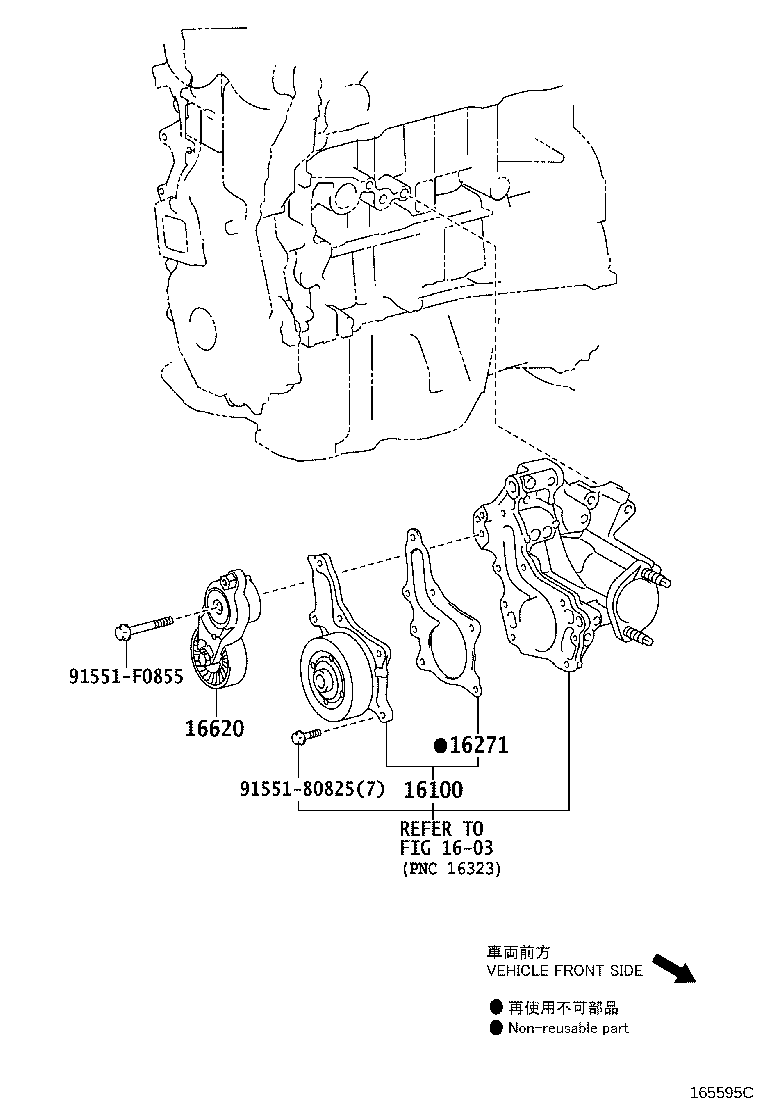

Figure 165595C

165595C 2015-10 → —

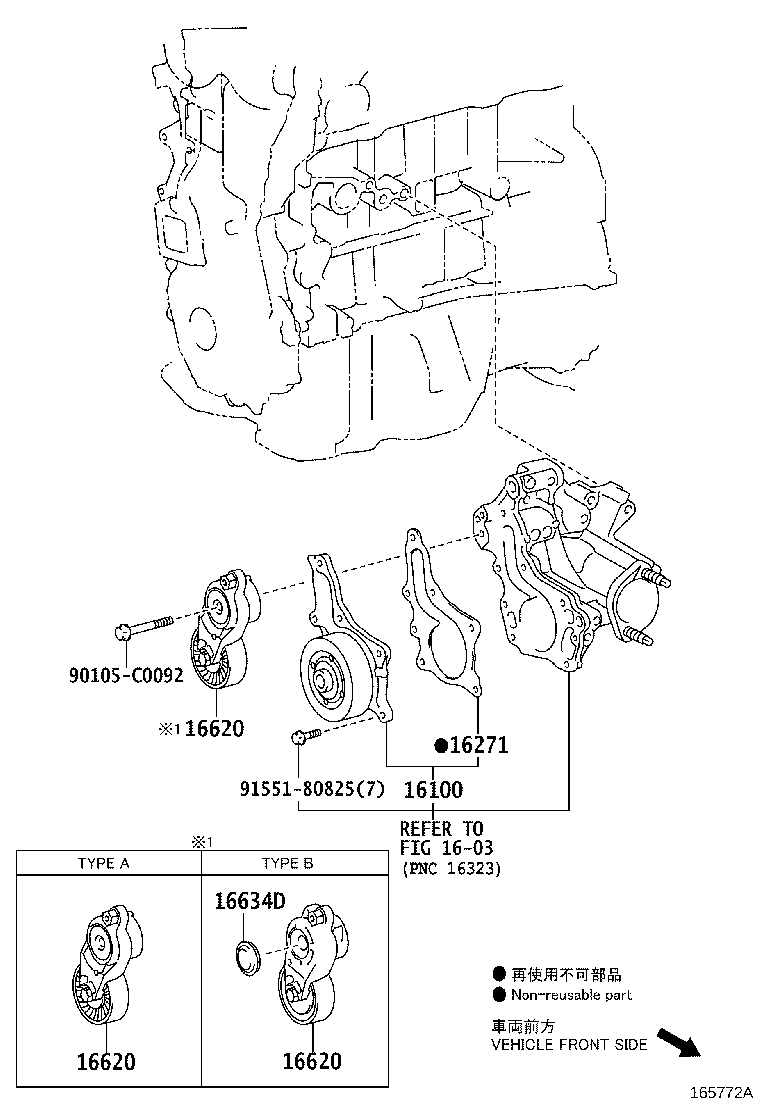

Figure 165772B

165772B 2016-10 → —

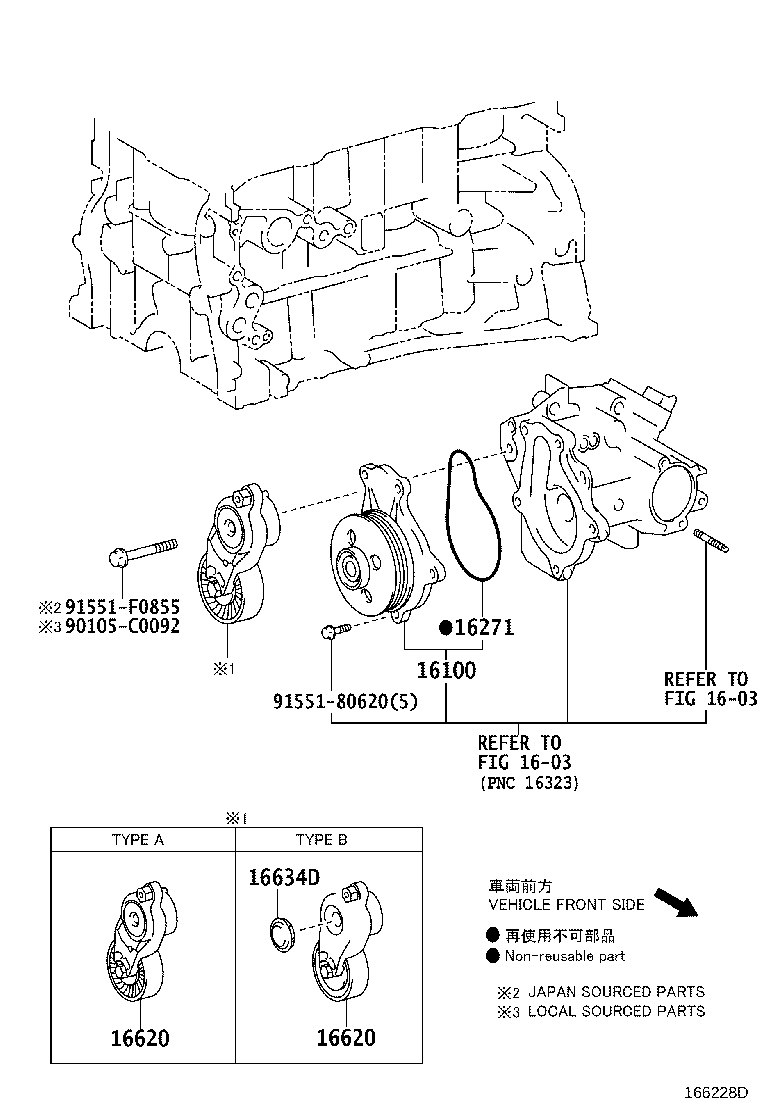

Figure 166228D

166228D 2015-10 → —

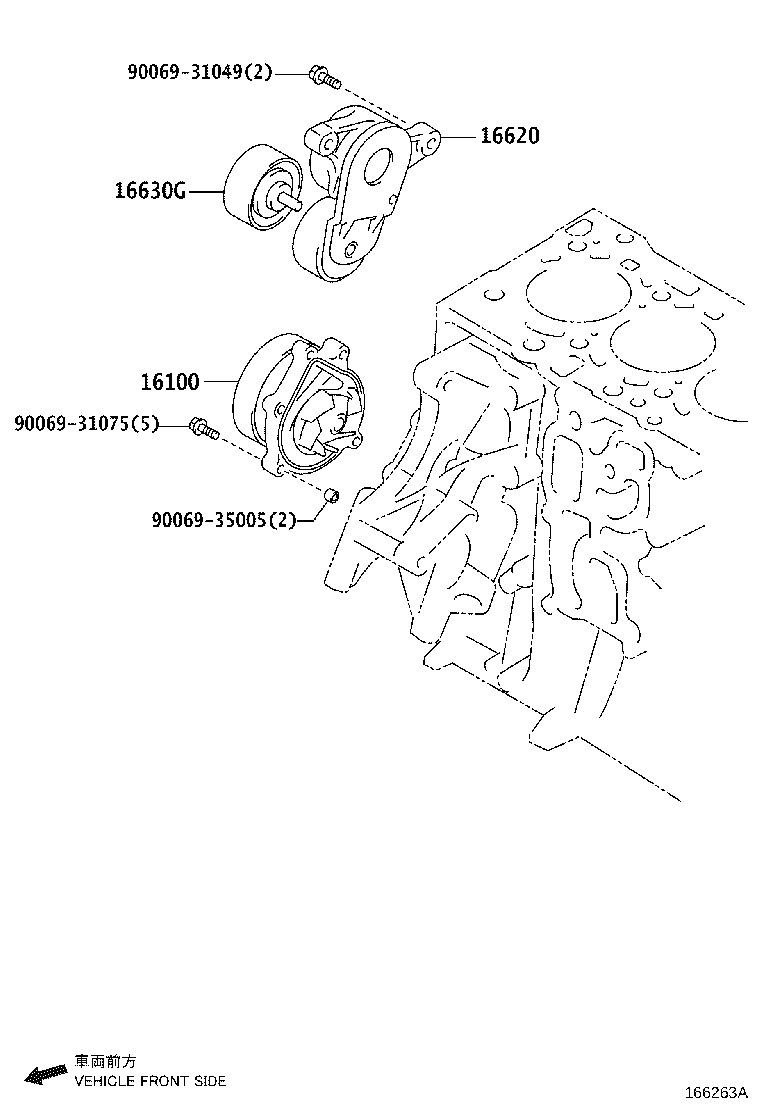

Figure 166263A

166263A 2015-10 → 2018-05

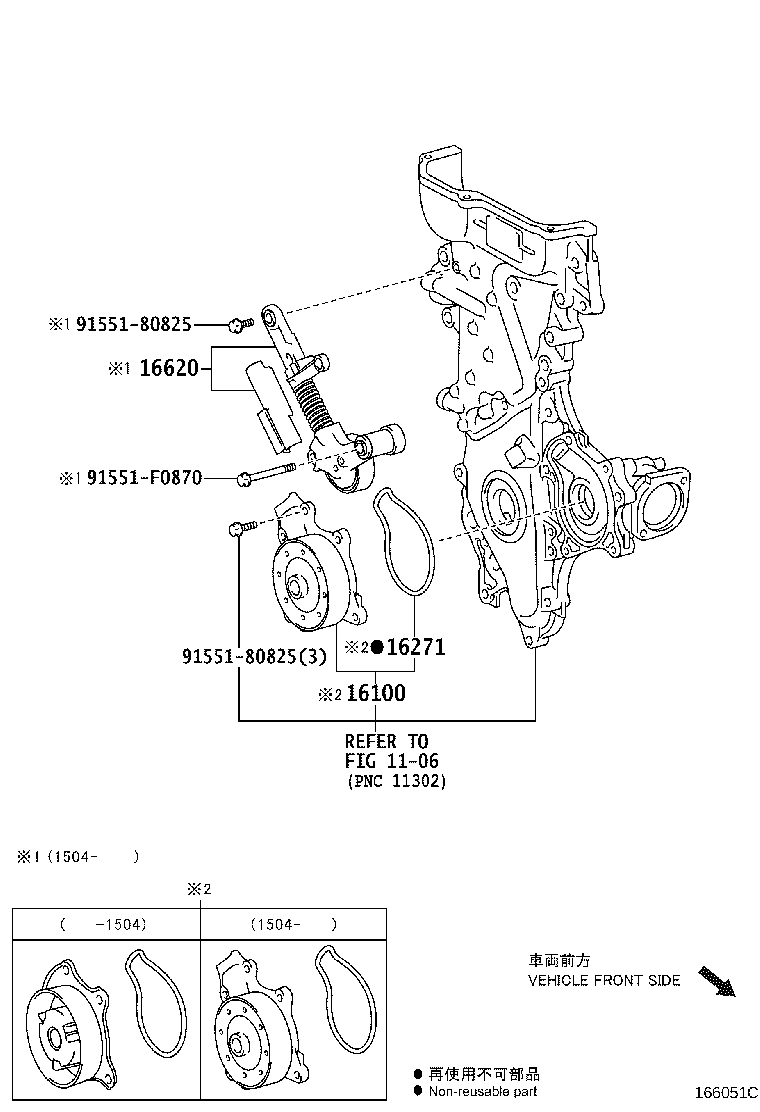

Figure 166051C

166051C 2012-12 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16271	Gasket, Water Pump
16603	Pulley Sub-assy, Idler, NO.1
16604	Pulley Sub-assy, Idler, NO.2
16620	Tensioner Assy, V-ribbed Belt
16630G	Pulley Assy, Idler
16634D	Cover, Dust
16649B	Plate, Idler Pulley Cover
16659	Plate, Idler Pulley Cover, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
