Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

21 part groups · 10 illustrations

Illustrations

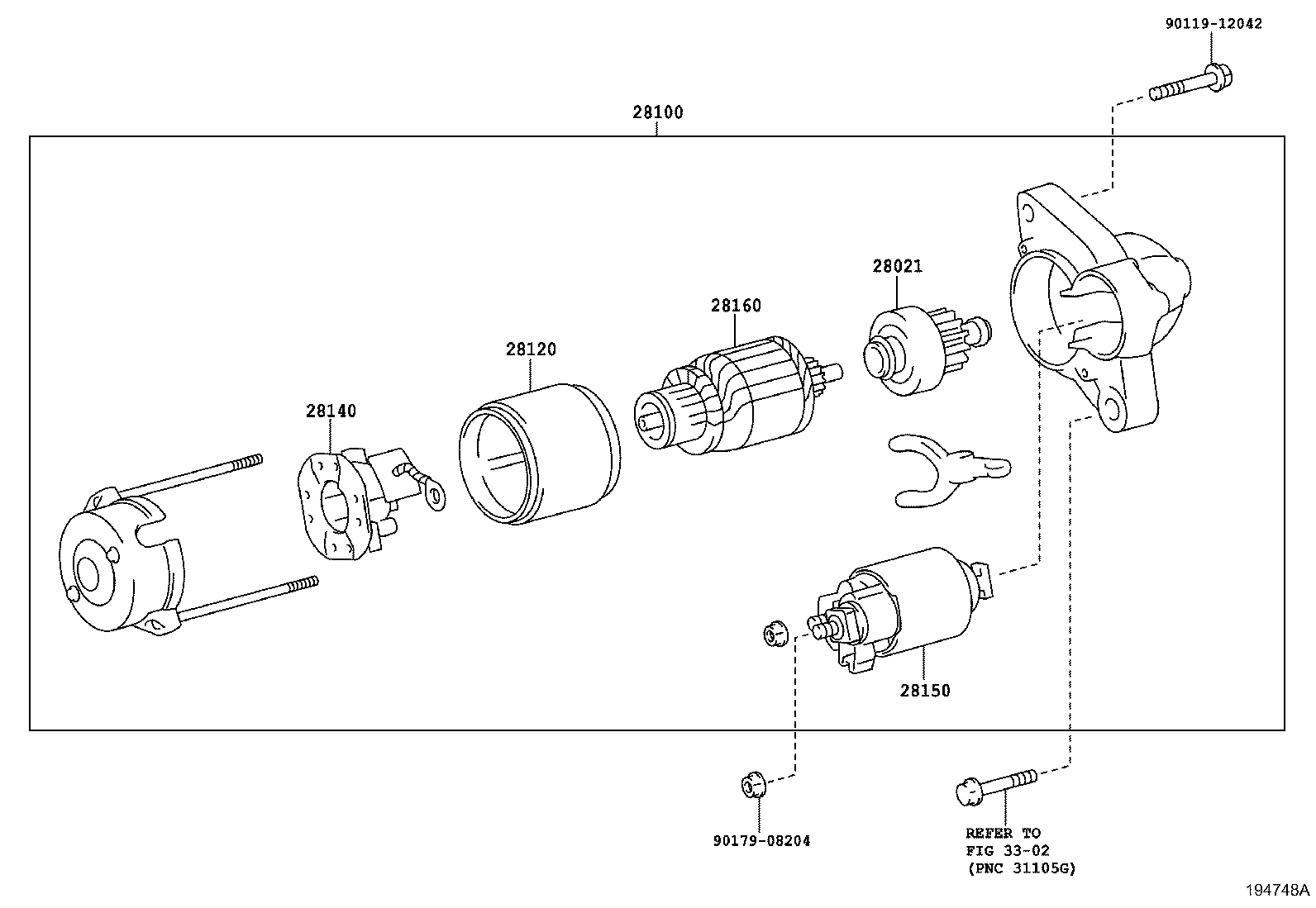

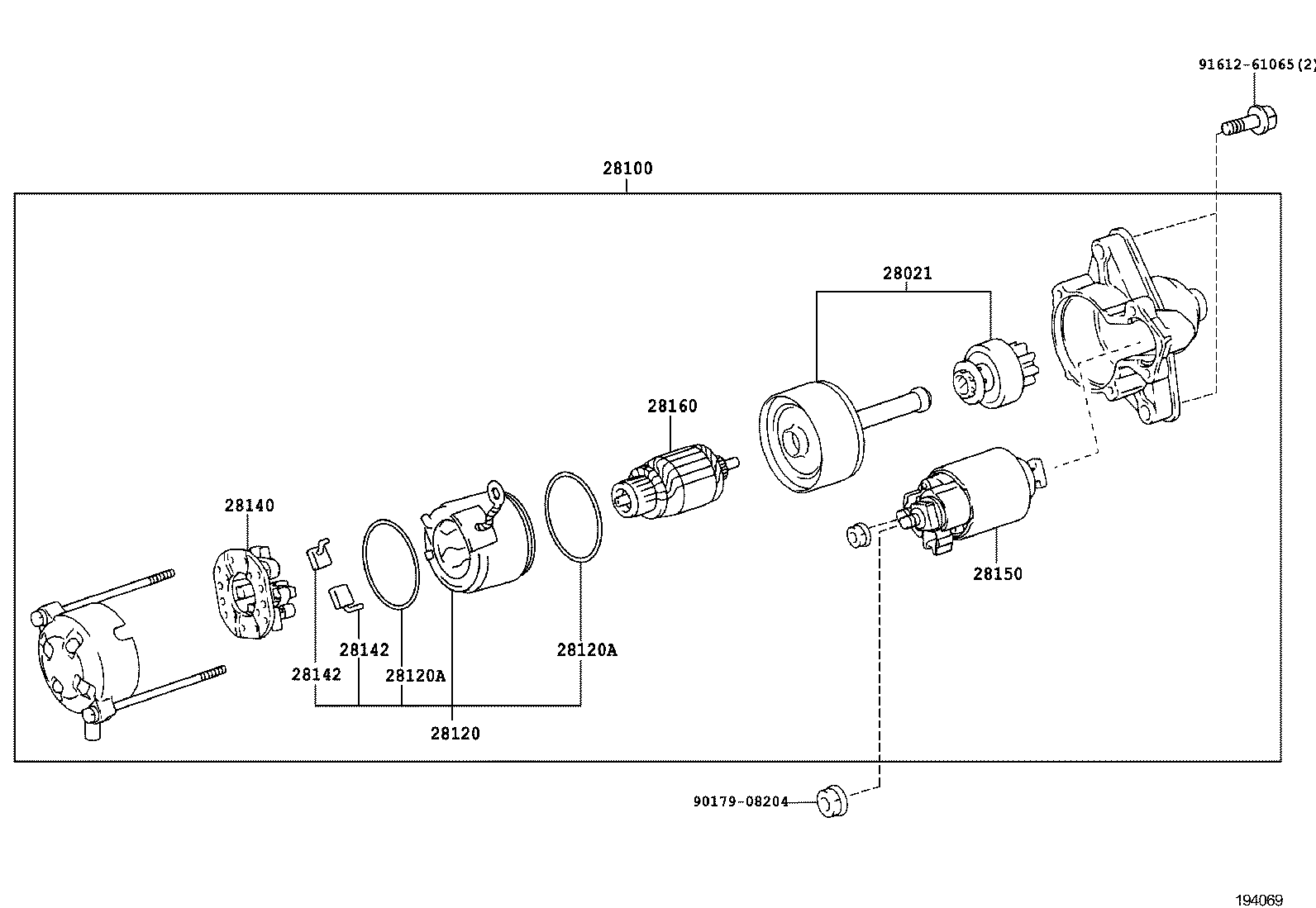

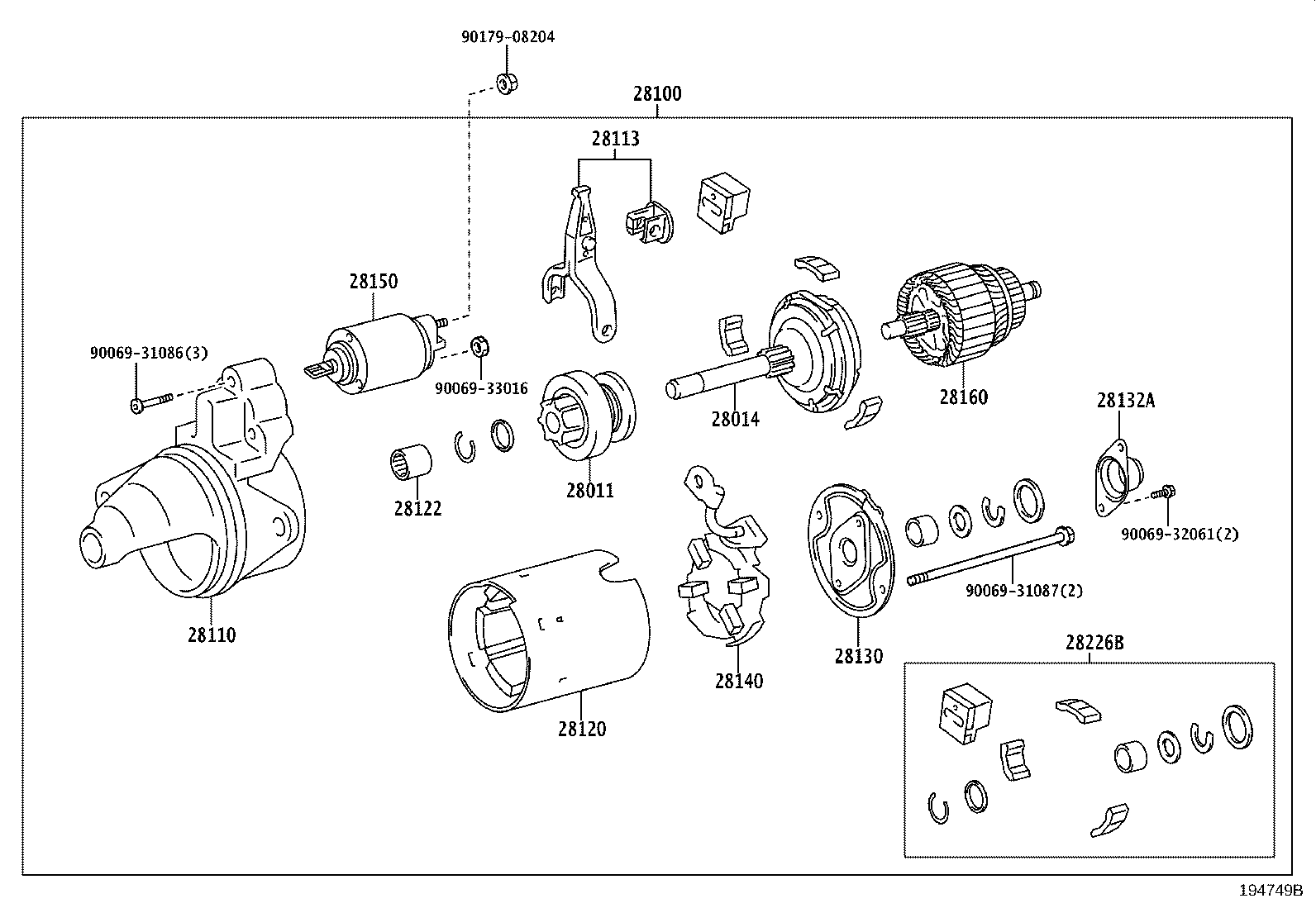

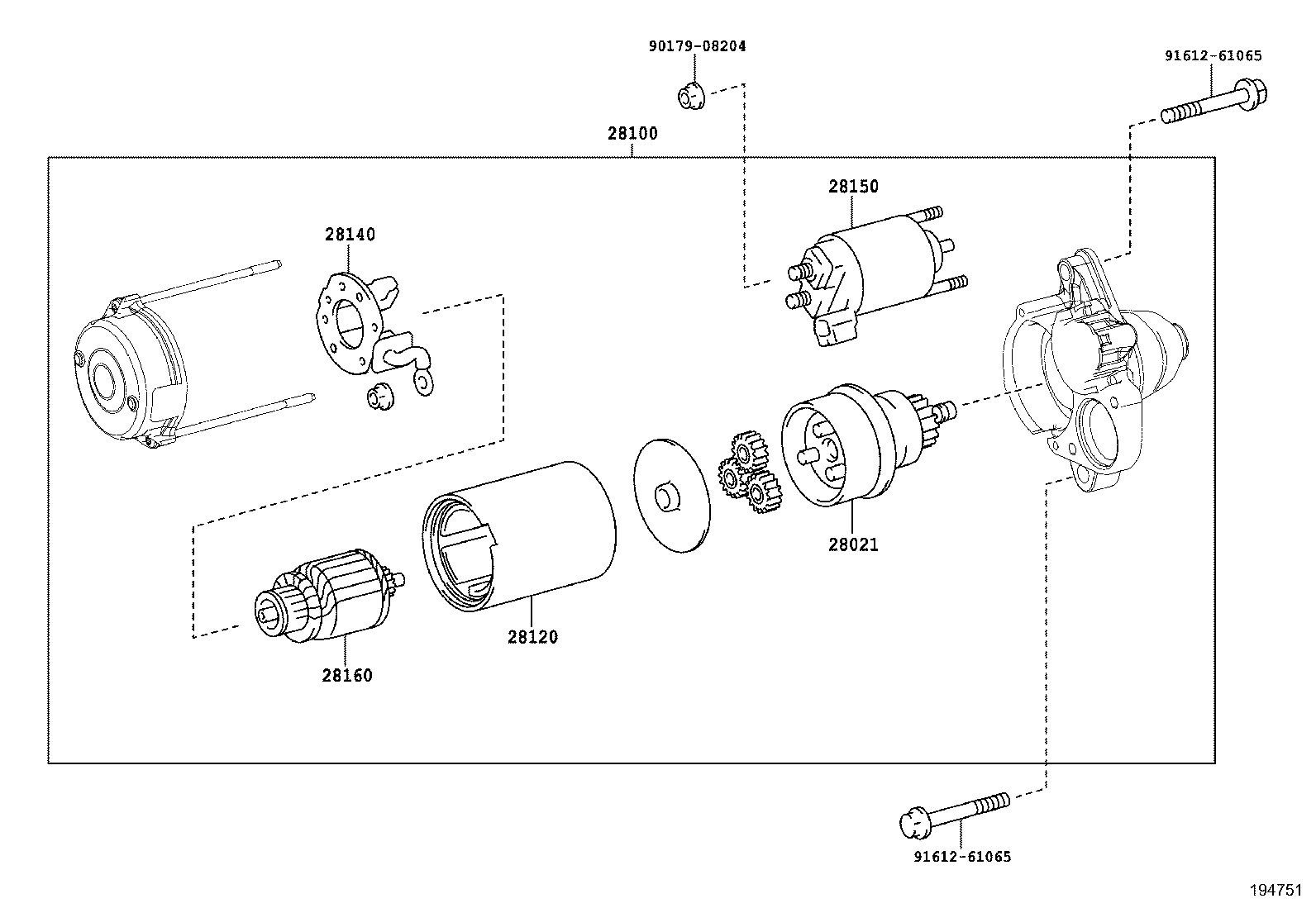

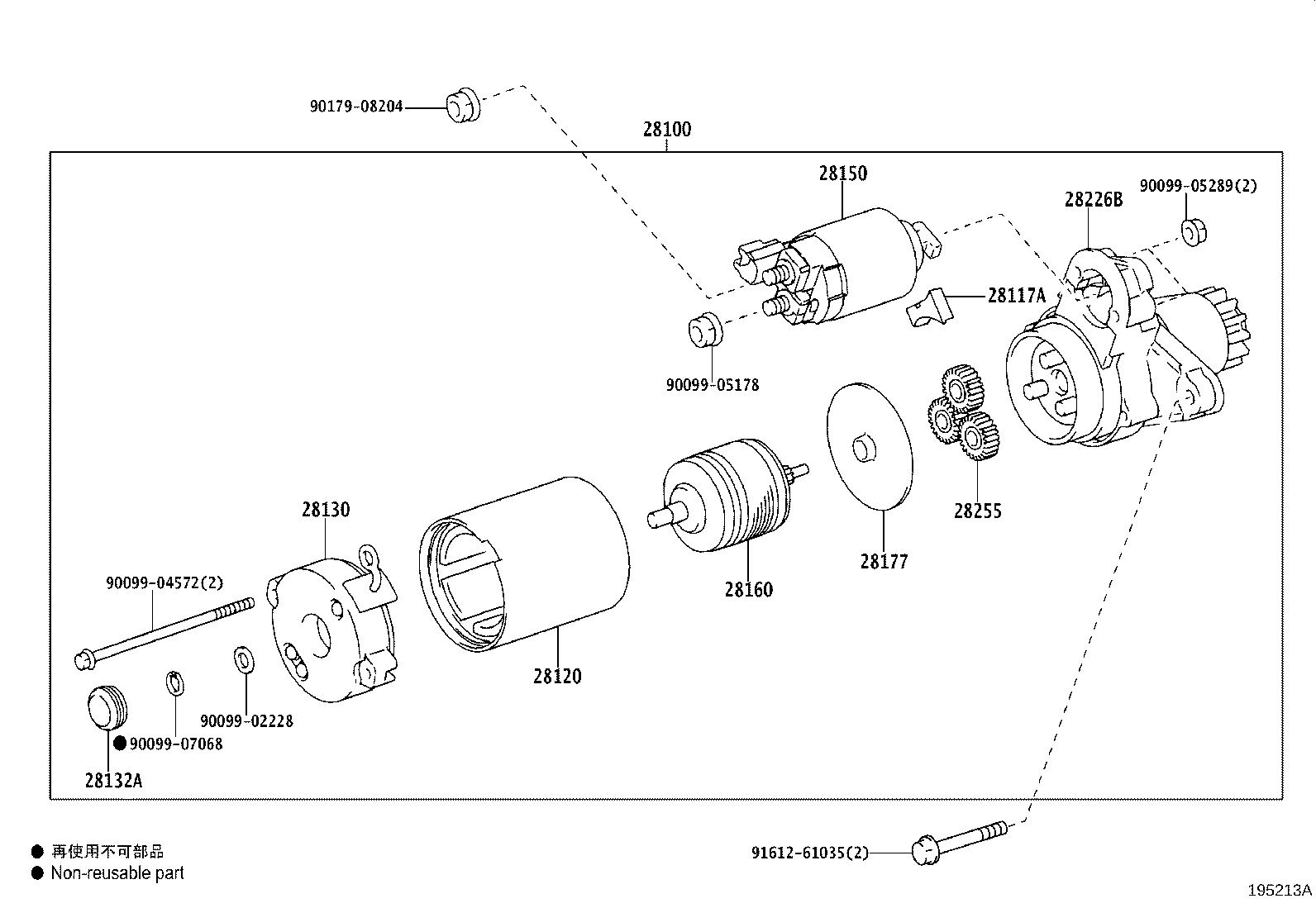

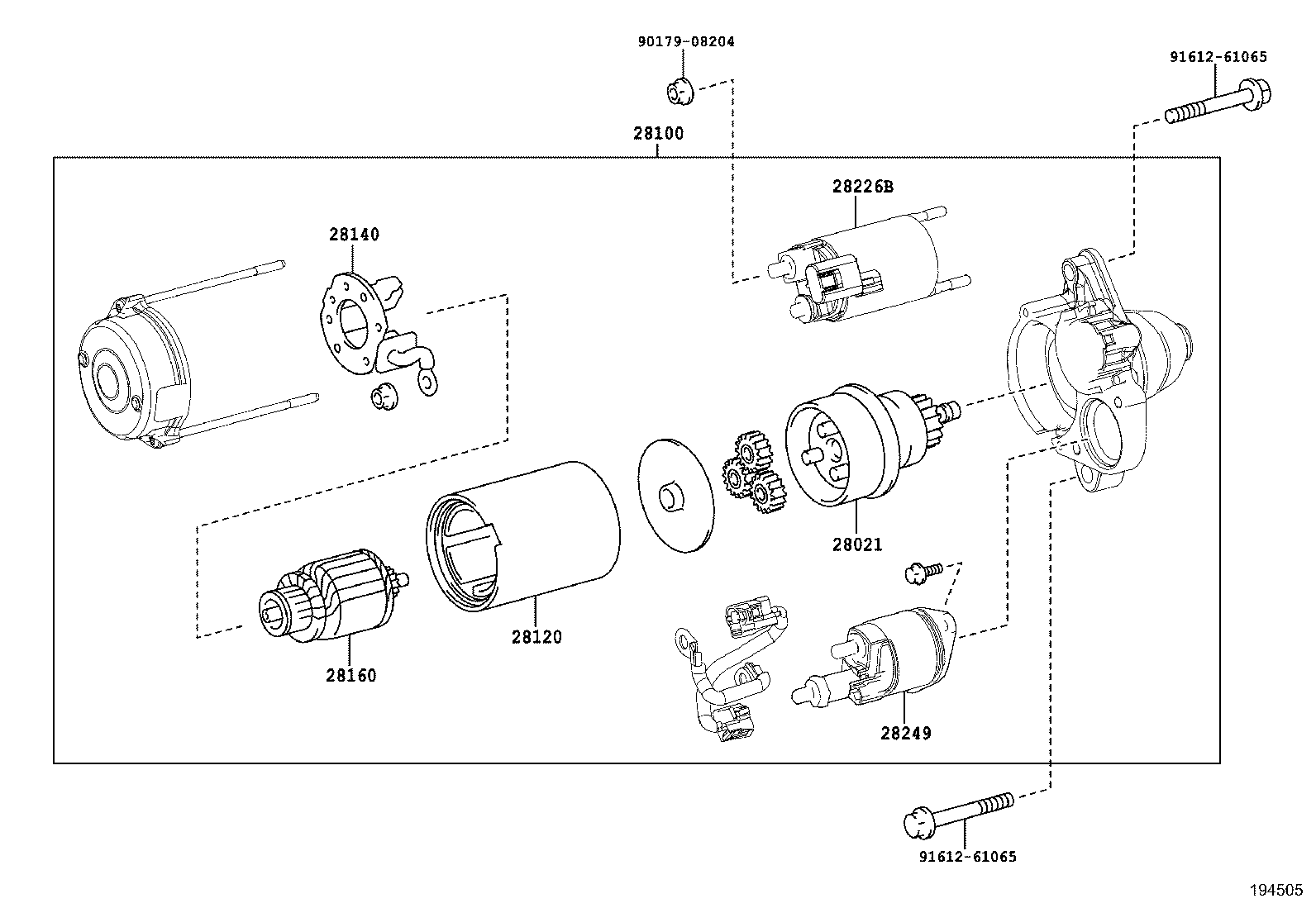

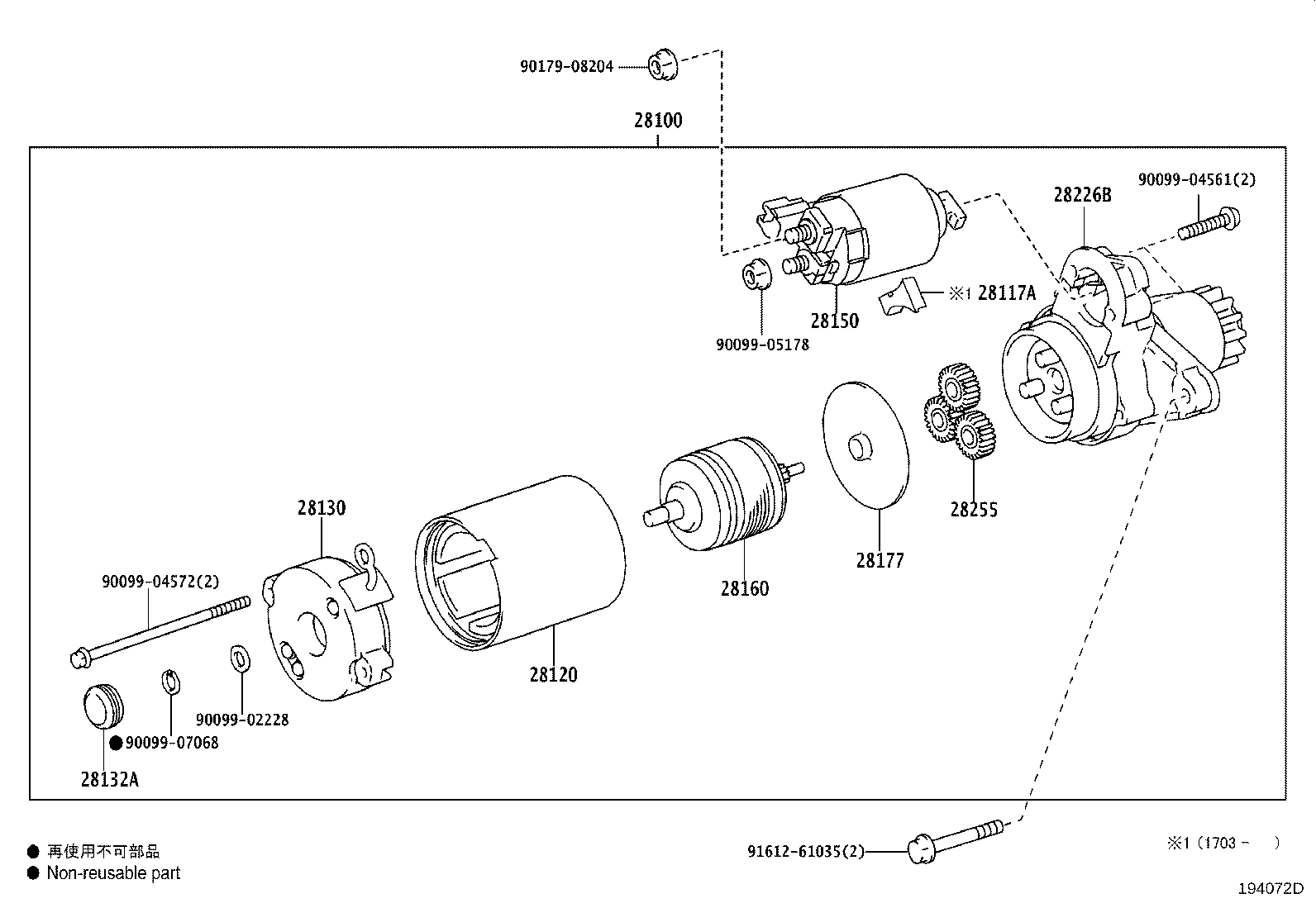

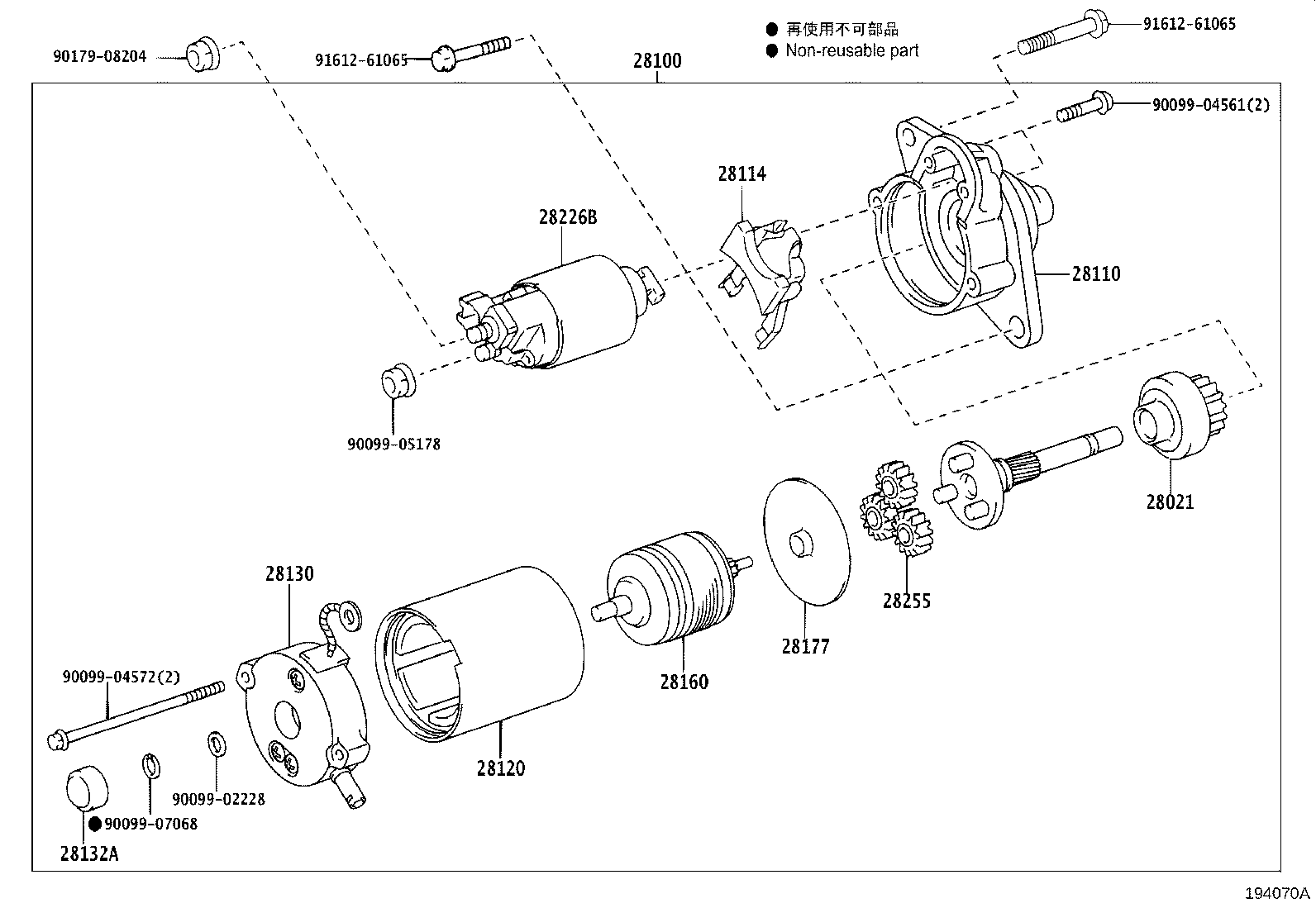

Figure 194073A 194073A 2012-12 → 2015-10 Figure 194748A 194748A 2012-12 → — Figure 194069 194069 2012-12 → 2015-04 Figure 194069 194069 2012-12 → — Figure 194505 194505 2015-04 → — Figure 194072D 194072D 2015-10 → — Figure 194749B 194749B 2015-10 → — Figure 194070A 194070A 2015-10 → — Figure 194751 194751 2015-10 → — Figure 195213A 195213A 2017-03 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28014 Shaft Sub-assy, Planet Carrier
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28113 Lever, Starter Pinion Drive
28114 Pin, Starter Drive Lever Set
28117A Seal, Rubber
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28122 Collar, Space
28130 Frame Assy, Starter Commutator End
28132A Cover, Starter Commutator End Frame
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28177 Plate(FOR STARTER ARMATURE)
28226B Starter Kit, Repair Service
28249 Relay, Starter Inrush Current Reduction
28255 Gear, Planet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
