Factory parts data · Europe

Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

4 part groups · 2 illustrations

Illustrations

Figure 194076C

194076C 2012-12 → —

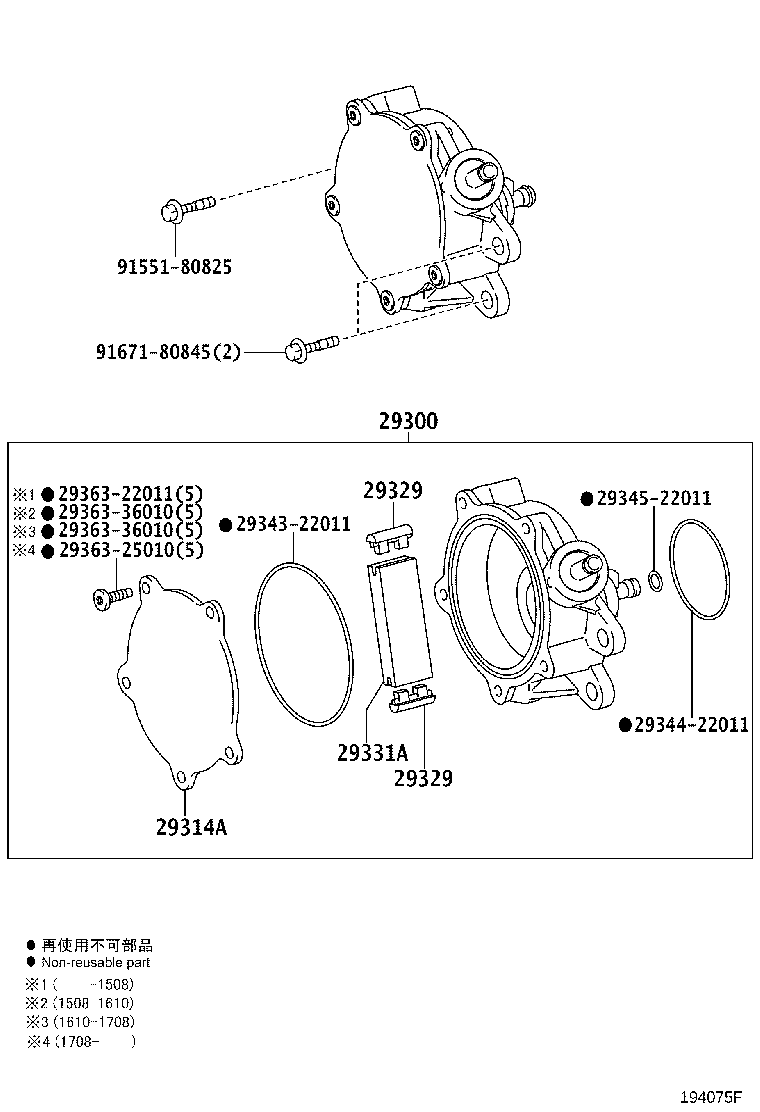

Figure 194075F

194075F 2012-12 → —

Part groups

PNC	Description
29300	Pump Assy, Vacuum
29314A	Cover, End
29329	Cap, Vacuum Pump Vane
29331A	Vane, Vacuum Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
