Toyota RAV4
2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe
Supported model
Data version 2019-09

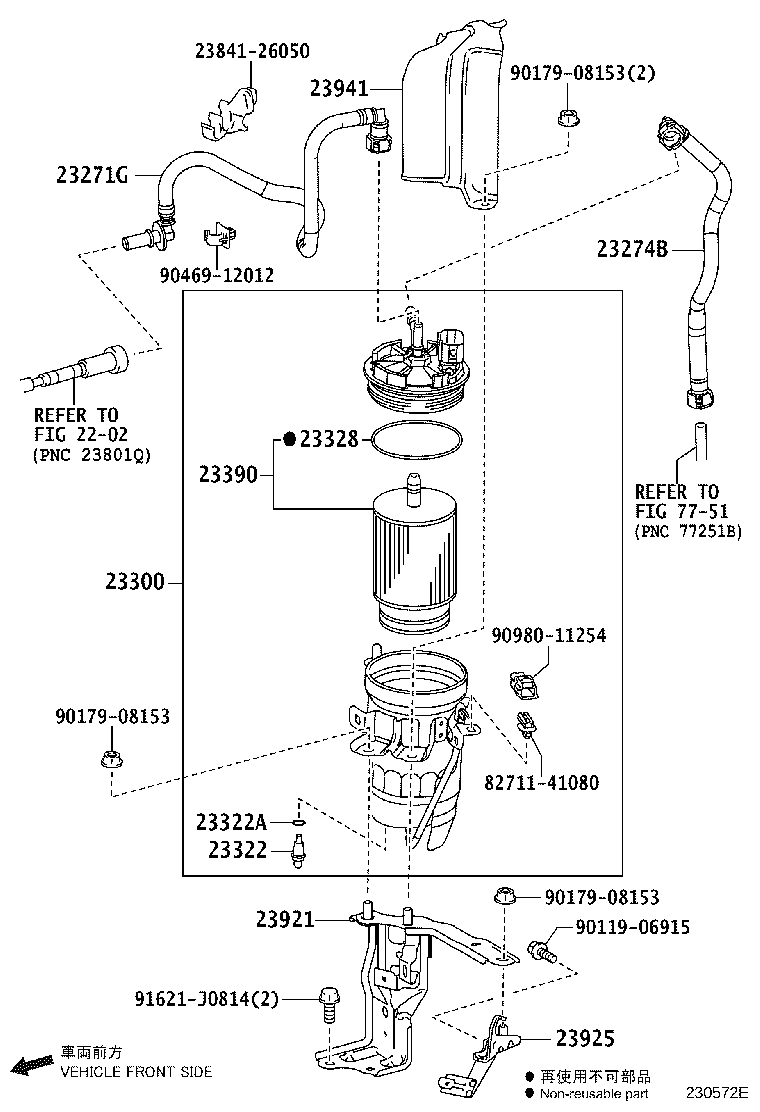

Fuel Filter
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23271G | Hose, Fuel |
| 23274B | Hose, Fuel, NO.3 |
| 23300 | Filter Assy, Fuel |
| 23322 | Plug, Drain(FOR FUEL FILTER) |
| 23322A | Ring, O(FOR DRAIN PLUG) |
| 23328 | Gasket(FOR FUEL FILTER) |
| 23338 | Gasket(FOR WARNING SWITCH) |
| 23380 | Cap Assy, Fuel Filter |
| 23390 | Element Assy, Fuel Filter |
| 23921 | Support, Fuel Filter |
| 23925 | Stay, Fuel Filter Support |
| 23941 | Protector, Fuel Filter, NO.1 |
| 84461B | Switch, Level Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
