Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

24 part groups · 3 illustrations

Illustrations

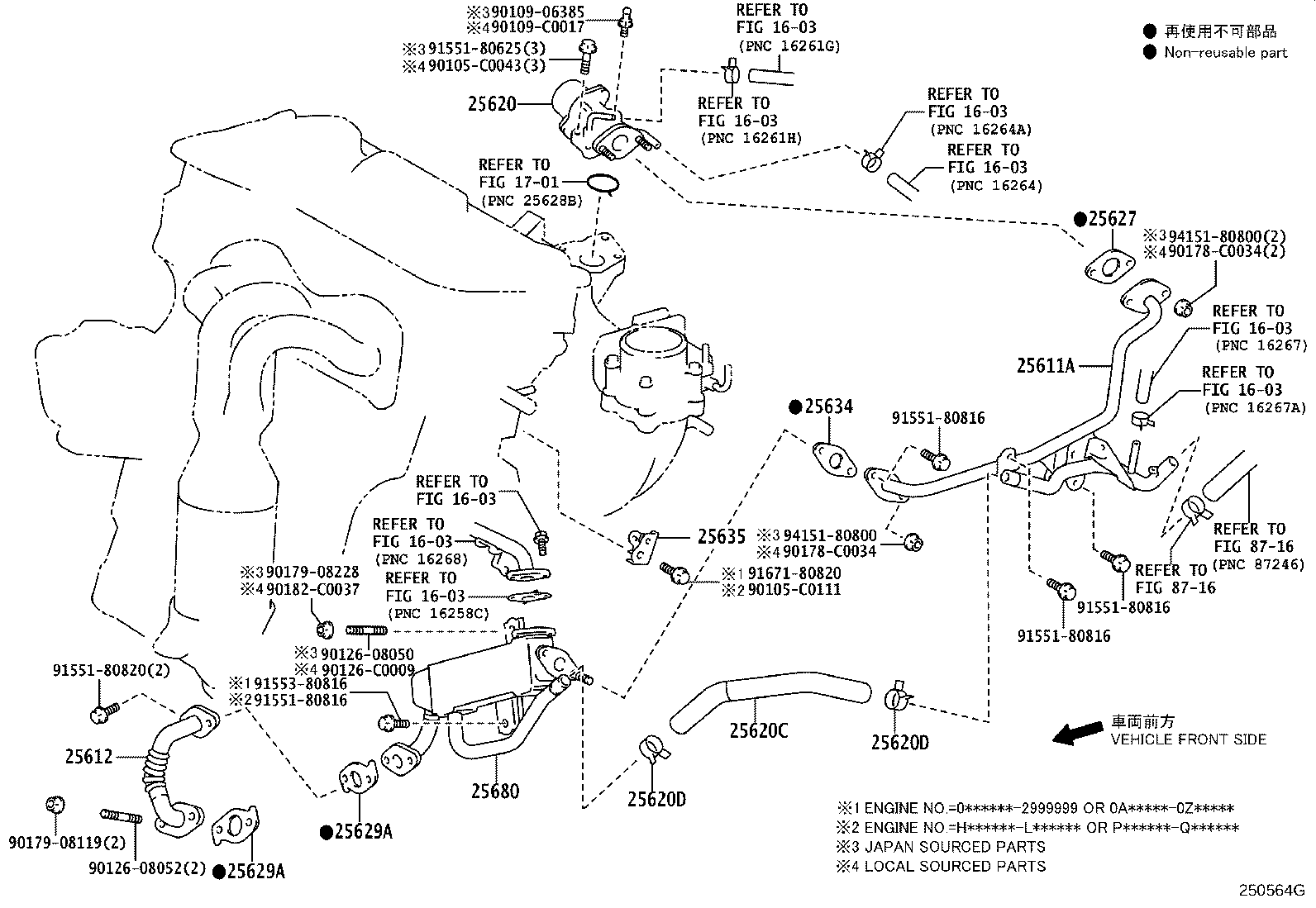

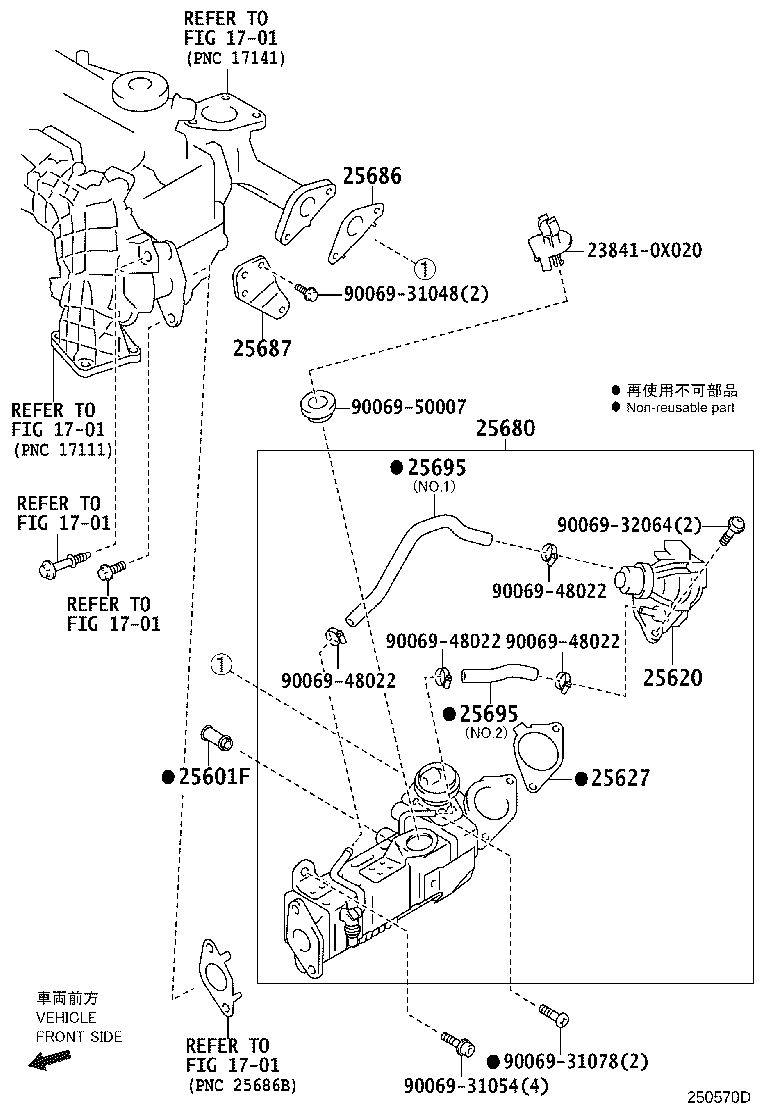

Figure 250484E 250484E 2012-12 → — Figure 250564G 250564G 2015-10 → — Figure 250570D 250570D 2015-10 → 2018-05

Part groups

PNCDescription
25601 Pipe Sub-assy, Egr, NO.1
25601F Union(FOR EGR PIPE, NO.1)
25601L Pipe Sub-assy, Egr W/Cooler
25602 Pipe Sub-assy, Egr, NO.2
25611A Pipe, Egr, NO.1
25612 Pipe, Egr, NO.2
25620 Valve Assy, Egr
25620C Hose, Water By-pass, NO.1
25620D Clip(FOR WATER BY-PASS HOSE, NO.1)
25625 Bracket, Egr Valve
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25629 Gasket, Egr Valve Adapter
25629A Gasket, Egr Pipe, NO.2
25630 Valve Assy, Egr, NO.2
25633 Gasket, Egr Valve
25634 Gasket, Egr Pipe
25635 Bracket, Egr Pipe, NO.1
25680 Cooler Assy, Egr
25685 Gasket, Egr Cooler, NO.1
25686 Gasket, Egr Cooler, NO.2
25687 Bracket, Egr Cooler, NO.1
25695 Hose, Egr Vacuum Modulator
25800 Valve Assy, Electric Egr Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
