Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

25 part groups · 12 illustrations

Illustrations

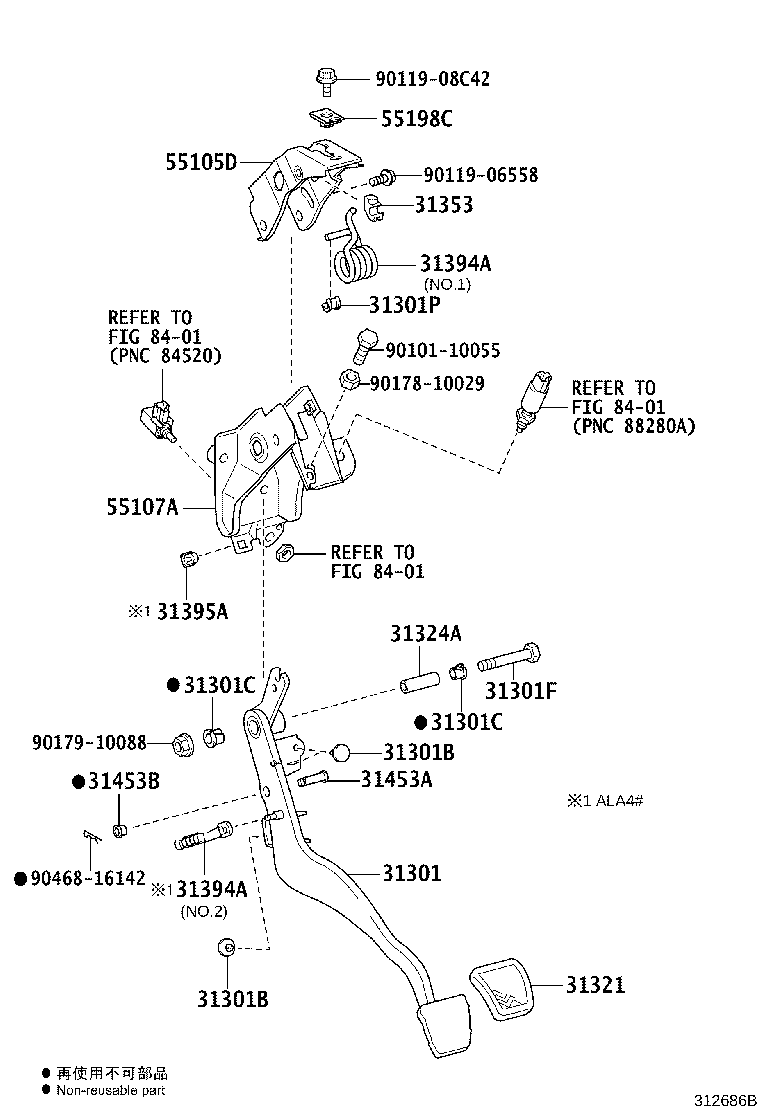

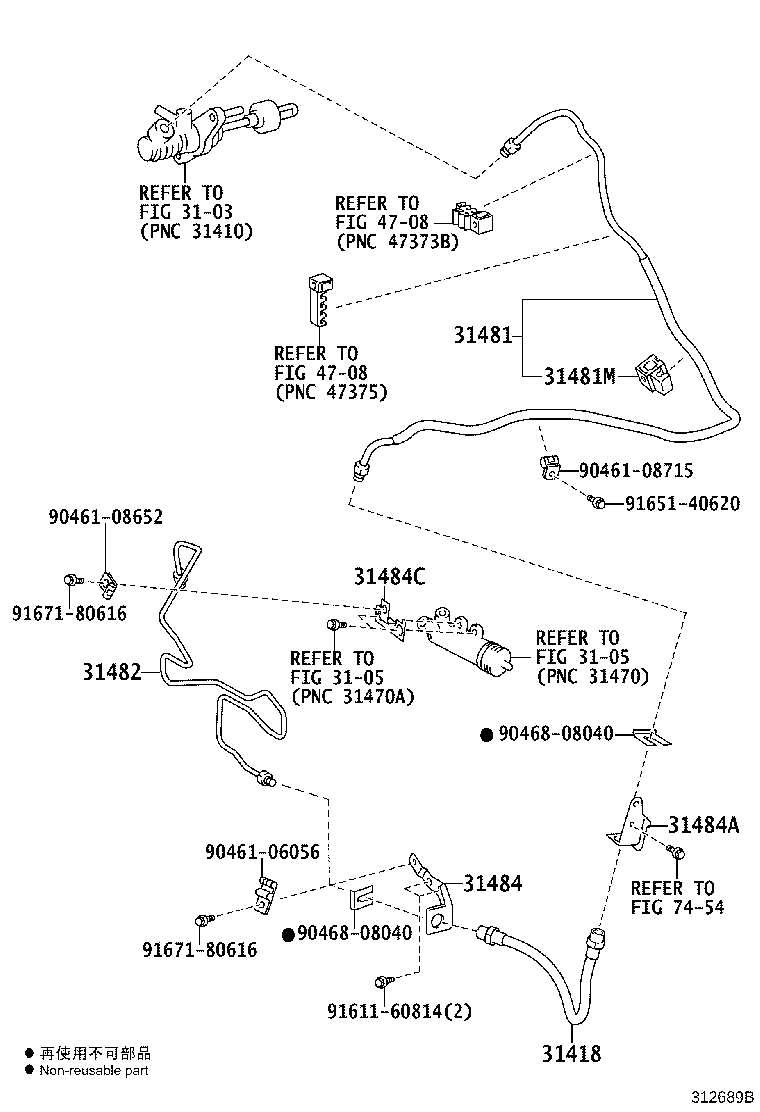

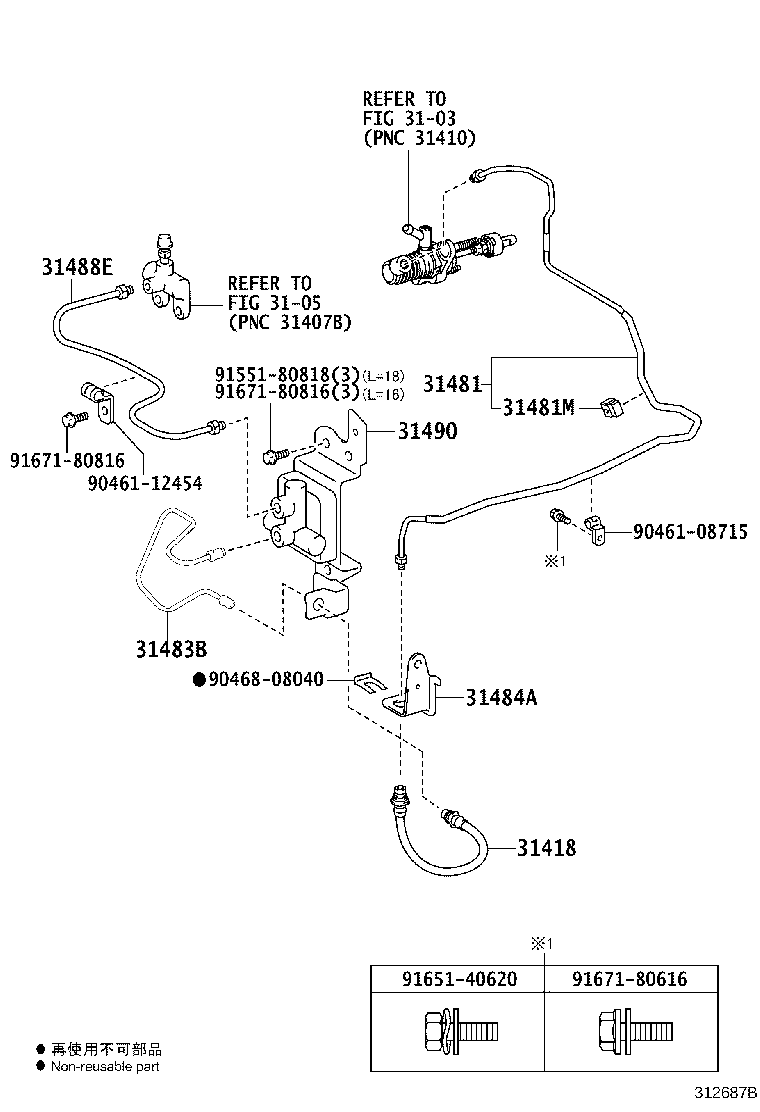

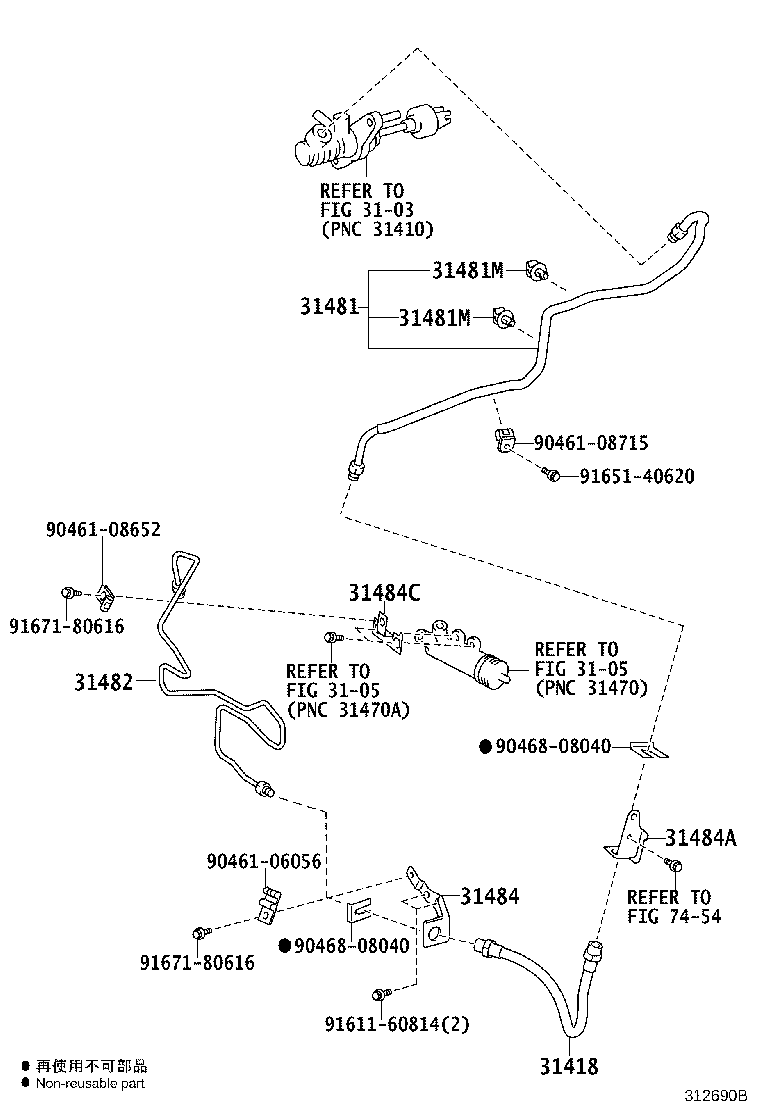

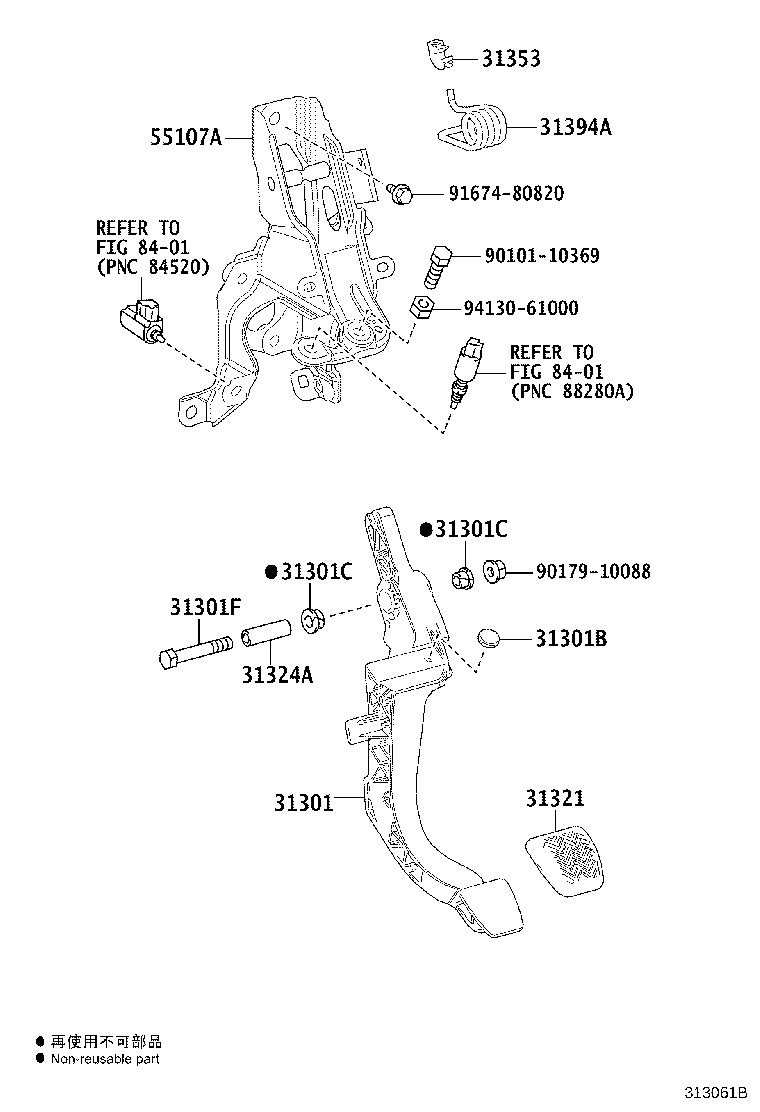

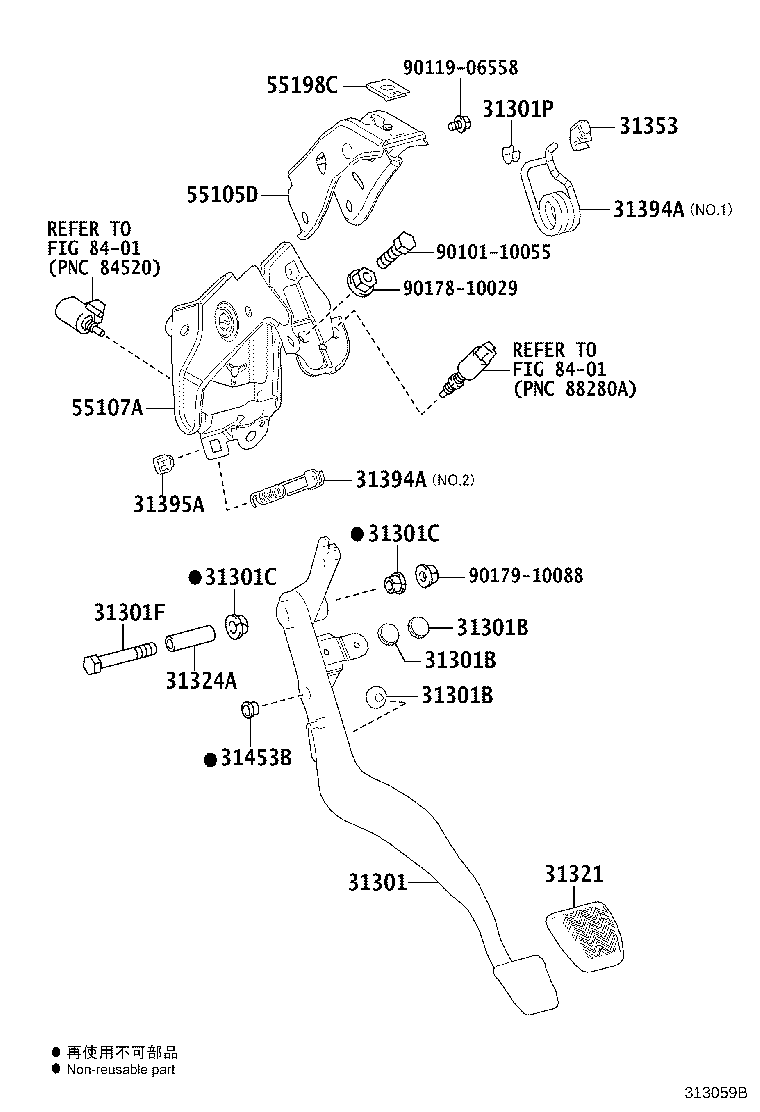

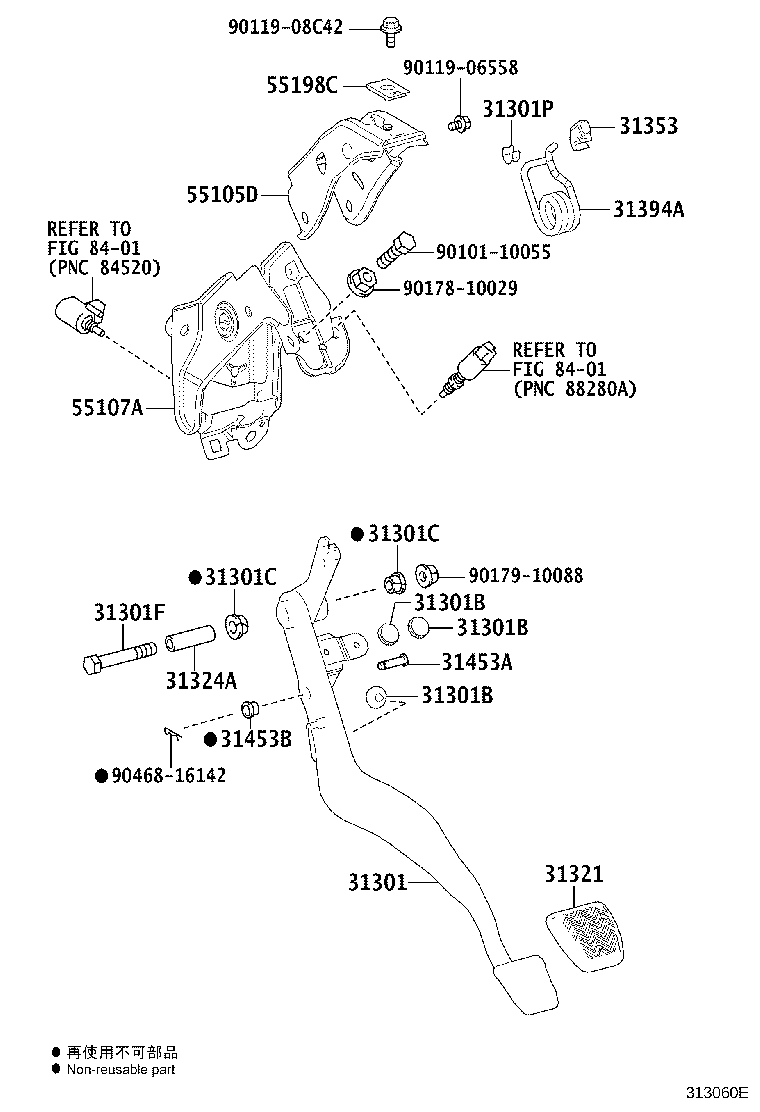

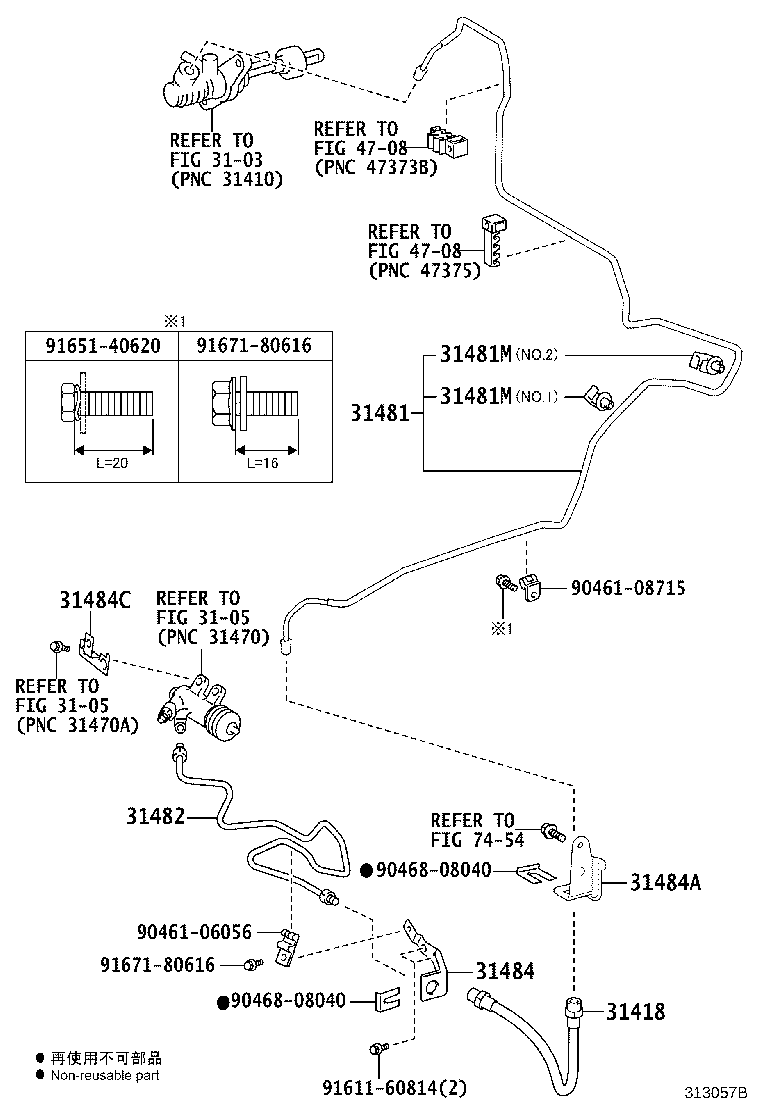

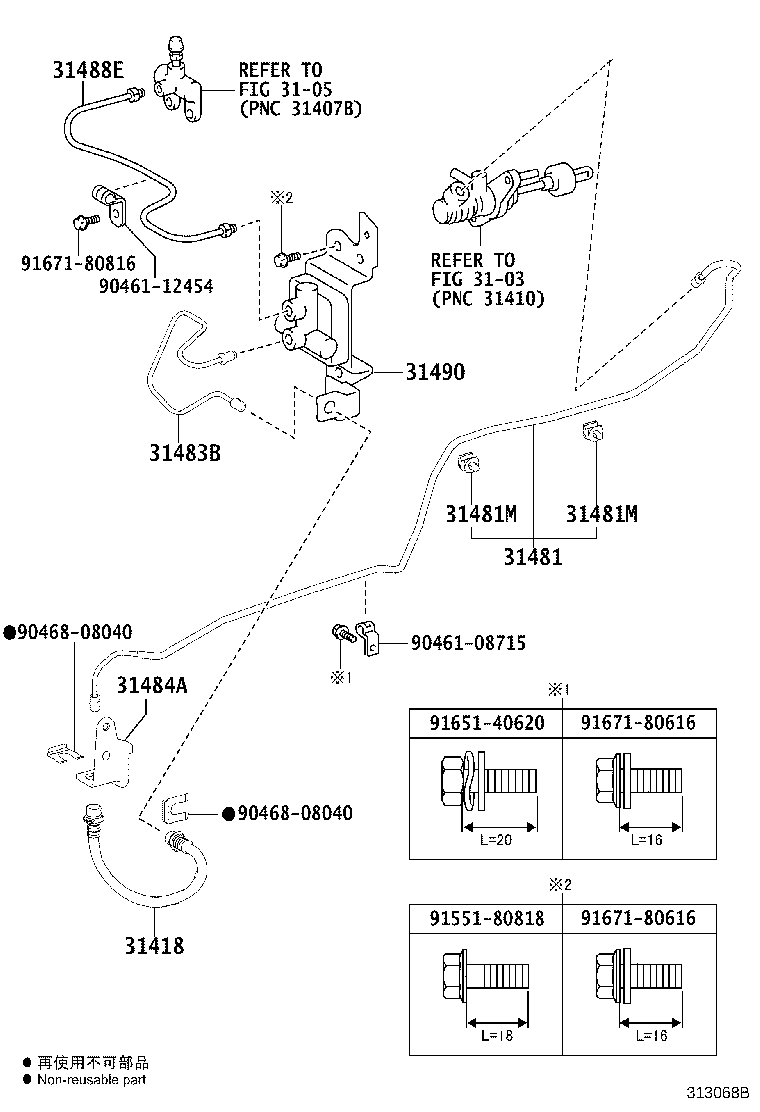

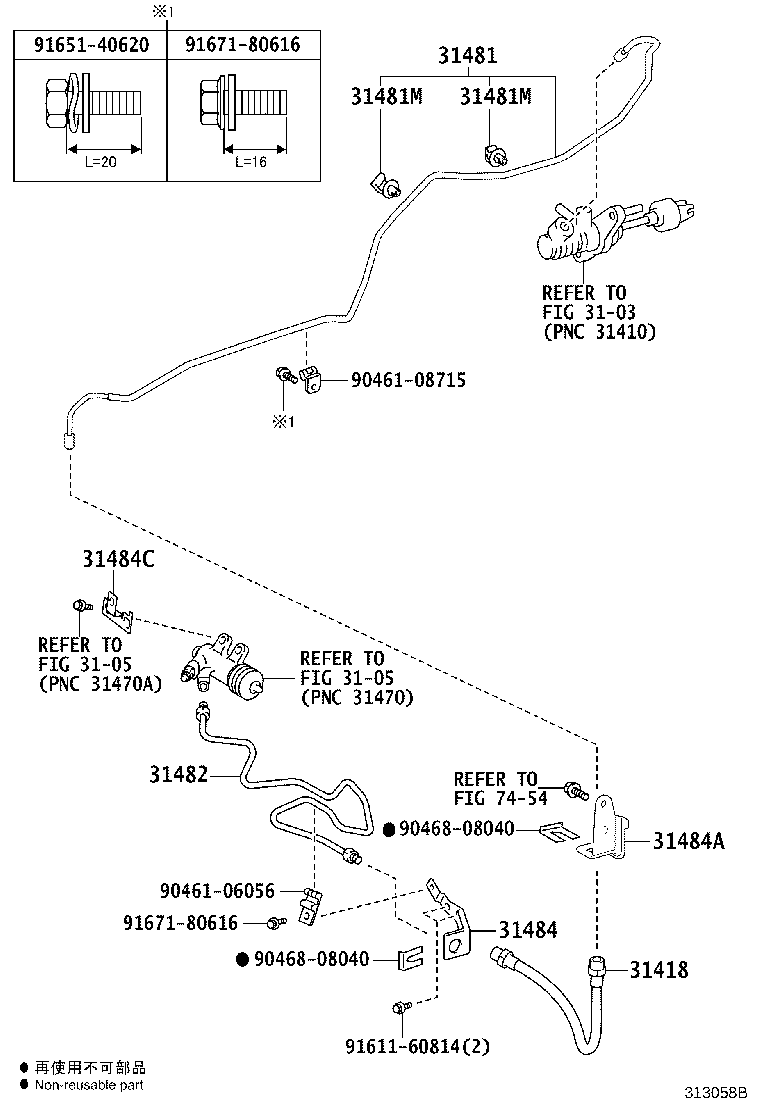

Figure 312684B 312684B 2012-12 → 2015-10 Figure 313061B 313061B 2015-10 → — Figure 312687B 312687B 2012-12 → — Figure 312689B 312689B 2012-12 → — Figure 313057B 313057B 2015-10 → — Figure 312686B 312686B 2012-12 → 2015-10 Figure 312686B 312686B 2015-10 → — Figure 313060E 313060E 2015-10 → — Figure 313059B 313059B 2015-10 → — Figure 313068B 313068B 2012-12 → — Figure 312690B 312690B 2012-12 → — Figure 313058B 313058B 2015-10 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31301P Bush(FOR CLUTCH PEDAL TURNOVER)
31321 Pad, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31353 Holder, Clutch Pedal Spring
31394A Spring, Pedal W/Hook
31395A Hook, Pedal Spring, NO.1
31418 Hose, Clutch
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481M Clamp(FOR CLUTCH MASTER CYLINDER TUBE)
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31483B Tube, Accumulator TO Flexible Hose
31484 Bracket, Flexible Hose(FOR CLUTCH)
31484A Bracket, Flexible Hose, NO.1(FOR CLUTCH)
31484C Bracket, Clutch Tube, NO.1
31488E Tube, Bleeder TO Accumulator
31490 Accumulator Assy, Clutch
55105D Bracket Sub-assy, Clutch Pedal
55107A Support Sub-assy, Clutch Pedal
55198C Holder, Brake Away Mounting Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
