Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

24 part groups · 11 illustrations

Illustrations

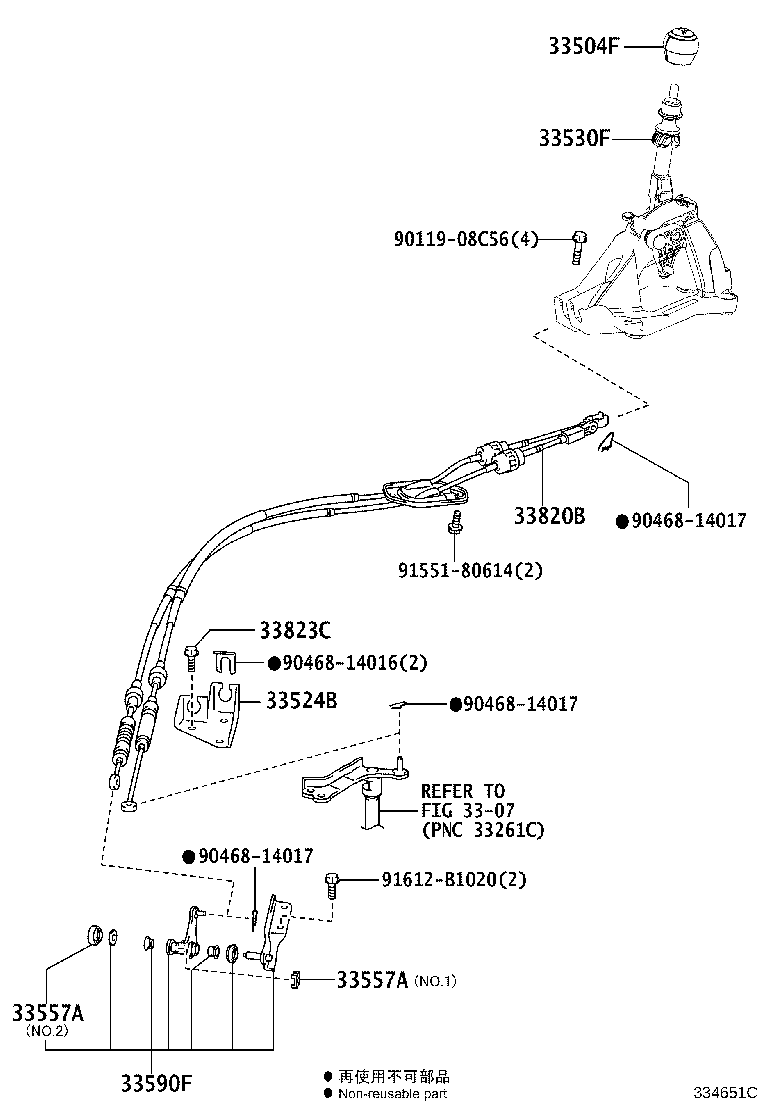

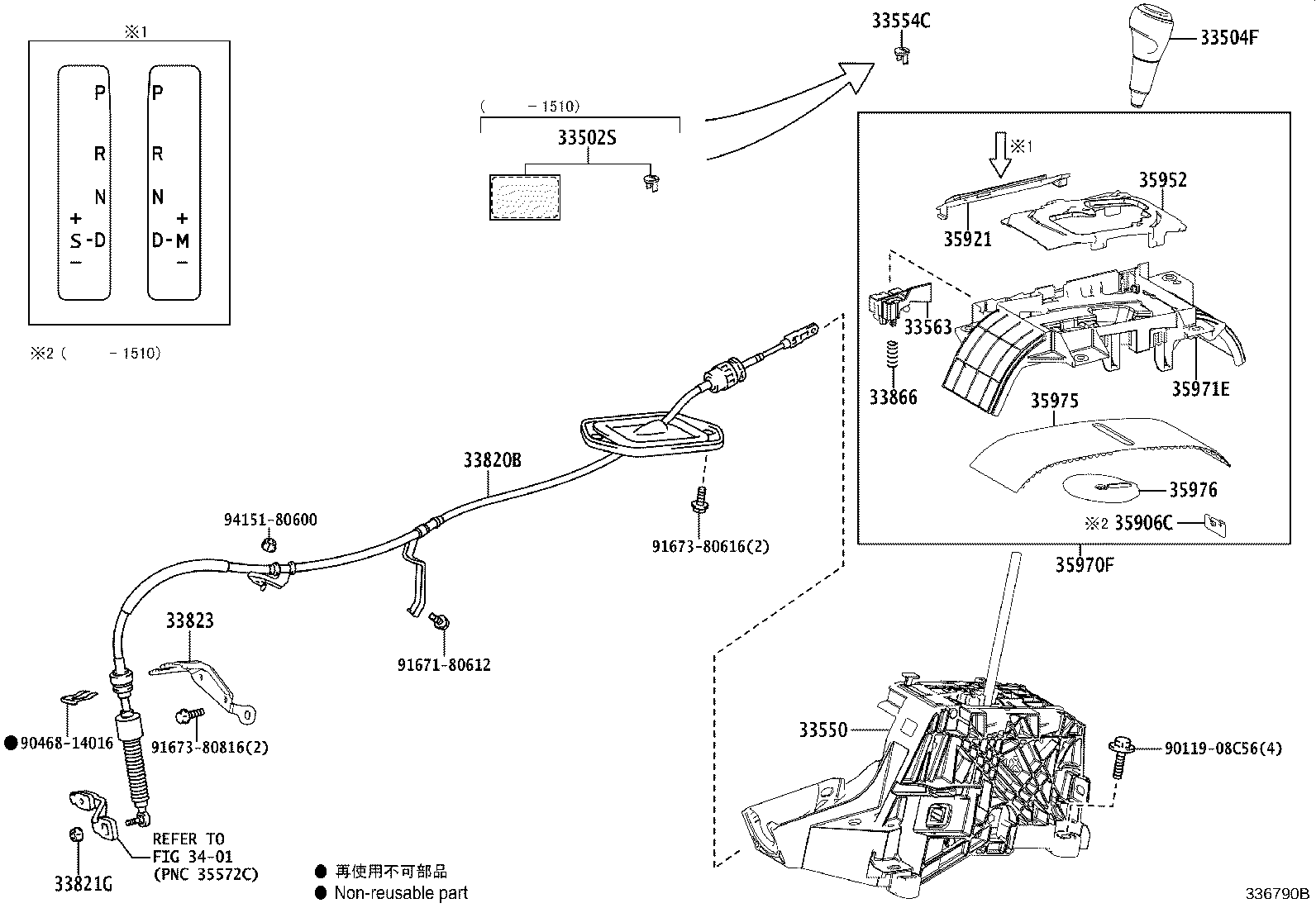

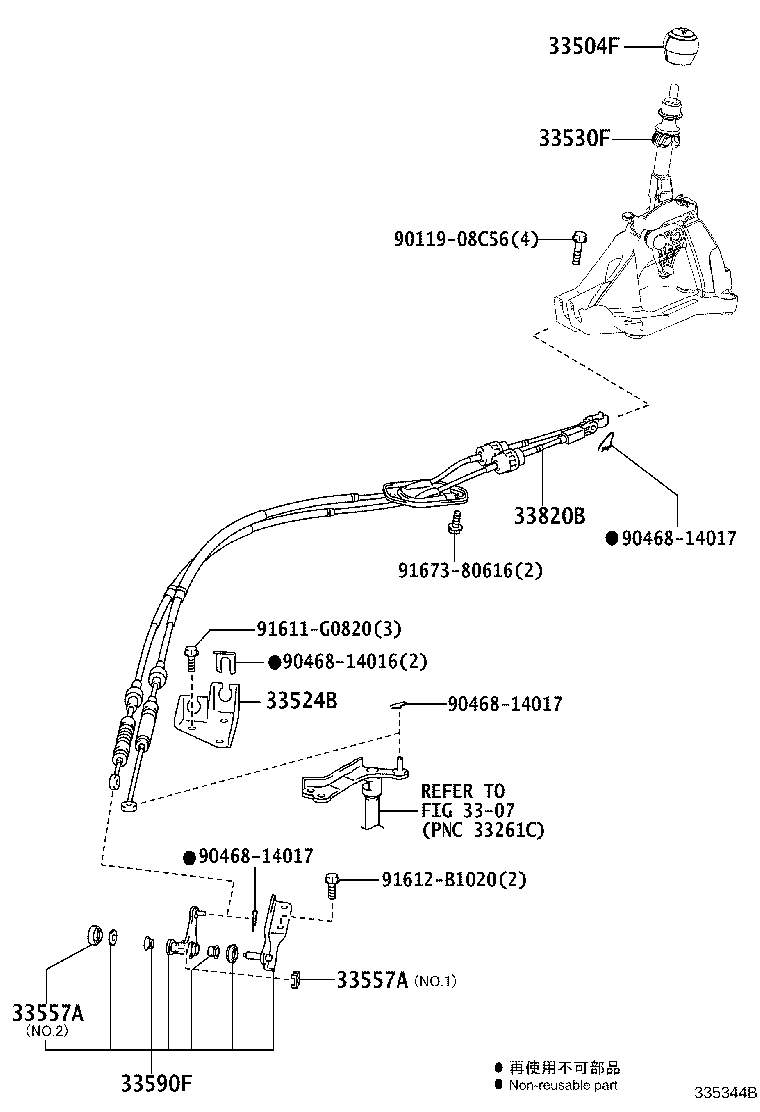

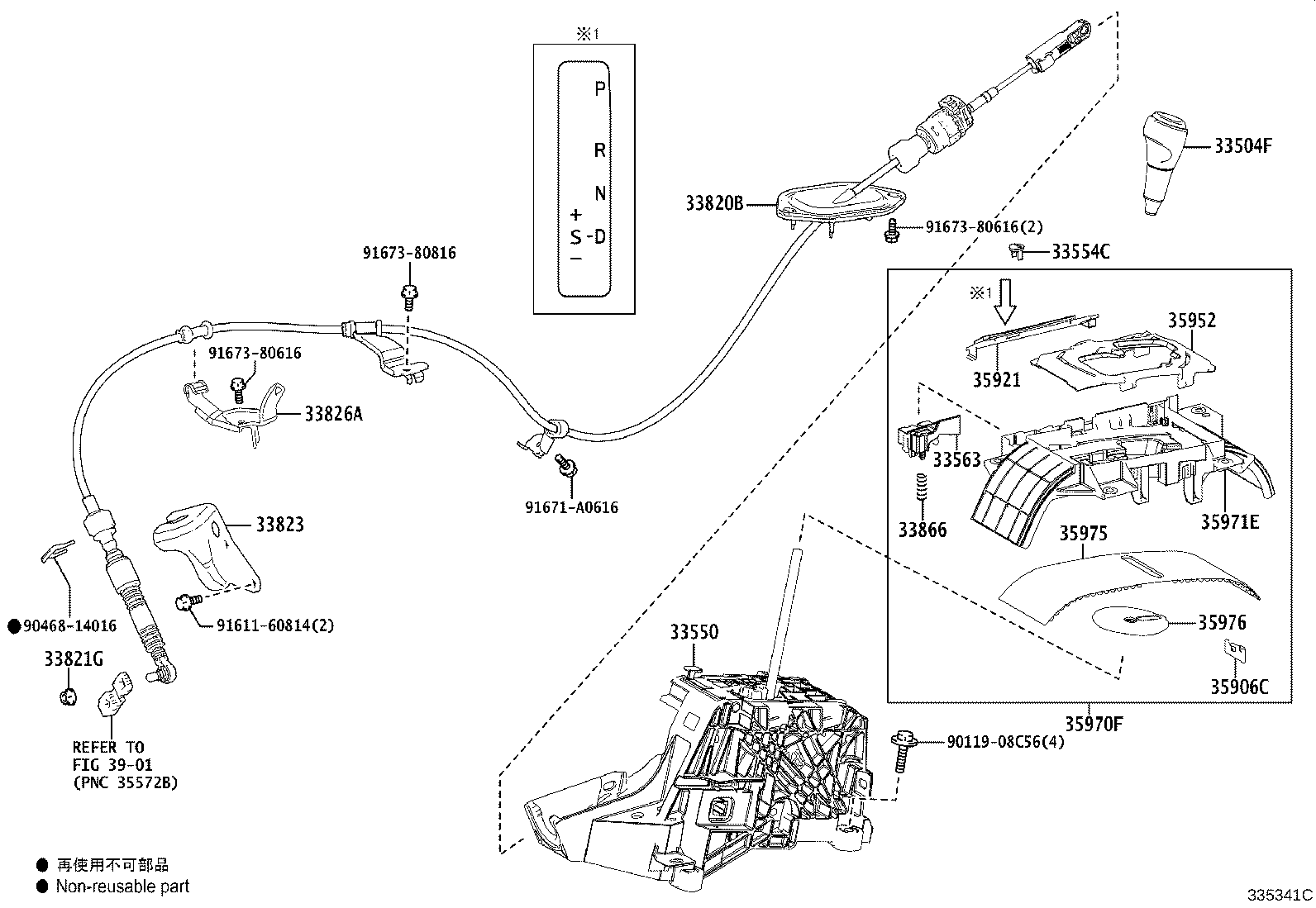

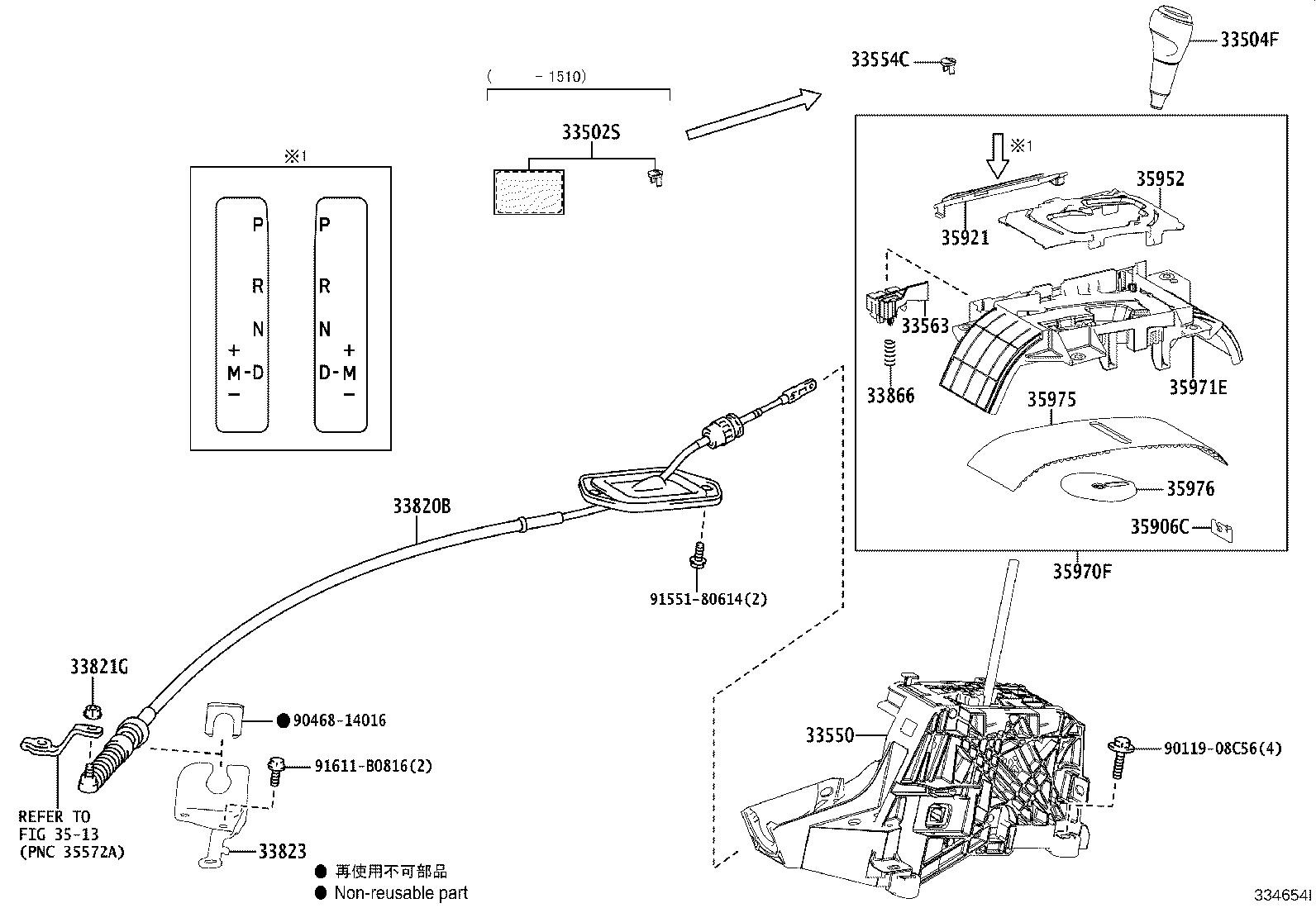

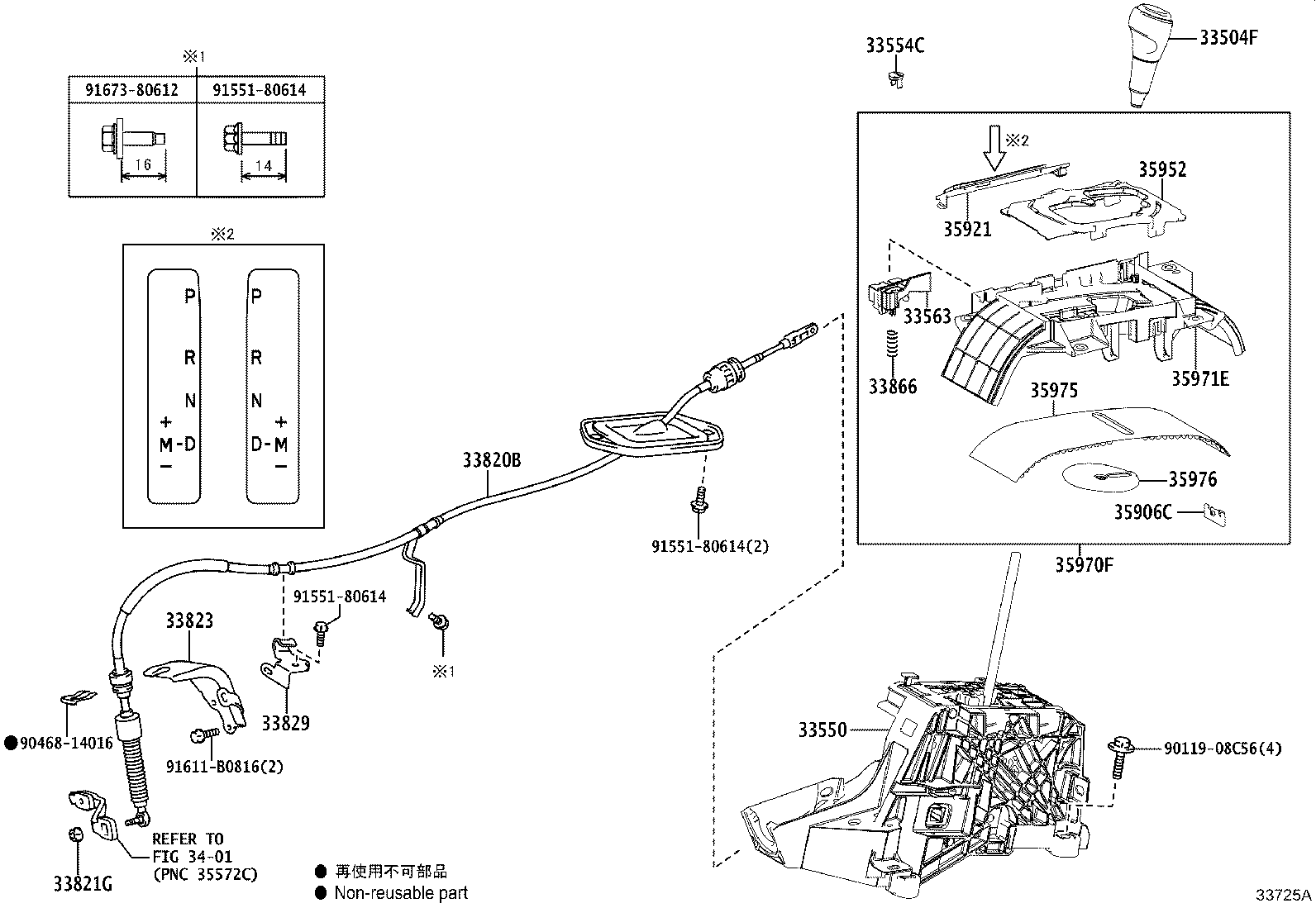

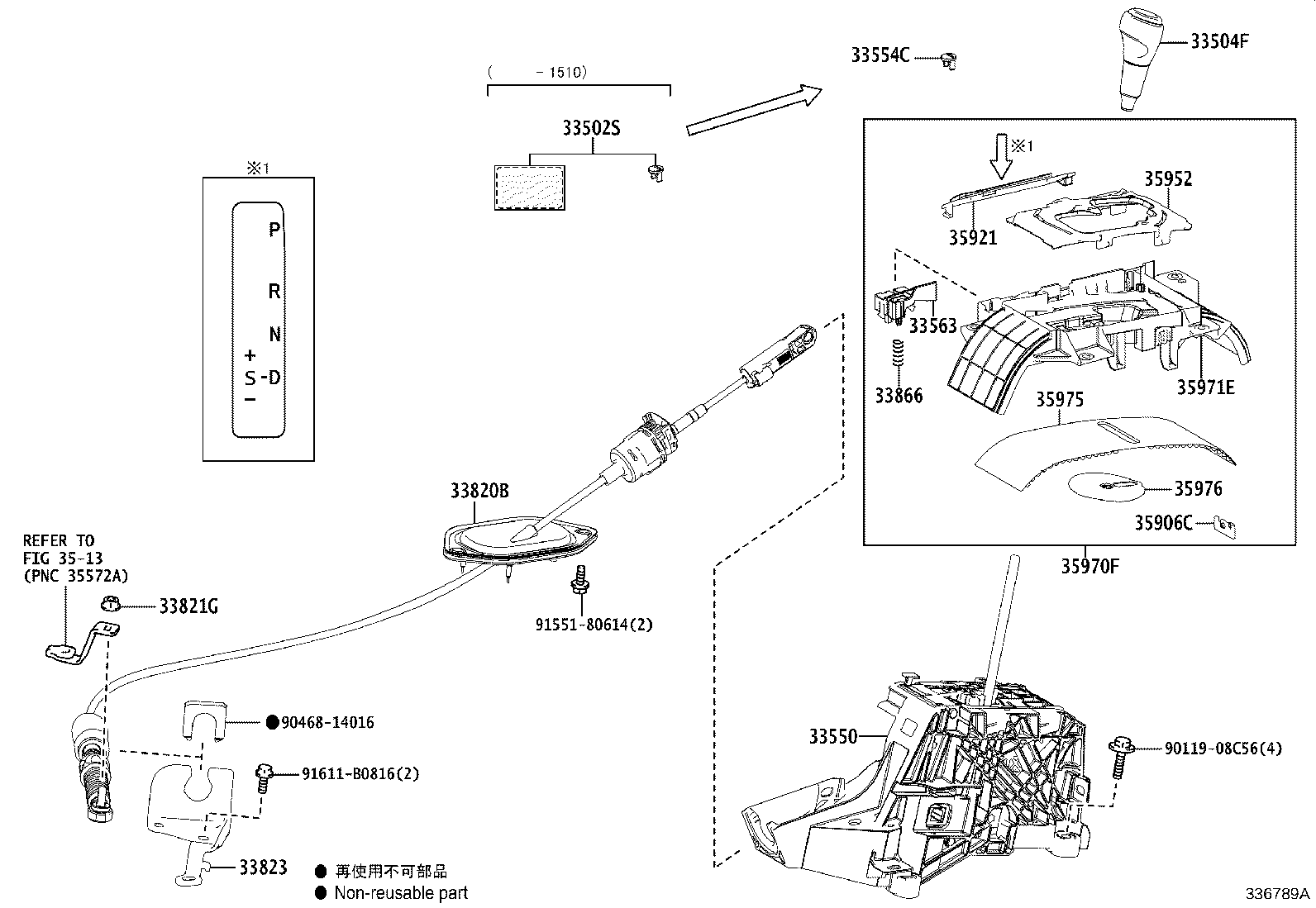

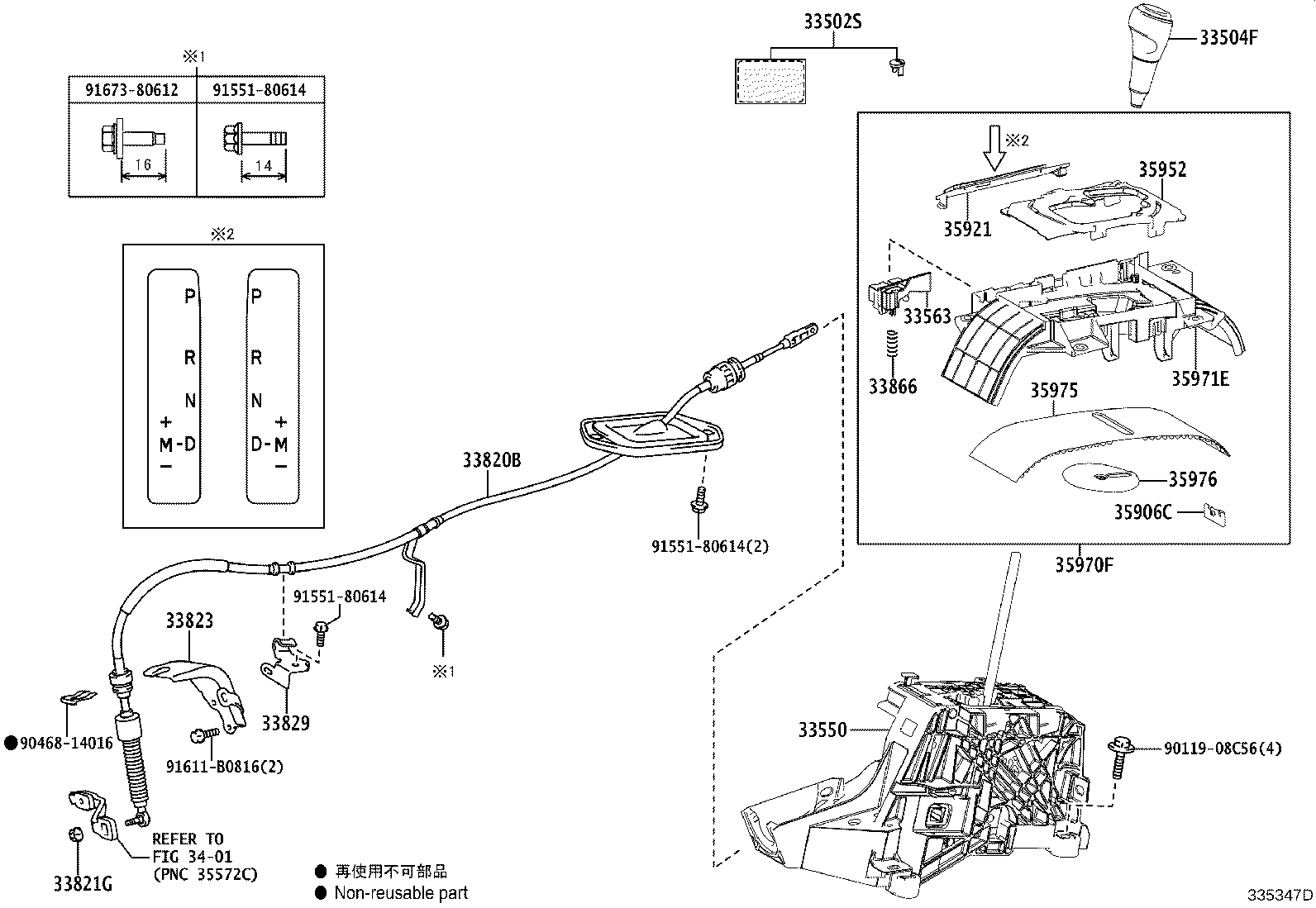

Figure 334650C 334650C 2012-12 → — Figure 334651C 334651C 2012-12 → — Figure 335347D 335347D 2012-12 → 2015-04 Figure 33725A 33725A 2015-10 → — Figure 33725A 33725A 2016-10 → — Figure 336790B 336790B 2015-04 → — Figure 334654I 334654I 2012-12 → — Figure 336789A 336789A 2015-10 → — Figure 336789A 336789A 2017-08 → — Figure 335341C 335341C 2015-10 → — Figure 335344B 335344B 2015-10 → —

Part groups

PNCDescription
33502S Cover Set, Shift Lock W/Label
33504F Knob Sub-assy, Shift Lever
33524B Bracket, Control Cable
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33550 Floor Shift Assy, Transmission
33554C Cover, Shift Lock Release Button
33557A Cover, Selecting Bellcrank Dust, NO.1
33563 Button, Shift Lock Release
33590F Crank Assy, Selecting Bell (FOR FLOOR SHIFT)
335A0 Bracket Assy, Control Cable
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33826A Bracket, Transmission Control Cable, NO.2
33829 Support, Transmission Control Cable
33866 Spring, Shift Lock Release
35906C Chip, Indicator Lamp
35921 Plate, Control Position Indicator
35952 Lens, Position Indicator
35970F Housing Assy, Position Indicator
35971E Housing, Position Indicator
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
