Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube(CVT)

17 part groups · 3 illustrations

Illustrations

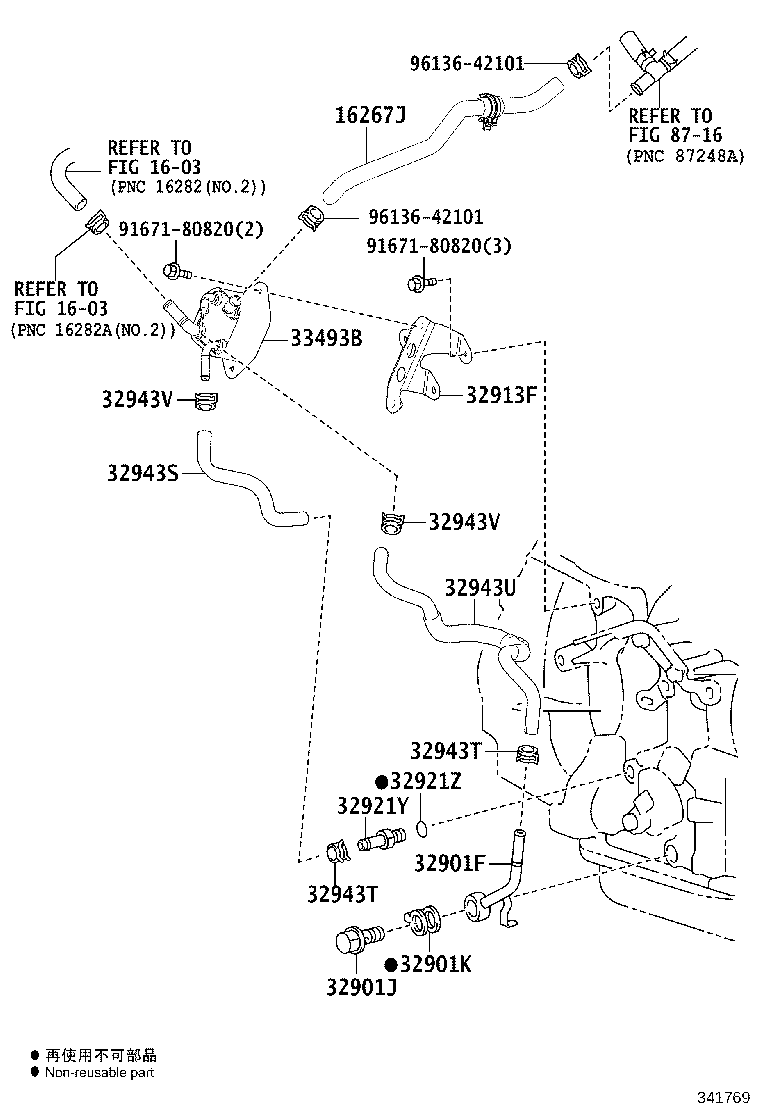

Figure 340403A 340403A 2012-12 → 2015-04 Figure 340403A 340403A 2015-10 → — Figure 341769 341769 2015-04 → —

Part groups

PNCDescription
16267J Hose, Water By-pass, NO.3
32901F Elbow Sub-assy, Oil Cooler
32901J Bolt, Union(FOR OIL COOLER)
32901K Gasket(FOR OIL COOLER UNION)
32913F Bracket, Transmission Oil Cooler
32921N Ring, O(FOR OIL COOLER TUBE UNION)
32921P Union(FOR OIL COOLER TUBE)
32921Y Connector, Tube
32921Z Ring, O(FOR TUBE CONNECTOR)
32941D Hose, Oil Cooler Inlet
32941E Clip(FOR OIL COOLER TUBE)
32942C Hose, Oil Cooler Outlet, NO.1
32943S Hose, Transmission Oil Cooler, NO.1
32943T Clip, NO.1(FOR OIL COOLER HOSE)
32943U Hose, Transmission Oil Cooler, NO.2
32943V Clip, NO.2(FOR OIL COOLER HOSE)
33493B Cooler, Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
