Torque Converter, Front Oil Pump & Chain (ATM)

15 part groups · 2 illustrations

Illustrations

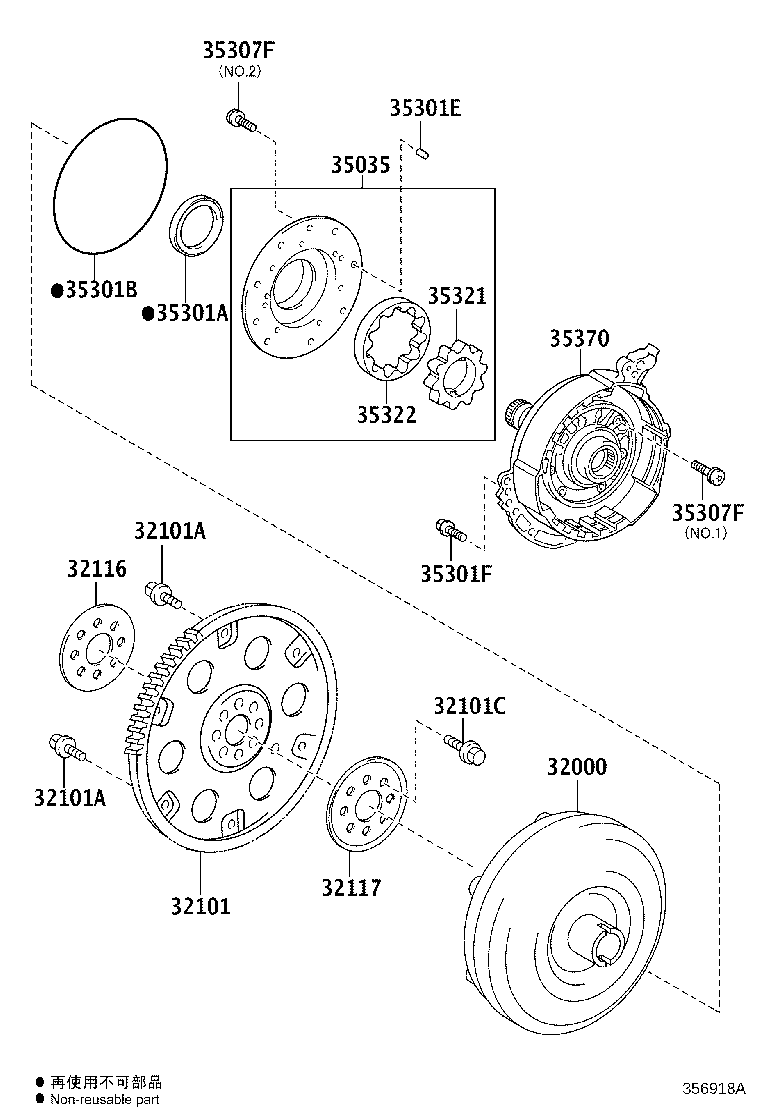

Figure 357308A 357308A 2015-10 → — Figure 356918A 356918A 2012-12 → —

Part groups

PNCDescription
32000 Converter Assy, Torque
32101 Gear Sub-assy, Drive Plate & Ring
32101A Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
32101C Bolt, Hexagon(FOR DRIVE PLATE SETTING)
32116 Spacer, Drive Plate, Front
32117 Spacer, Drive Plate, Rear
35035 Body Sub-assy, FR Oil Pump & Gear
35301A Seal, Oil (FOR FRONT OIL PUMP)
35301B Ring, O (FOR FRONT OIL PUMP BODY)
35301E Pin, Straight (FOR FRONT OIL PUMP)
35301F Bolt (FOR FRONT OIL PUMP SETTING)
35307F Bolt (FOR STATOR SHAFT)
35321 Gear, Front Oil Pump Drive
35322 Gear, Front Oil Pump Driven
35370 Shaft Assy, Stator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
