Toyota RAV4
2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe
Supported model
Data version 2019-09

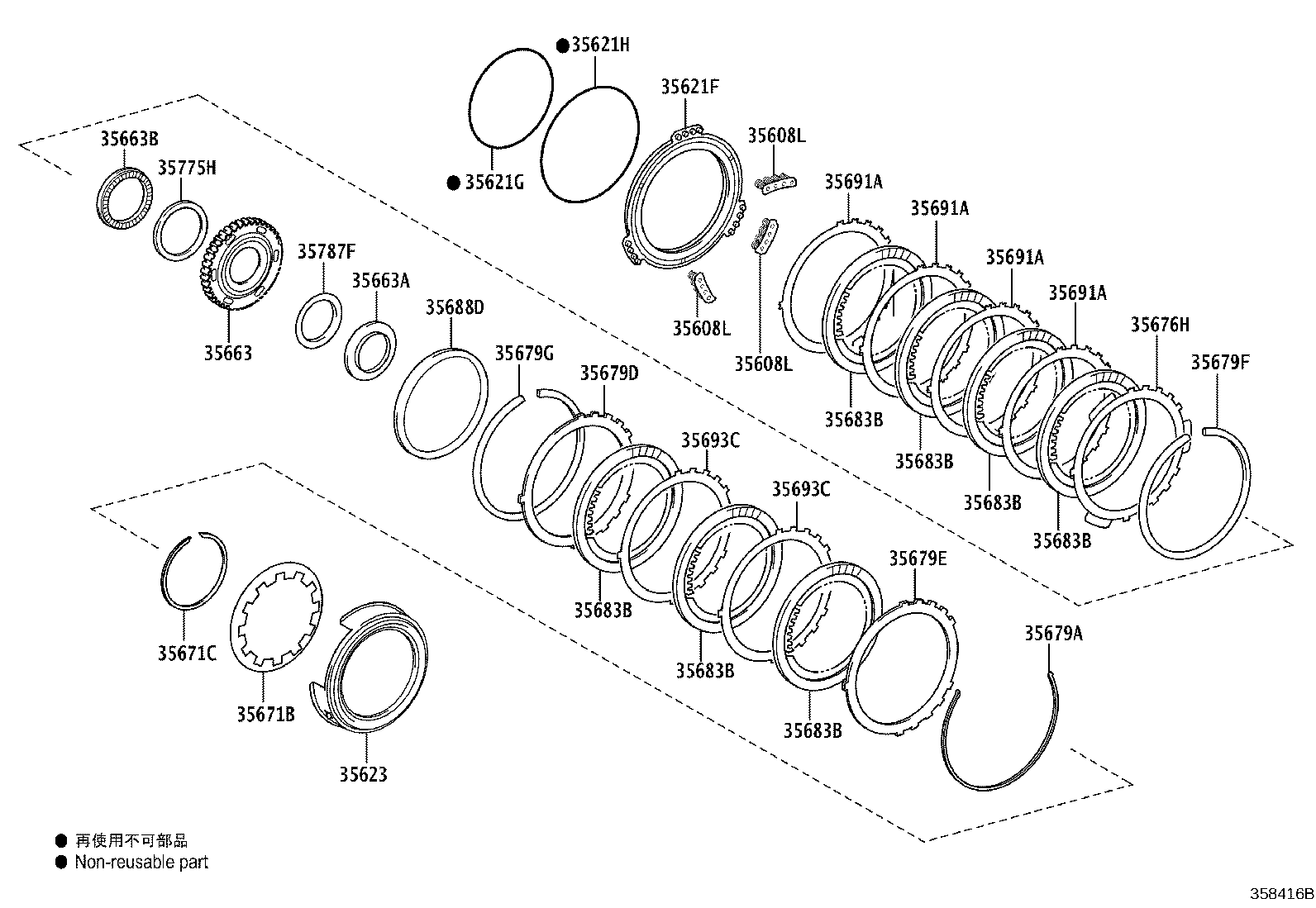

Brake NO.3, 1ST & Reverse Brake (ATM)
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35046A | Spring Sub-assy, Brake Piston Return, NO.3 |
| 35608L | Spring Sub-assy, 2ND Brake Piston Return |
| 35621F | Piston, Brake, NO.1 |
| 35621G | Ring, O (FOR BRAKE PISTON INNER) |
| 35621H | Ring, O (FOR BRAKE PISTON OUTER) |
| 35623 | Piston, Brake, NO.3 |
| 35623E | Ring, O, NO.1 (FOR BRAKE PISTON) |
| 35623F | Ring, O, NO.2 (FOR BRAKE PISTON) |
| 35663 | Hub, Brake NO.3 |
| 35663A | Bearing, Thrust Needle Roller, NO.1 |
| 35663B | Bearing, Thrust Needle Roller, NO.2 |
| 35671B | Spring, Brake Piston Return |
| 35671C | Ring, Snap (FOR BRAKE PISTON RETURN SPRING) |
| 35676H | Flange, Brake, NO.1 |
| 35679A | Ring, Hole Snap(FOR BRAKE FLANGE) |
| 35679D | Frange, Brake, NO.2 |
| 35679E | Frange, Brake, NO.3 |
| 35679F | Ring, Snap(FOR BRAKE FLANGE) |
| 35679G | Ring, Snap (FOR RAKE FLANGE NO.3) |
| 35681 | Disc, Brake, NO.1 |
| 35683B | Disc, Brake, NO.3 |
| 35688D | Stopper, Brake Snap Ring |
| 35691A | Plate, Brake, NO.1 |
| 35693C | Plate, Brake, NO.3 |
| 35775H | Race, Thrust Bearing, NO.5 |
| 35787F | Race, Thrust Bearing, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
