Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

16 part groups · 2 illustrations

Illustrations

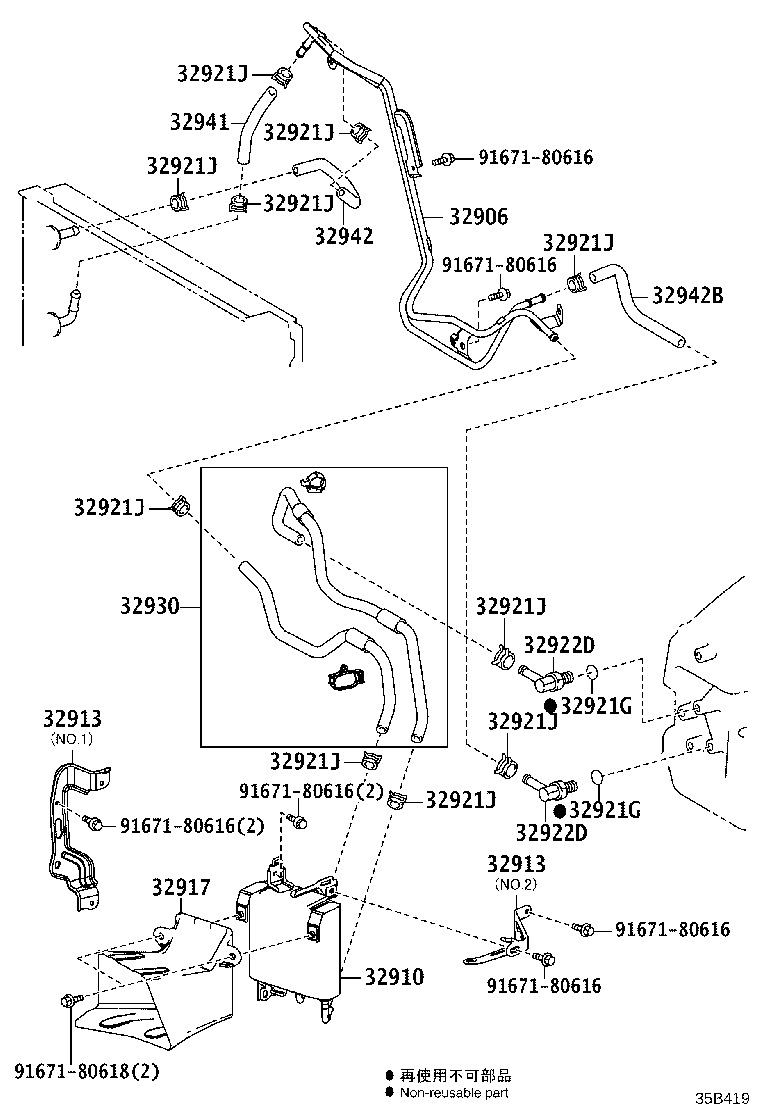

Figure 358537C 358537C 2015-10 → — Figure 35B419 35B419 2012-12 → —

Part groups

PNCDescription
16282B Hose, Water By-pass, NO.5
16283G Hose, Water By-pass, NO.6
32906 Tube Sub-assy, Oil Cooler
32910 Cooler Assy, Oil
32913 Bracket, Oil Cooler
32917 Duct, Transmission Oil Cooler Air
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921J Clip(FOR OIL COOLER HOSE)
32921R Clip, NO.2(FOR OIL COOLER HOSE)
32921X Union OR Elbow, Oil Cooler Inlet
32922D Union OR Elbow, Oil Cooler Outlet
32930 Accessory Assy, Oil Cooler
32941 Hose, Oil Cooler Inlet, NO.1
32942 Hose, Oil Cooler Outlet, NO.1
32942B Hose, Oil Cooler Outlet, NO.3
33493A Cooler, Transmission Oil(ATF WARMER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
