Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09

Transaxle Assy(HEV OR BEV OR FCEV)

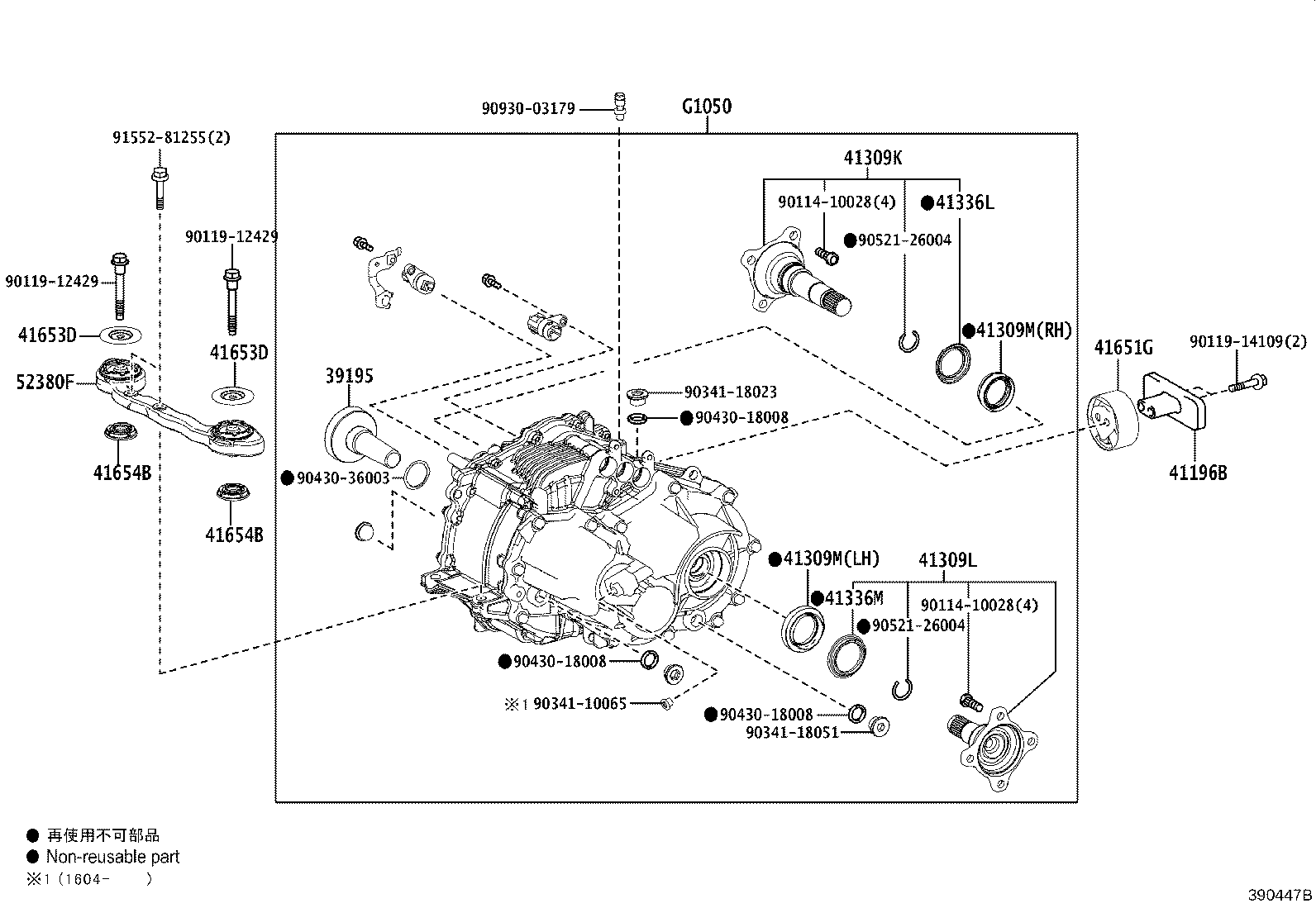

37 part groups · 3 illustrations

PNC	Description
30900	Transaxle Assy, Hybrid Vehicle
30900A	Bolt(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)
30900D	Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE)
30900E	Gasket(FOR TRANSAXLE HOUSING & CASE)
30900H	Plug, W/Head Straight Screw, NO.3(FOR TRANSAXLE HSG & CASE)
30900J	Gasket, NO.3(FOR TRANSAXLE HOUSING & CASE)
30900N	Plug, Breather(FOR TRANSAXLE)
30900P	Plug, Drain(HEV)
30900Q	Plug, Filler(HEV)
30900R	Gasket, Drain Plug(HEV)
30900S	Gasket, Filler Plug(HEV)
31270	Damper Assy, Transmission Input
33183E	Damper, Dynamic
35151J	Cover, Automatic Transmission Case
35152A	Cover, Automatic Transmission Case, NO.2
35153C	Cover, Automatic Transmission Case, NO.3
35308G	Ring, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308H	Plug (FOR TRANSMISSION OIL PUMP COVER)
35572B	Lever, Transmission, Outer
35710A	Seal, Type T Oil(FOR INPUT SHAFT)
39195	Damper, HV Transaxle Mass
41196B	Damper, Differential Dynamic
41309K	Shaft Sub-assy, Differential Side Gear, RH
41309L	Shaft Sub-assy, Differential Side Gear, LH
41309M	Seal, Oil(FOR REAR TRANSAXLE SIDE GEAR)
41336L	Dust Cover, Differential Side Gear Shaft, RH
41336M	Dust Cover, Differential Side Gear Shaft, LH
41651G	Cushion, Differential Mount
41653D	Stopper, Differential Mount,Upper
41654B	Stopper, Differential Mount,Lower
52380F	Support Assy, Differential, Front
82814	Boot, Wire Harness
G1020	Cover Assy, Motor Water Jacket, NO.1
G1020A	Cover Assy, Motor Water Jacket, NO.2
G1050	Motor Assy, RR Traction W/Transaxle
G1142	Cover, Motor Waterjacet
G9221B	Cover, Inverter, Uprper

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
