Toyota RAV4
2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe
Supported model
Data version 2019-09
Rear Axle Housing & Differential
40 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 41039 | Gear Kit, Differential, Rear |
| 41101 | Carrier Sub-assy, Differential, Rear |
| 41101E | Bolt (FOR REAR DIFFERENTIAL CARRIER) |
| 41108A | Plug (FOR REAR DIFFERENTIAL CARRIER COVER) |
| 41108C | Plug, Breather (FOR REAR DIFFERENTIAL CARRIER COVER) |
| 41110 | Carrier Assy, Differential, Rear |
| 41110D | Plug (FOR REAR DIFFERENTIAL DRAIN) |
| 41110E | Gasket (FOR REAR DIFFERENTIAL DRAIN PLUG) |
| 41110H | Plug (FOR REAR DIFFERENTIAL FILLER) |
| 41110J | Gasket (FOR REAR DIFFERENTIAL FILLER PLUG) |
| 41183 | Deflector, Rear Differential Breather Plug Oil |
| 41196 | Damper, Rear Differential Dynamic |
| 41201 | Final Gear Kit, Differential, Rear |
| 41201A | Bearing (FOR REAR DRIVE PINION REAR) |
| 41201B | Bearing (FOR REAR DRIVE PINION FRONT) |
| 41201D | Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION) |
| 41204B | Nut (FOR REAR DRIVE PINION) |
| 41231 | Spacer, Rear Differential Drive Pinion Bearing |
| 41252 | Deflector, Dust (FOR REAR DIFFERENTIAL) |
| 41301 | Case Sub-assy, Rear Differential |
| 41301A | Bearing(FOR REAR DIFFERENTIAL CASE) |
| 41302 | Case Sub-assy, Rear Differential |
| 41302A | Bolt(FOR REAR DIFFERENTIAL CASE) |

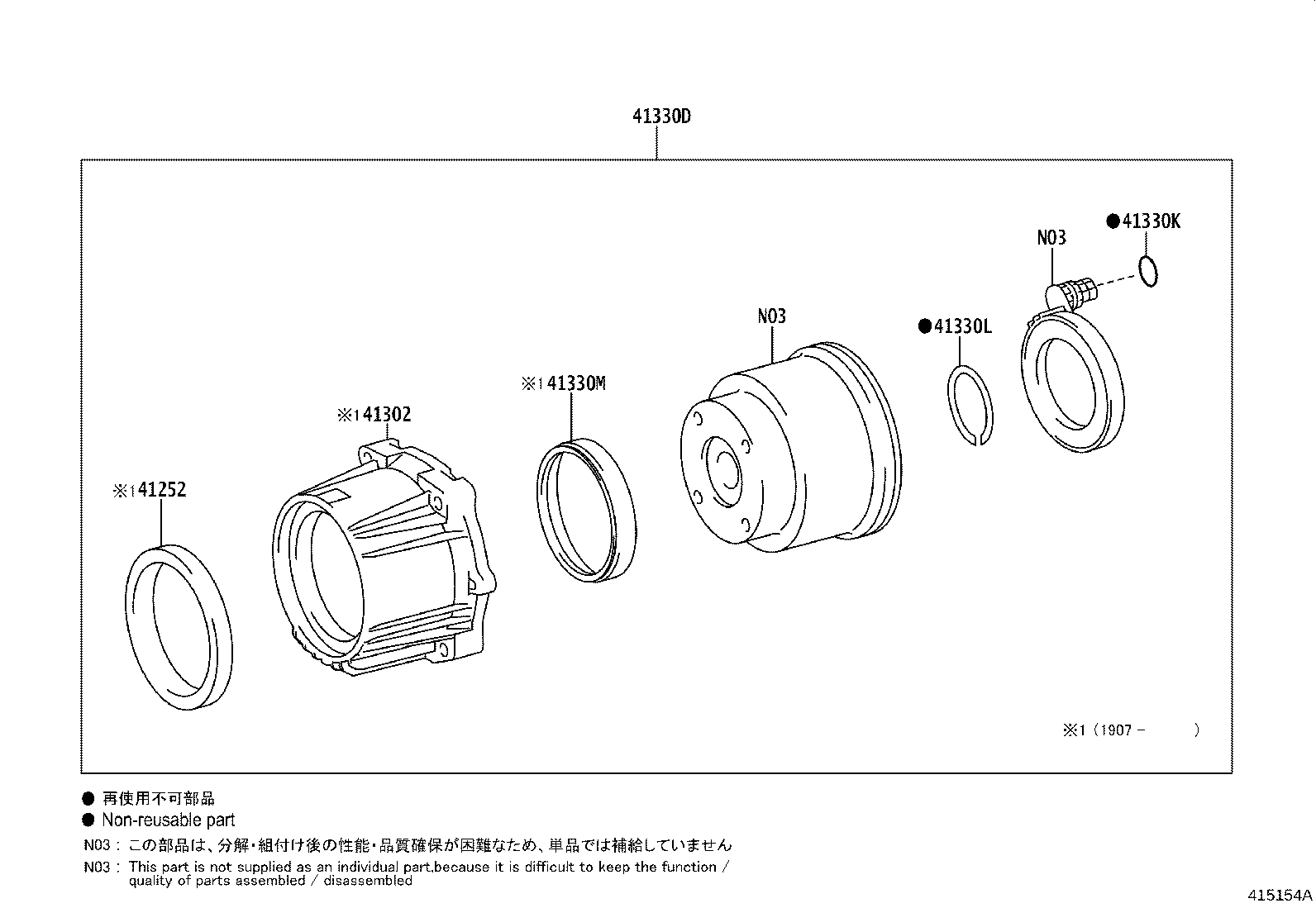

| 41330D | Coupling Assy, Transmission |
| 41330E | Washer, Conical Spring (FOR TRANSMISSION COUPLING) |
| 41330J | Shim (FOR TRANSMISSION COUPLING) |
| 41330K | Ring, O (FOR TRANSMISSION COUPLING) |
| 41330L | Ring, Snap (FOR TRANSMISSION COUPLING) |
| 41330M | Seal, Dust (FOR TRANSMISSION COUPLING) |
| 41334C | Washer, Plate (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41342 | Shaft, Rear Differential Pinion |
| 41343 | Pin, Rear Differential Pinion Shaft |
| 41351 | Washer, Rear Differential Pinion Thrust |
| 41361 | Washer, Rear Differential Side Gear Thrust, NO.1 |
| 41410D | Seal, Oil Diaphragm |
| 41531P | Hose, Rear Differential Vacuum |

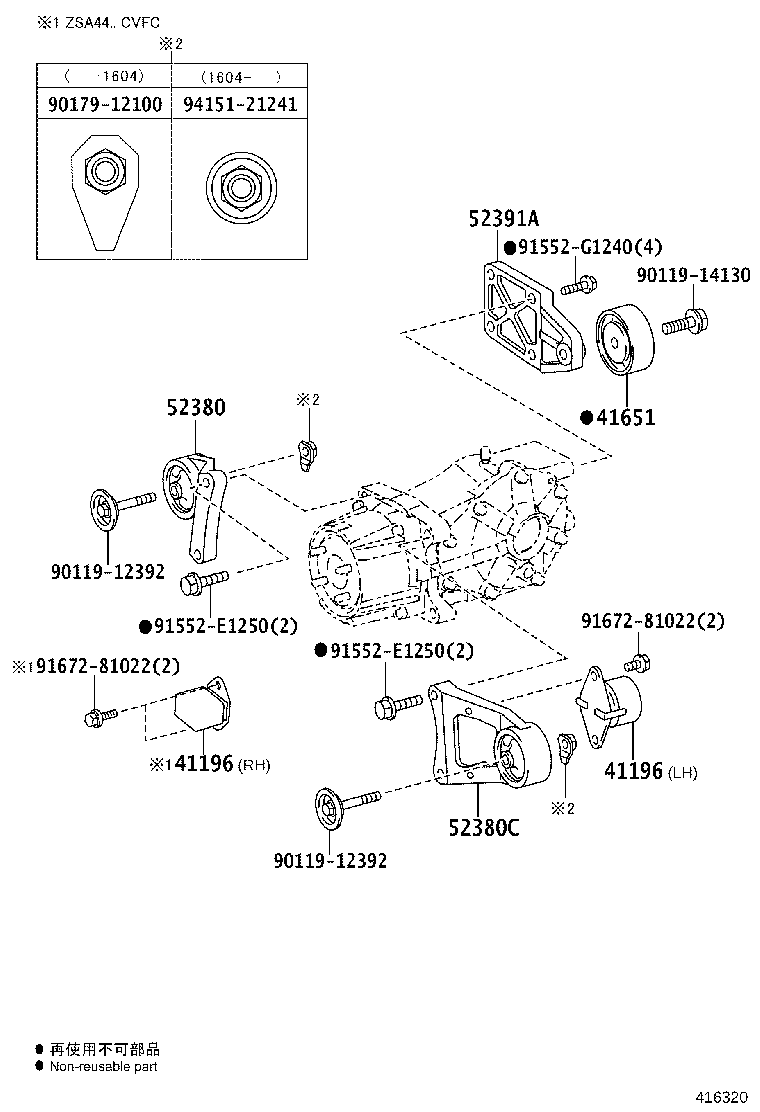

| 41651 | Cushion, Rear Differential Mount, NO.1 |
| 52380 | Support, Rear Differential, NO.1 |
| 52380C | Support, Rear Differential, NO.2 |
| 52391A | Support, Rear Differential |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
