Front Steering Gear & Link

10 part groups · 2 illustrations

Illustrations

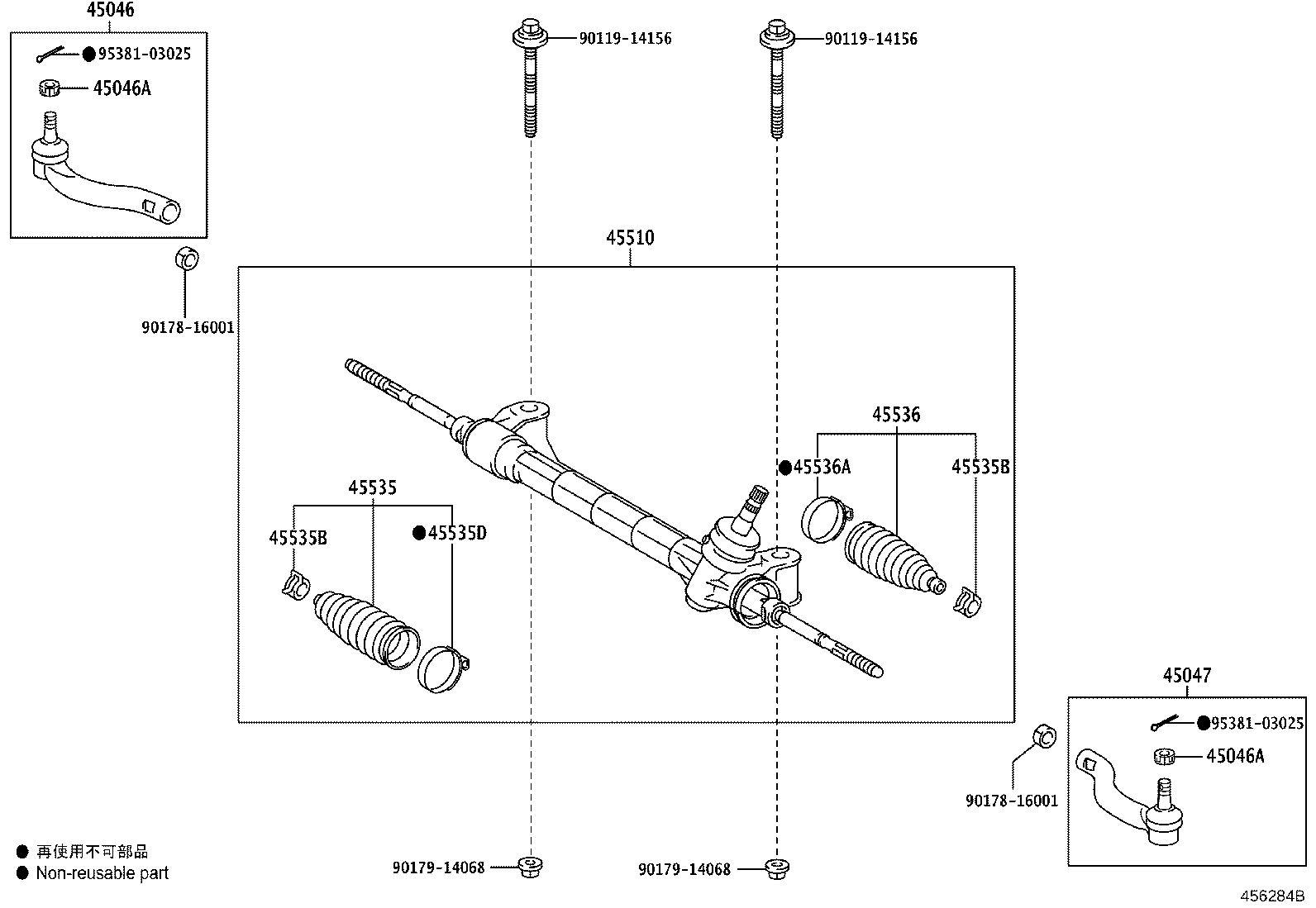

Figure 456283C 456283C 2012-12 → — Figure 456284B 456284B 2012-12 → —

Part groups

PNCDescription
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45319A Insulator, Steering Gear Heat
45510 Gear Assy, Steering
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
