Toyota RAV4
2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe
Supported model
Data version 2019-09

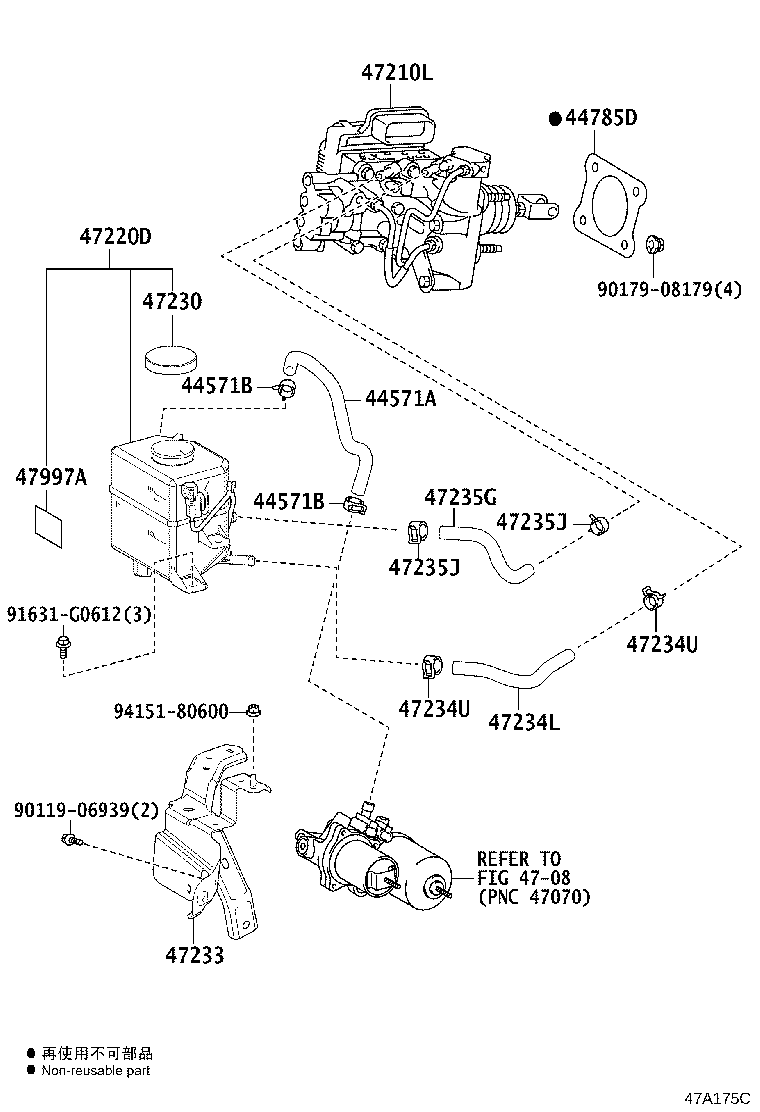

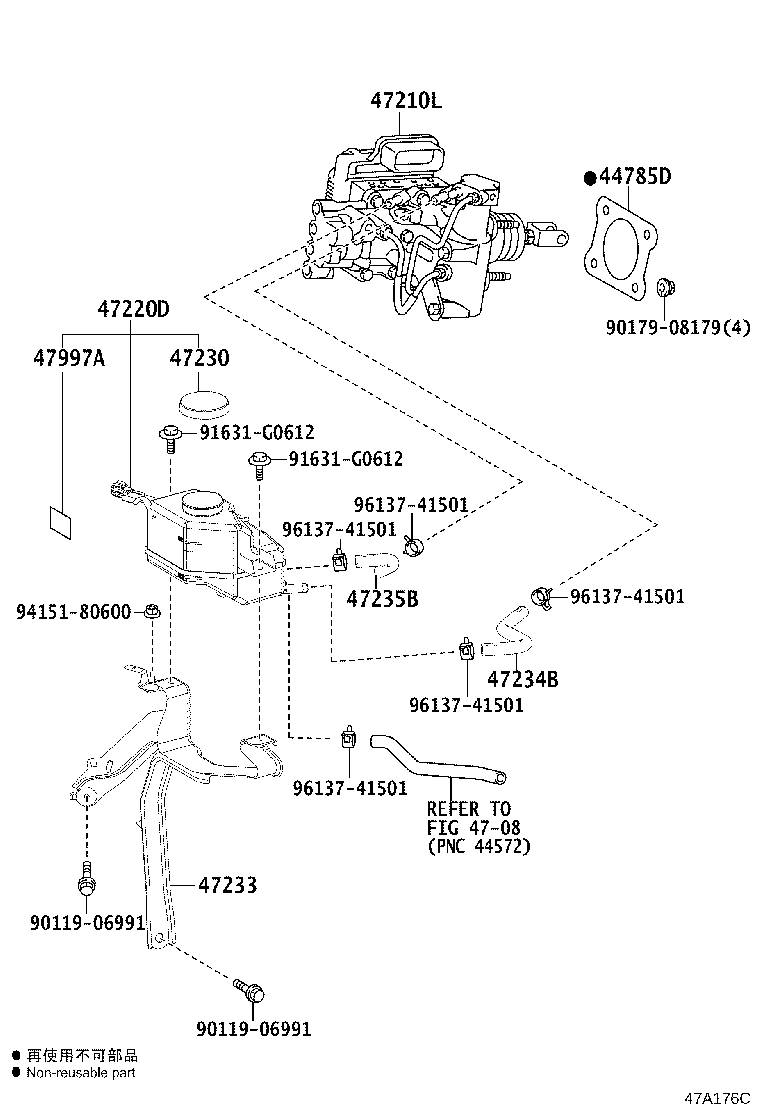

Brake Master Cylinder
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44571A | Hose, Brake Actuator, NO.1 |
| 44571B | Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.1) |
| 44785D | Gasket, Brake Master Cylinder |
| 47028 | Cylinder Sub-assy, Brake Master W/Plate |
| 47201B | Ring, O(FOR BRAKE MASTER CYLINDER) |
| 47201C | Ring Pin, Brake Master Cylinder |
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47210L | Brake Booster Assy, W/Master Cylinder |
| 47220D | Reservoir Assy, Brake Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47233 | Bracket, Reservoir |
| 47234B | Tube, Reservoir, NO.1 |
| 47234L | Hose, Reservoir, NO.1 |
| 47234U | Clip(FOR RESERVOIR HOSE NO.1) |
| 47235B | Tube, Brake Master Cyrinder Reservoir, NO.2 |
| 47235G | Hose, Reservoir, NO.2 |
| 47235J | Clip(FOR RESERVOIR HOSE NO.2) |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47287 | Label, Brake Fluid Information |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
| 47997A | Label, Accumulator Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
