Brake Tube & Clamp

45 part groups · 12 illustrations

Illustrations

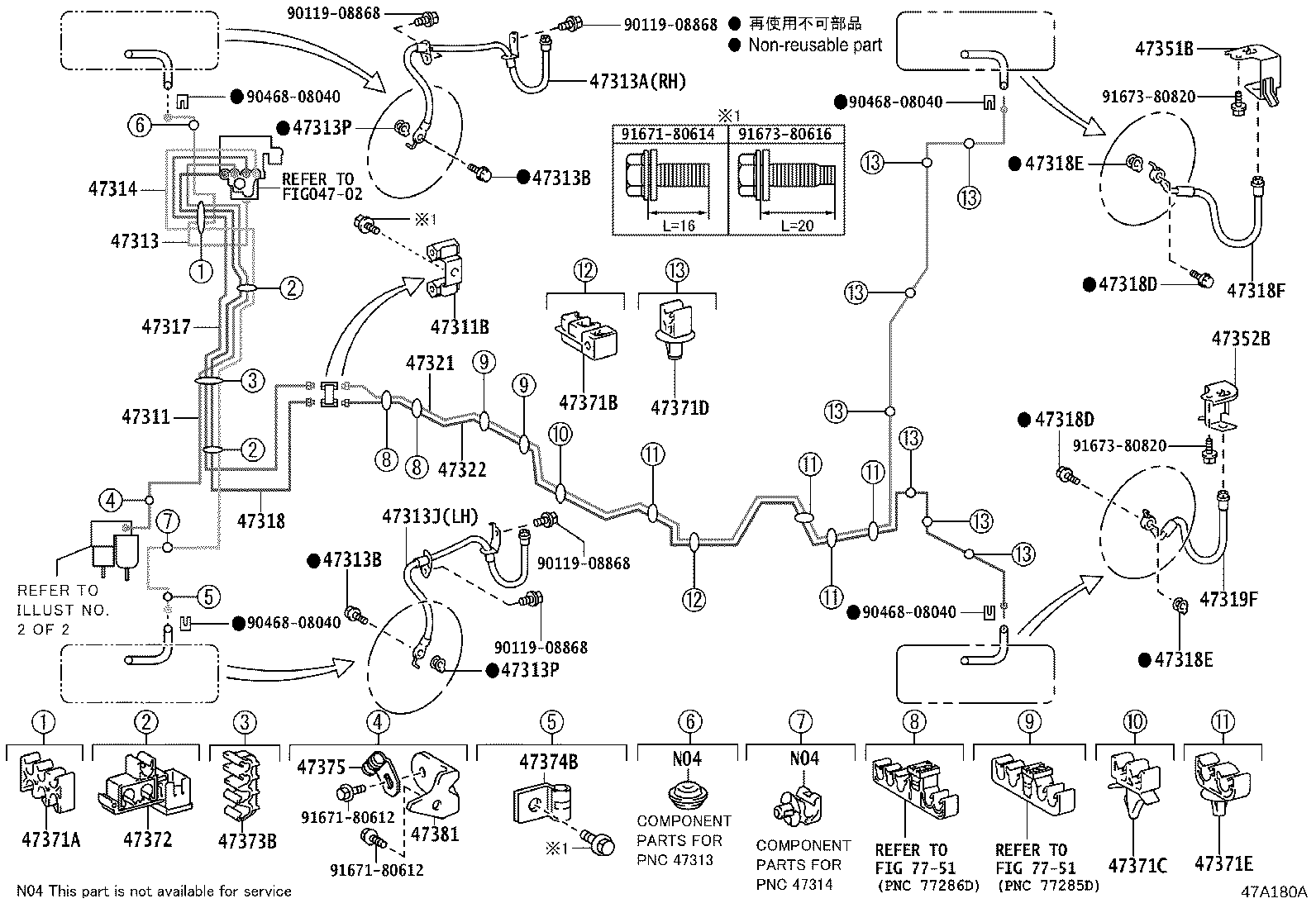

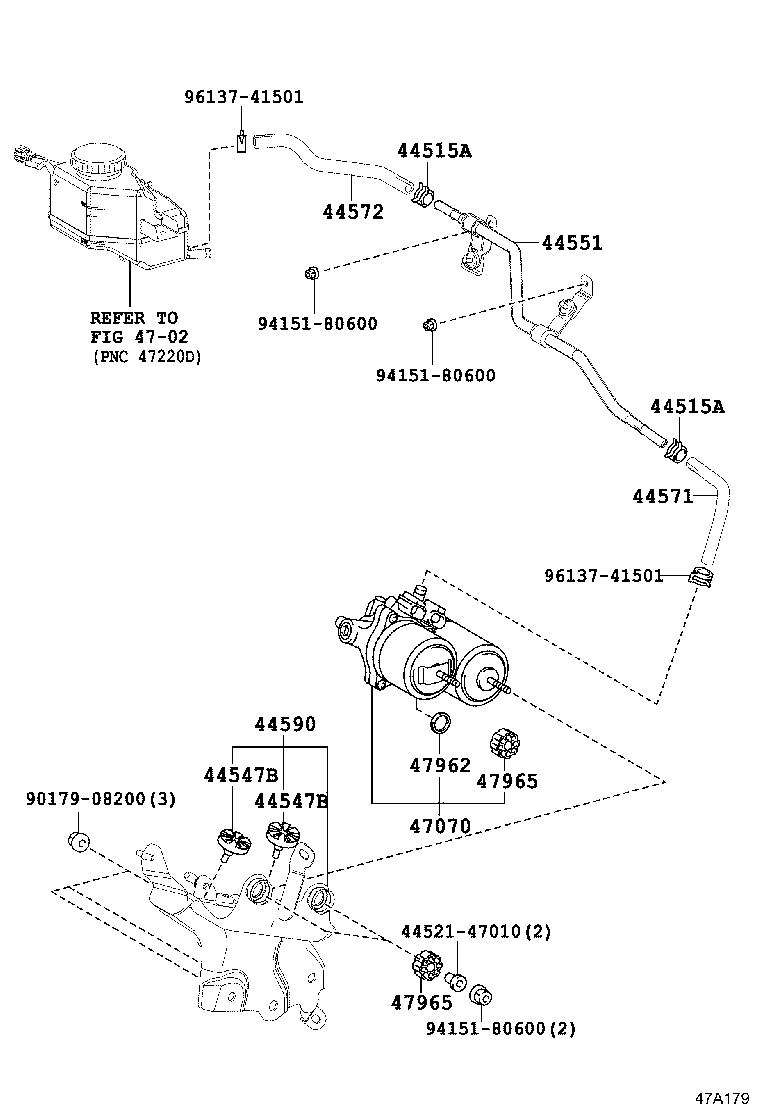

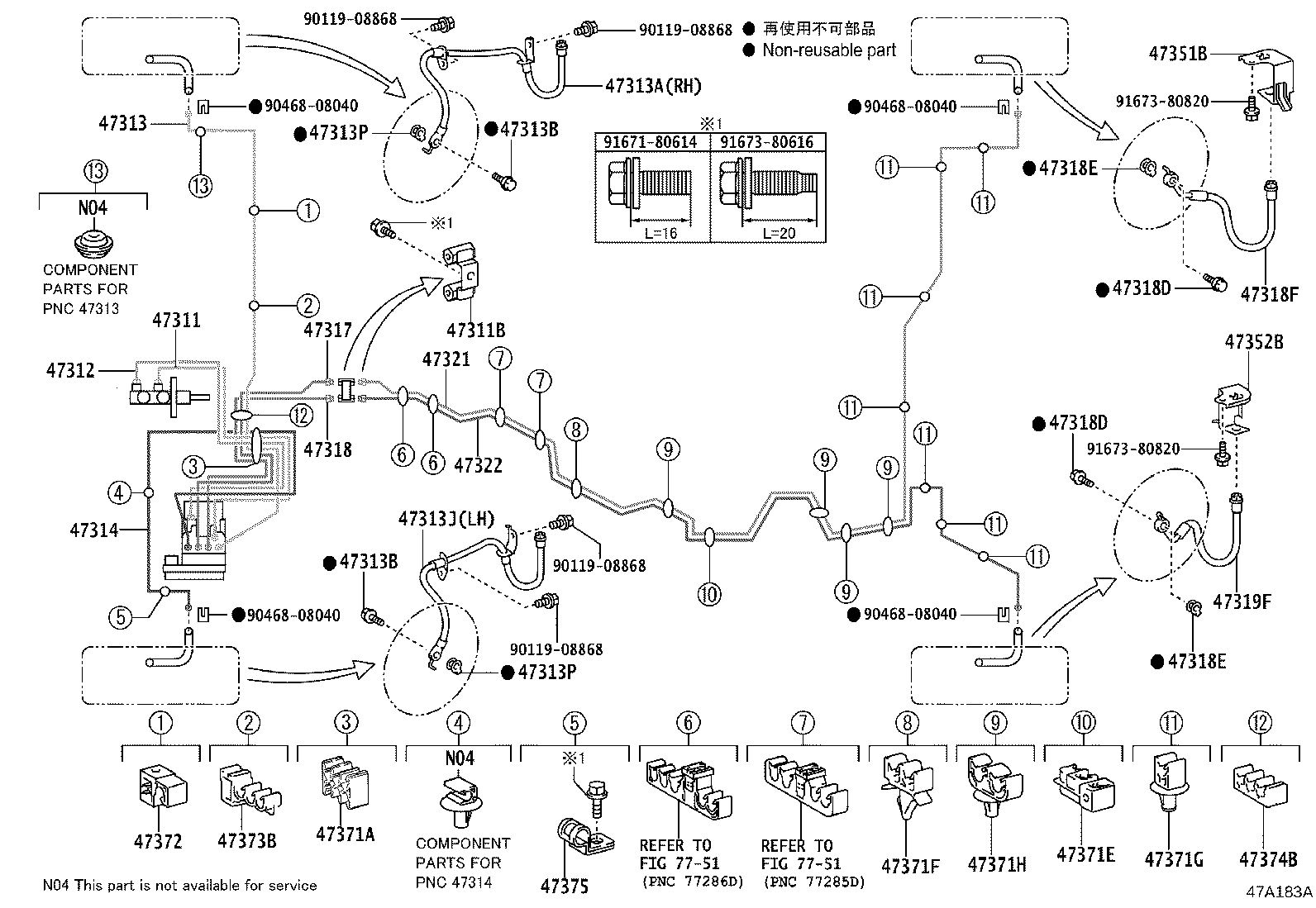

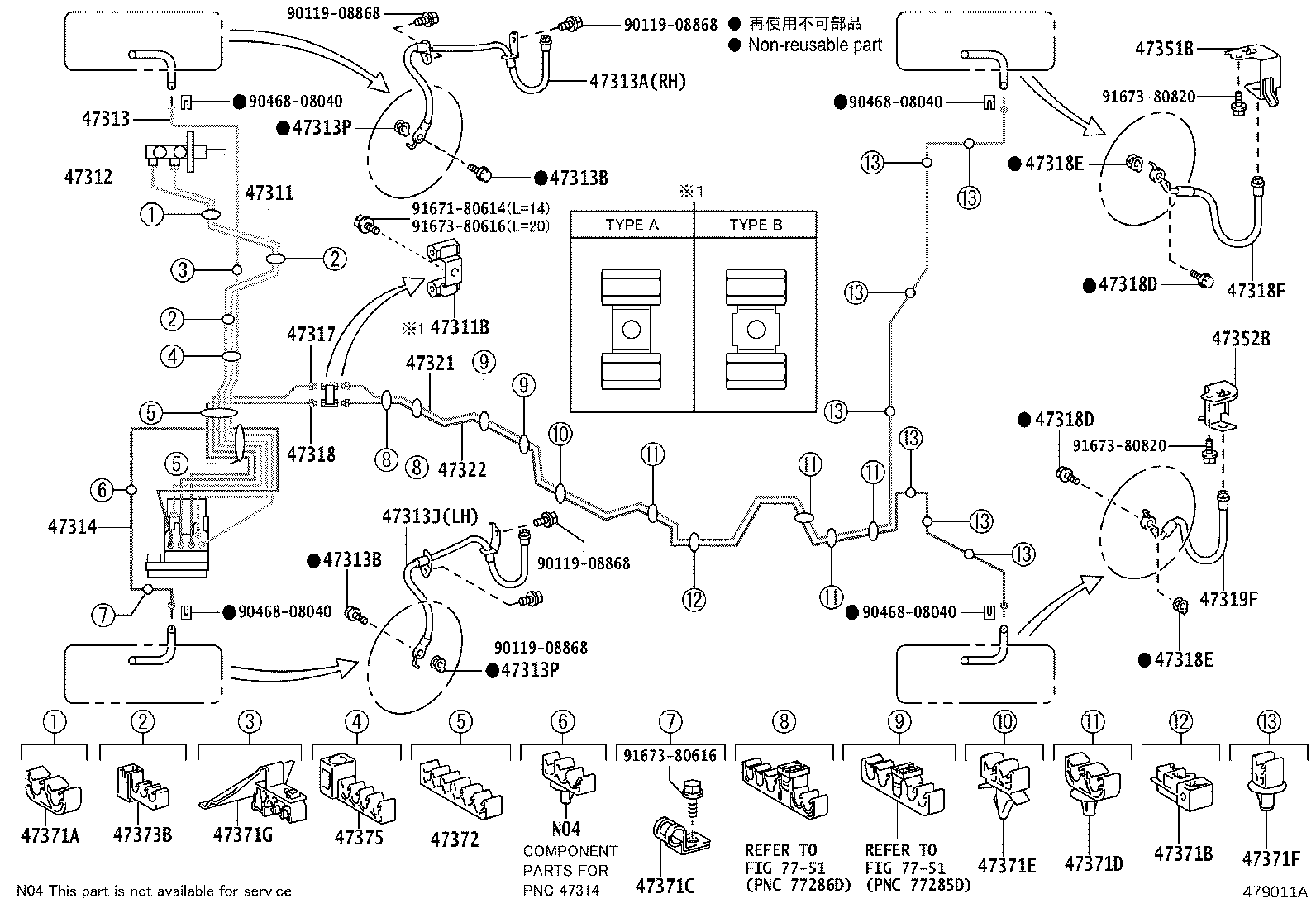

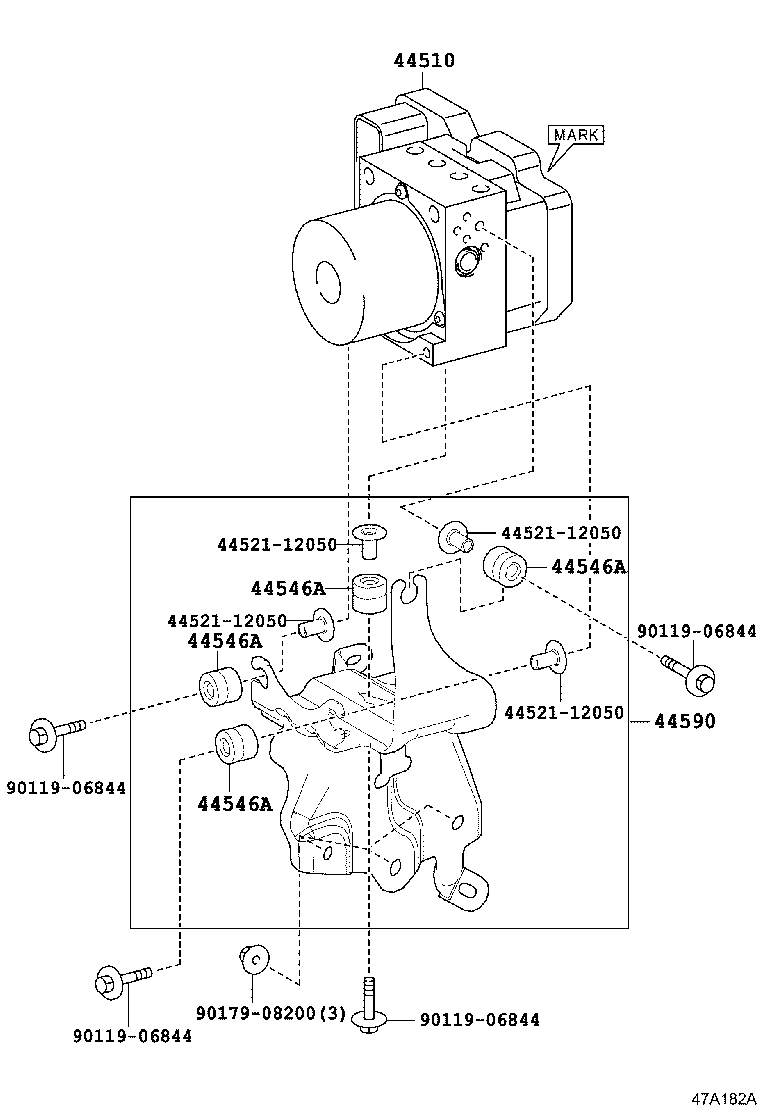

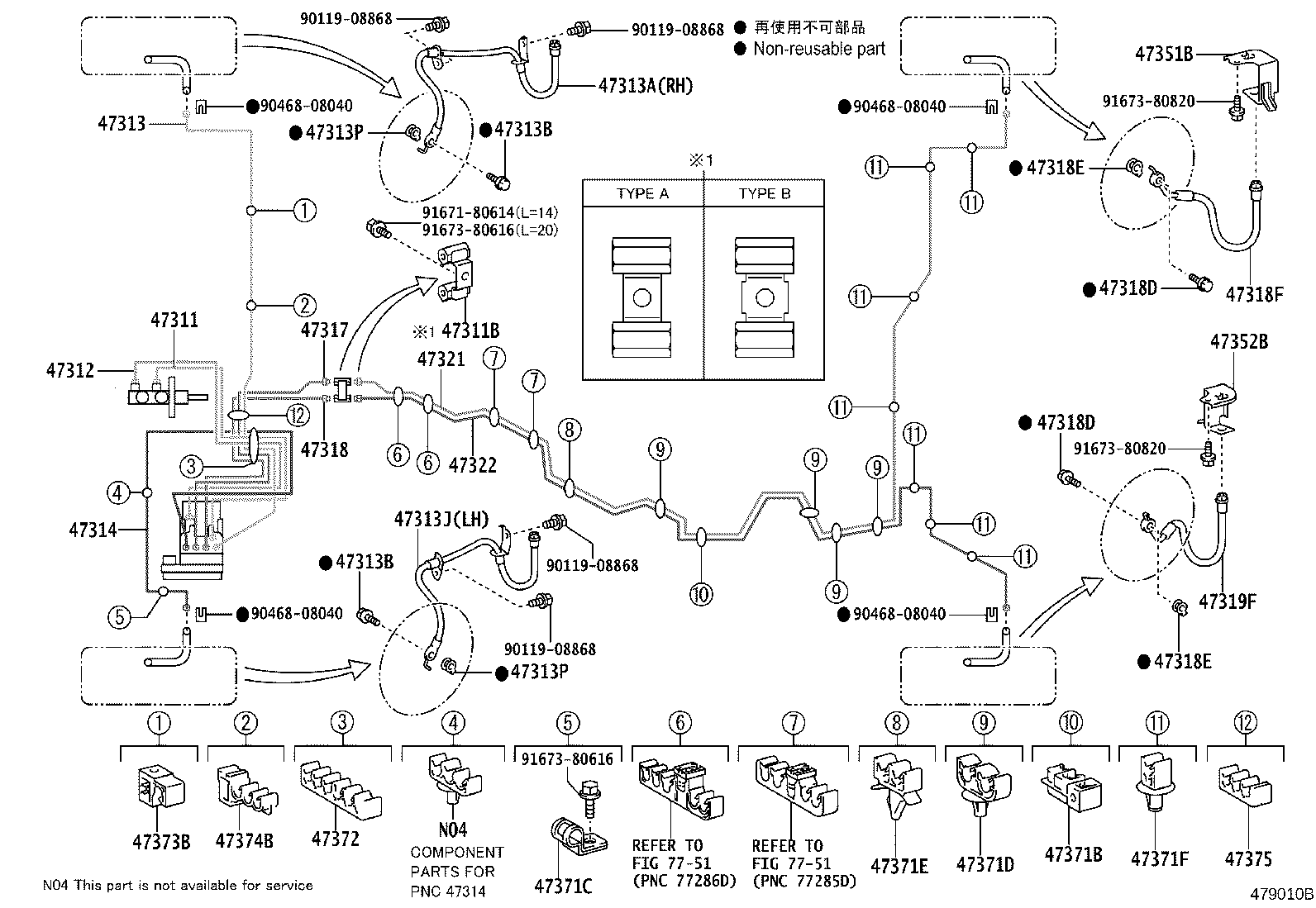

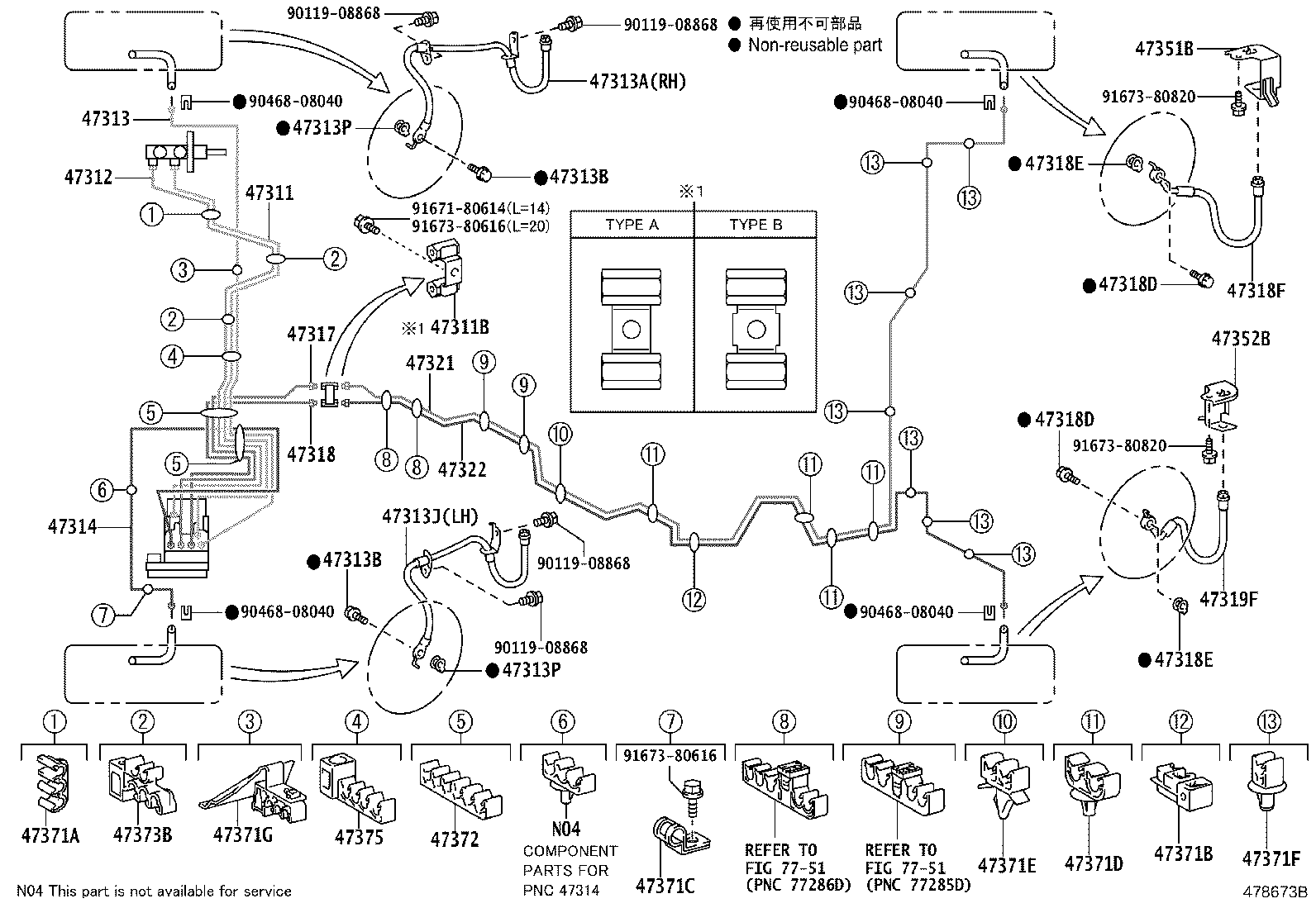

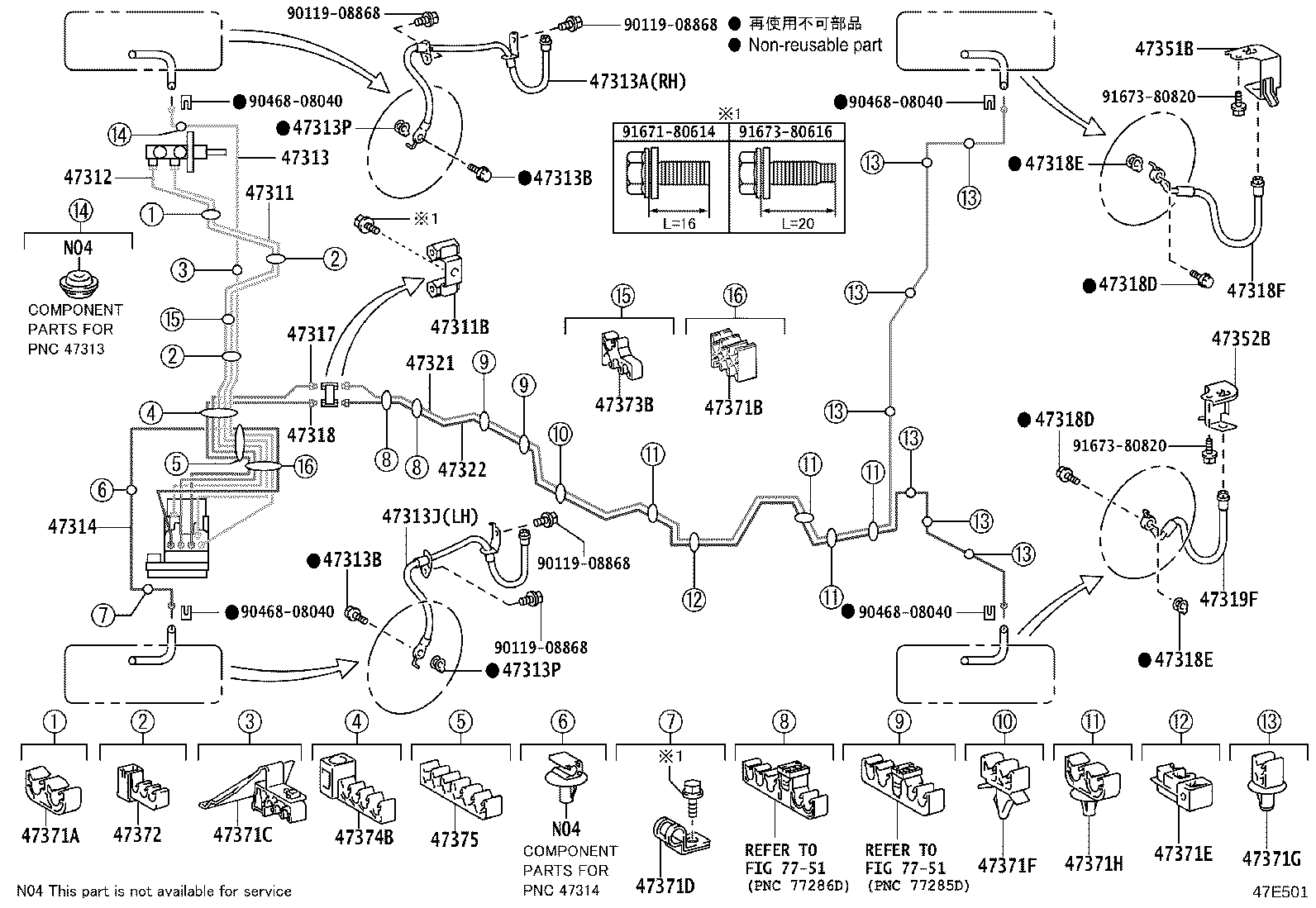

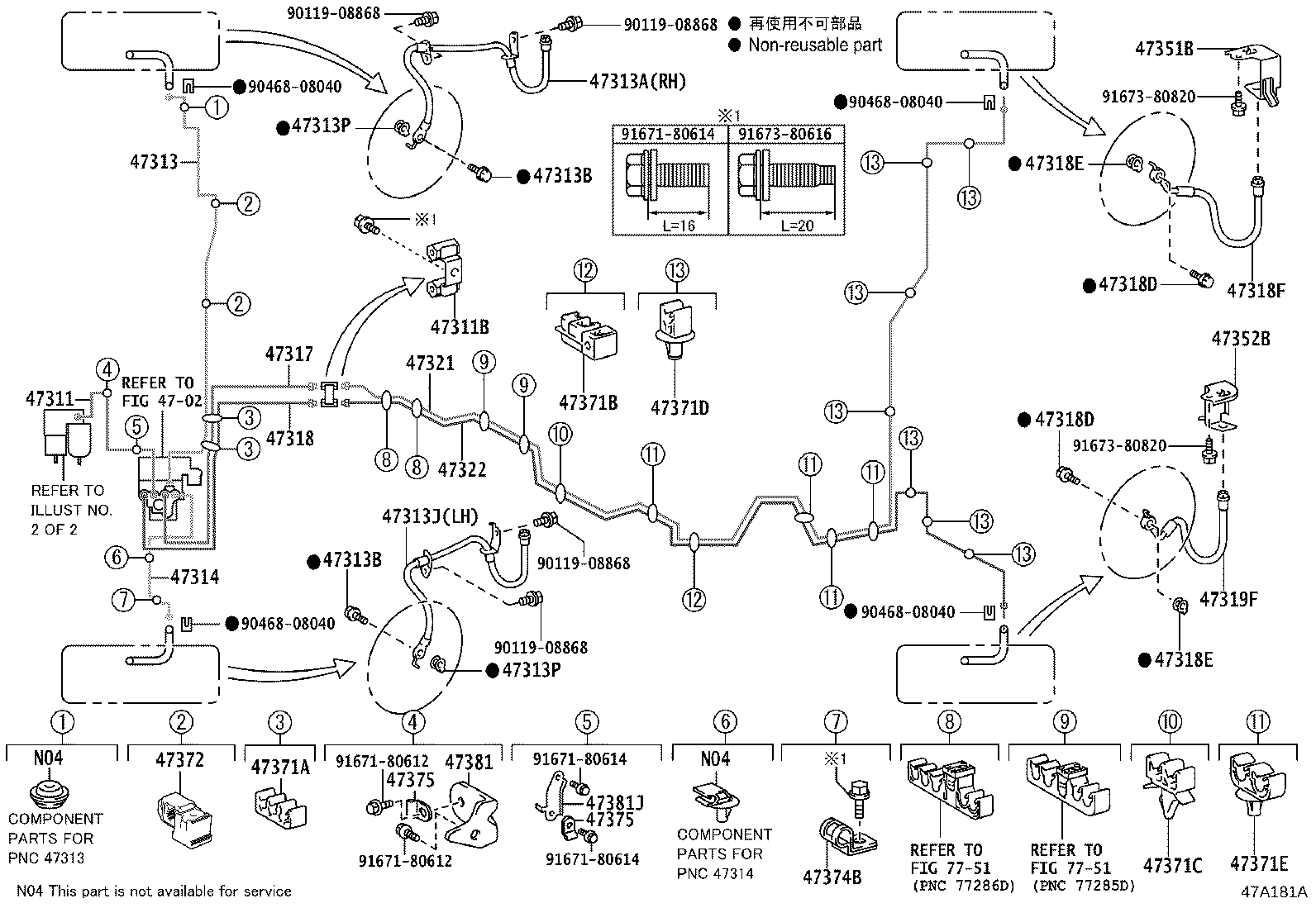

Figure 478672A 478672A 2012-12 → 2013-11 Figure 479010B 479010B 2013-11 → 2015-10 Figure 478673B 478673B 2012-12 → 2013-11 Figure 479011A 479011A 2013-11 → 2015-10 Figure 47A183A 47A183A 2015-10 → — Figure 47E501 47E501 2015-10 → — Figure 47A181A 47A181A 2015-10 → — Figure 47A180A 47A180A 2015-10 → — Figure 478675 478675 2012-12 → 2015-10 Figure 47A182A 47A182A 2015-10 → — Figure 47A178 47A178 2015-10 → — Figure 47A179 47A179 2015-10 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44515A Clip(FOR BRAKE ACTUATOR HOSE)
44546A Cushion, Brake Actuator Bolt
44547B Cushion, Brake Actuator Bracket
44551 Tube, Brake Actuator, NO.1
44571 Hose, Brake Actuator
44572 Hose, Brake Actuator, NO.2
44590 Bracket Assy, Brake Actuator
44591 Bracket, Brake Actuator, NO.1
47070 Pump Assy, Brake Booster
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313J Hose, Flexible, NO.2(FOR FRONT)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47322 Tube, Rear Brake, NO.2
47351B Bracket, Flexible Hose, NO.1
47352B Bracket, Flexible Hose, NO.2
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47371E Clamp, Brake Tube, NO.9
47371F Clamp, Brake Tube, NO.10
47371G Clamp, Brake Tube, NO.11
47371H Clamp, Brake Tube, NO.12
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47381 Bracket, Brake Tube Clamp NO.1
47381J Bracket, Brake Tube Clamp, NO.2
47962 Collar, Brake Booster Pump
47965 Bush, Brake Booster Pump
