Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

24 part groups · 14 illustrations

Illustrations

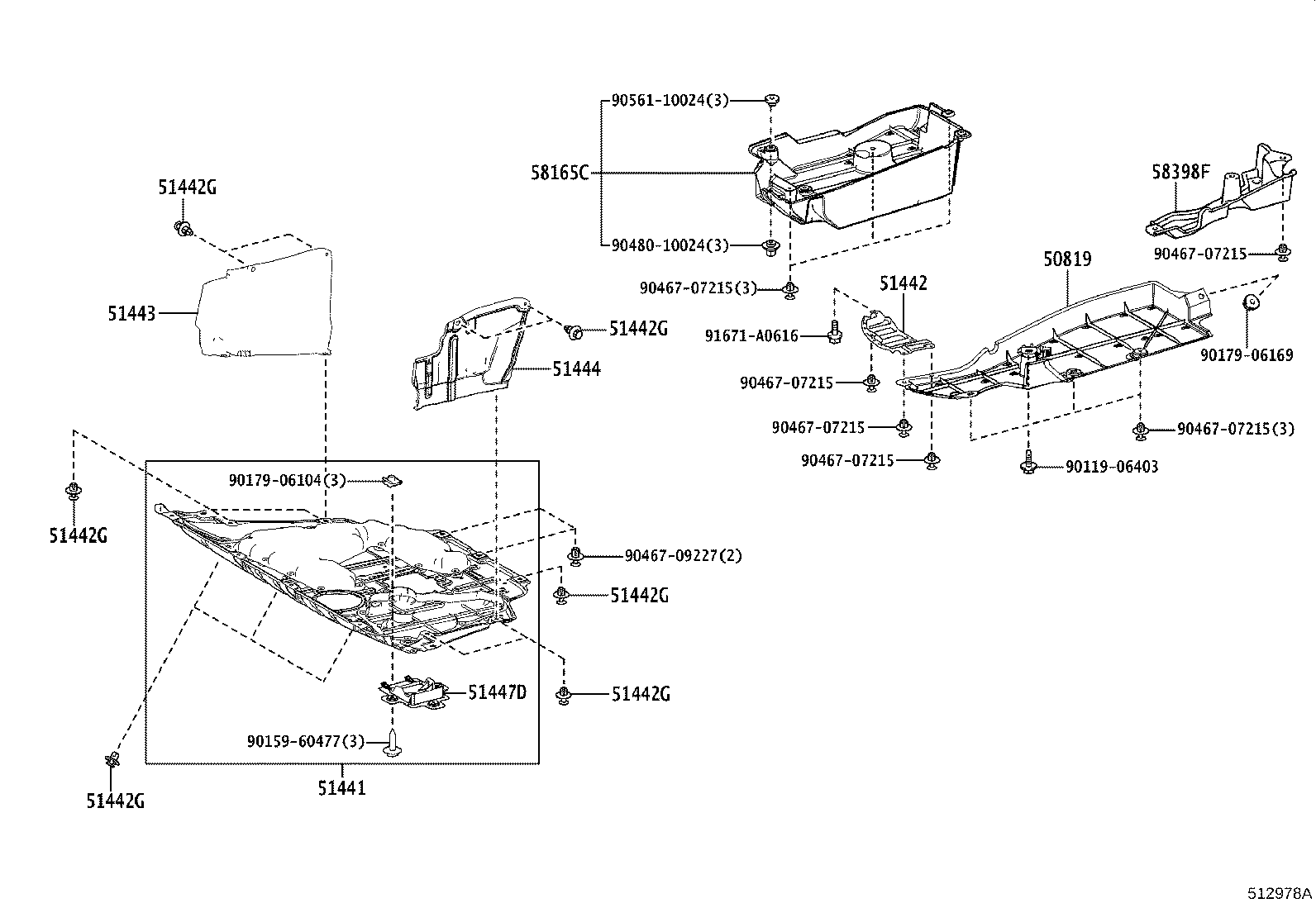

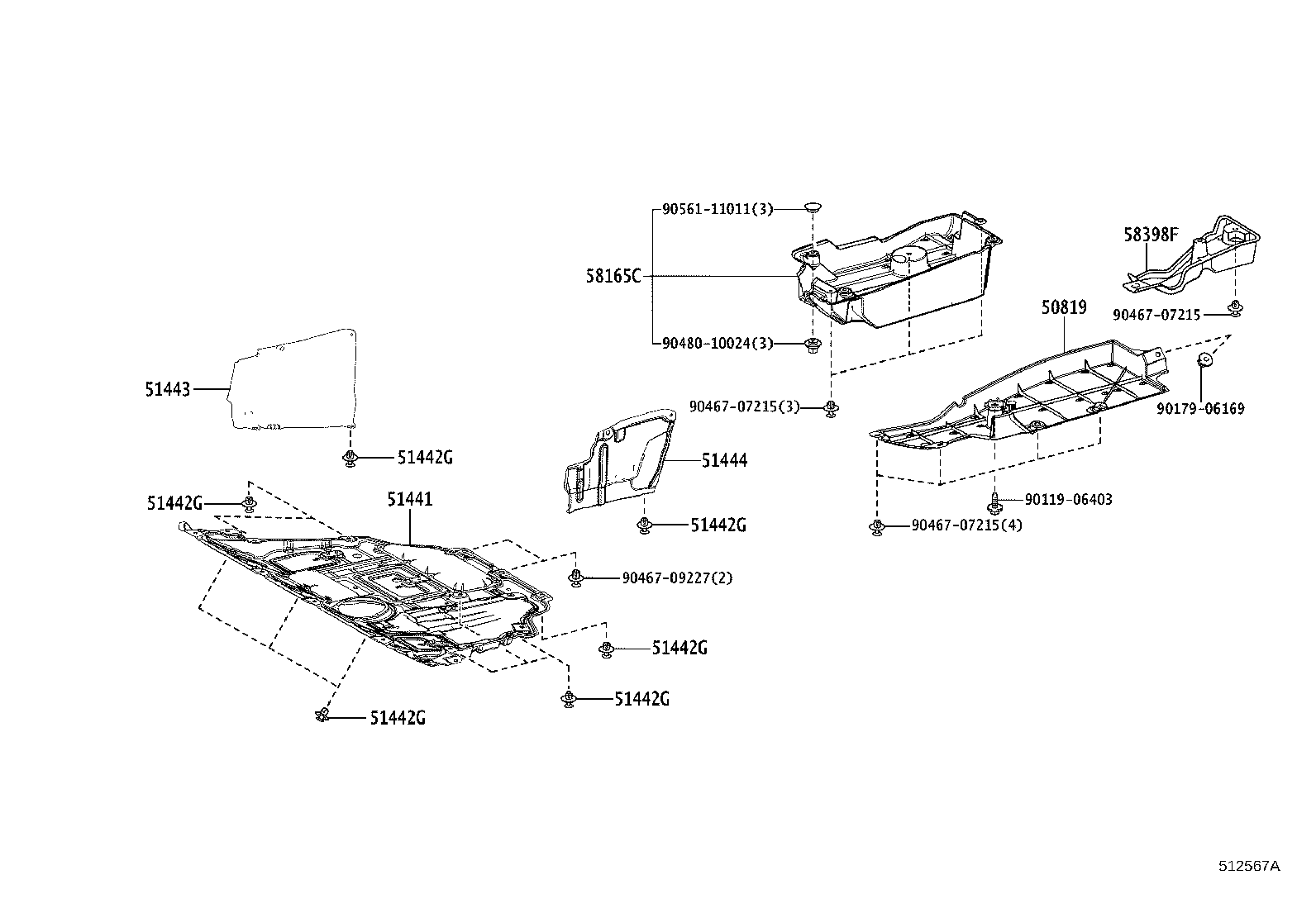

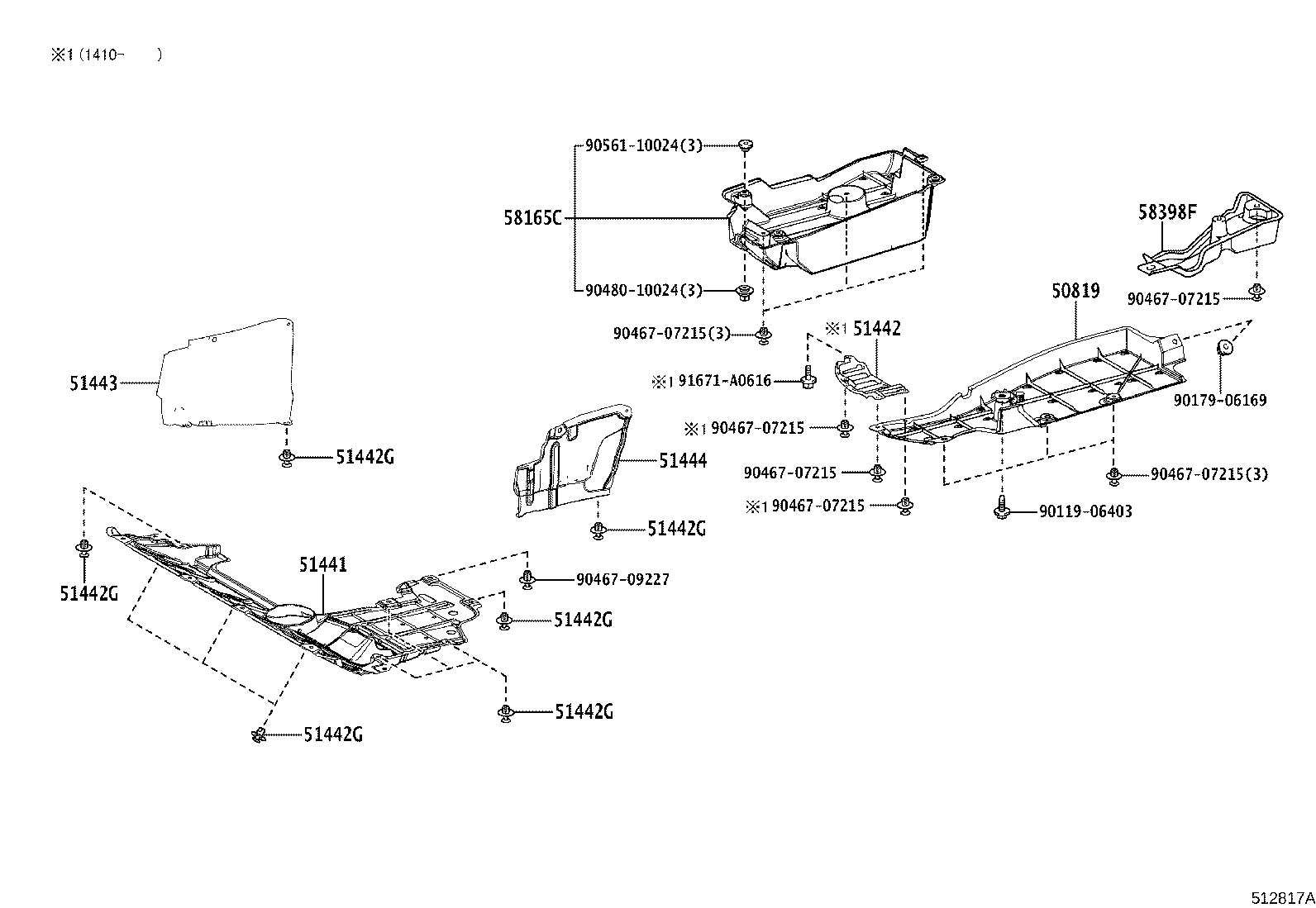

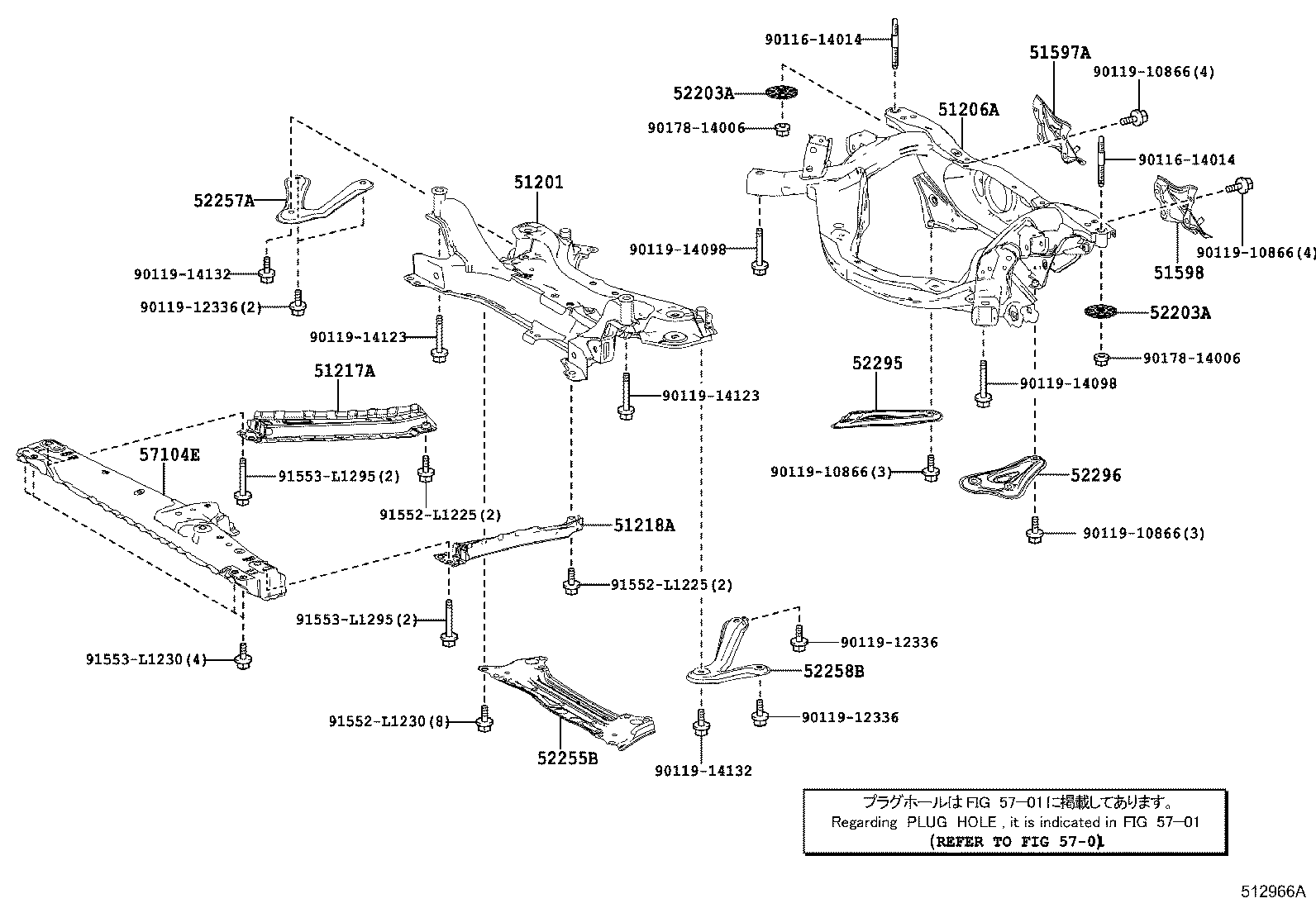

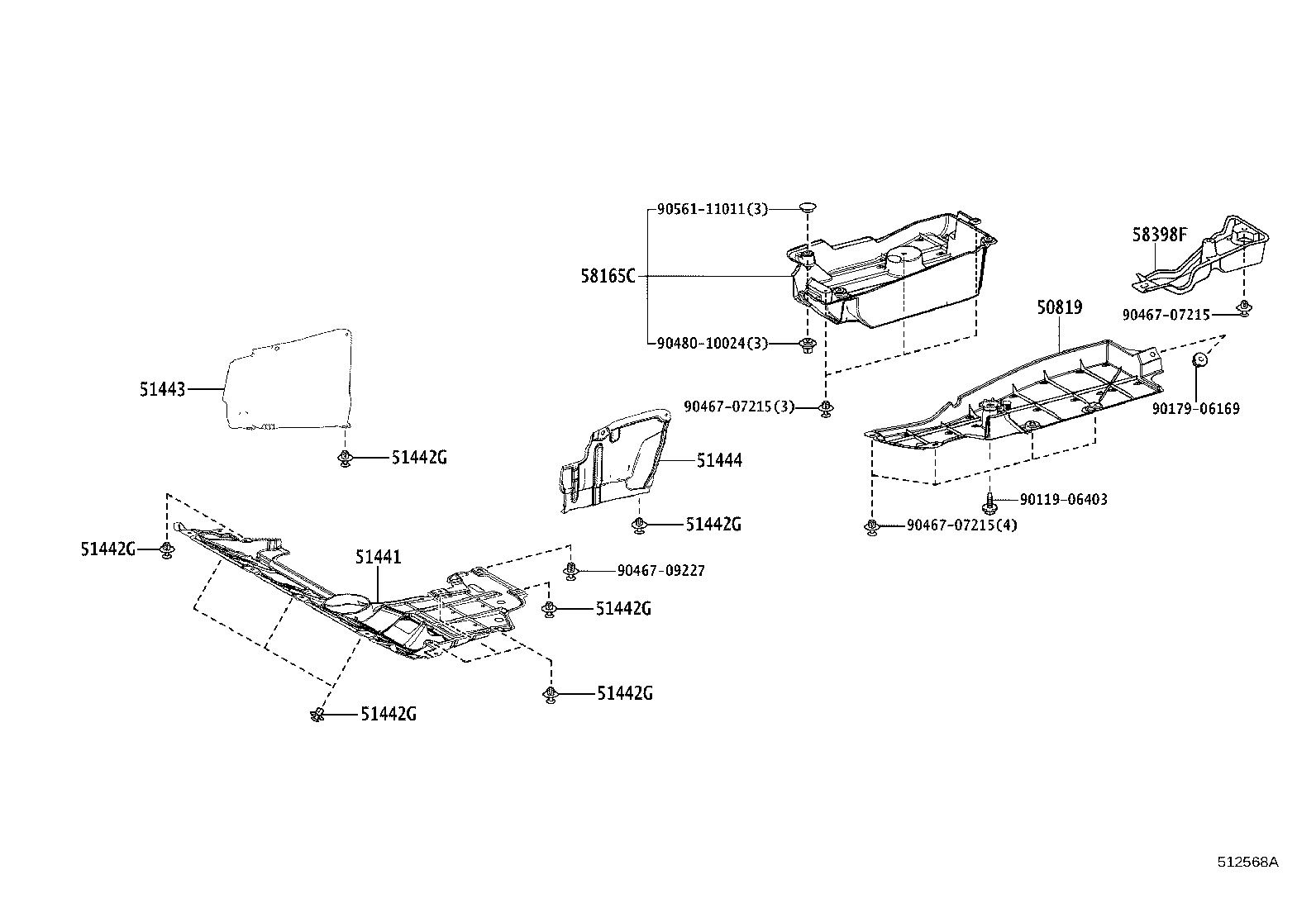

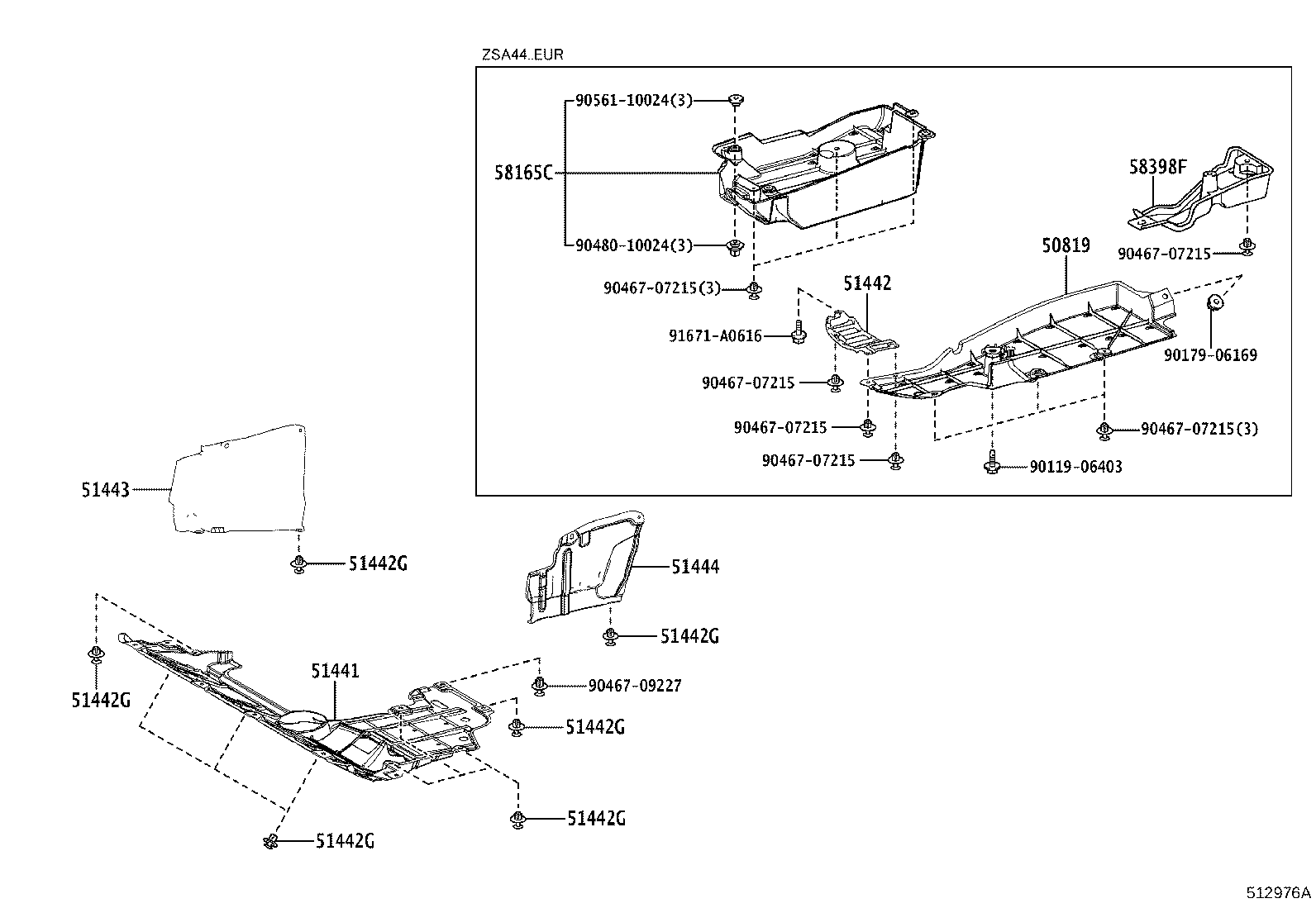

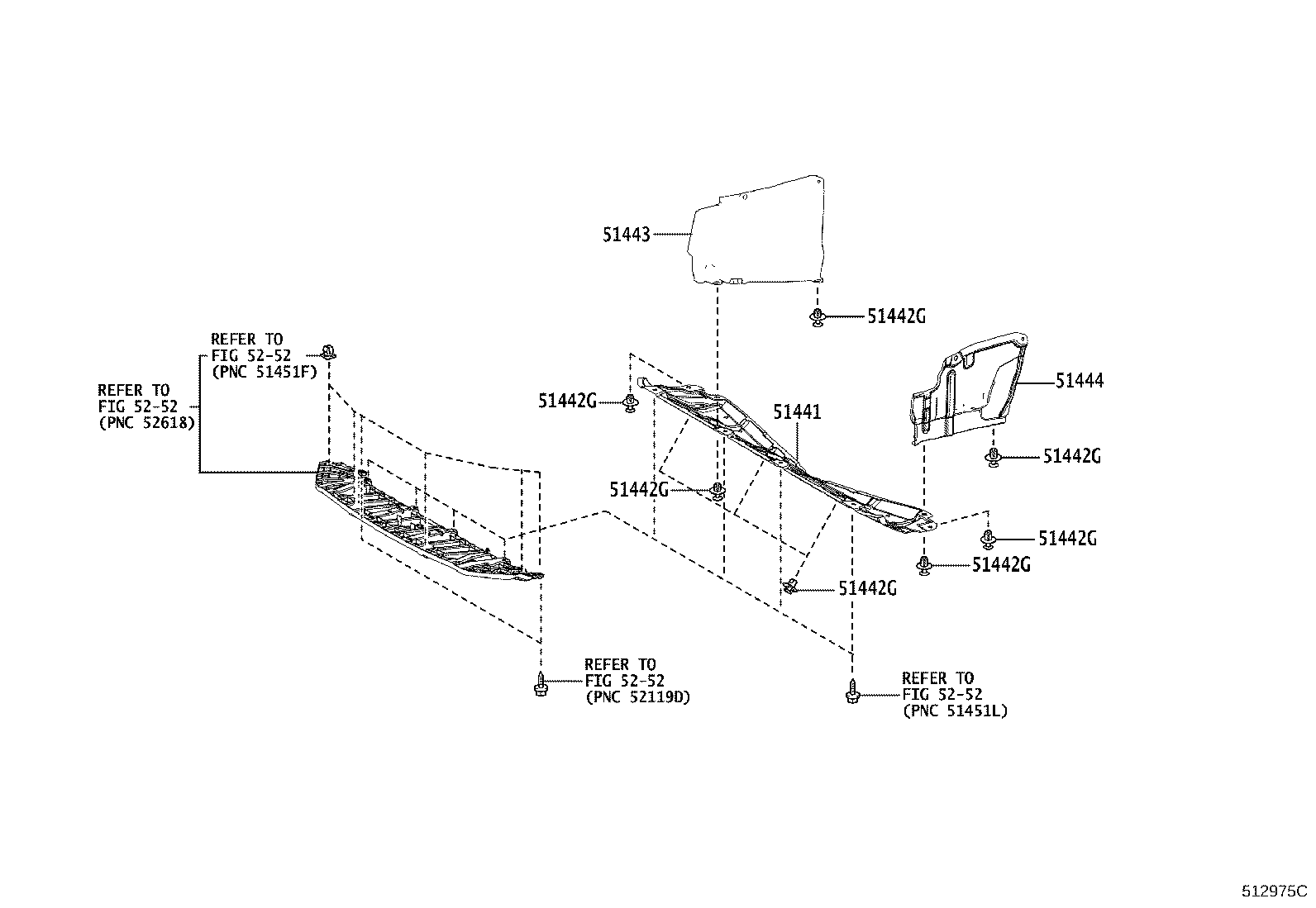

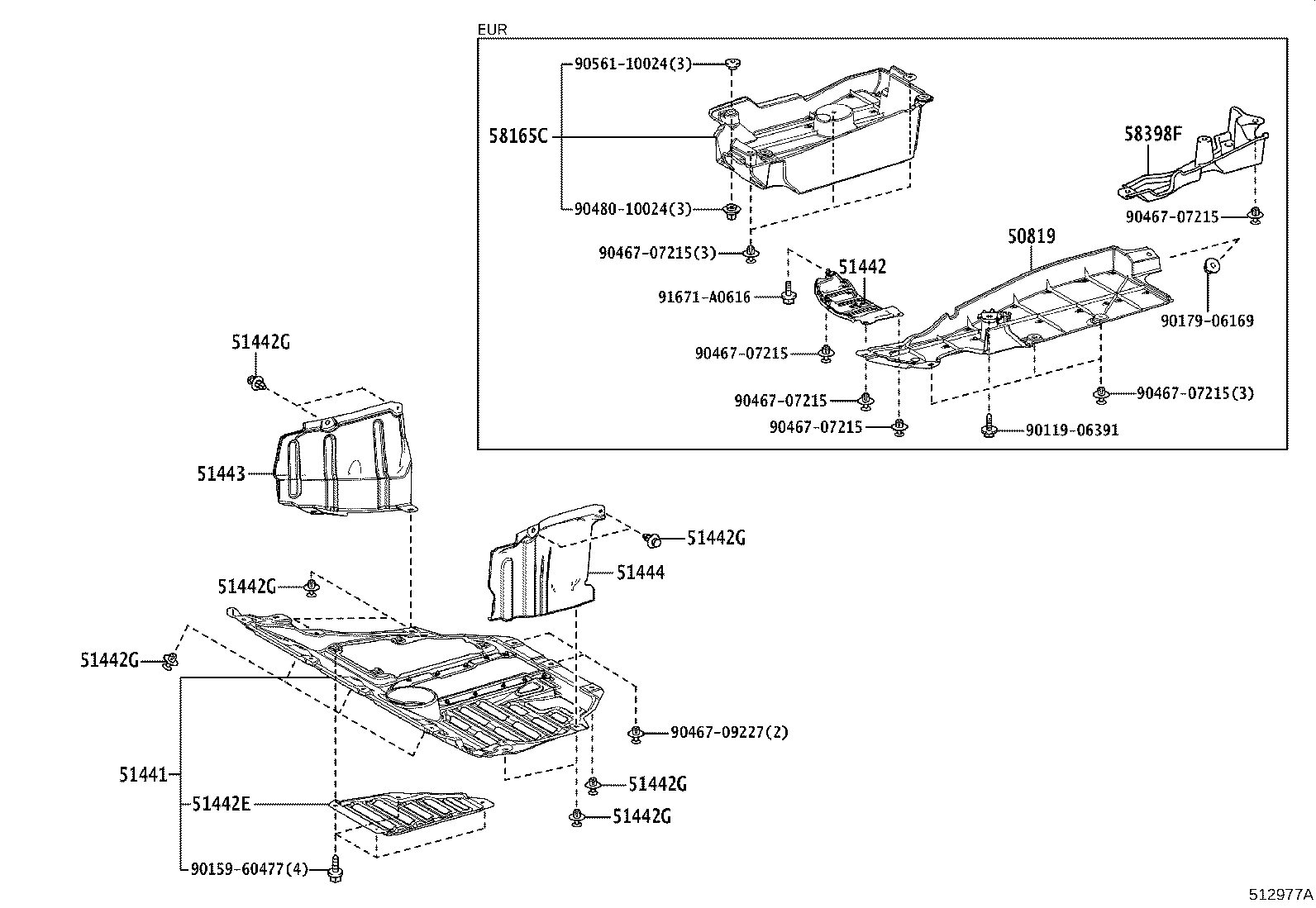

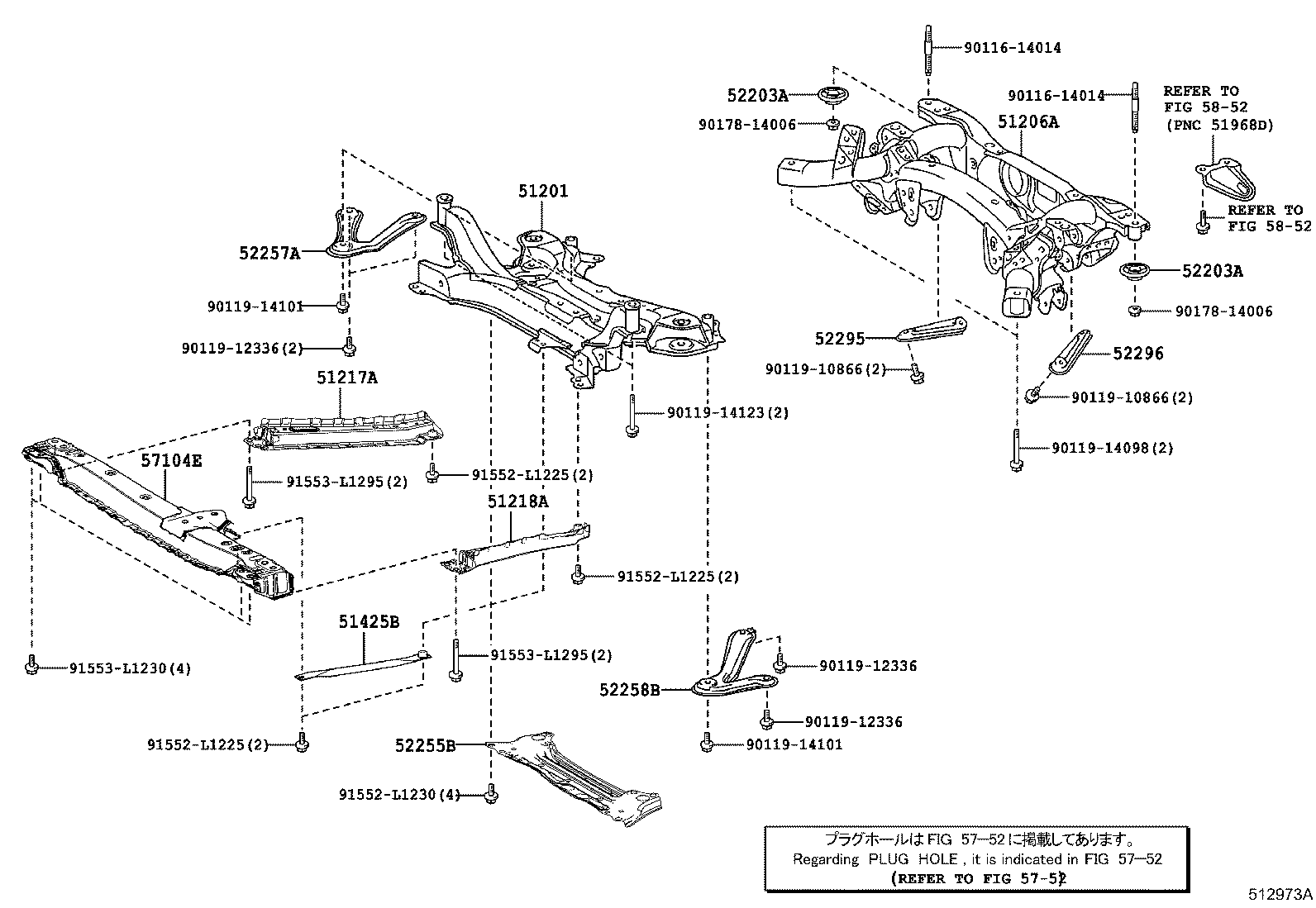

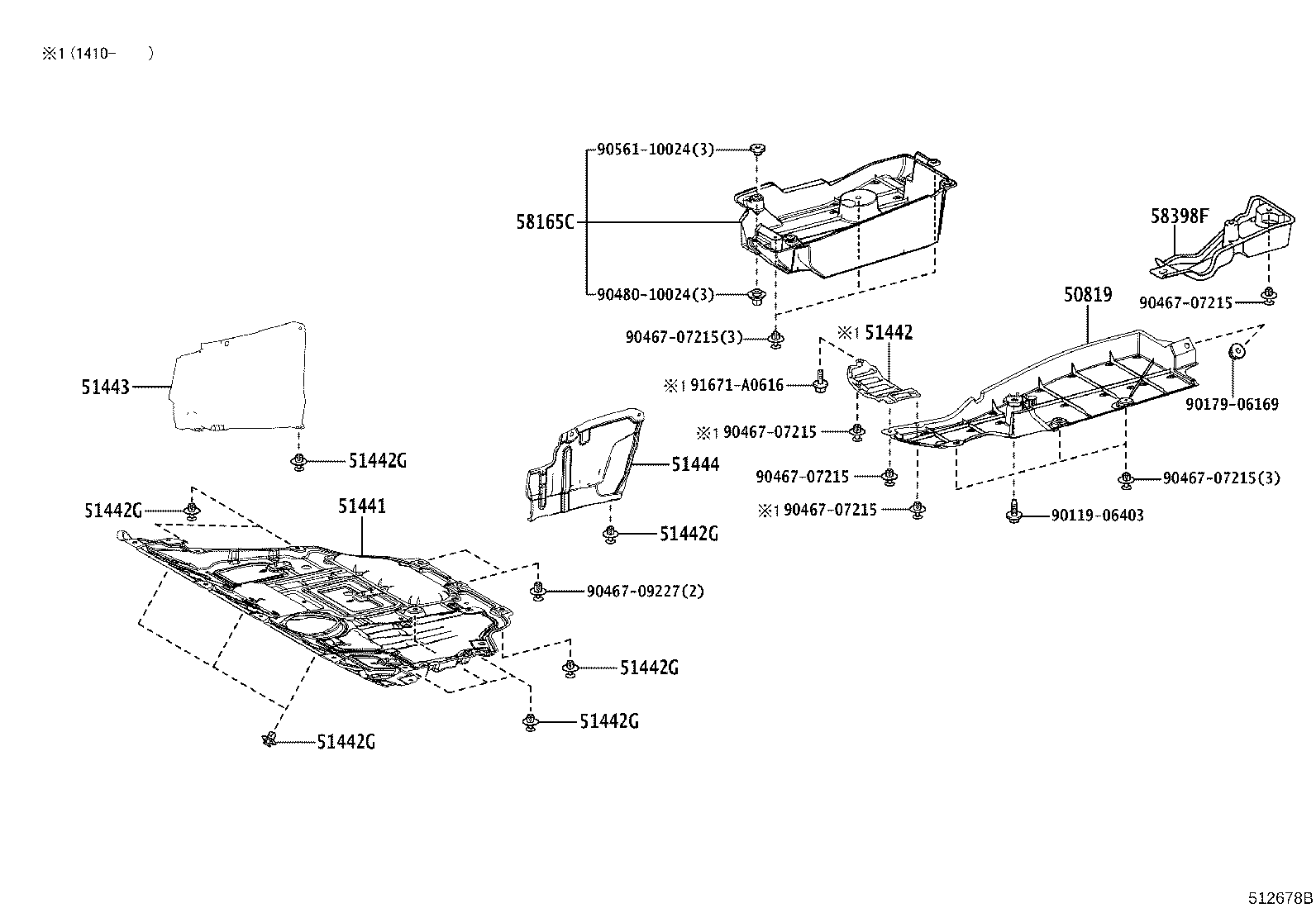

Figure 512566B 512566B 2012-12 → 2015-10 Figure 512566B 512566B 2015-10 → — Figure 512566B 512566B 2017-08 → — Figure 512966A 512966A 2015-10 → — Figure 512973A 512973A 2015-10 → — Figure 512567A 512567A 2012-12 → 2013-08 Figure 512568A 512568A 2012-12 → 2013-08 Figure 512678B 512678B 2013-08 → 2015-10 Figure 512817A 512817A 2013-08 → 2015-10 Figure 512974A 512974A 2015-10 → — Figure 512976A 512976A 2015-10 → — Figure 512977A 512977A 2015-10 → — Figure 512975C 512975C 2015-10 → — Figure 512978A 512978A 2015-10 → —

Part groups

PNCDescription
50819 Cover, Front Floor
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51217A Reinforcement, Front Suspension Member, RH
51218A Reinforcement, Front Suspension Member, LH
51425B Reinforcement, Engine Front Mounting Bracket, Lower
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51442E Cover, Engine Under, NO.2
51442G Clip, Engine Under Cover, NO.1
51443 Cover, Engine Under, Rear RH
51444 Cover, Engine Under, Rear LH
51447D Cover, Engine Under, NO.4 Center
51597A Bracket, Rear Stabilizer Support, RH
51598 Bracket, Rear Stabilizer Support, LH
52203A Cushion Sub-assy, Body Mounting, Rear Upper
52255B Brace, Front Suspension Member
52257A Brace, Front Suspension Member, Rear RH
52258B Brace, Front Suspension Member, Rear LH
52295 Brace, Rear Suspension Member, RH
52296 Brace, Rear Suspension Member, LH
57104E Member Sub-assy, Front Cross
58165C Cover, Front Floor, RH
58398F Cover, Floor Under, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
