Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

22 part groups · 2 illustrations

Illustrations

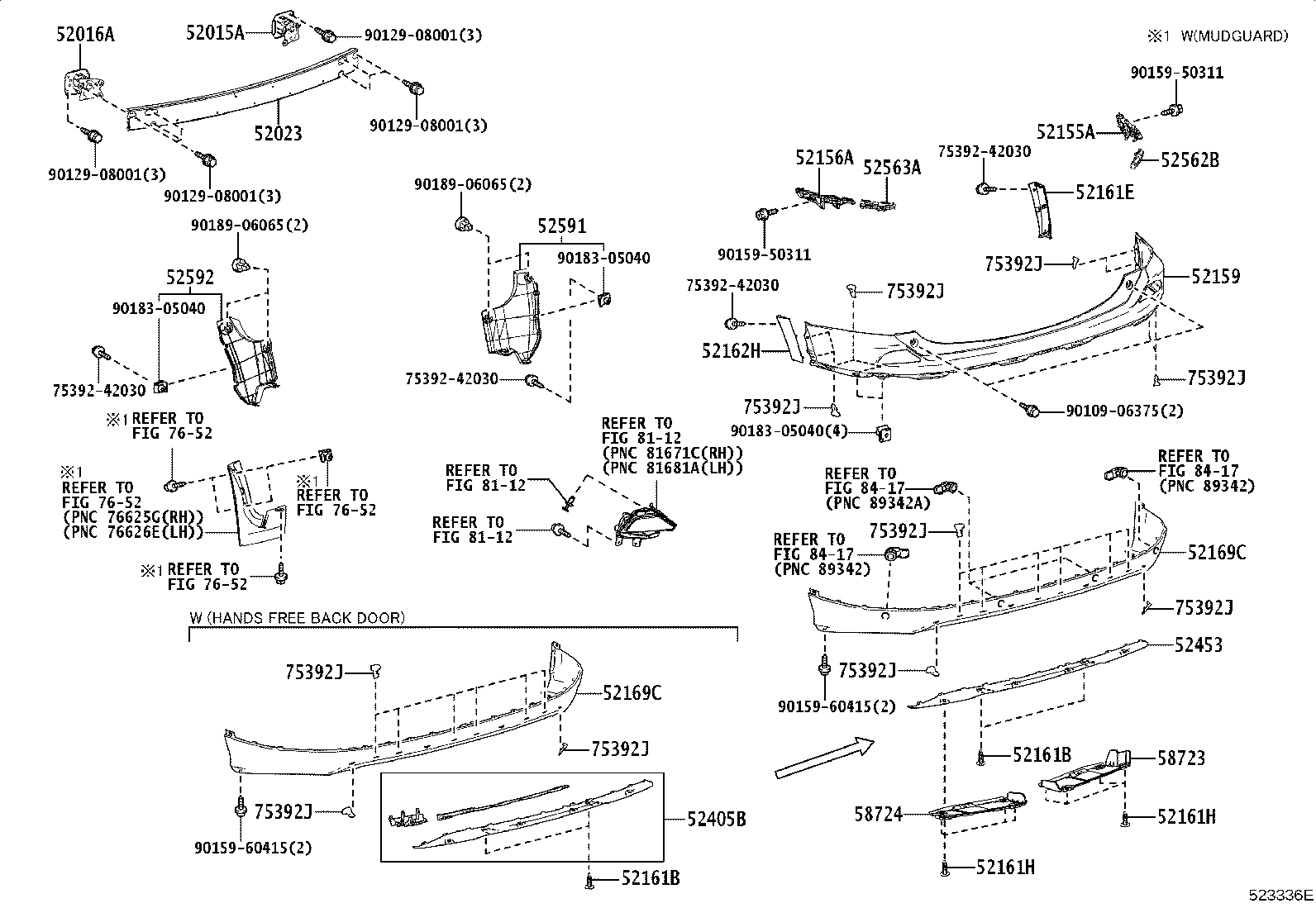

Figure 523066E 523066E 2012-12 → 2015-10 Figure 523336E 523336E 2015-10 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52023 Reinforcement Sub-assy, Rear Bumper
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52161E Extension, Rear Bumper Side, RH
52161H Piece, Rear Bumper
52162H Extension, Rear Bumper Side, LH
52169C Cover, Rear Bumper, Lower
52405B Guard Sub-assy, Rear Bumper
52453 Guard, Rear Bumper, Center
52562B Retainer, Rear Bumper, Upper RH
52563A Retainer, Rear Bumper, Upper LH
52581F Protector, Rear Bumper
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52751A Moulding, Rear Bumper, Center
58723 Protector, Luggage Compartment Service Cover, NO.1
58724 Protector, Luggage Compartment Service Cover, NO.2
75392J Retainer, Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
