Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

8 part groups · 2 illustrations

Illustrations

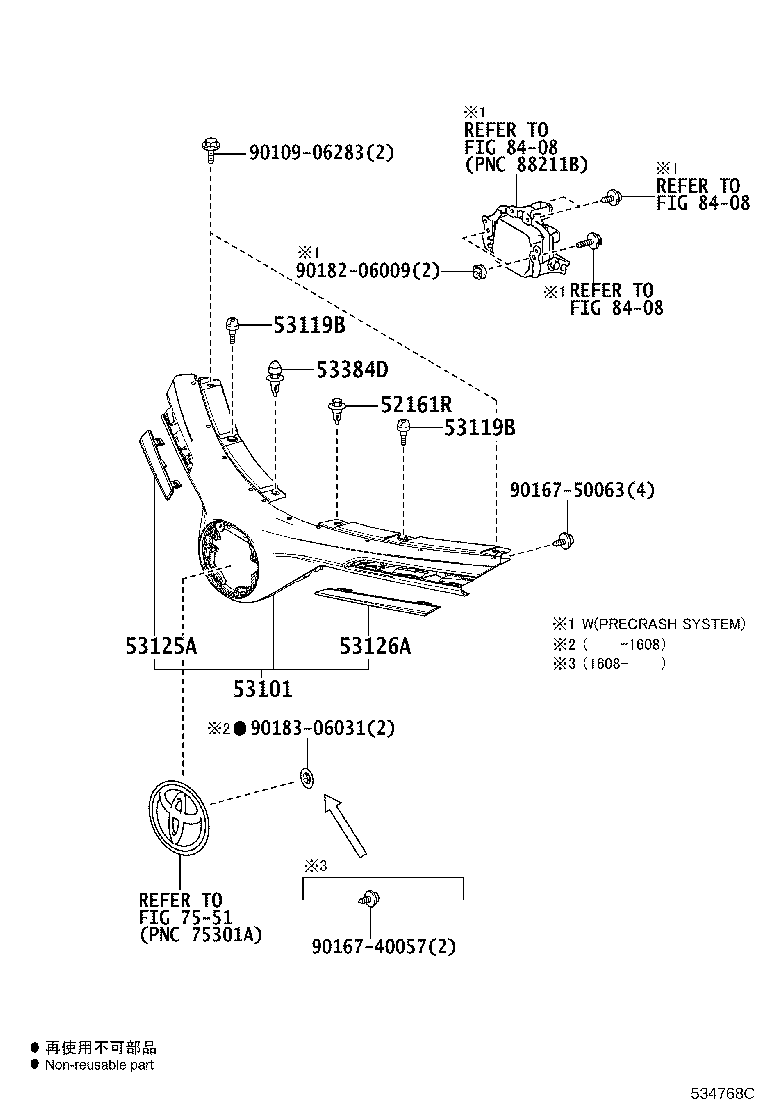

Figure 533916A 533916A 2012-12 → 2015-10 Figure 534768C 534768C 2015-10 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53105A Garnish Sub-assy, Radiator Grille, RH
53106C Garnish Sub-assy, Radiator Grille, LH
53119B Protector, Radiator Grille
53125A Moulding, Radiator Grille, Center RH
53126A Moulding, Radiator Grille, Center LH
53384D Cushion, Hood, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
