Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

21 part groups · 2 illustrations

Illustrations

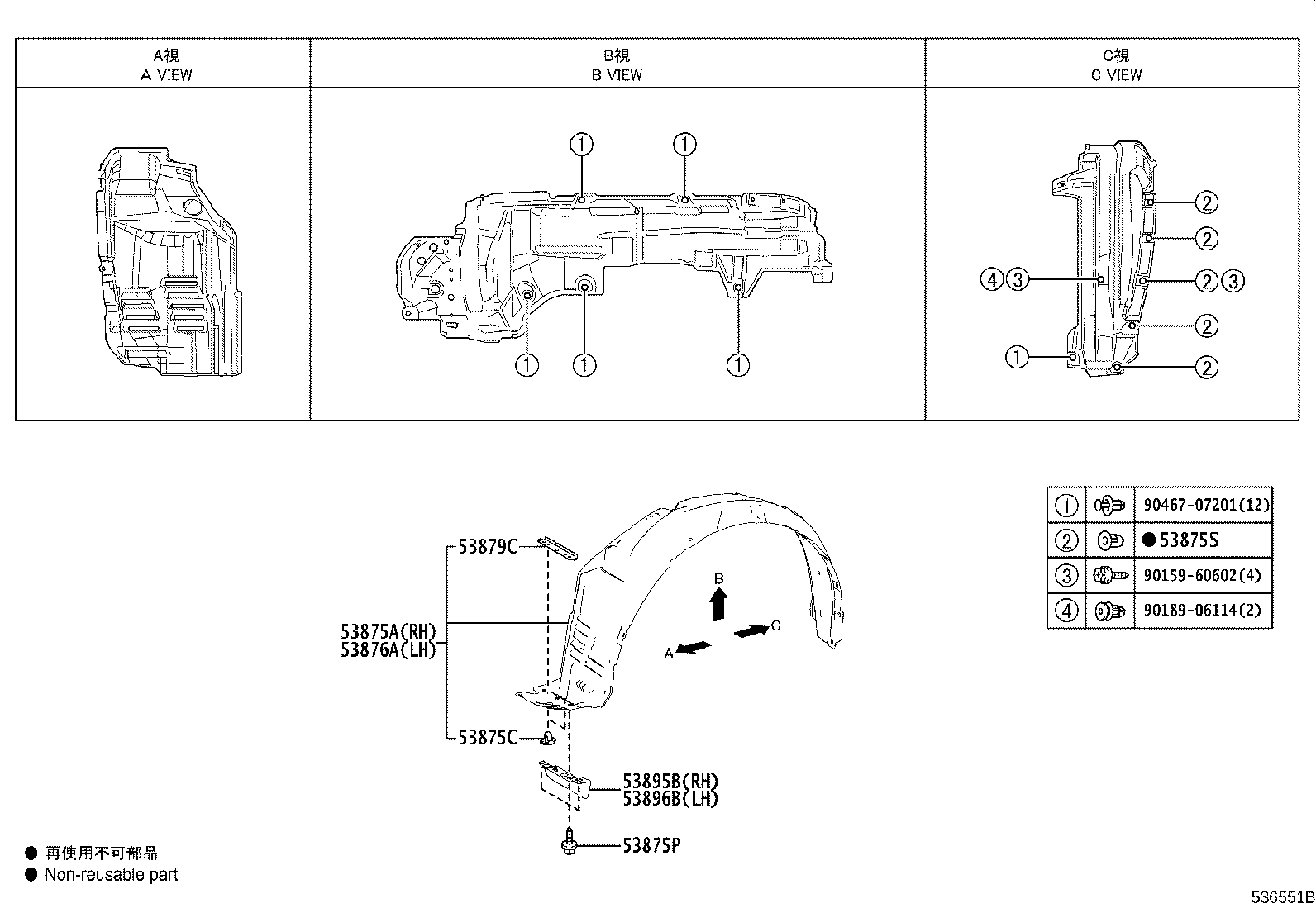

Figure 533928C 533928C 2012-12 → — Figure 536551B 536551B 2012-12 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53326A Clip, Hood Moulding
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53361A Weatherstrip, Hood
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827K Protector, Front Fender Side Panel, RH
53828J Protector, Front Fender Side Panel, LH
53857B Retainer, Front Wheel Opening Extension, RH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53875S Grommet, NO.1
53876A Liner, Front Fender, LH
53879C Retainer, Front Fender Liner
53882K Seal, Front Fender
53895B Shield, Front Fender Splash, Front RH
53896B Shield, Front Fender Splash, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
