Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

43 part groups · 10 illustrations

Illustrations

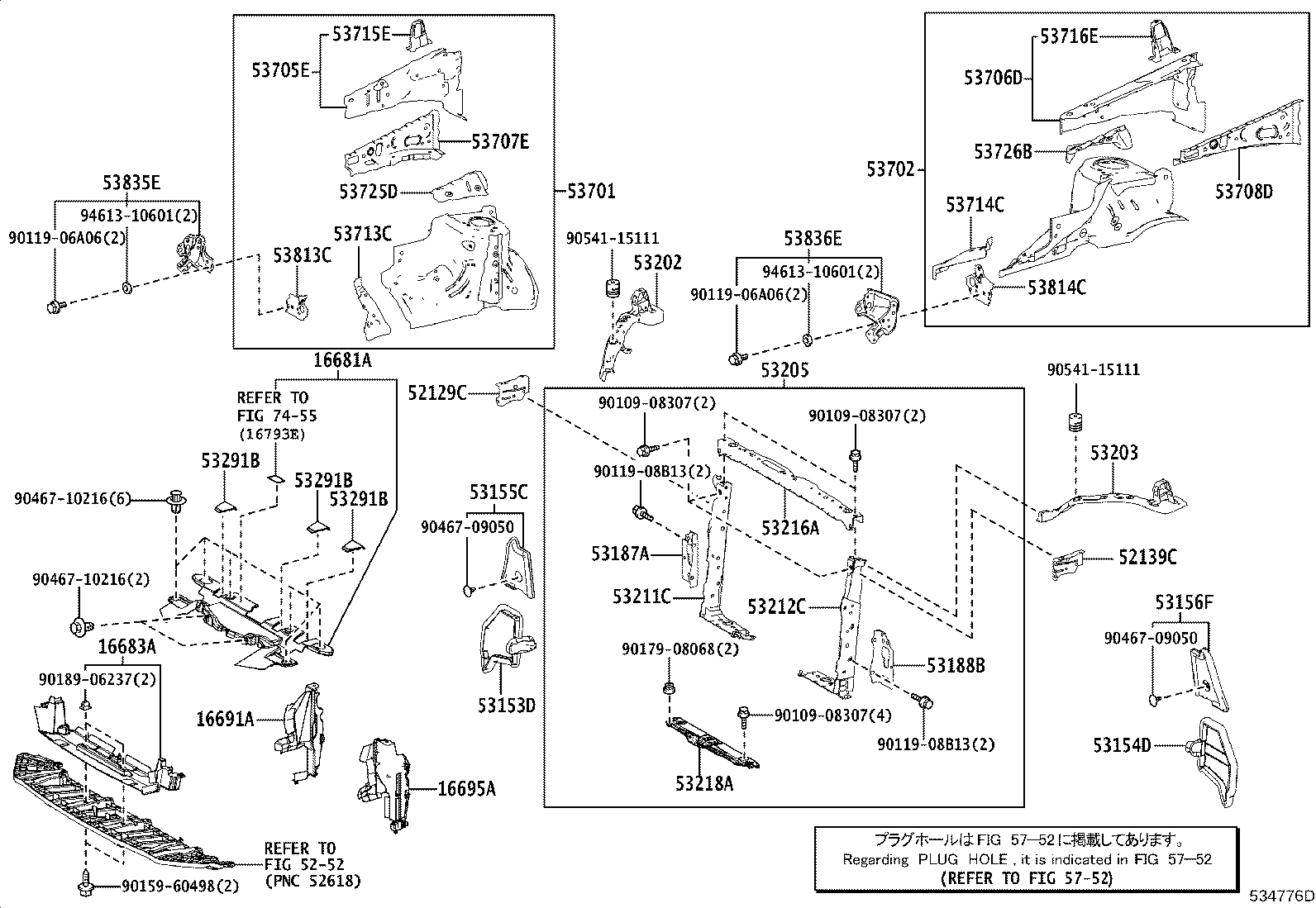

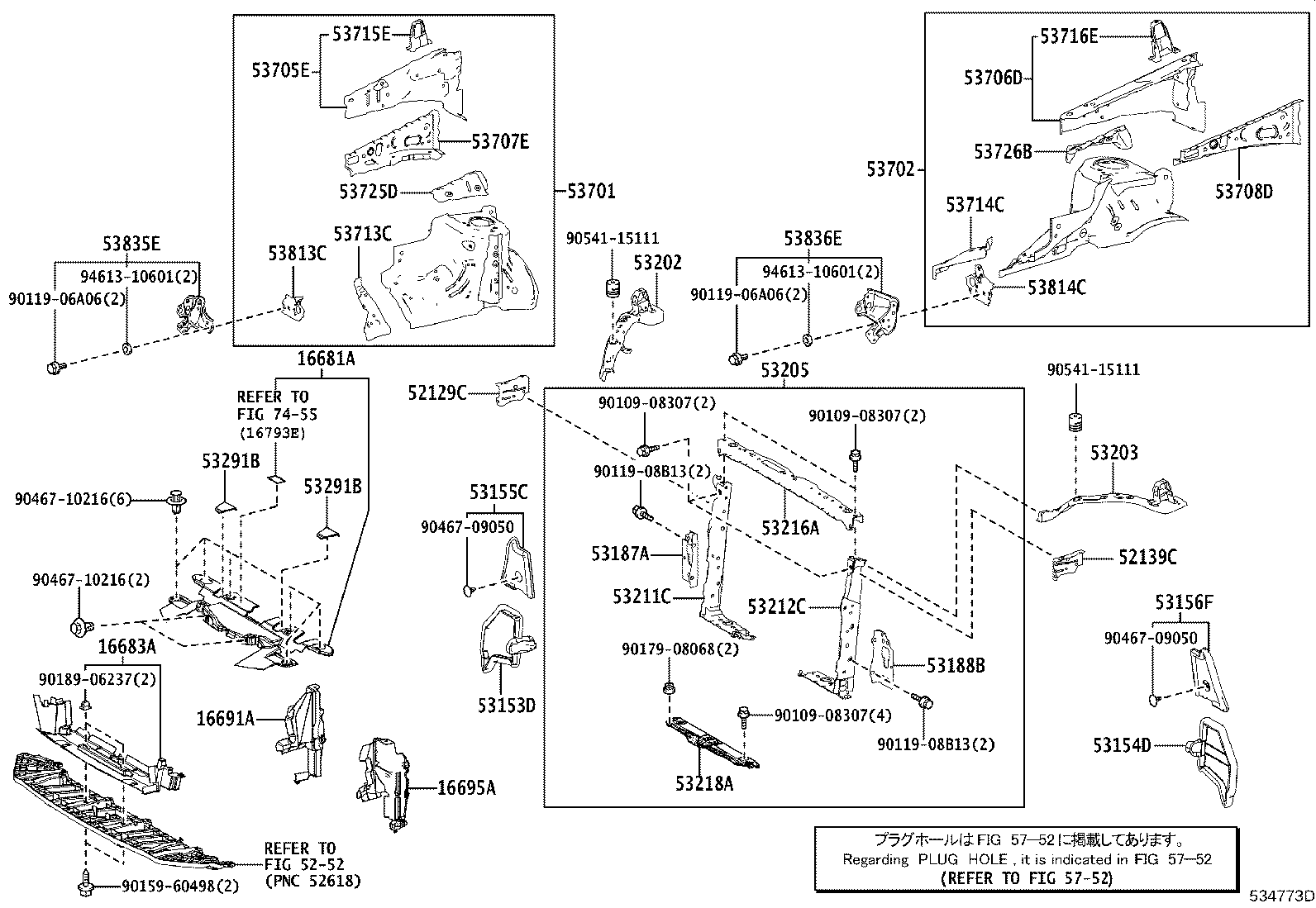

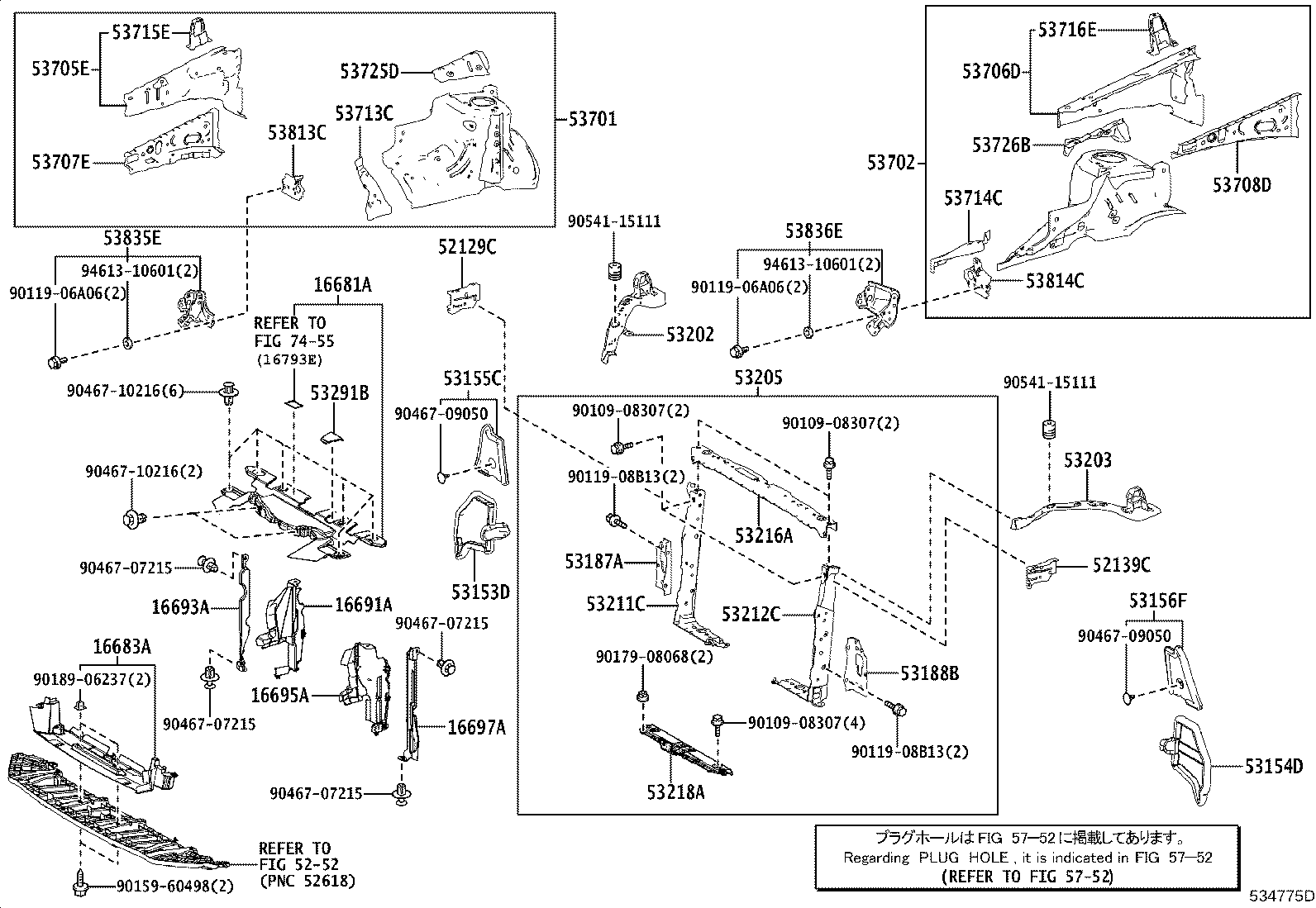

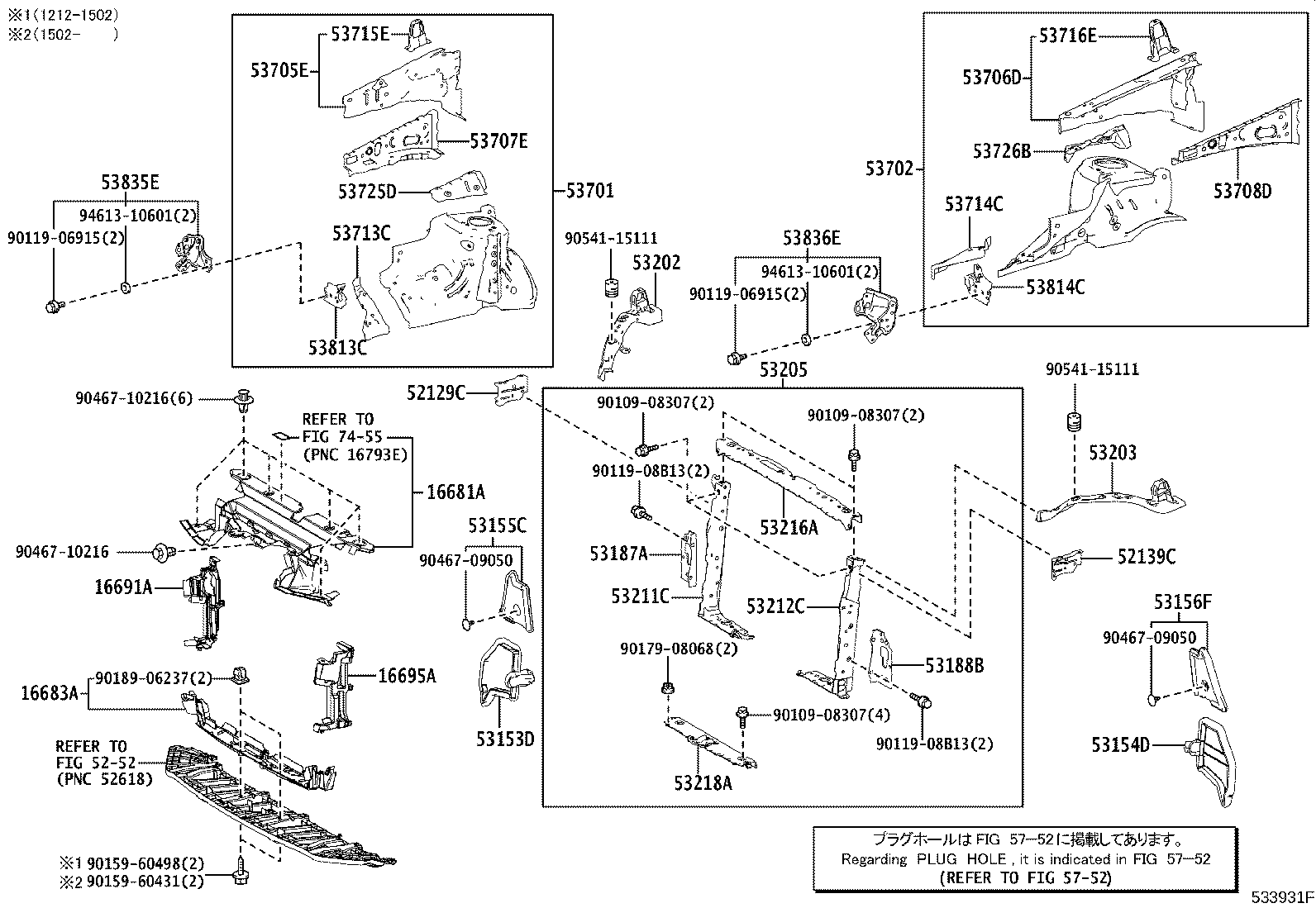

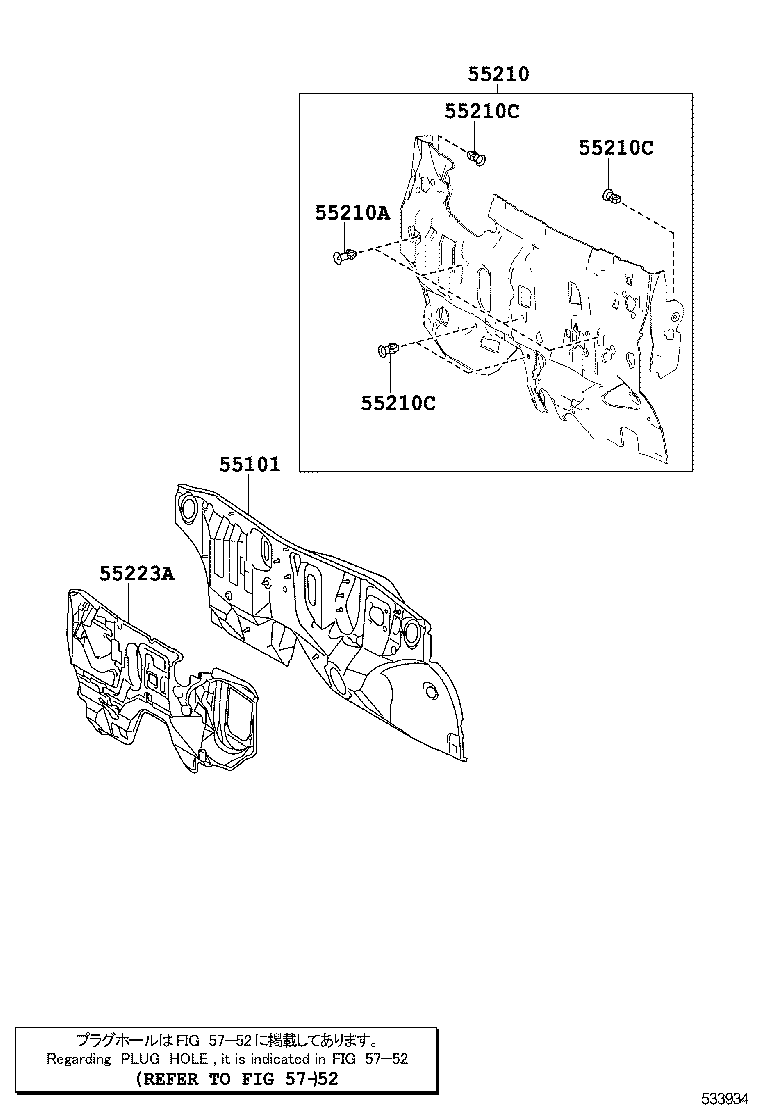

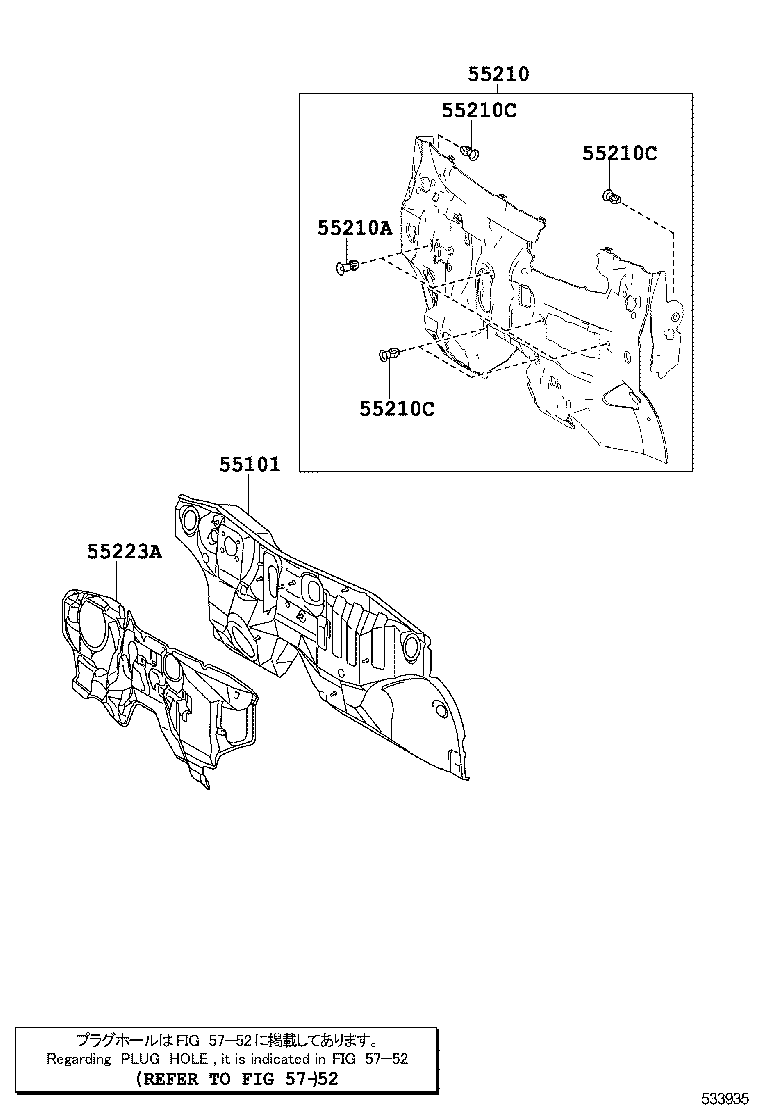

Figure 533933D 533933D 2012-12 → 2015-10 Figure 533931F 533931F 2012-12 → 2015-10 Figure 534774D 534774D 2015-10 → — Figure 534773D 534773D 2015-10 → — Figure 534775D 534775D 2015-10 → — Figure 534776D 534776D 2015-10 → — Figure 533934 533934 2012-12 → 2015-10 Figure 533935 533935 2012-12 → 2015-10 Figure 534777A 534777A 2015-10 → — Figure 534778A 534778A 2015-10 → —

Part groups

PNCDescription
16681A Plate, Radiator Upper Air Guide
16683A Plate, Radiator Lower Air Guide
16691A Plate, Radiator Side Air Guide, Front RH
16693A Plate, Radiator Side Air Guide, Rear RH
16695A Plate, Radiator Side Air Guide, Front LH
16697A Plate, Radiator Side Air Guide, Rear LH
52129C Arm, Front Bumper, Upper NO.2 RH
52139C Arm, Front Bumper, Upper NO.2 LH
53153D Guide, Radiator Grille Side Air, RH
53154D Guide, Radiator Grille Side Air, LH
53155C Seal, Radiator Grille, NO.1
53156F Seal, Radiator Grille, NO.2
53187A Stay, Radiator Support, RH
53188B Stay, Radiator Support, LH
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53211C Support, Radiator, RH
53212C Support, Radiator, LH
53216A Support, Radiator, Upper
53218A Support, Radiator, Lower
53291B Plate, Radiator Cover
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53705E Member Sub-assy, Front Apron TO Cowl Side, RH
53706D Member Sub-assy, Front Apron TO Cowl Side, LH
53707E Apron Sub-assy, Fender Side, RH
53708D Apron Sub-assy, Fender Side, LH
53713C Extension, Front Fender Apron, Front RH
53714C Extension, Front Fender Apron, Front LH
53715E Extension, Front Fender Apron, Rear RH
53716E Extension, Front Fender Apron, Rear LH
53725D Reinforcement, Front Spring Support, NO.2 RH
53726B Reinforcement, Front Spring Support, NO.2 LH
53813C Extension, Front Fender, RH
53814C Extension, Front Fender, LH
53835E Brace, Front Fender TO Apron, RH
53836E Brace, Front Fender TO Apron, LH
55101 Panel Sub-assy, Dash
55210 Insulator Assy, Dash Panel
55210A Clip
55210C Clip
55223A Insulator, Dash Panel, Outer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
