Instrument Panel & Glove Compartment

47 part groups · 12 illustrations

Illustrations

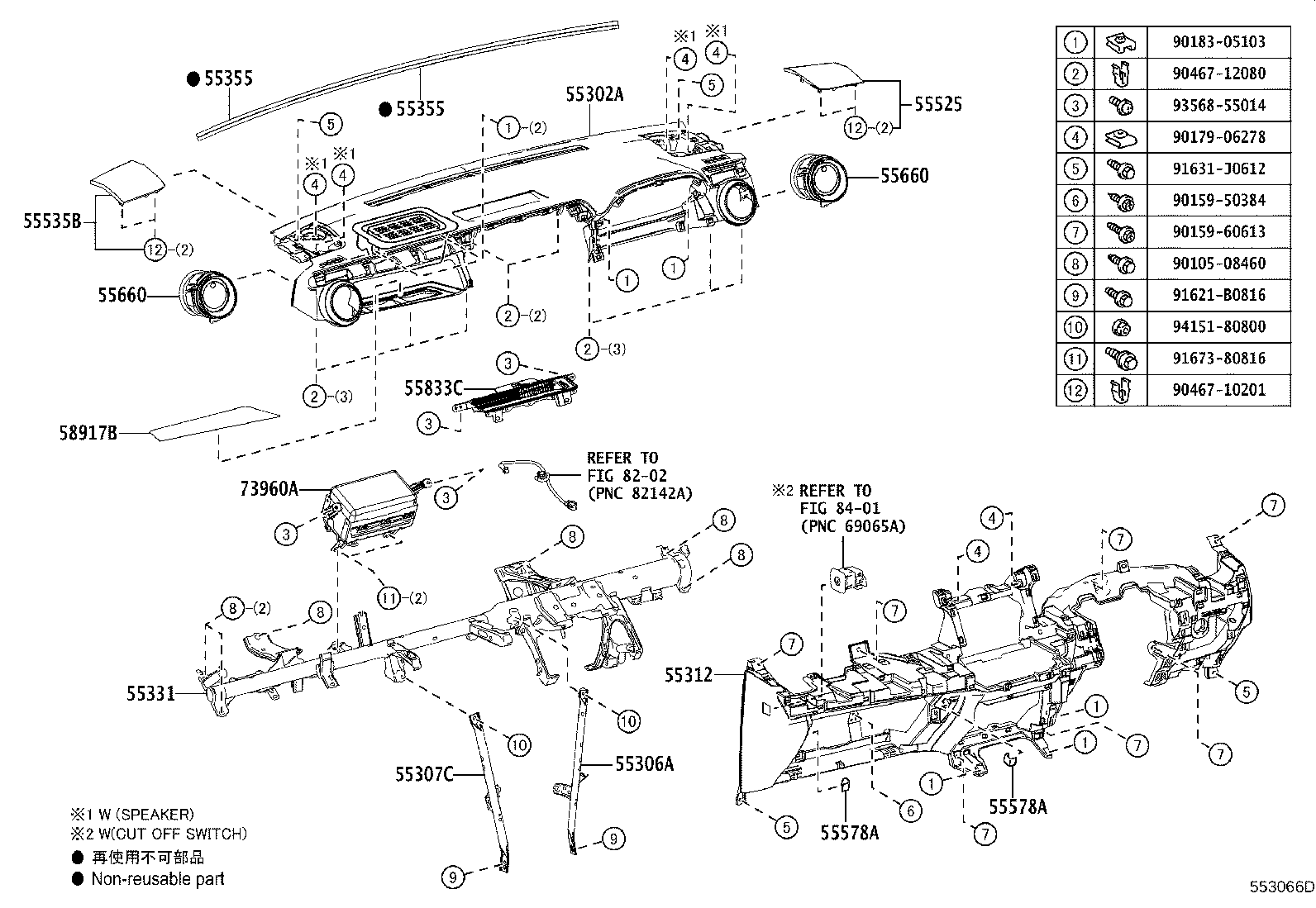

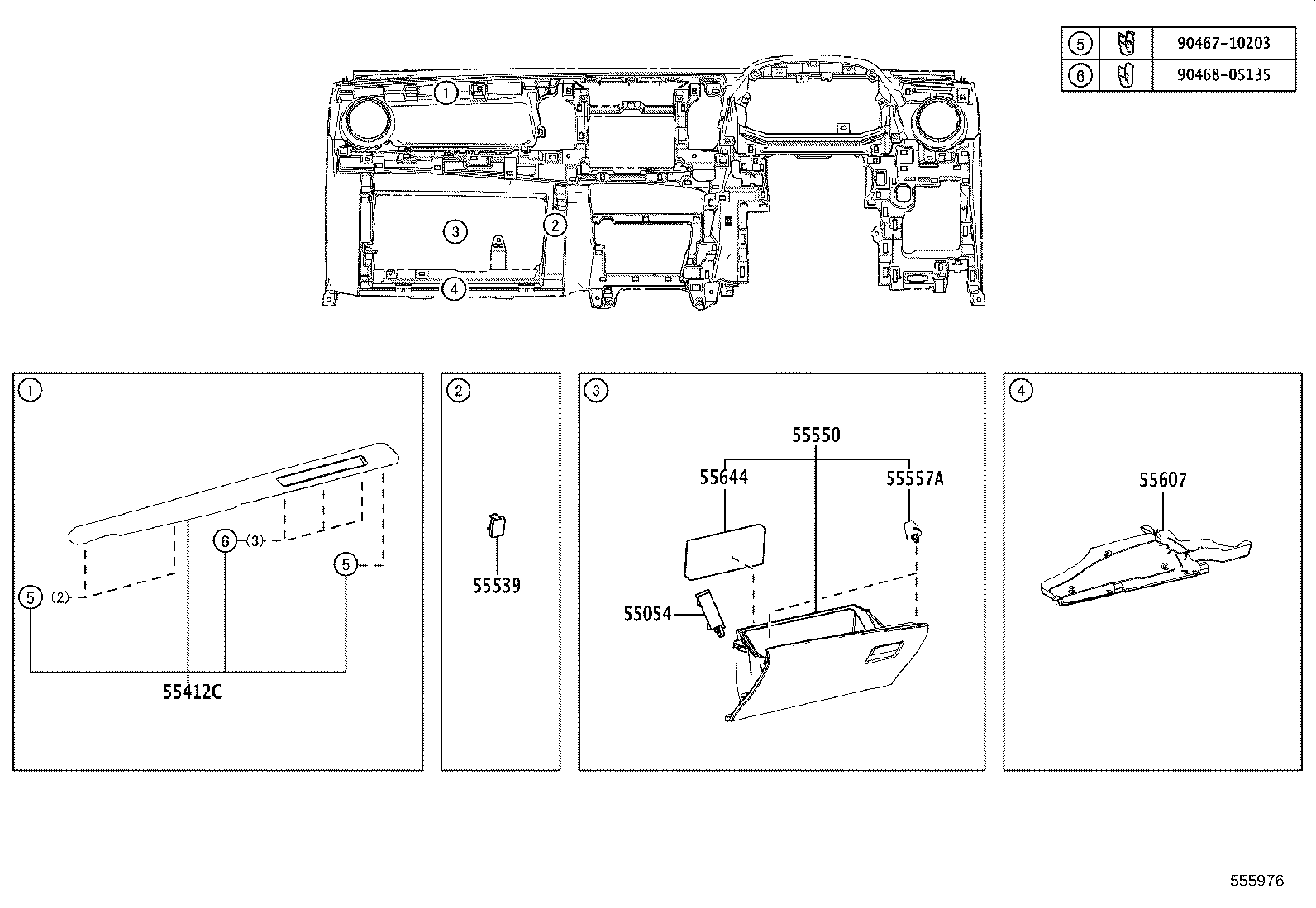

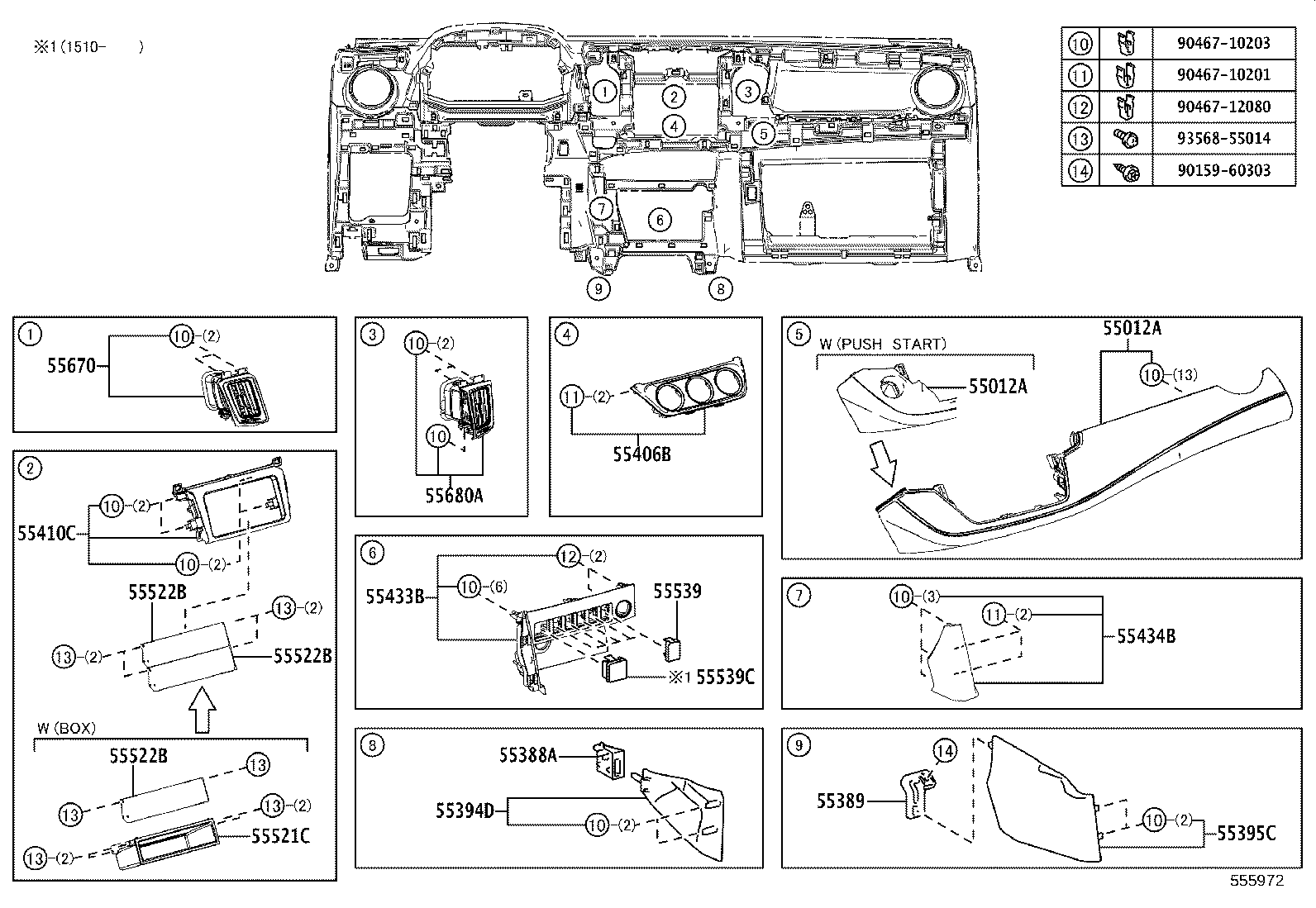

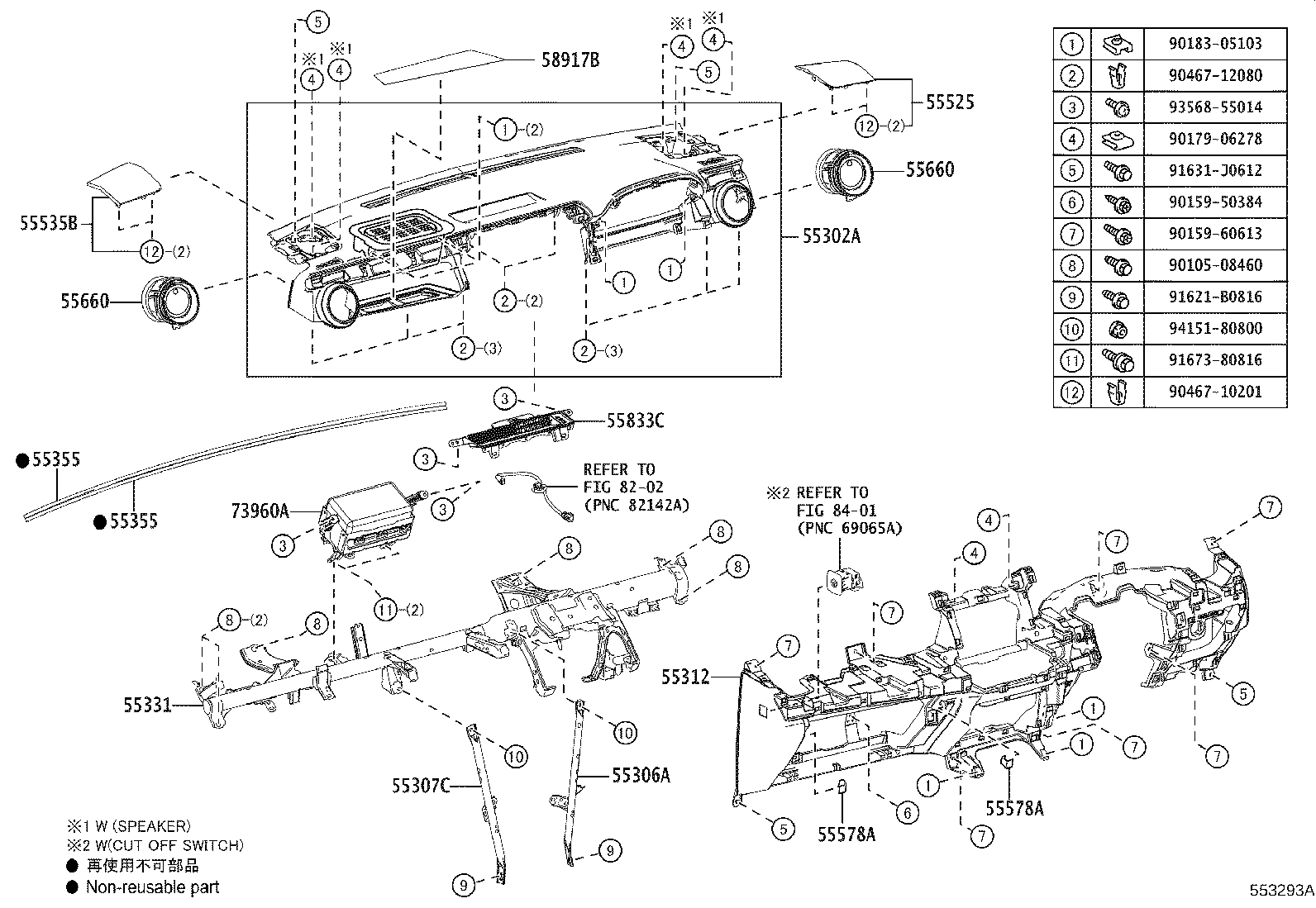

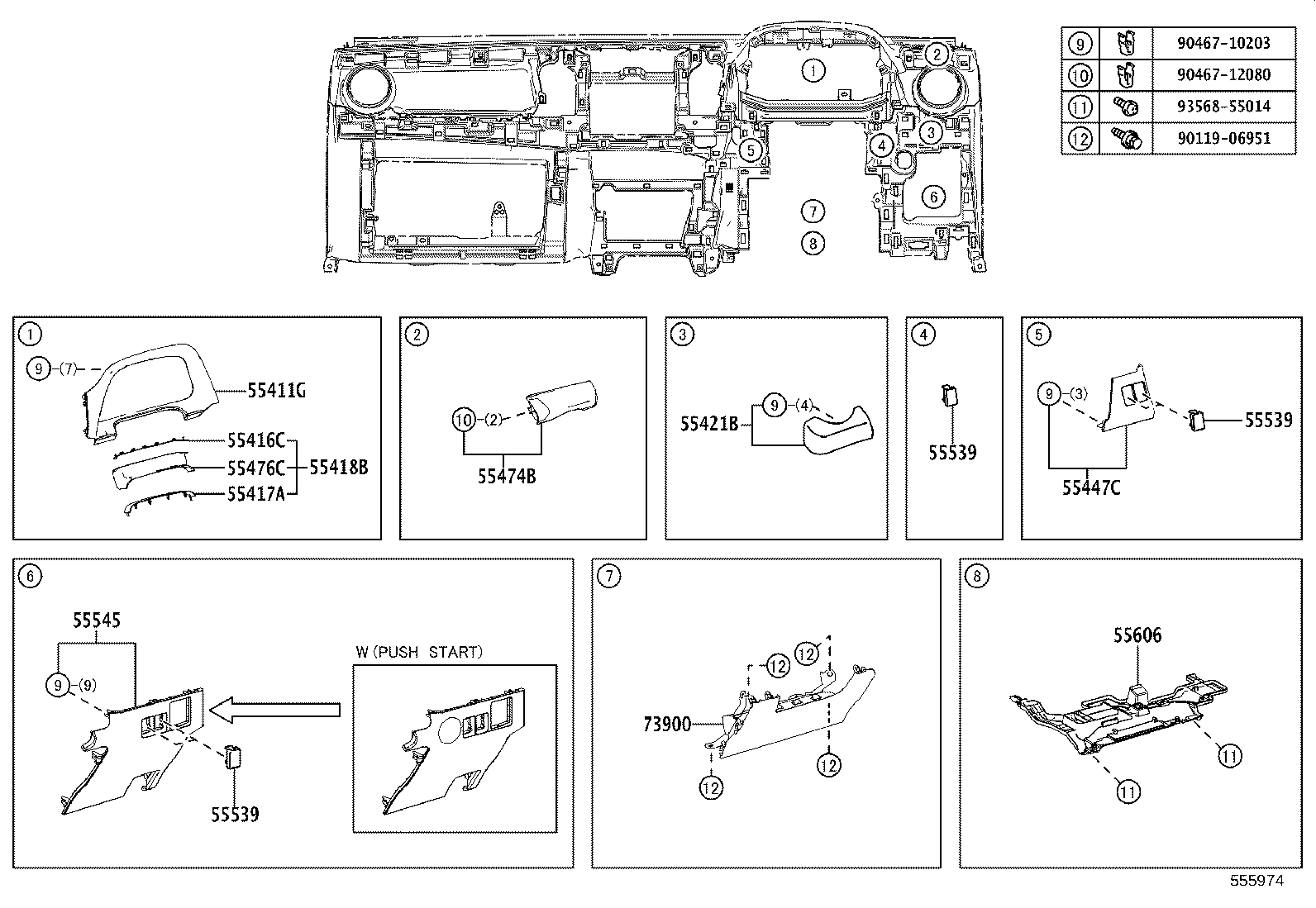

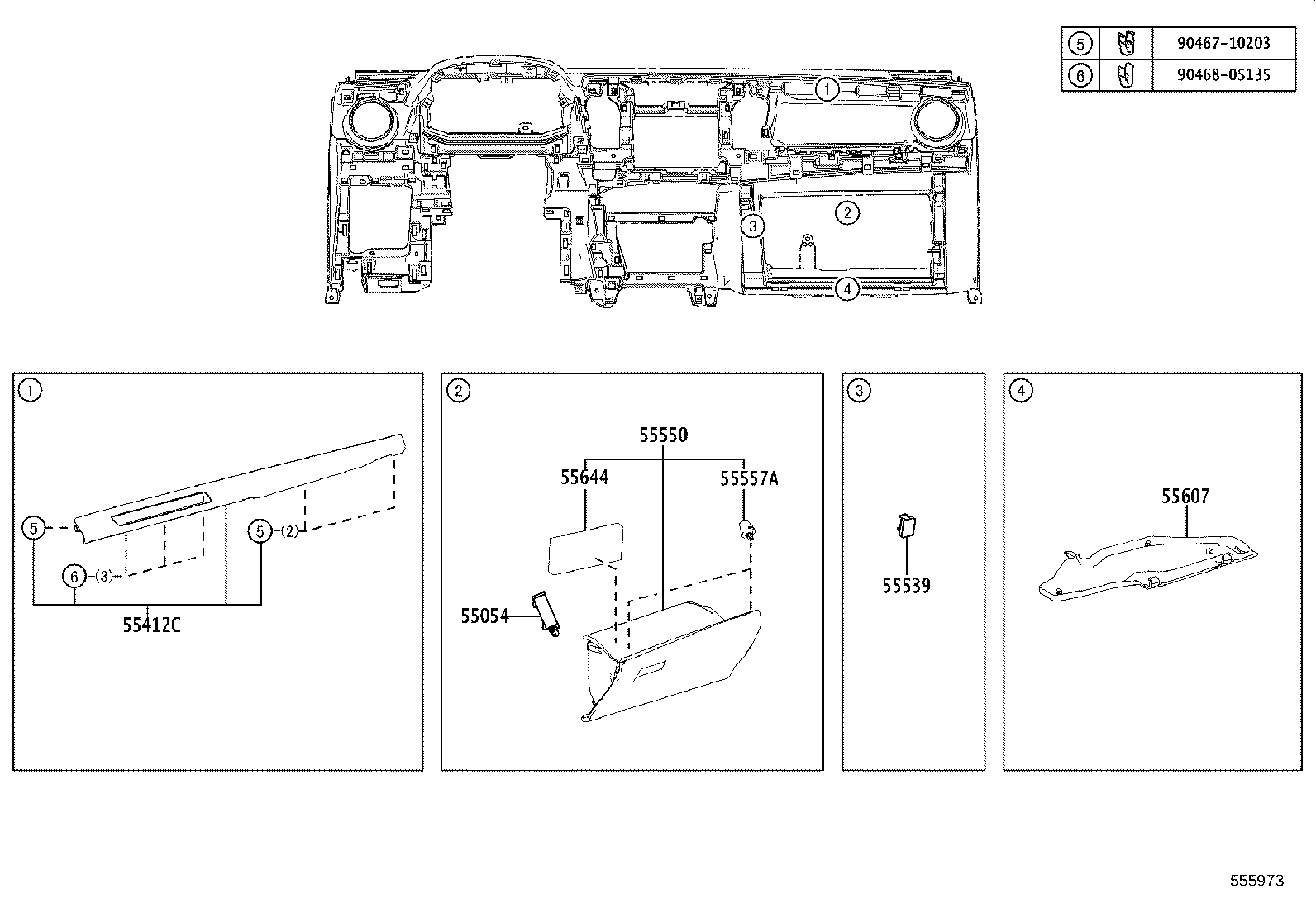

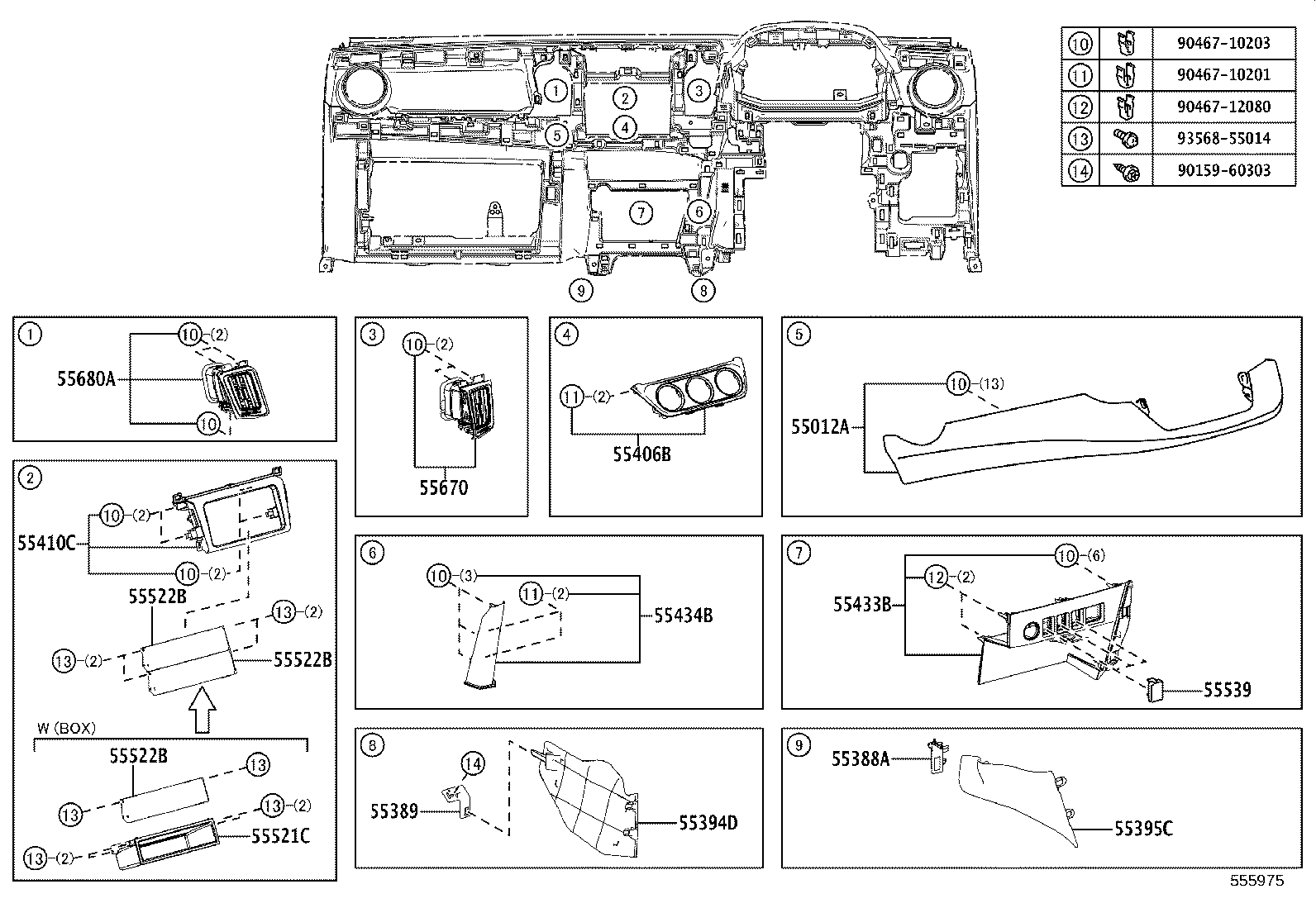

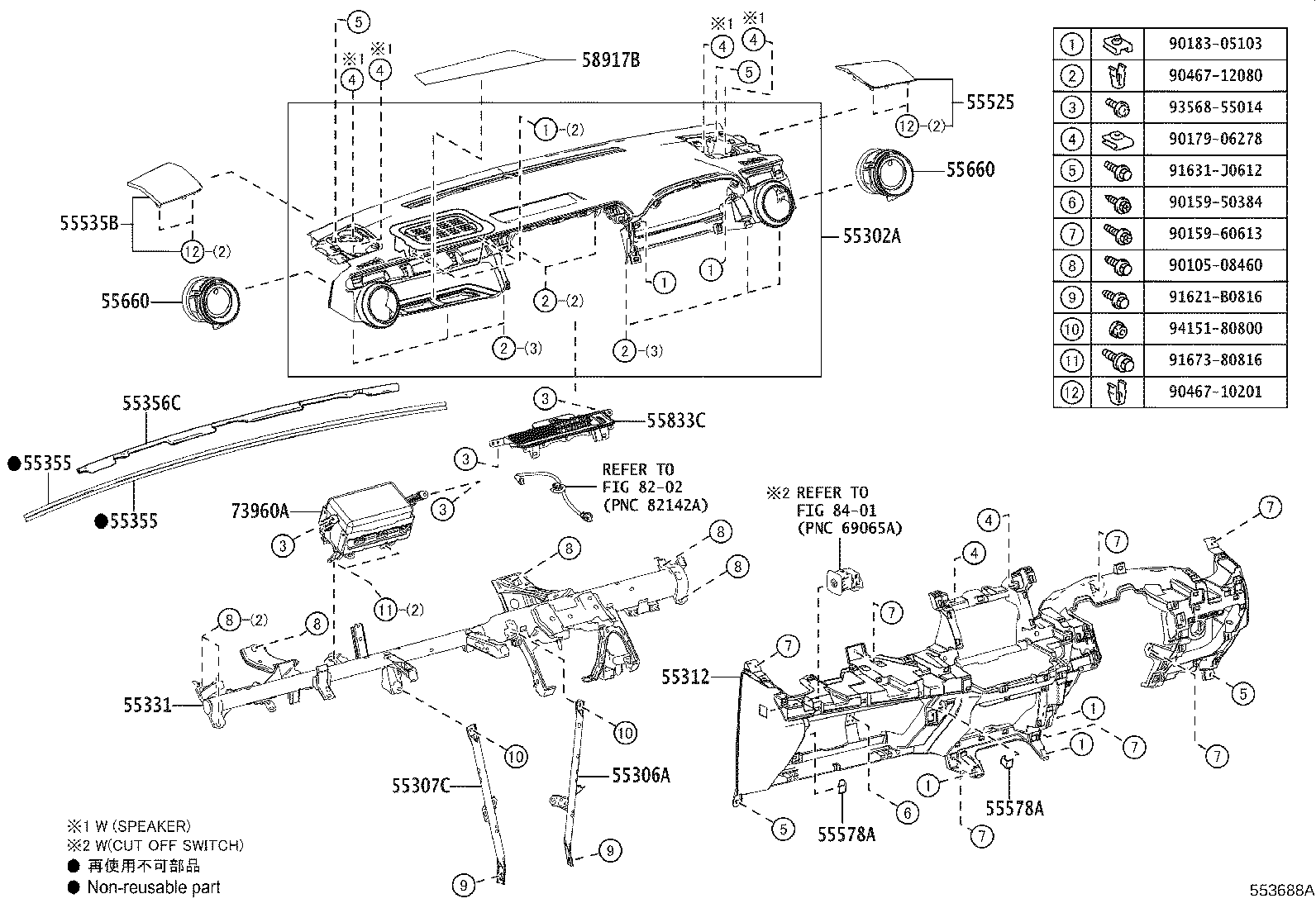

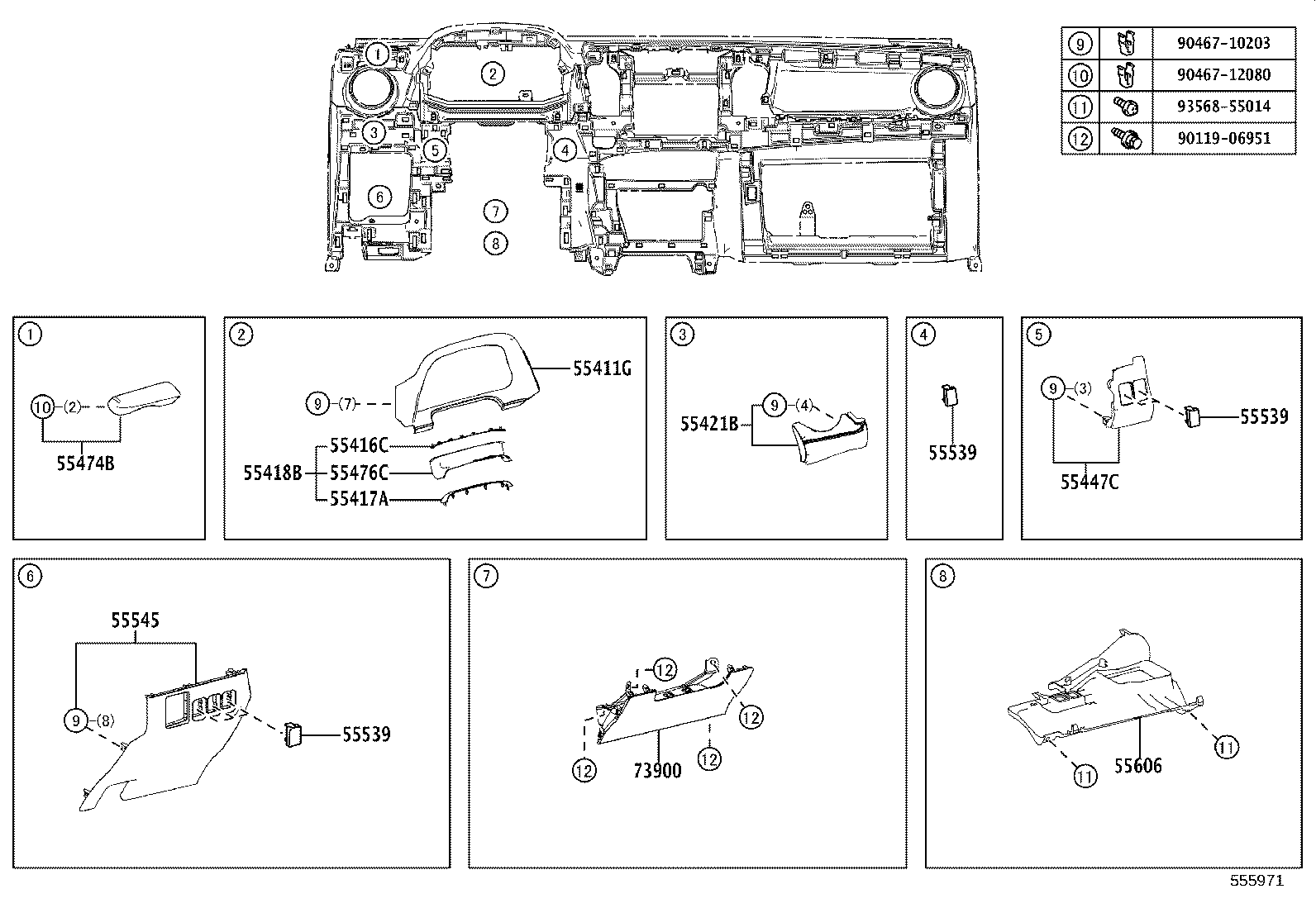

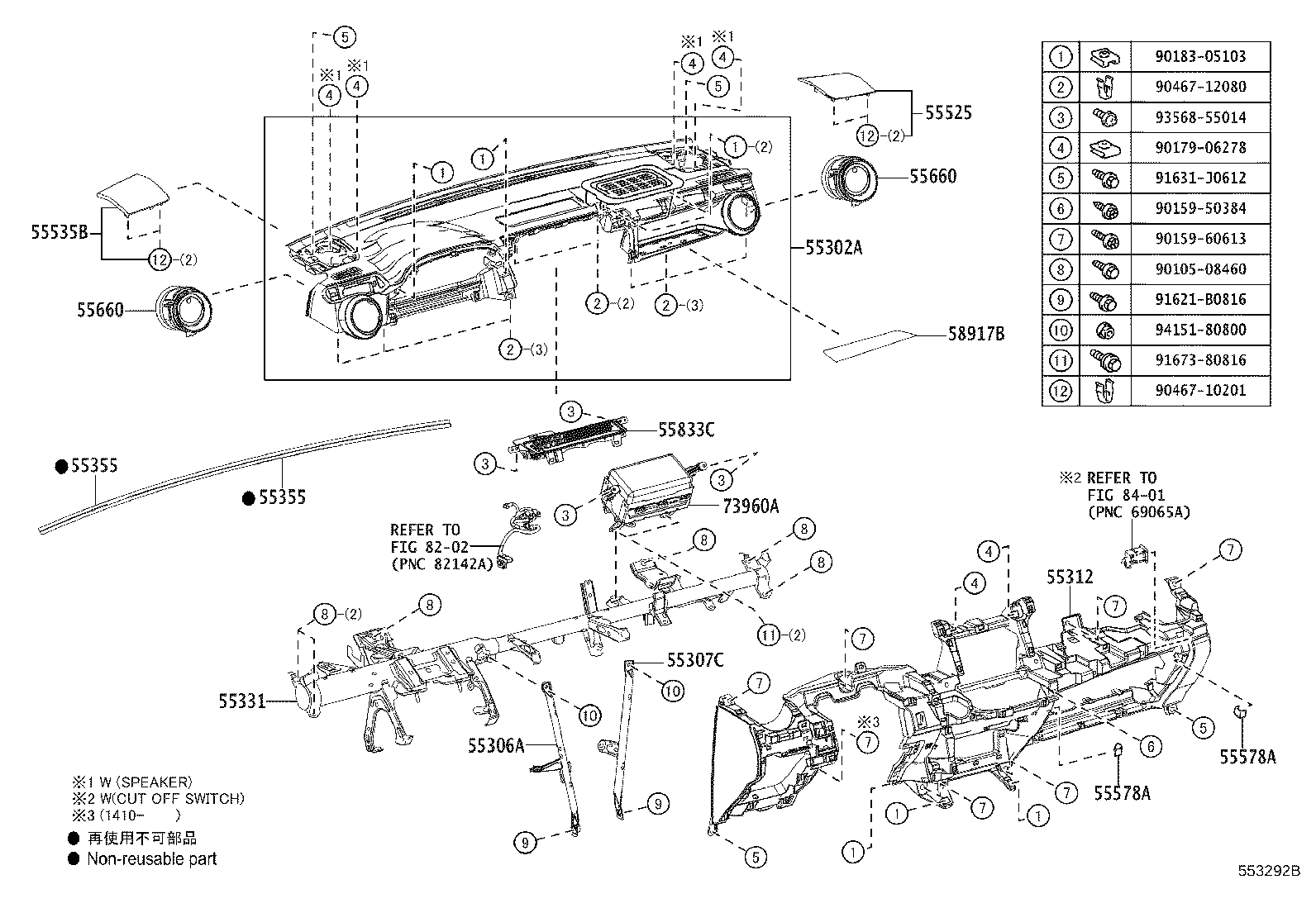

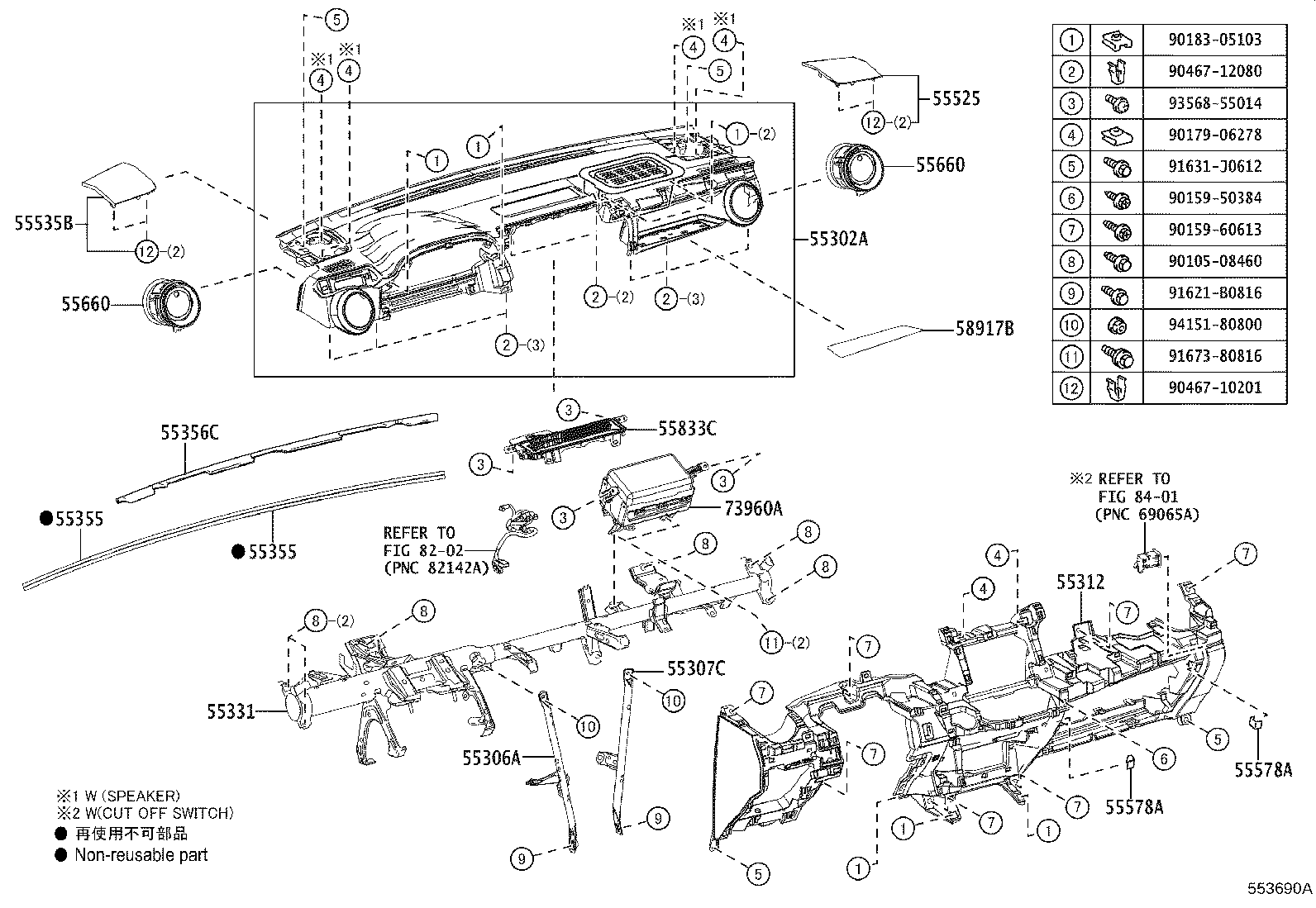

Figure 553065C 553065C 2012-12 → 2014-04 Figure 553066C 553066C 2012-12 → 2014-04 Figure 553292B 553292B 2014-04 → 2015-10 Figure 553293A 553293A 2014-04 → 2015-10 Figure 553690A 553690A 2015-10 → — Figure 553688A 553688A 2015-10 → — Figure 555971 555971 2012-12 → — Figure 555972 555972 2012-12 → — Figure 555973 555973 2012-12 → — Figure 555974 555974 2012-12 → — Figure 555975 555975 2012-12 → — Figure 555976 555976 2012-12 → —

Part groups

PNCDescription
55012A Garnish Sub-assy, Instrument Panel, NO.2
55054 Stopper Sub-assy, Glove Compartment Door
55302A Panel Sub-assy, Instrument, Upper
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55312 Panel, Instrument, Lower
55331 Reinforcement, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55356C Cushion, Instrument Panel, NO.2
55388A Bracket, Console Mounting, RH
55389 Bracket, Console Mounting, LH
55394D Cover, Instrument Panel Bracket, Inner NO.1 RH
55395C Cover, Instrument Panel Bracket, Inner NO.1 LH
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55410C Panel Assy, Instrument Cluster Finish
55411G Panel, Instrument Cluster Finish, NO.1
55412C Panel, Instrument Cluster Finish, Center NO.1
55416C Retainer, Instrument Cluster Finish Panel
55417A Retainer, Meter Hood, NO.2
55418B Spacer,Meter Hood
55421B Panel, Instrument Cluster Finish, Upper
55433B Panel, Instrument Panel Finish, Lower NO.2
55434B Panel, Instrument Panel Finish, Lower Center
55447C Base, Switch Hole, NO.2
55474B Garnish, Instrument Cluster Finish Panel
55476C Garnish, Instrument Panel Finish Plate
55521C Cover, Stereo Opening
55522B Cover, Radio Tuner Opening
55525 Cover, Speaker Hole, NO.1
55535B Cover, Speaker Hole, NO.2
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55545 Cover, Fuse Box Opening
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55578A Silencer, Glove Compartment Door
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55644 Pad, Instrument Panel Under Silencer, NO.2
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55680A Register Assy, Instrument Panel, NO.4
55833C Connector, Instrument Panel Register, Center
58917B Mat, Box Bottom
69065 Cylinder Sub-assy, Airbag Cut Off SW
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
