Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Floor Panel & Front Floor Member

59 part groups · 10 illustrations

Illustrations

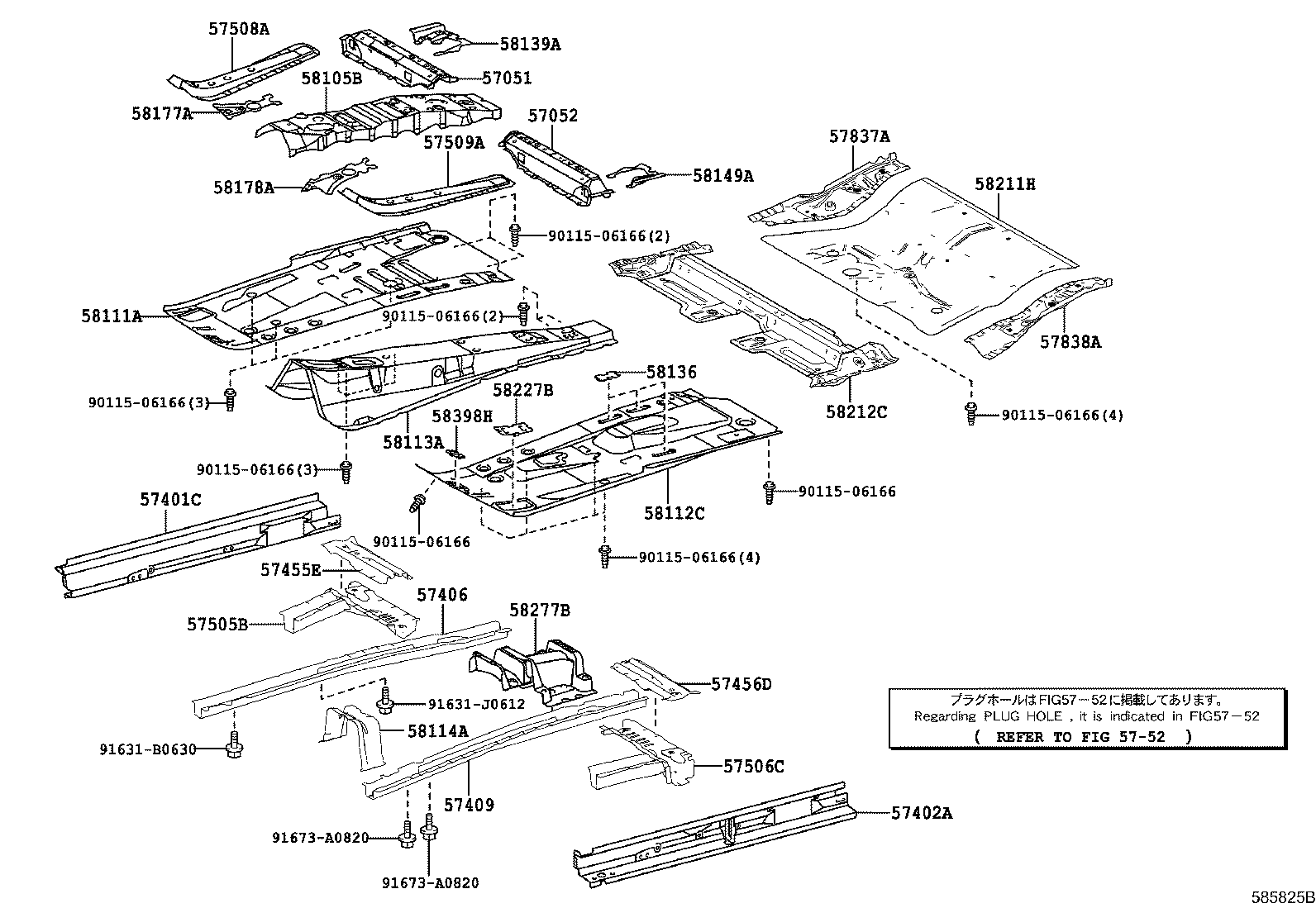

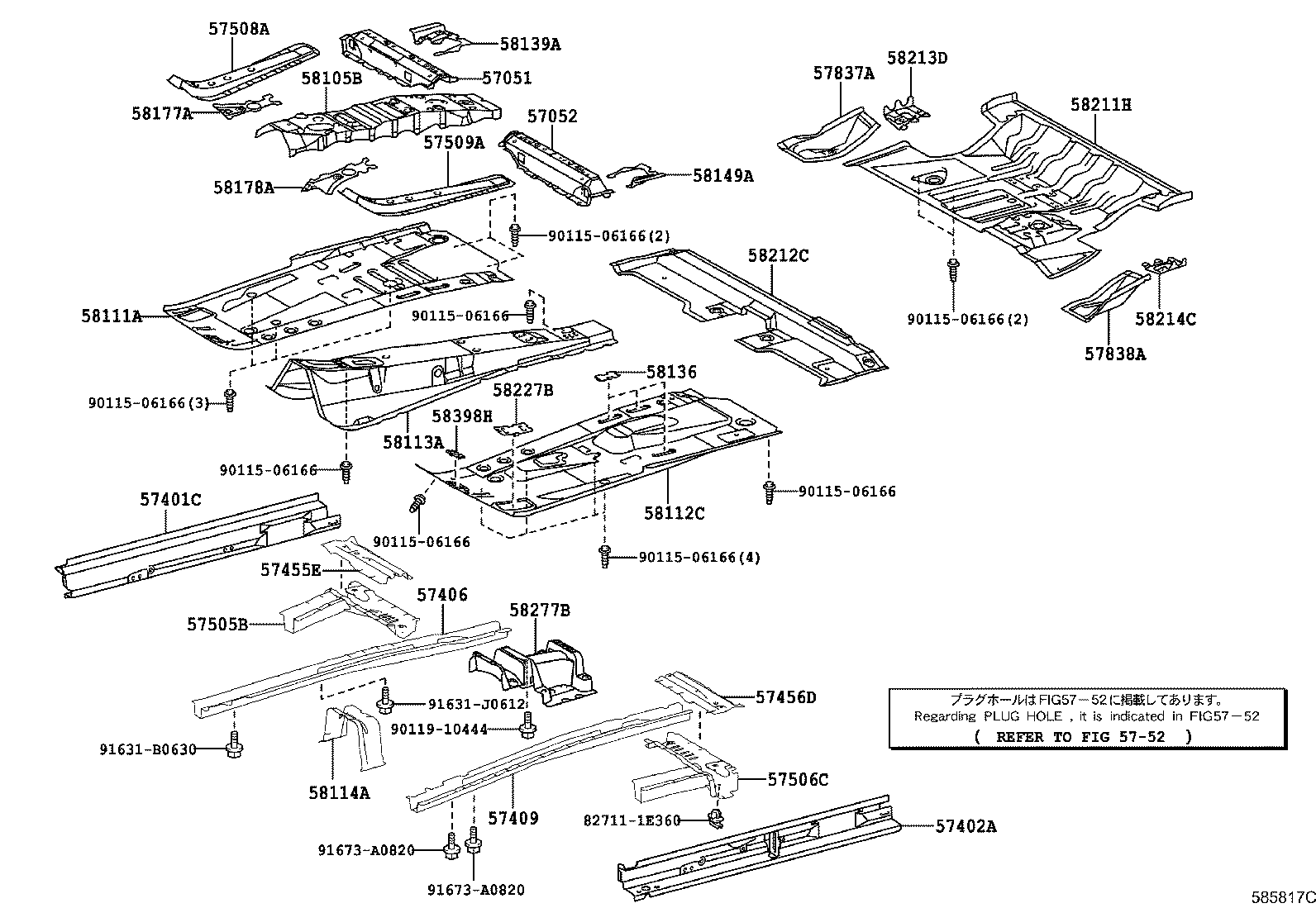

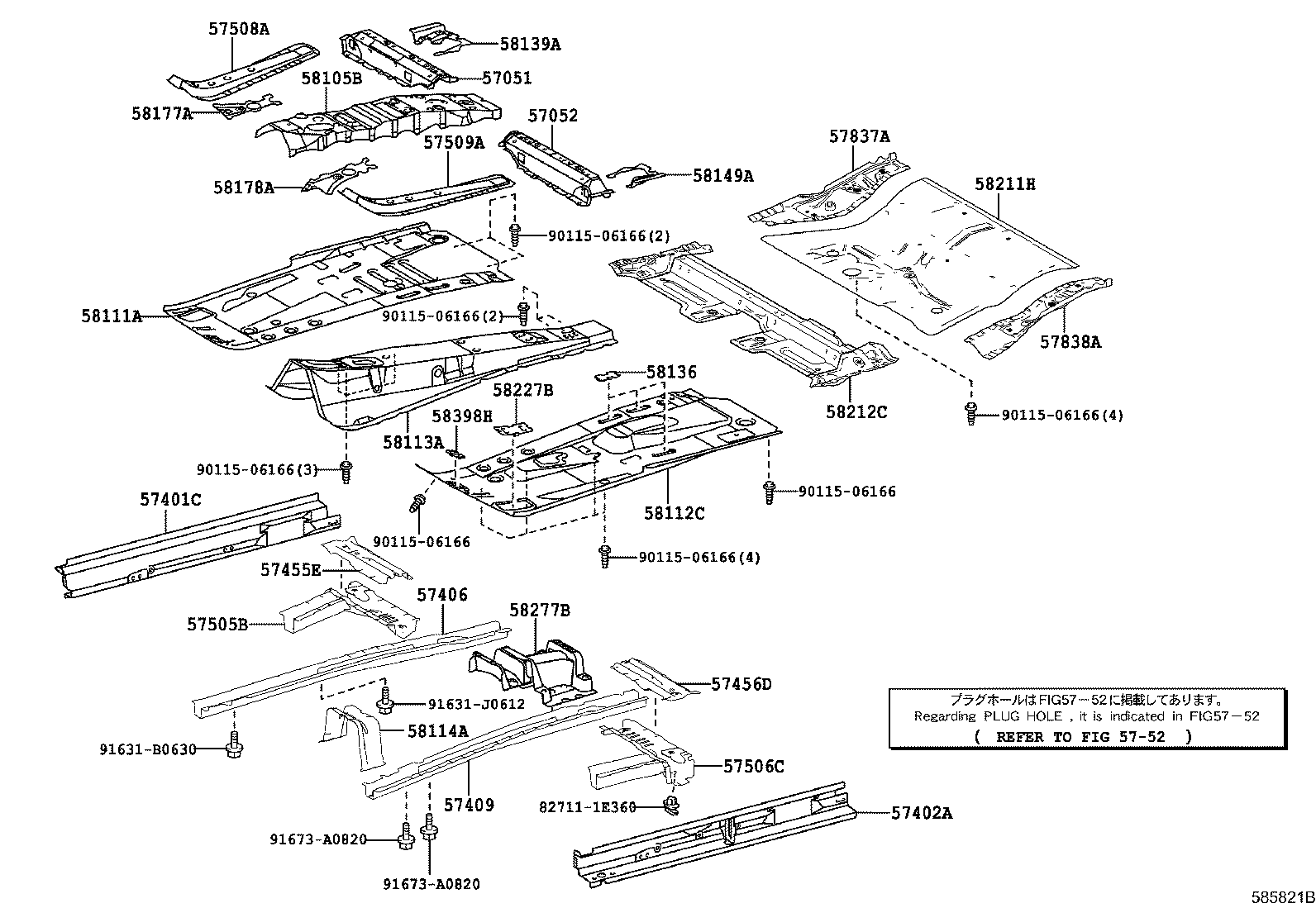

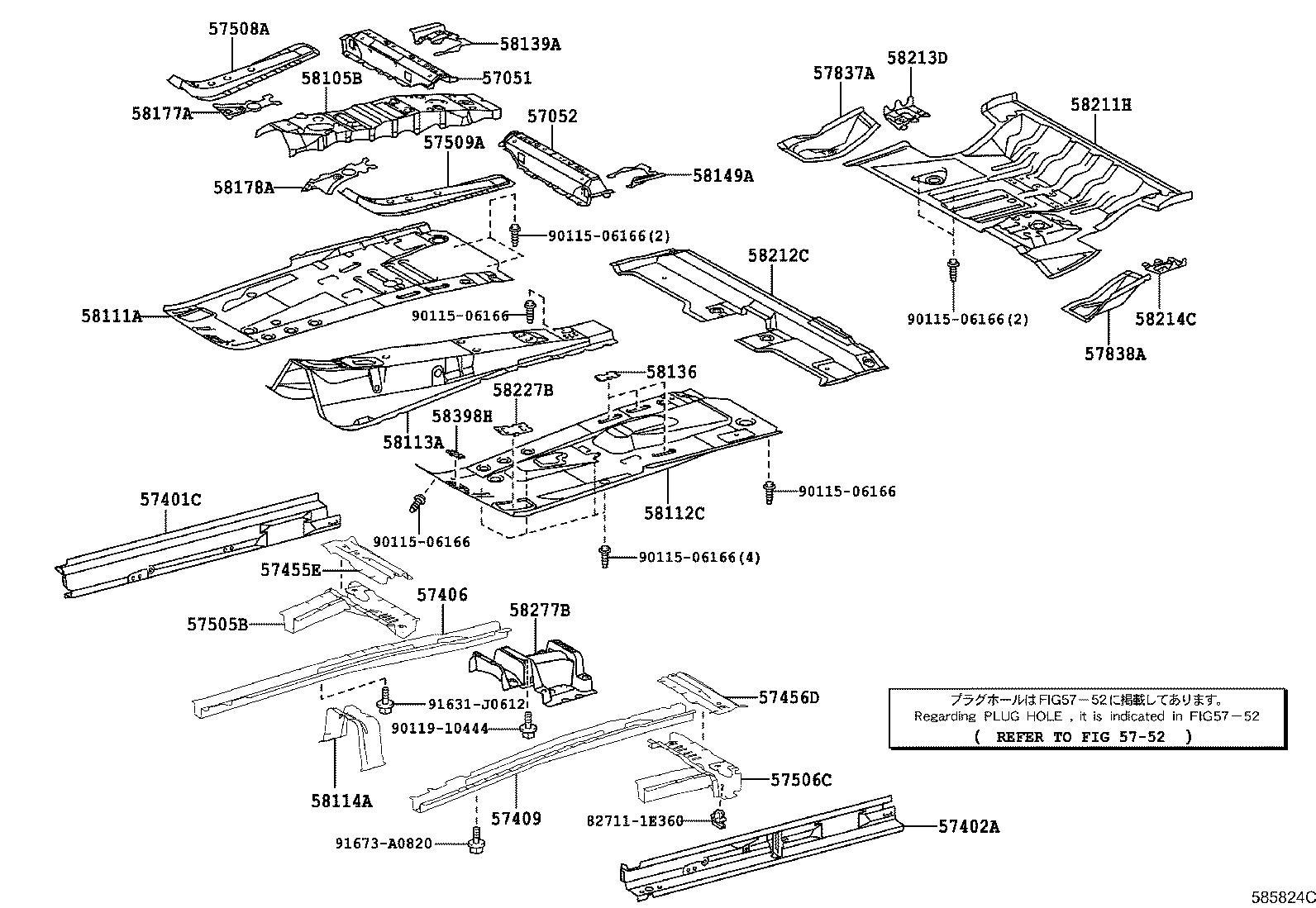

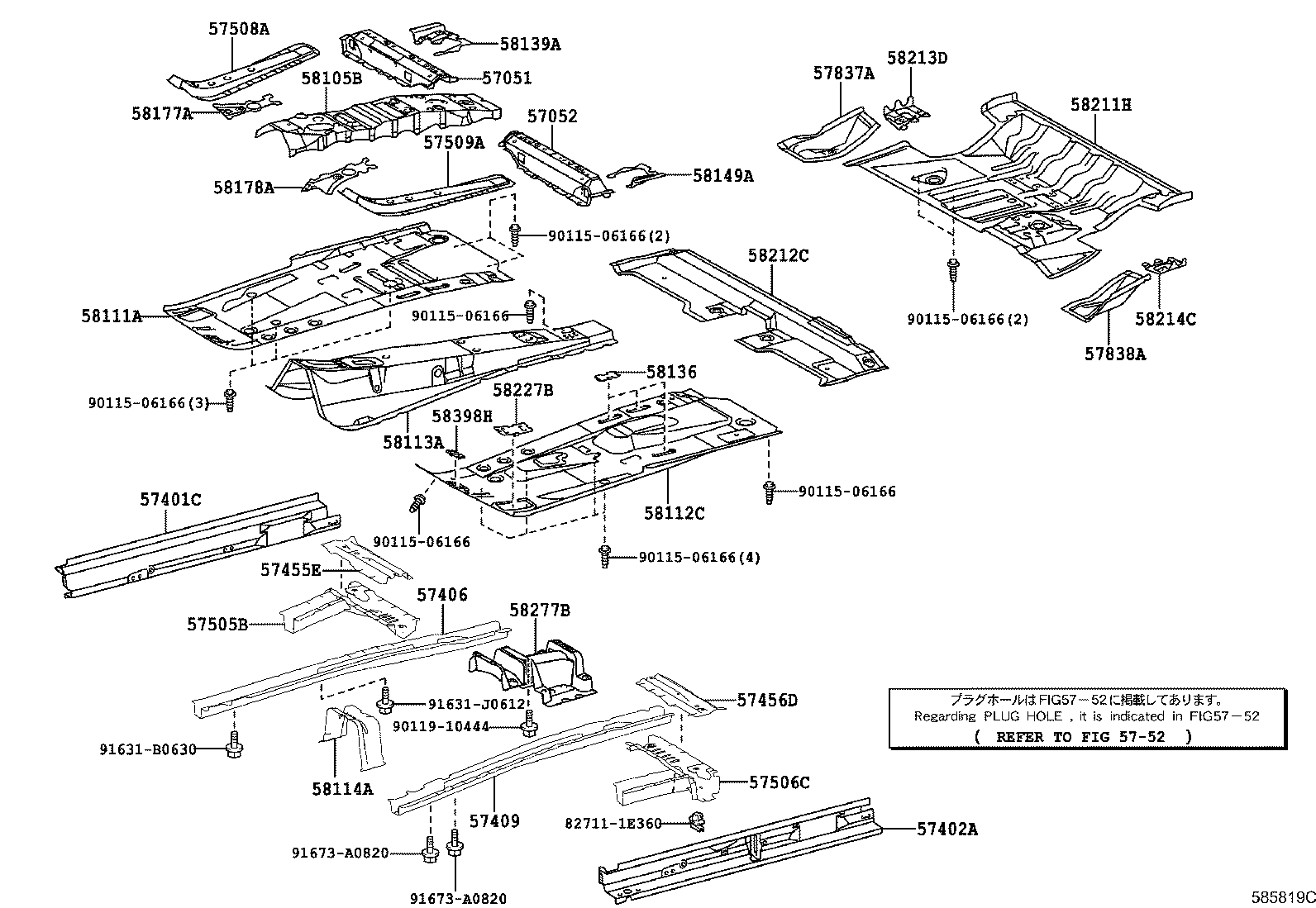

585204 2012-12 → 2014-01

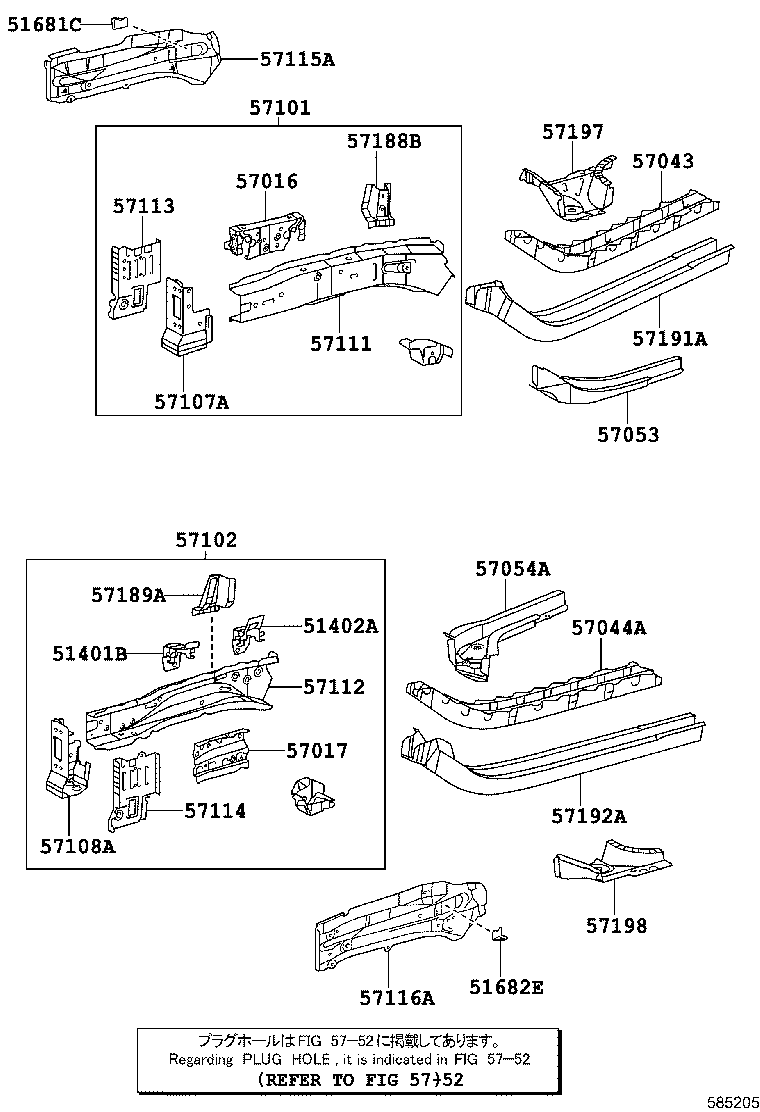

585205 2014-01 → 2014-05

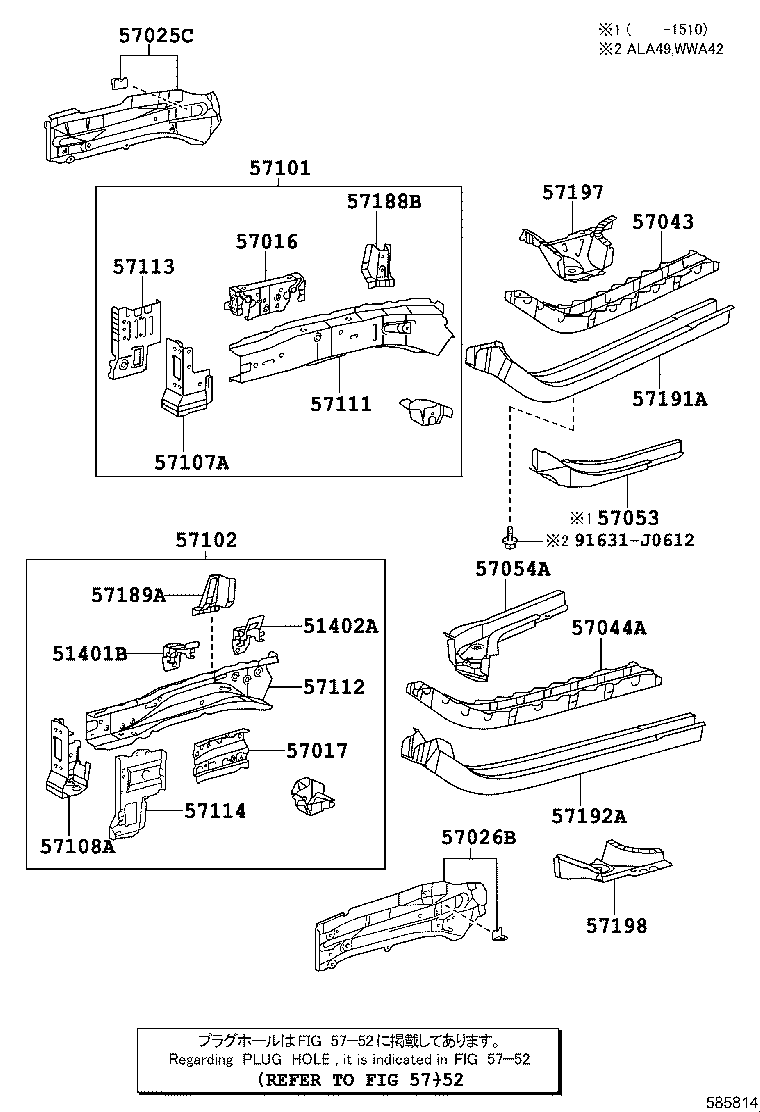

585814 2014-05 → —

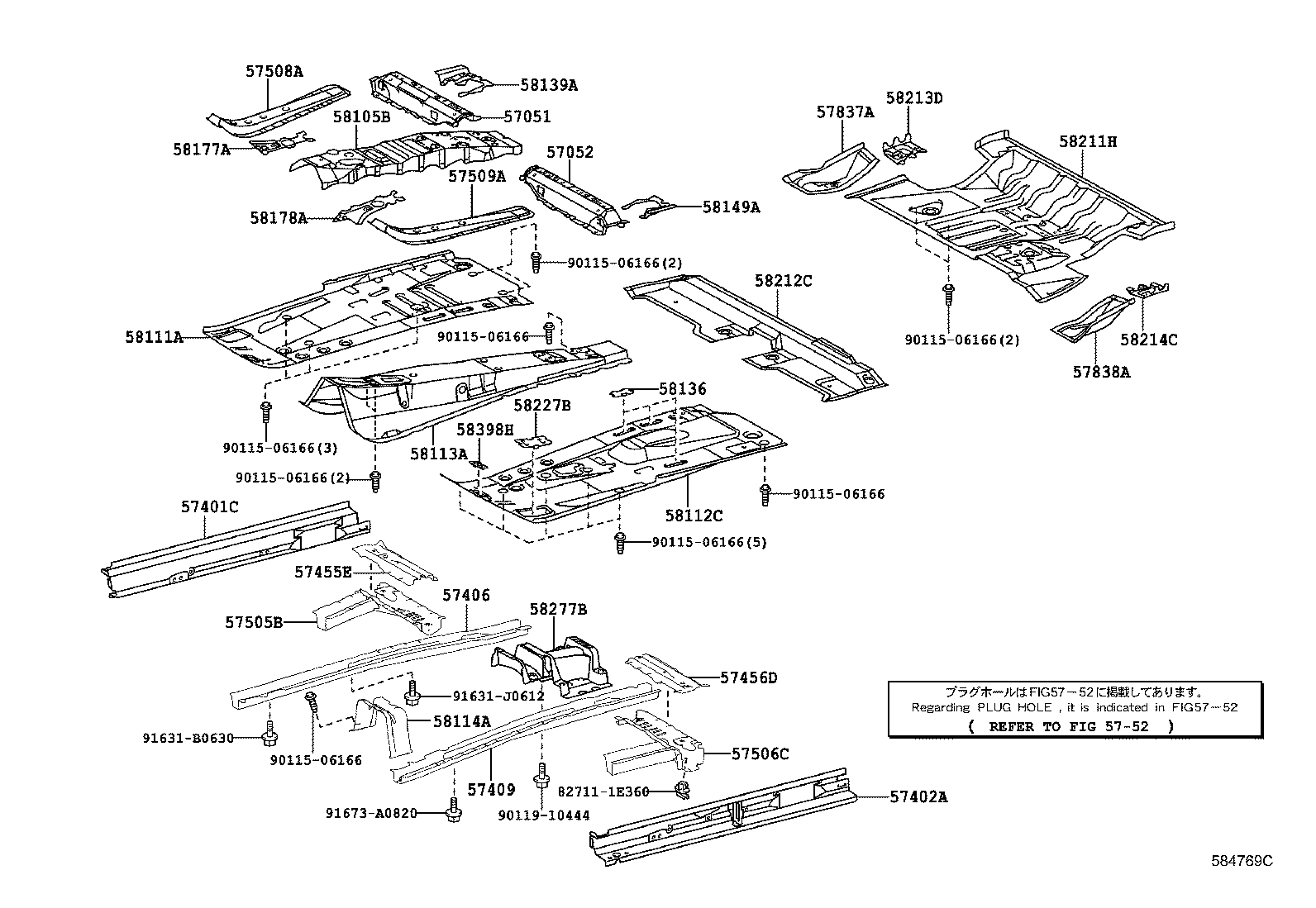

584769C 2012-12 → 2015-10

Part groups

PNC	Description
51401B	Bracket Sub-assy, Engine Front Mounting
51402A	Bracket Sub-assy, Engine Front Mounting, LH
51681C	Plate, Front Brake Flexible Hose Support, RH
51682E	Plate, Front Brake Flexible Hose Support, LH
57016	Reinforcement Sub-assy, Front Side Member, RH
57017	Reinforcement Sub-assy, Front Side Member, LH
57025C	Member Sub-assy, Front Side, Outer RH
57026B	Member Sub-assy, Front Side, Outer LH
57043	Reinforcement Sub-assy, Front Side Member, Rear RH
57044A	Reinforcement Sub-assy, Front Side Member, Rear LH
57051	Member Sub-assy, Front Floor Cross, RH
57052	Member Sub-assy, Front Floor Cross, LH
57053	Reinforcement Sub-assy, Front Floor Crossmember, RH
57054A	Reinforcement Sub-assy, Front Floor Crossmember, LH
57101	Member Sub-assy, Front Side, RH
57102	Member Sub-assy, Front Side, LH
57107A	Plate Sub-assy, Front Side Member, NO.2 RH
57108A	Plate Sub-assy, Front Side Member, NO.2 LH
57111	Member, Front Side, RH
57112	Member, Front Side, LH
57113	Extension, Front Side Member, RH
57114	Extension, Front Side Member, LH
57115A	Plate, Front Side Member, Outer RH
57116A	Plate, Front Side Member, Outer LH
57188B	Gusset, Front Side Member TO Spring Support, RH
57189A	Gusset, Front Side Member TO Spring Support, LH
57191A	Member, Front Side, Inner Rear RH
57192A	Member, Front Side, Inner Rear LH
57197	Box, Torque, Front RH
57198	Box, Torque, Front LH
57401C	Member Sub-assy, Floor Side, Inner RH
57402A	Member Sub-assy, Floor Side, Inner LH
57406	Member Sub-assy, Main Floor Side, RH
57409	Member Sub-assy, Main Floor Side, LH
57455E	Plate, Front Floor Crossmember, NO.3 RH
57456D	Plate, Front Floor Crossmember, NO.3 LH
57505B	Reinforcement Sub-assy, Front Floor Under, RH
57506C	Reinforcement Sub-assy, Front Floor Under, LH
57508A	Reinforcement Sub-assy, Front Floor, RH
57509A	Reinforcement Sub-assy, Front Floor, LH
57837A	Reinforcement, Rear NO.1 Seat Leg, Rear NO.3
57838A	Reinforcement, Rear NO.1 Seat Leg, Rear NO.4
58105B	Panel Sub-assy, Front Floor Rear Upper Sub
58111A	Pan, Front Floor, RH
58112C	Pan, Front Floor, LH
58113A	Panel, Front Floor, Center
58114A	Reinforcement, Front Floor Panel
58136	Cover, Front Floor Hole
58139A	Plate, Front Floor Side, Rear RH
58149A	Plate, Front Floor Side, Rear LH
58177A	Extension, Front Floor Panel, RH
58178A	Extension, Front Floor Panel, LH
58211H	Pan, Center Floor
58212C	Pan, Center Floor, Front
58213D	Reinforcement, Center Floor Panel
58214C	Reinforcement, Center Floor Panel, LH
58227B	Plate, Front Floor Panel Side, RH
58277B	Reinforcement, Drive Shaft Center Support
58398H	Cover, Floor Under, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
