Toyota RAV4
2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe
Supported model
Data version 2019-09

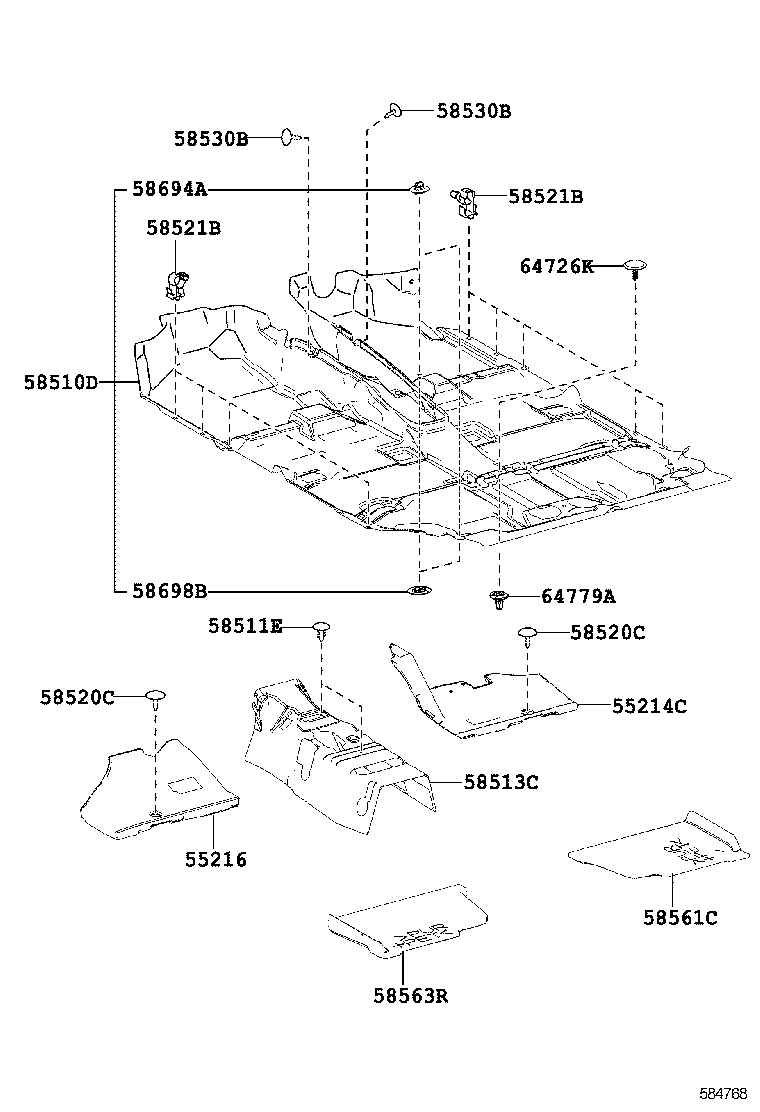

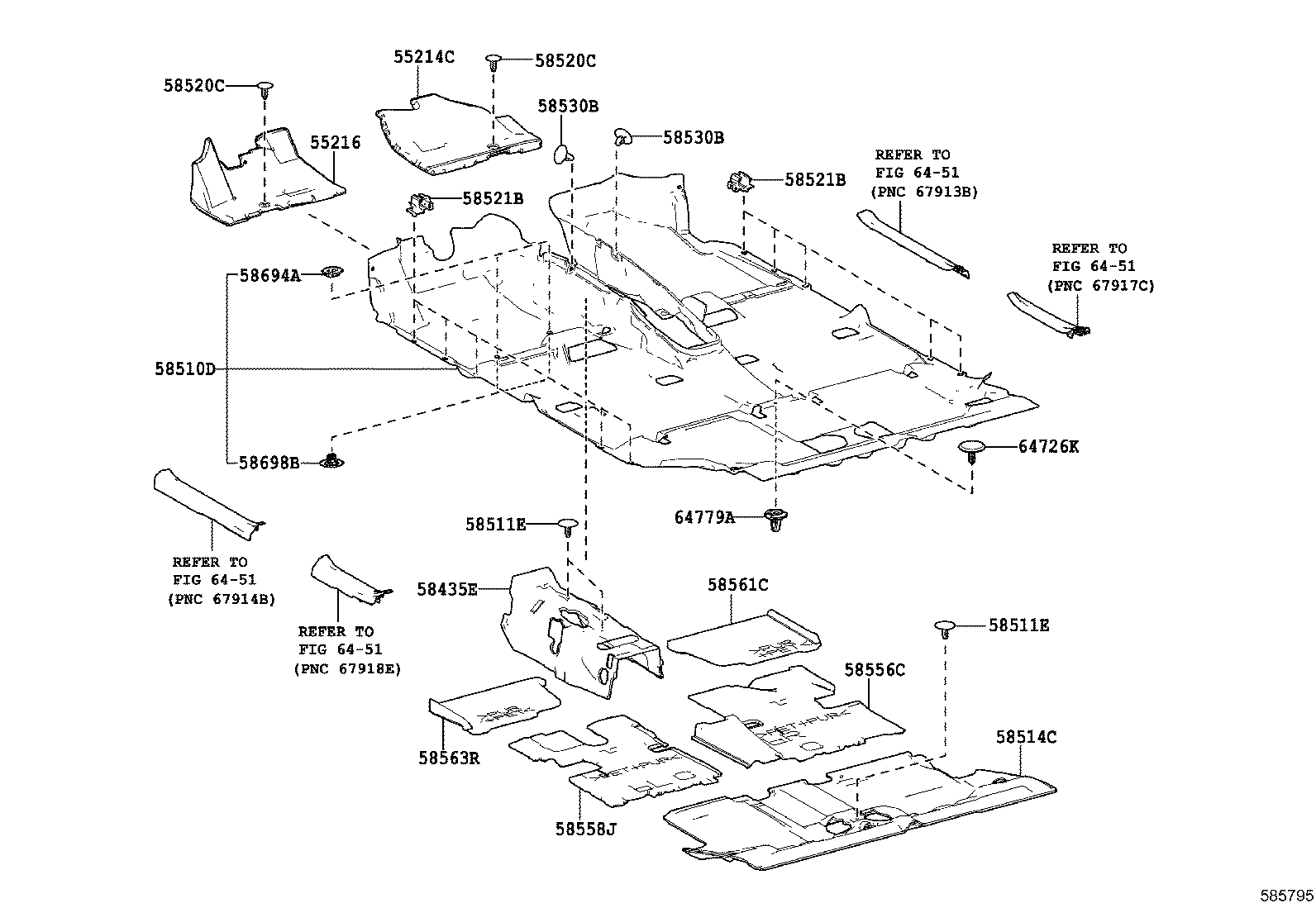

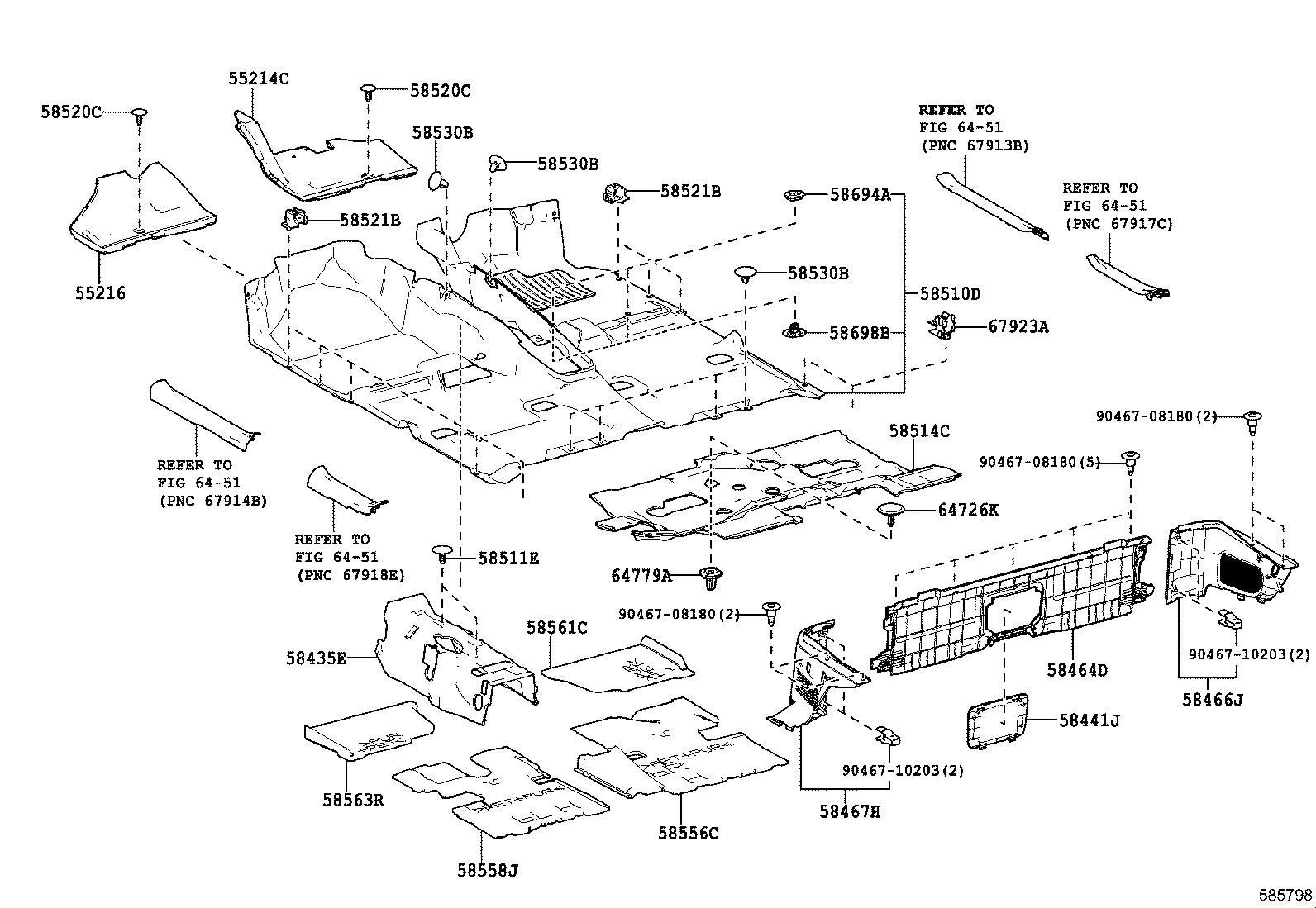

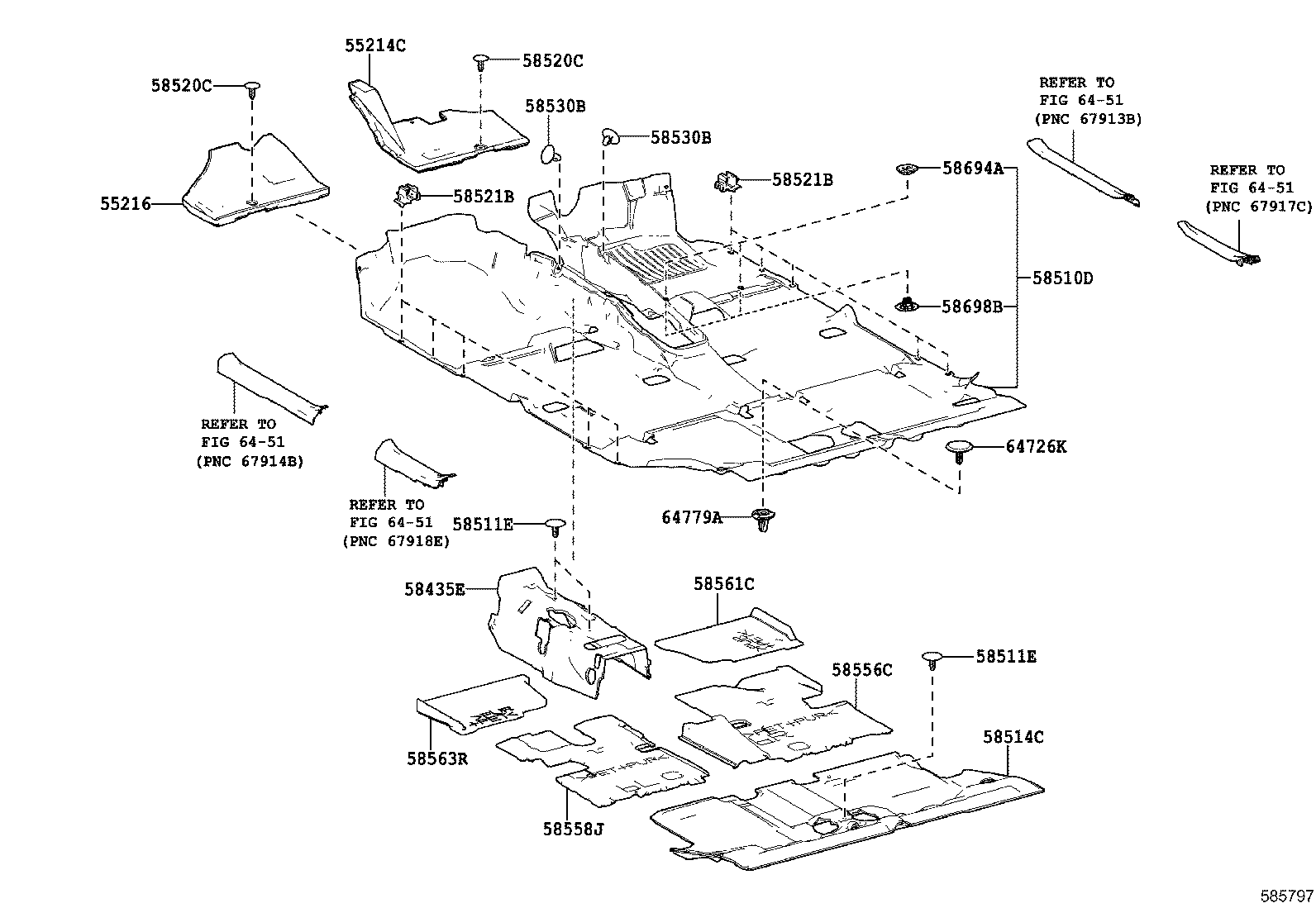

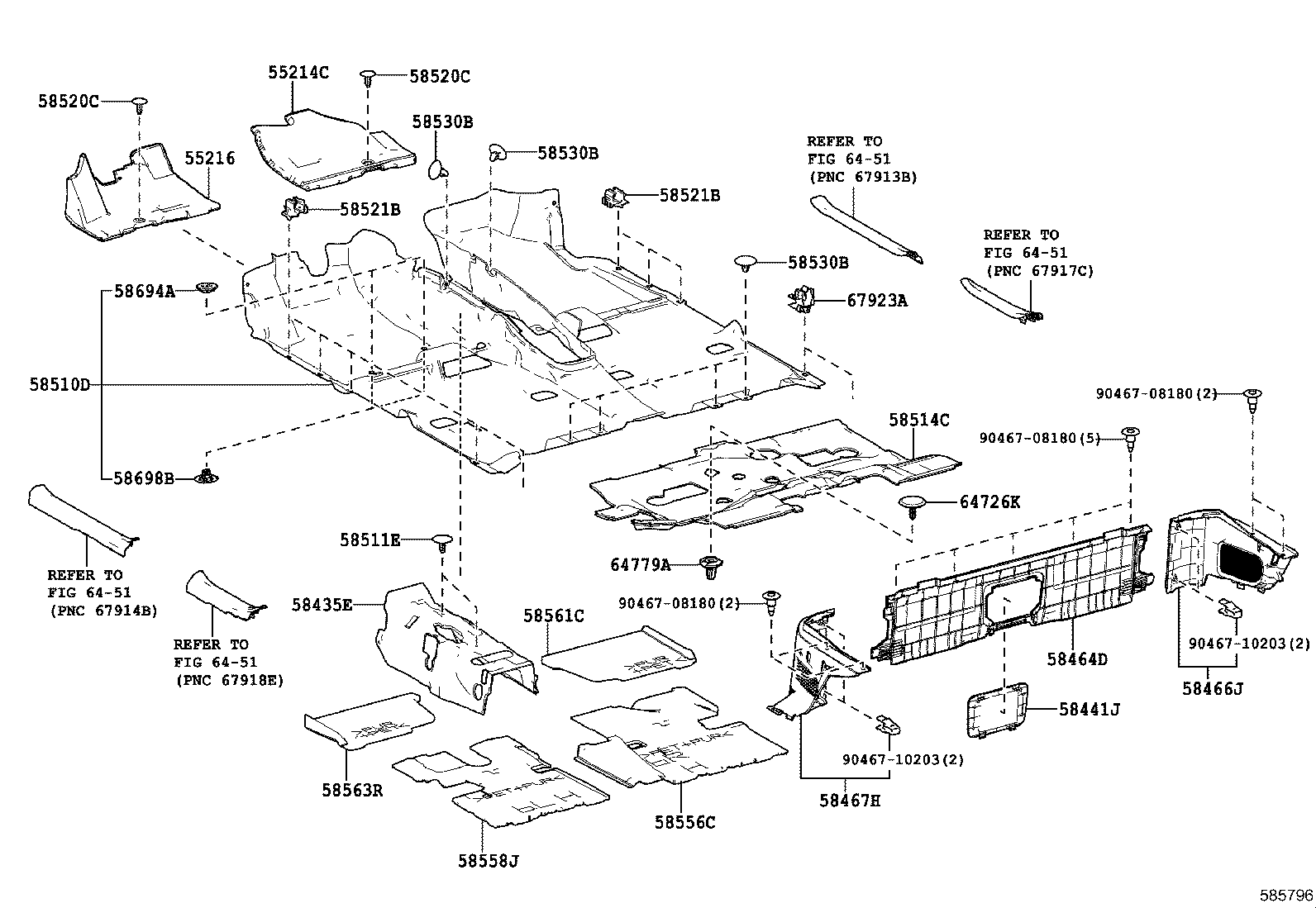

Floor Mat & Silencer Pad
23 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 55214C | Pad, Dash Panel Insulator, NO.2 |
| 55216 | Pad, Dash Panel Insulator, NO.4 |
| 58435E | Silencer, Front Floor, Center |
| 58441J | Cover, Battery Service Hole |
| 58464D | Board, Battery Service Cover |
| 58466J | Board, Battery Service Cover, NO.2 |
| 58467H | Board, Battery Service Cover, NO.3 |
| 58510D | Carpet Assy, Floor, Front |
| 58511E | Clip(FOR FRONT FLOOR MAT) |
| 58513C | Mat, Floor, Front Center |
| 58514C | Mat, Froor, Rear |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58521B | Hook, Floor Carpet |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58556C | Silencer, Rear Floor |
| 58558J | Silencer, Rear Floor, NO.3 |
| 58561C | Silencer, Front Floor, NO.1 |
| 58563R | Silencer, Front Floor, NO.3 |
| 58694A | Plate, Mat Set, Upper |
| 58698B | Plate, Mat Set, Lower |
| 64726K | Clip, Luggage Trim, Rear |
| 64779A | Stopper, Spare Wheel Cover |
| 67923A | Clamp, Door Scuff Plate, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
