Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

18 part groups · 8 illustrations

Illustrations

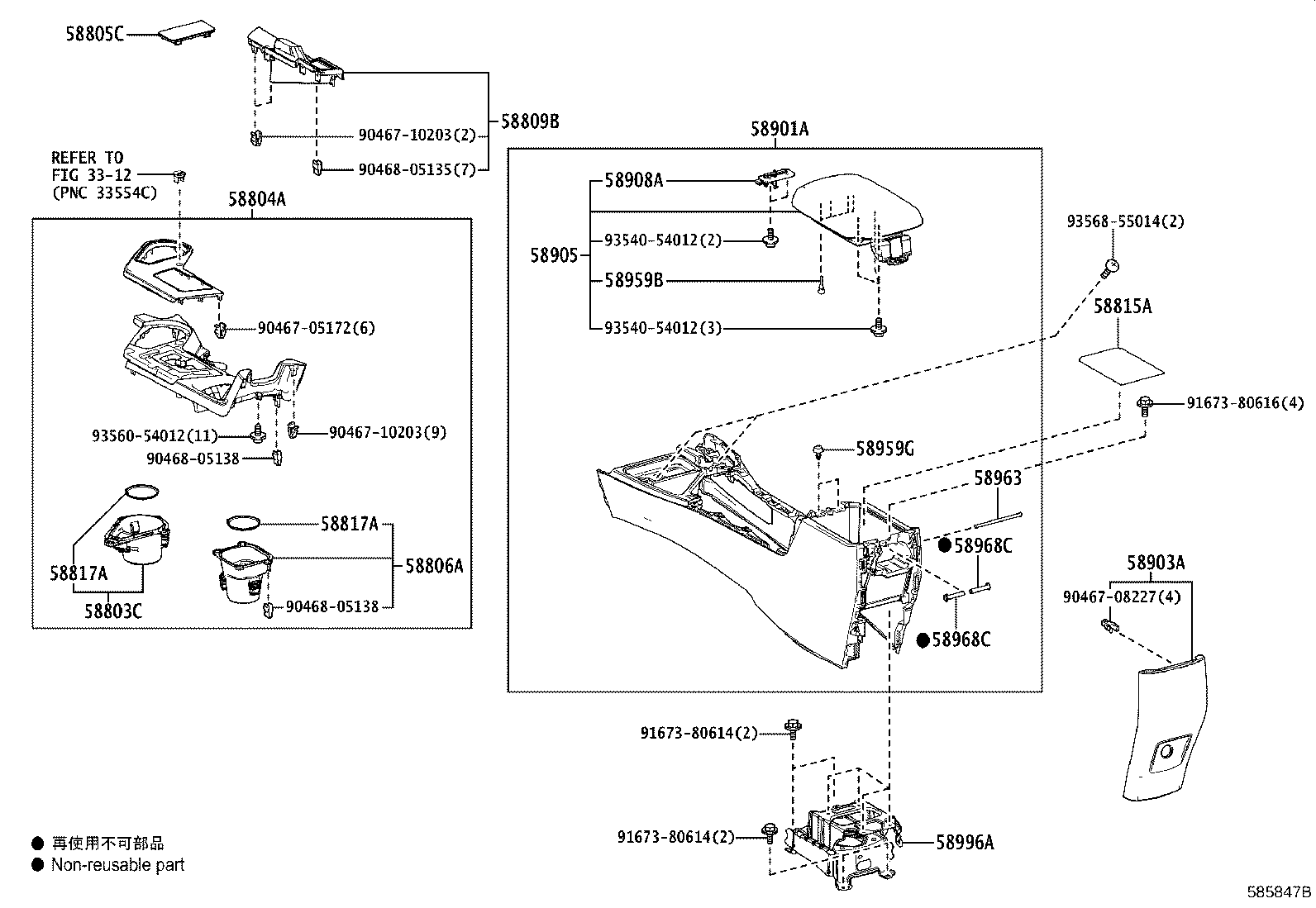

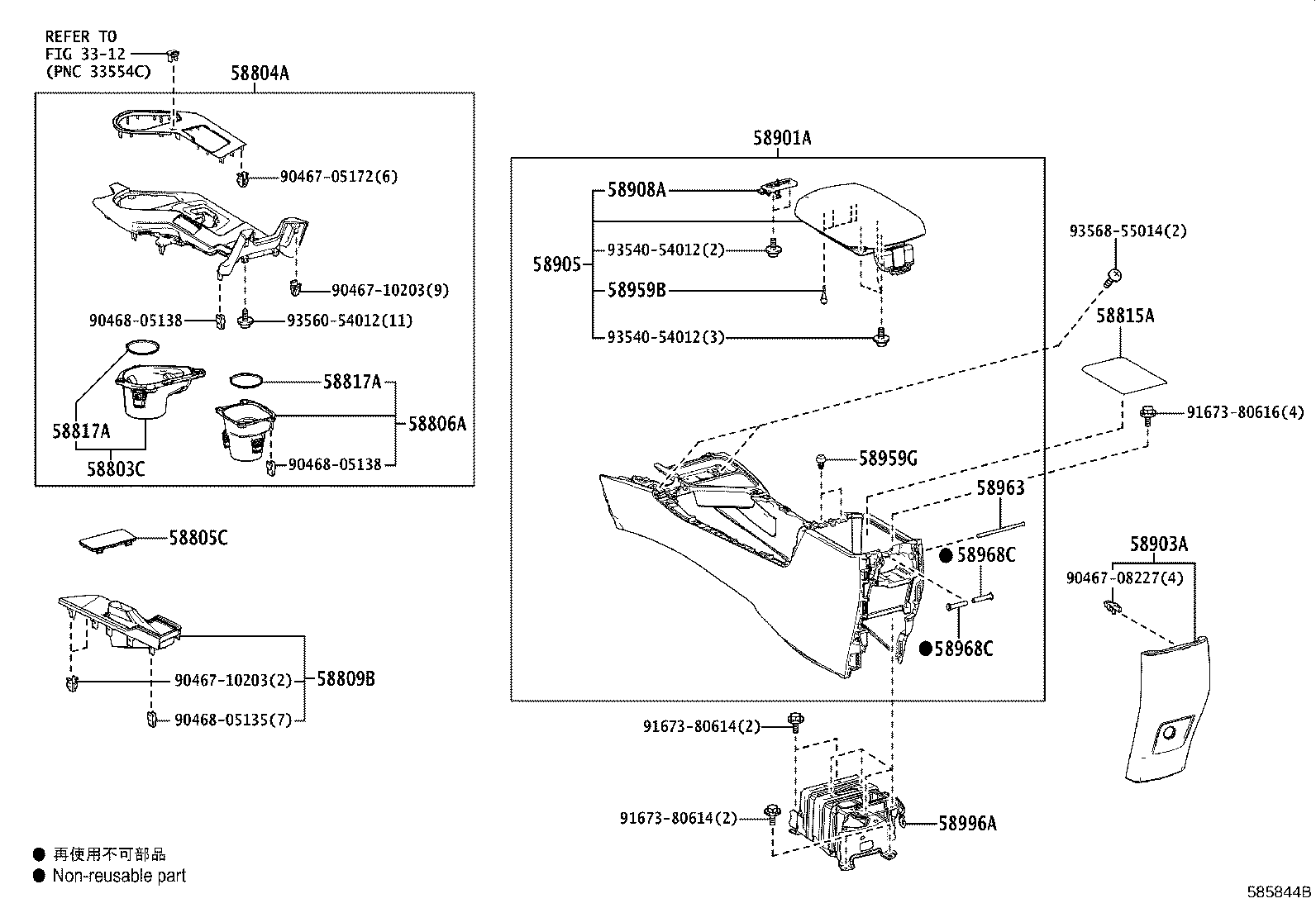

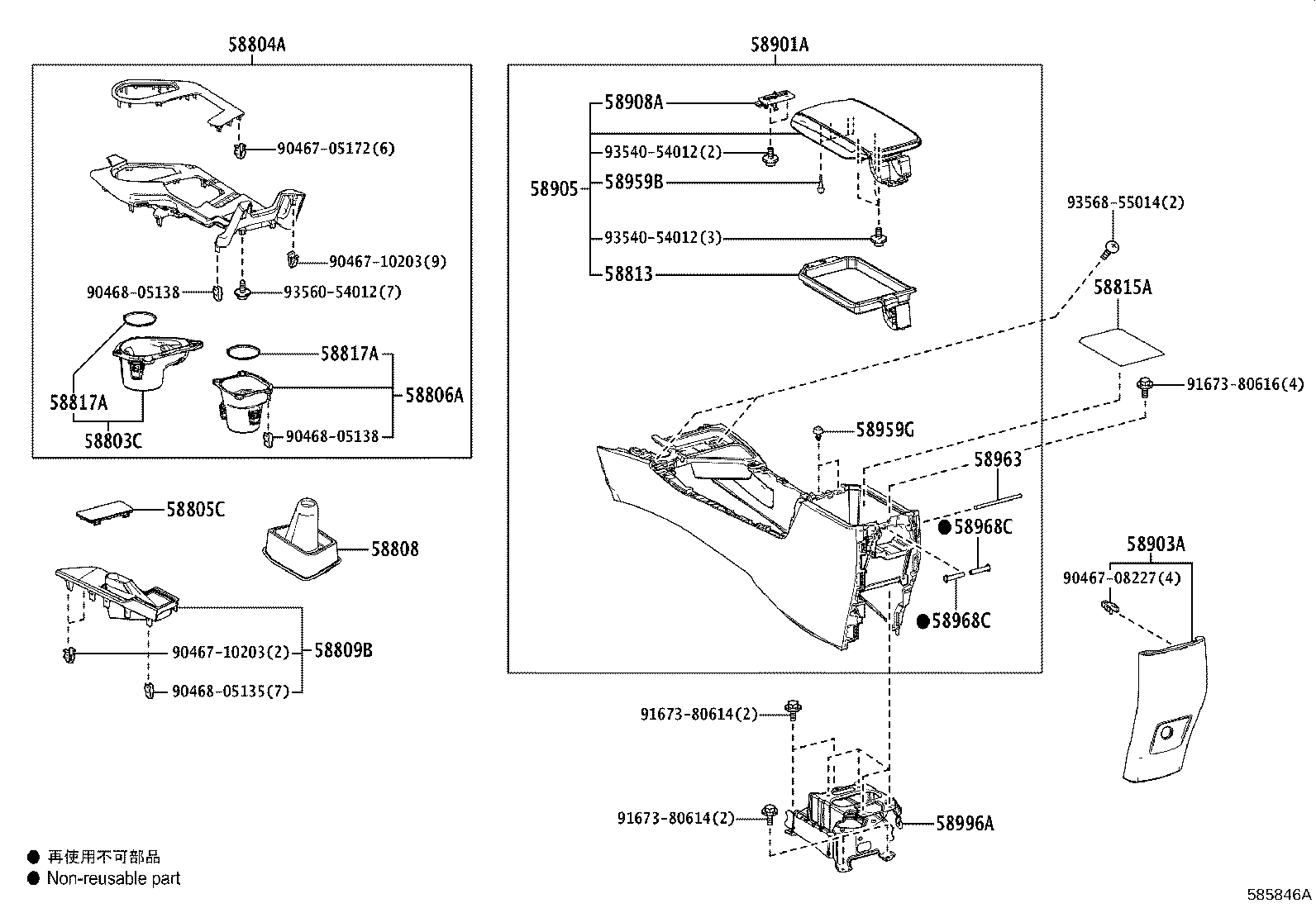

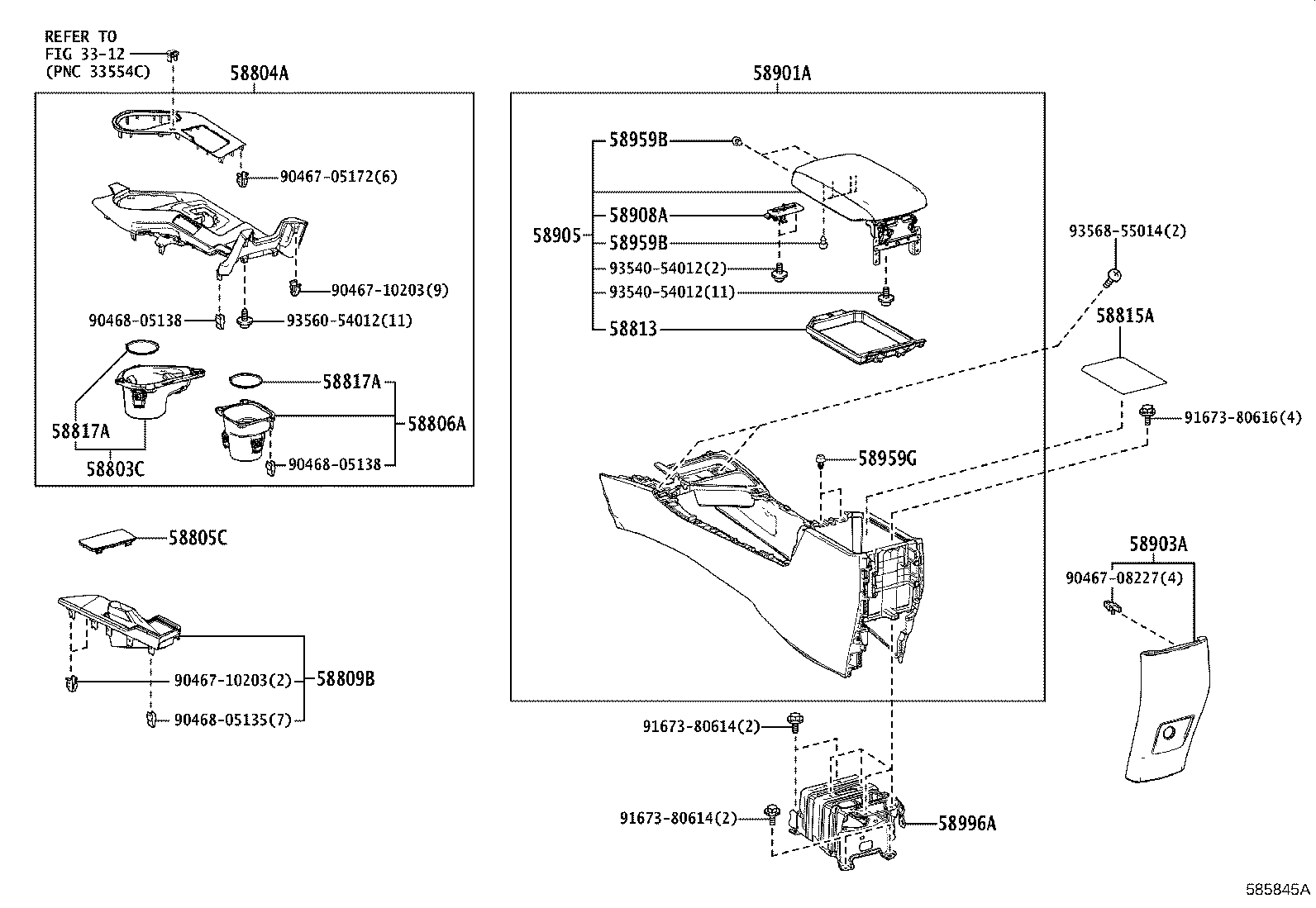

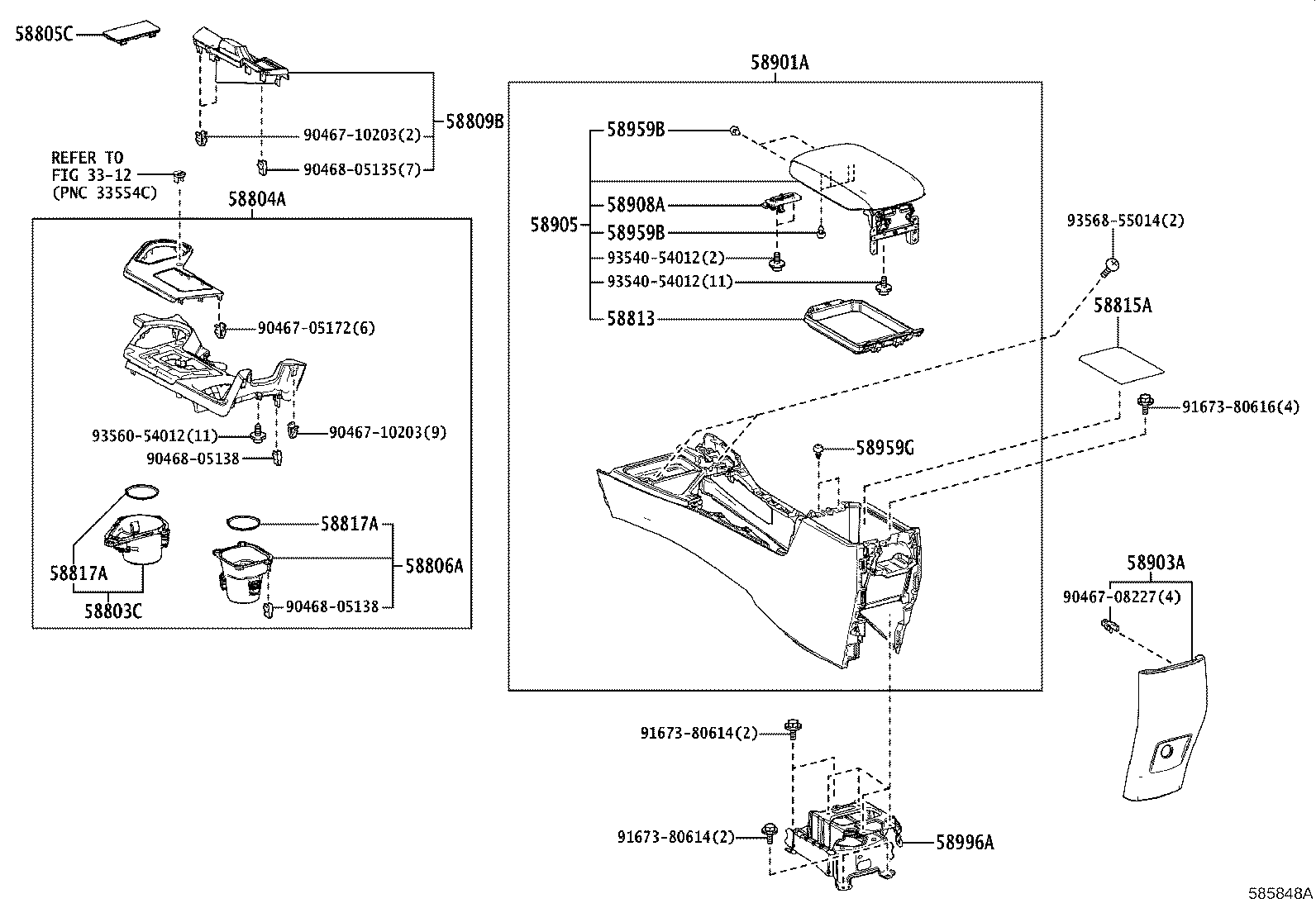

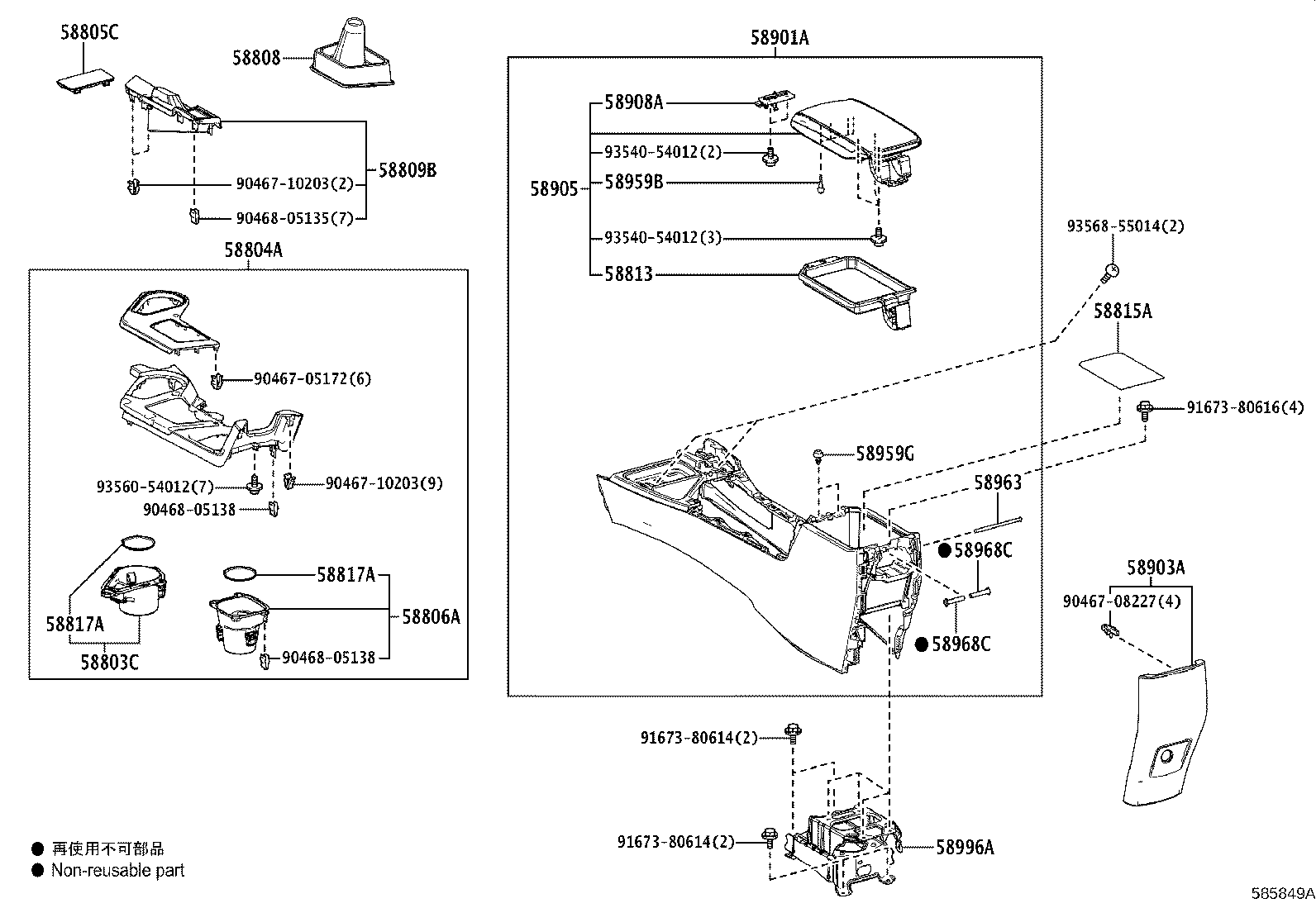

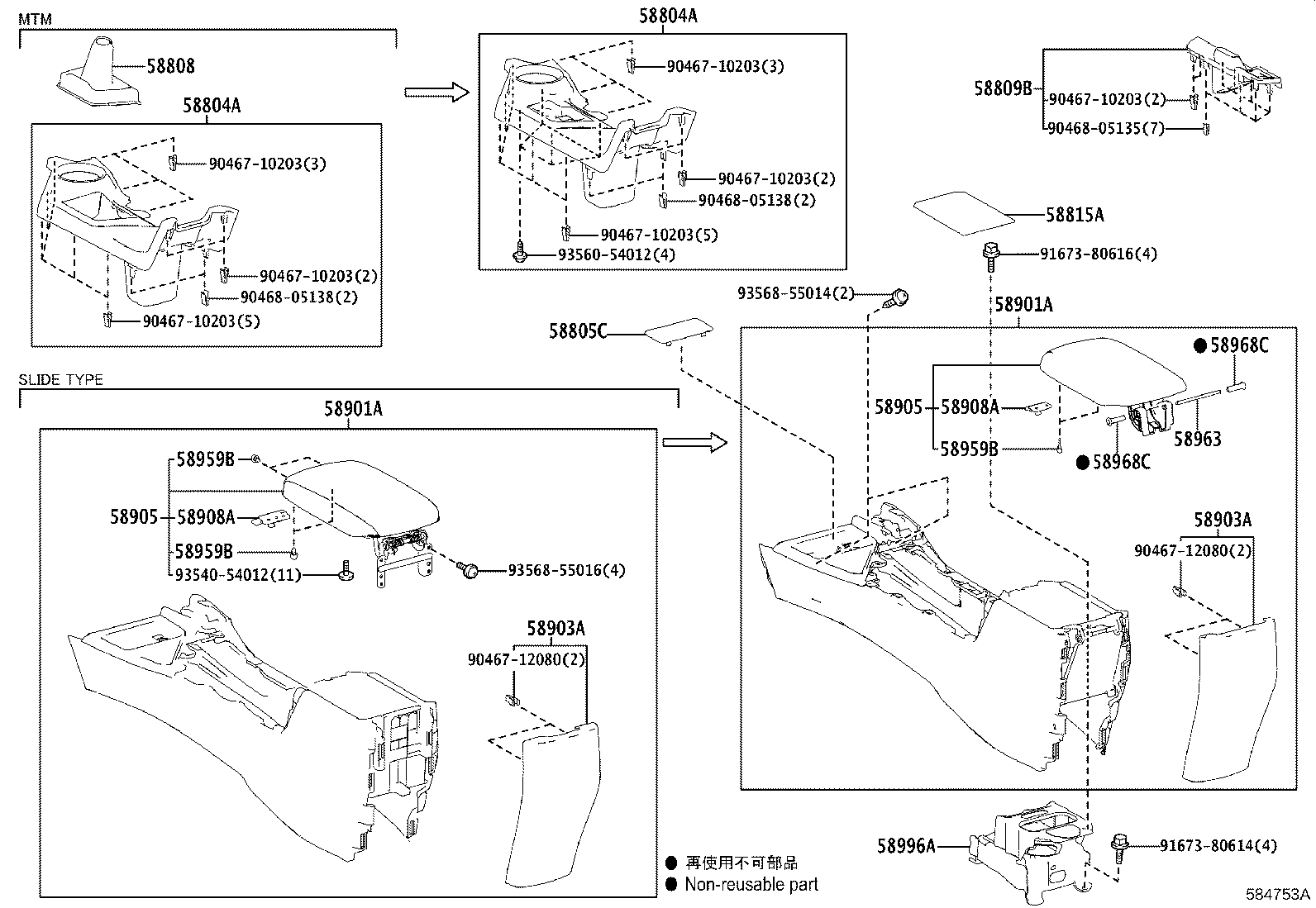

Figure 584755A 584755A 2012-12 → 2015-10 Figure 584753A 584753A 2012-12 → 2015-10 Figure 585844B 585844B 2015-10 → — Figure 585845A 585845A 2015-10 → — Figure 585846A 585846A 2015-10 → — Figure 585847B 585847B 2015-10 → — Figure 585848A 585848A 2015-10 → — Figure 585849A 585849A 2015-10 → —

Part groups

PNCDescription
58803C Box Sub-assy, Console Cup Holder
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58806A Pocket Sub-assy, Console Box
58808 Cover Sub-assy, Shifting Hole
58809B Cover Sub-assy, Parking Brake Hole
58813 Box, Console, Upper
58815A Carpet, Console Box
58817A Insert, Console Box, Front NO.2
58901A Box Sub-assy, Console, Rear
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58959B Cushion, Console Compartment Door
58959G Cushion, Console Compartment Door
58963 Shaft, Console Compartment Door Hinge
58968C Shim, Console Compartment Door Stopper
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
