Toyota RAV4
2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe
Supported model
Data version 2019-09
Roof Panel & Back Panel
45 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63102A | Panel Sub-assy, Windshield Header |
| 63103B | Reinforcement Sub-assy, Roof Panel, Center |
| 63104E | Reinforcement Sub-assy, Roof Panel, Rear |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63146A | Bracket, Roof Panel Reinforcement, NO.1 |
| 63149D | Reinforcement, Roof Panel, NO.8 |
| 63185D | Bracket, Roof Rack, Front |
| 63187A | Bracket, Roof Rack, Rear |

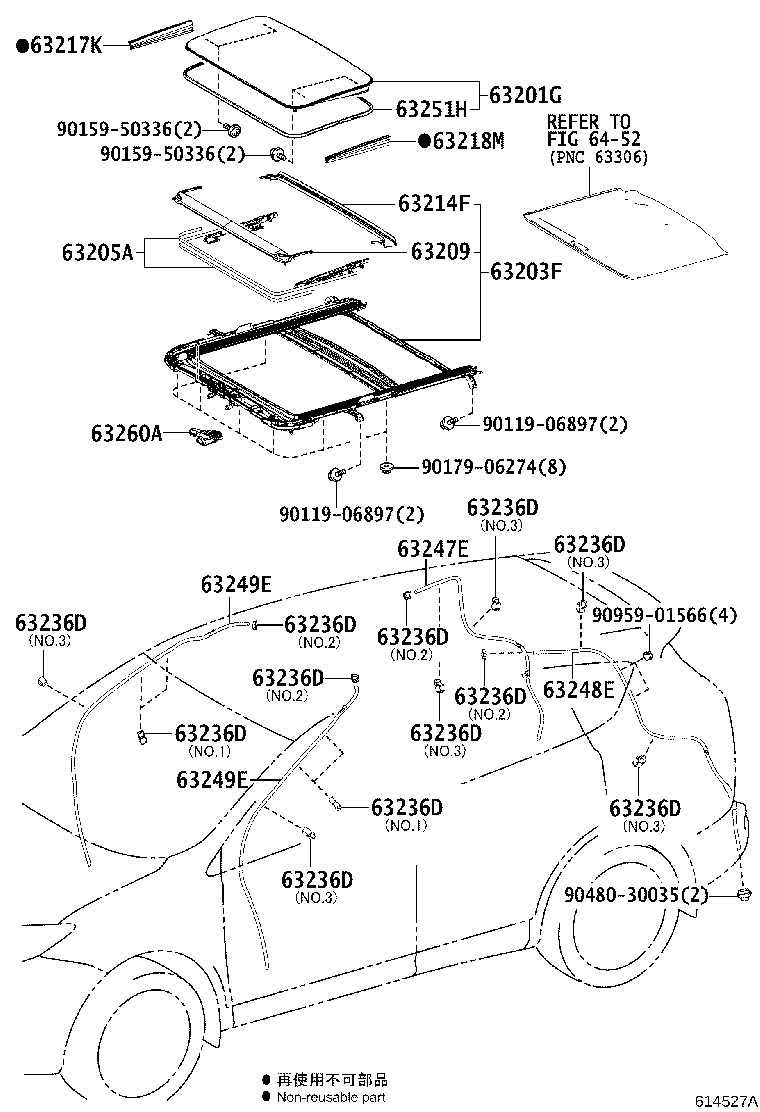

| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63217K | Garnish, Sliding Roof Side, RH |
| 63218M | Garnish, Sliding Roof Side, LH |
| 63230A | Bolt Assy, Removable Roof |
| 63236D | Clamp, Sliding Roof Drain Hose |
| 63247E | Hose, Sliding Roof Drain, Rear RH |
| 63248E | Hose, Sliding Roof Drain, Rear LH |
| 63249E | Hose, Sliding Roof Drain |
| 63251H | Weatherstrip, Sliding Roof |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63437A | Seal, Roof Carrier, NO.2 |
| 63438A | Cover, Roof Rack End, NO.1 |
| 63439 | Cover, Roof Rack End, NO.2 |
| 63460A | Rack Assy, Roof, RH |
| 63470B | Rack Assy, Roof, LH |
| 63479 | Retainer, Roof Inner Rack |
| 63486A | Cushion, Roof Rack Leg, Front RH |
| 63487A | Cushion, Roof Rack Leg, Front LH |
| 63488 | Cushion, Roof Rack Leg, Rear RH |
| 63489 | Cushion, Roof Rack Leg, Rear LH |
| 63491 | Cover, Roof Rack Leg, Front RH |
| 63492 | Cover, Roof Rack Leg, Front LH |
| 63493 | Cover, Roof Rack Leg, Rear RH |
| 63494 | Cover, Roof Rack Leg, Rear LH |
| 63495C | Cover, Roof Rack Lower, Front RH |
| 63496B | Cover, Roof Rack Lower, Front LH |
| 63497 | Cover, Roof Rack Lower, Rear RH |
| 63498D | Cover, Roof Rack Lower, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
