Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

34 part groups · 8 illustrations

Illustrations

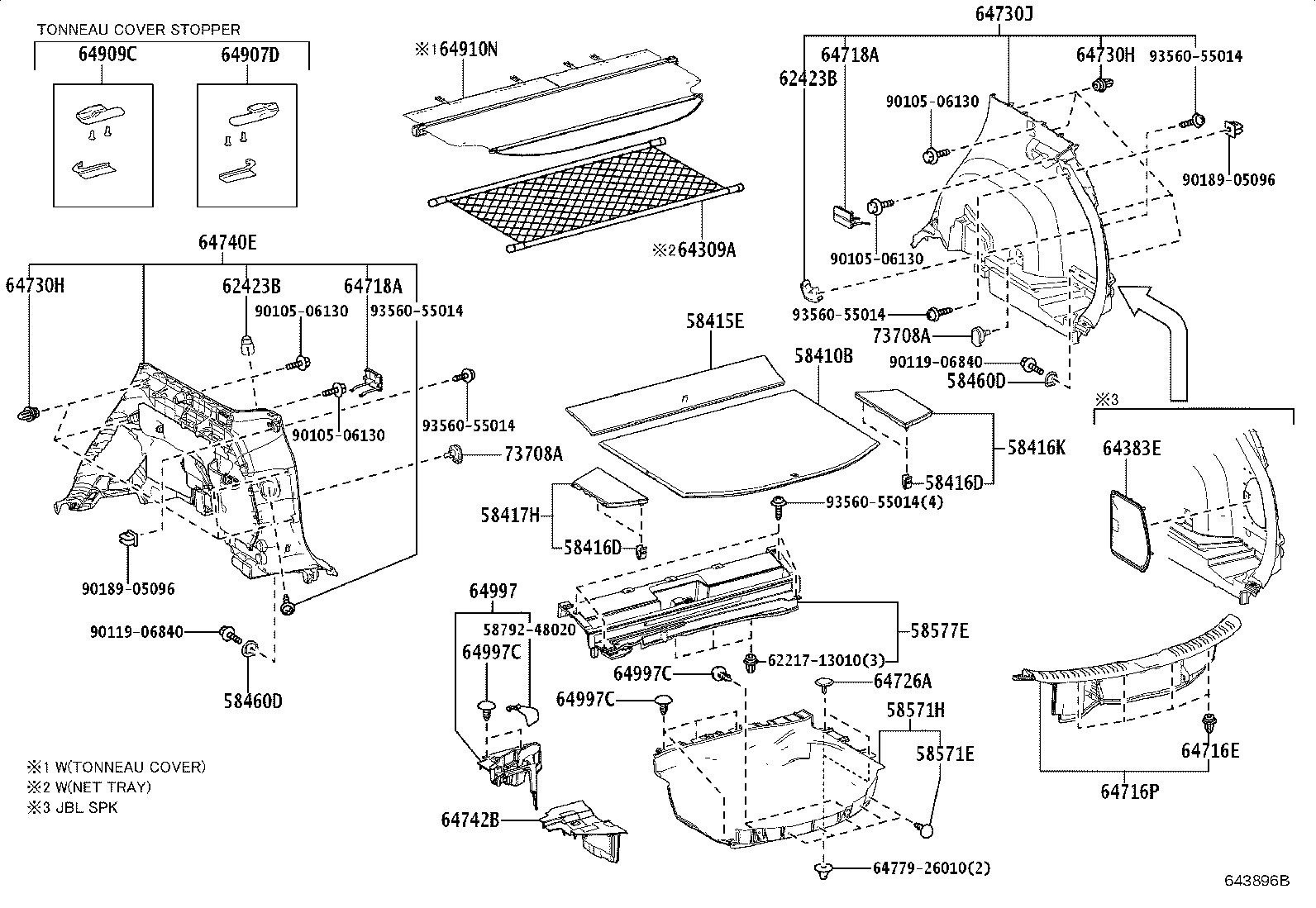

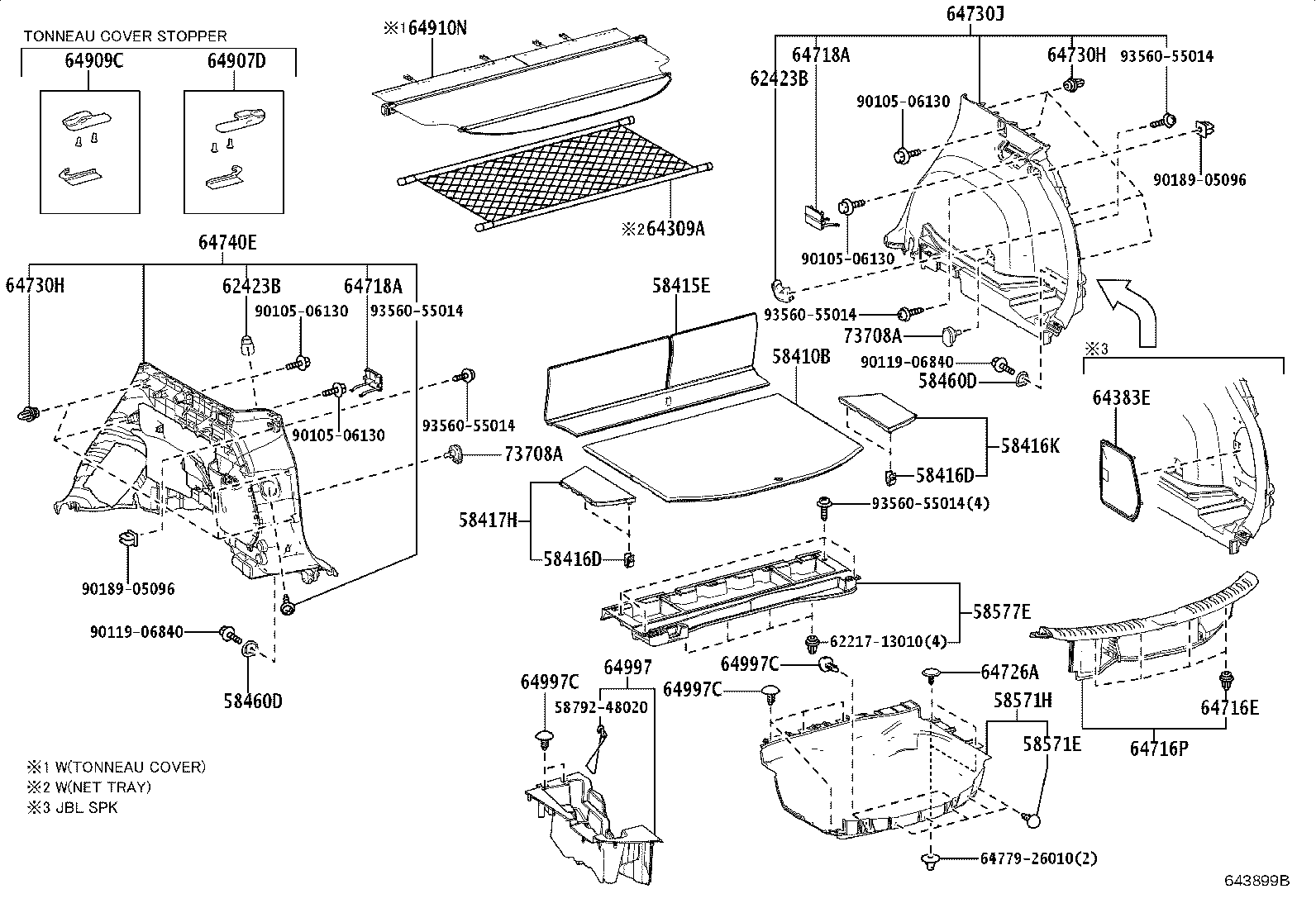

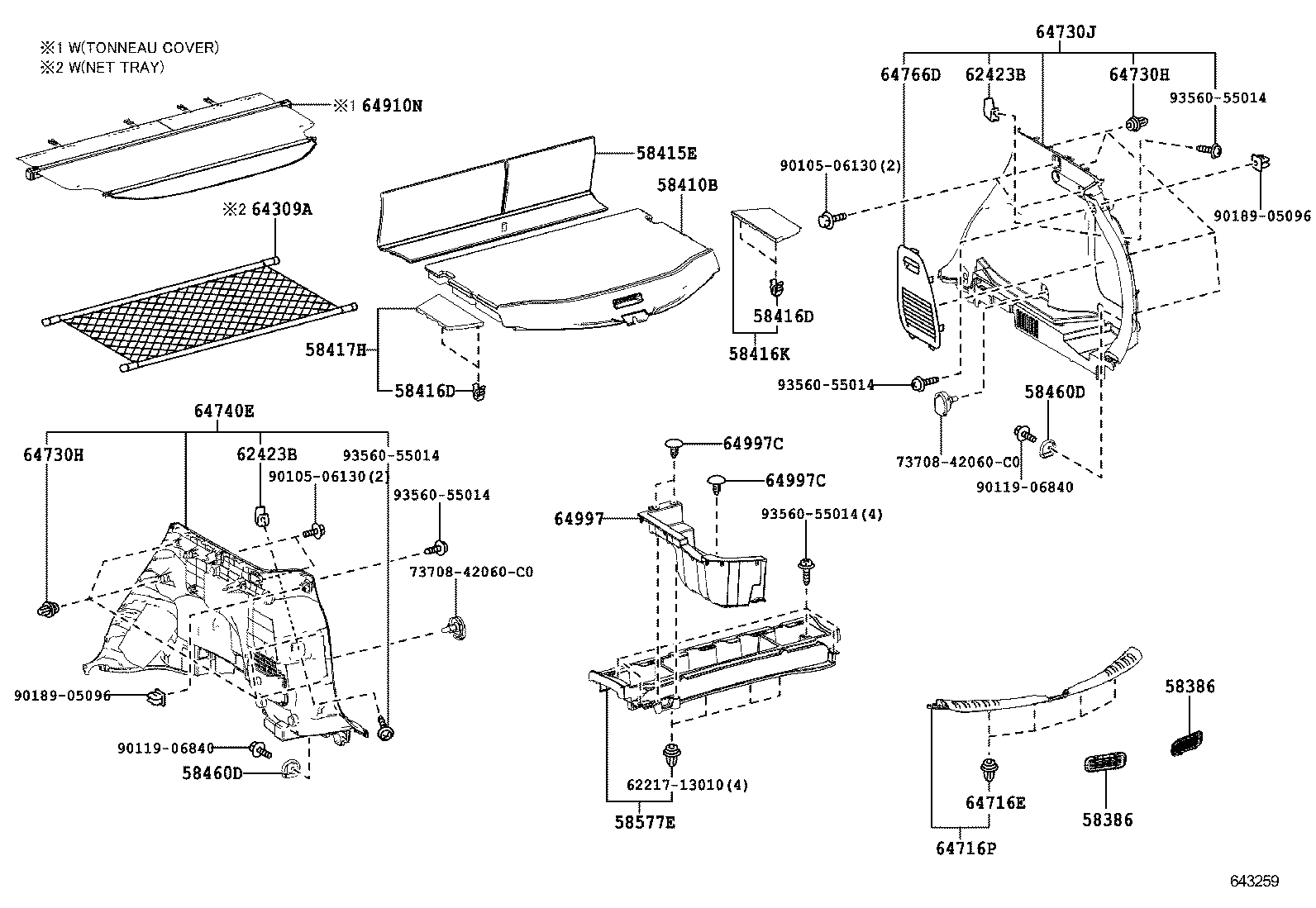

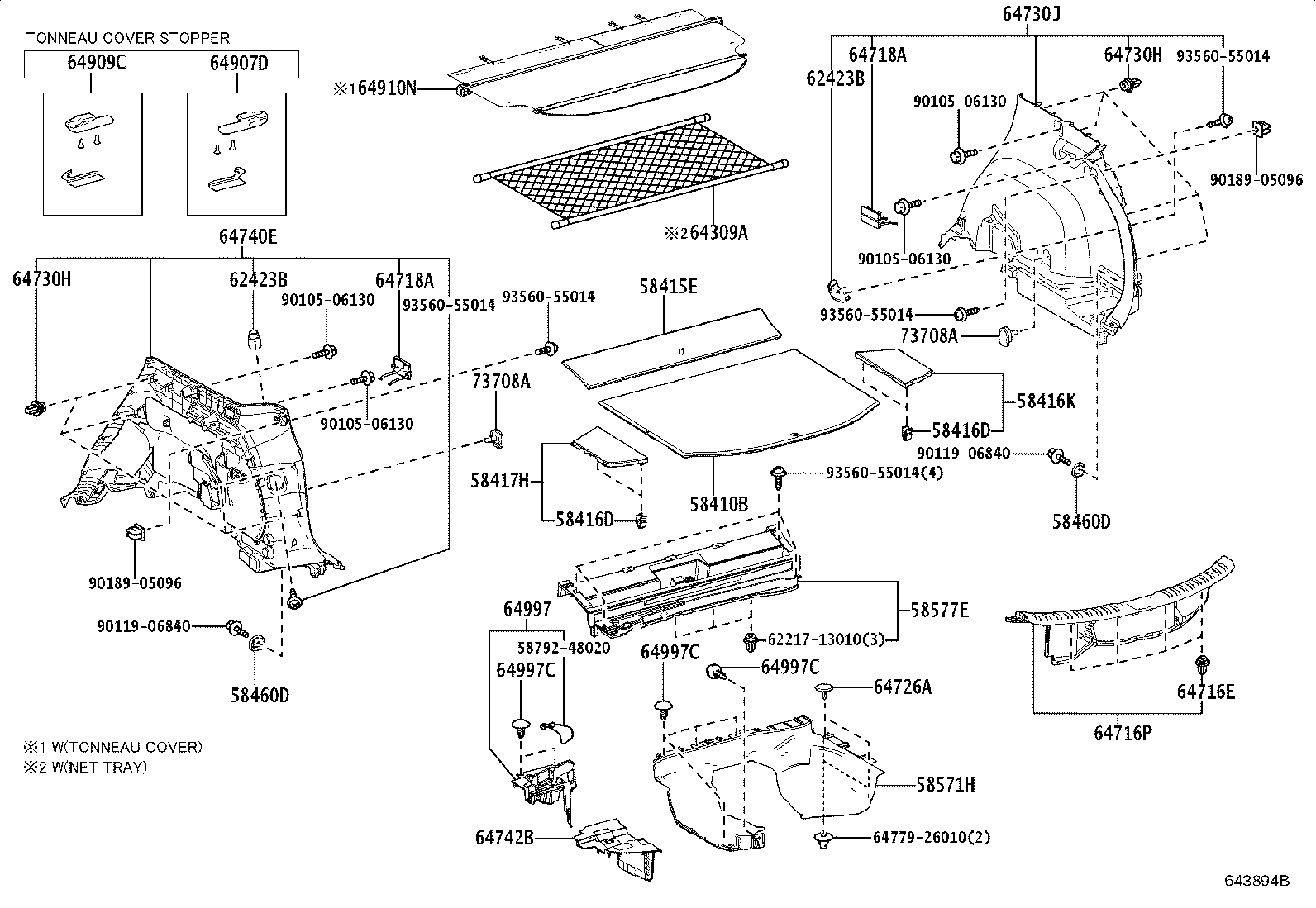

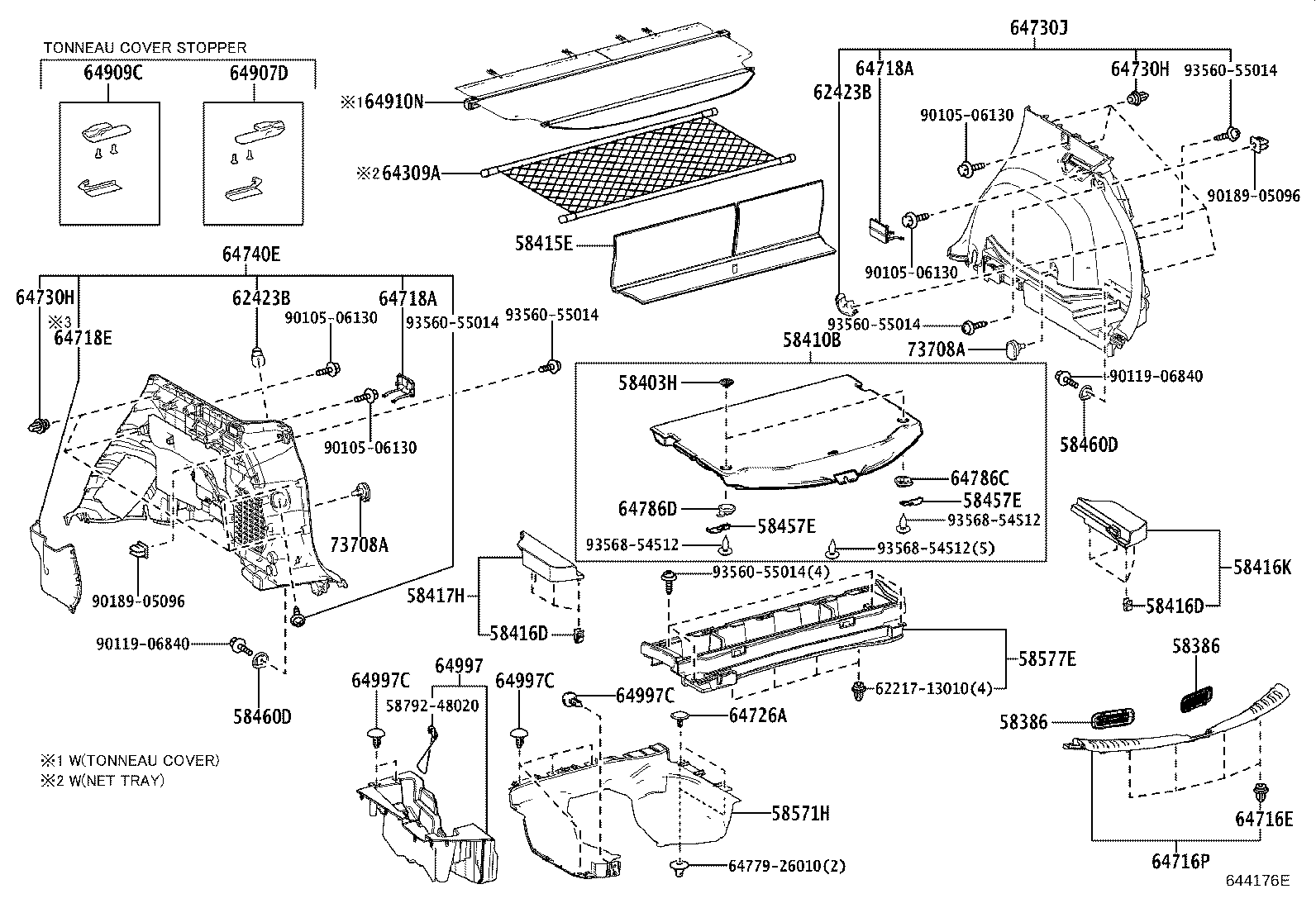

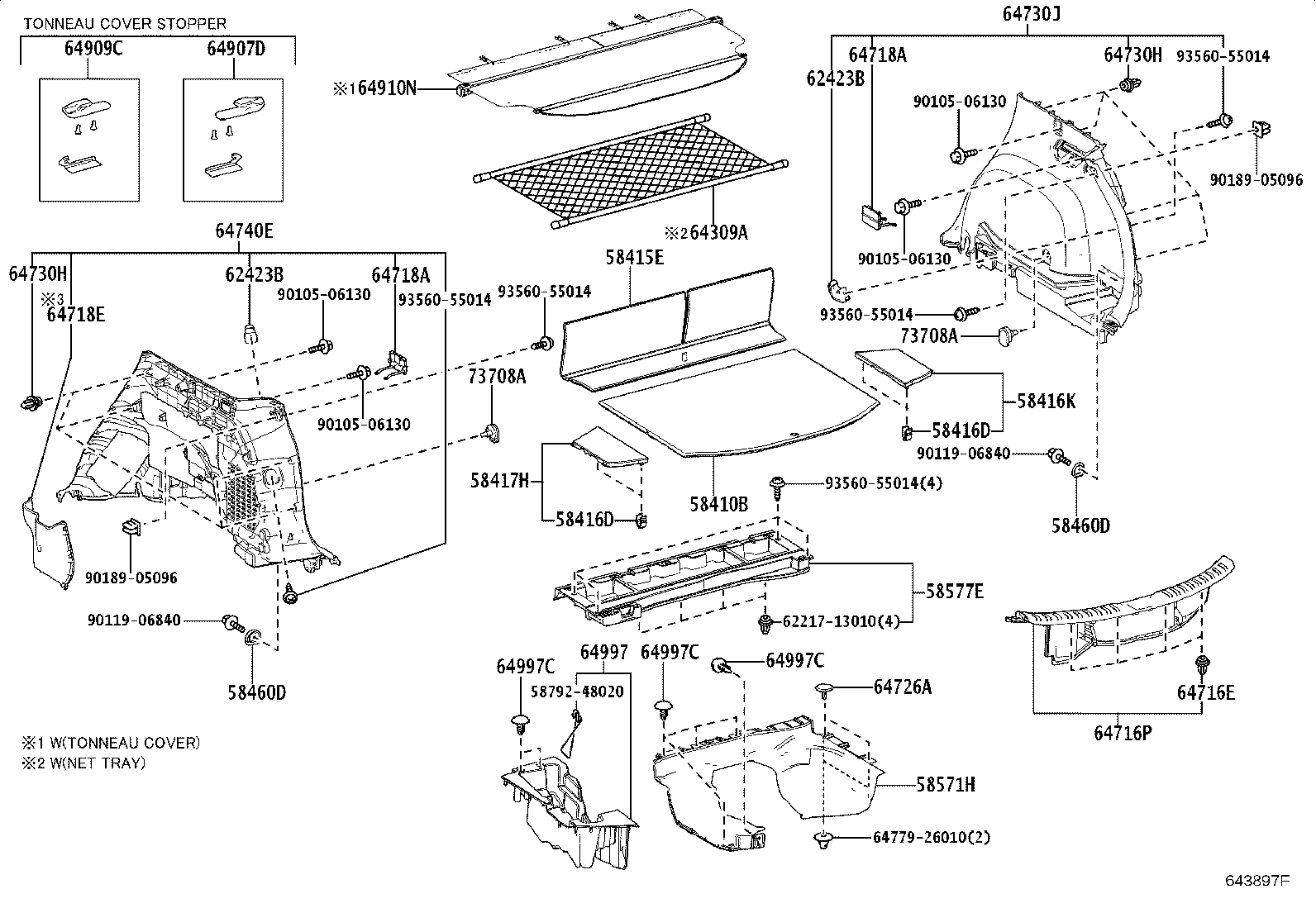

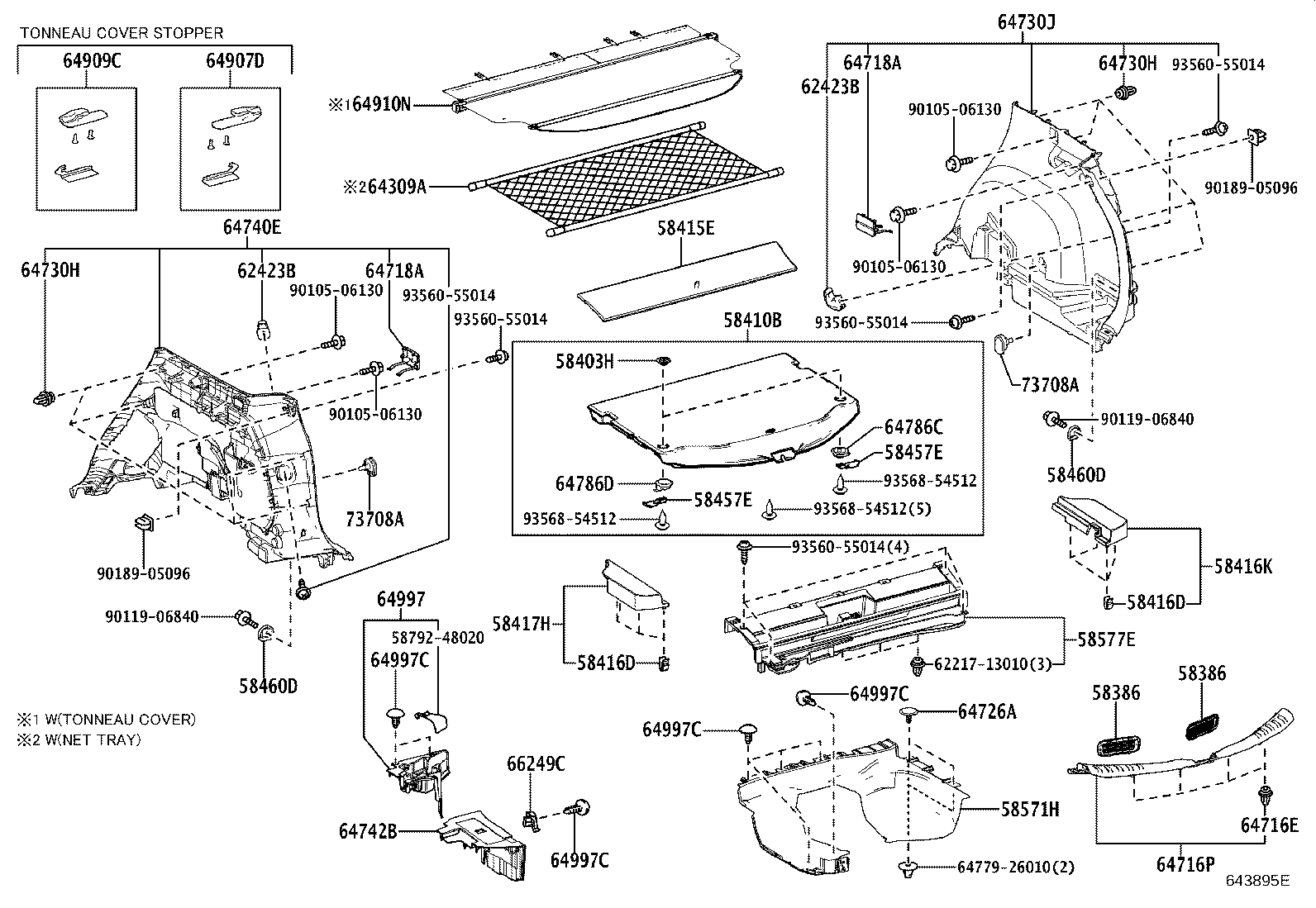

Figure 643260A 643260A 2012-12 → 2015-10 Figure 643259 643259 2012-12 → 2015-10 Figure 643897F 643897F 2015-10 → — Figure 644176E 644176E 2015-10 → — Figure 643899B 643899B 2015-10 → — Figure 643894B 643894B 2015-10 → — Figure 643895E 643895E 2015-10 → — Figure 643896B 643896B 2015-10 → —

Part groups

PNCDescription
58386 Plate, Rear Floor Finish
58403H Spacer, Deck Board Lock
58410B Board Assy, Deck
58415E Board, Rear Floor, NO.1
58416D Clip, Rear Floor Board
58416K Board, Rear Floor, NO.2
58417H Board, Rear Floor, NO.3
58457E Bracket, Deck Board, Rear
58460D Striker Assy, Luggage Hold Belt
58571E Clip, Rear Floor Carpet
58571H Carpet, Rear Floor
58577E Plate, Rear Floor Mat Support Side, NO.1
62423B Hook, Side Window Garnish
64309A Pocket Sub-assy, Package Tray Trim
64383E Grille, Rear Speaker RH
64716E Clip(FOR DECK TRIM REAR COVER)
64716P Cover, Deck Trim, Rear
64718A Cover, Deck Trim Service Hole
64718E Cover, Deck Trim Service Hole, NO.2
64726A Clip, Luggage Trim, Rear
64730H Clip(FOR DECK TRIM SIDE PANEL)
64730J Panel Assy, Deck Trim Side, RH
64740E Panel Assy, Deck Trim Side, LH
64742B Base, Deck Trim Side Cover, LH
64766D Cover, Deck Side Trim Jack
64786C Plate, Jack Cover
64786D Plate, Jack Cover, NO.2
64907D Stopper Sub-assy, Tonneau Cover, RH
64909C Stopper Sub-assy, Tonneau Cover, LH
64910N Cover Assy, Tonneau
64997 Box, Deck Floor, LH
64997C Clip(FOR DECK FLOOR BOX)
66249C Cover, Rear Body Floor Side, LH
73708A Bracket Set, Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
